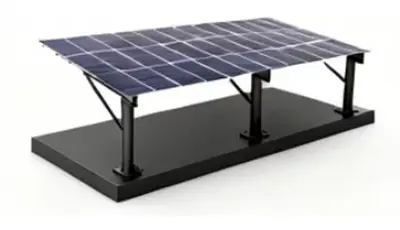

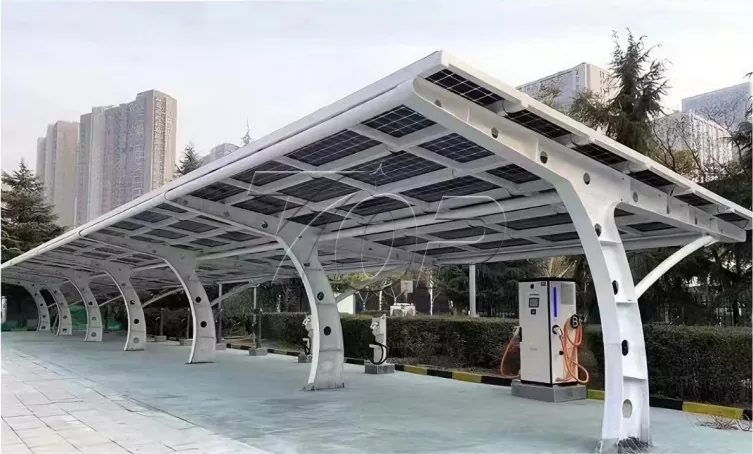

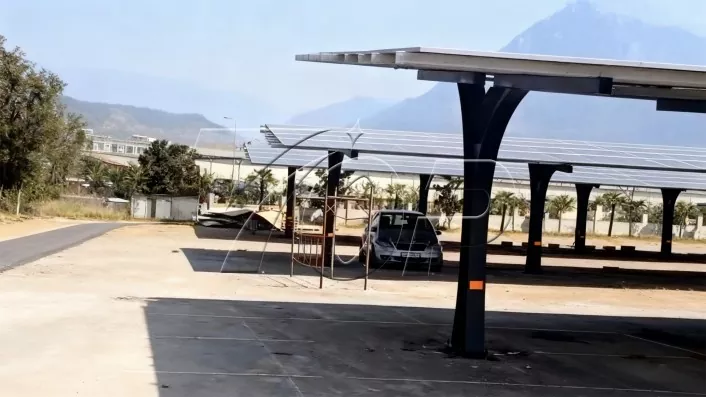

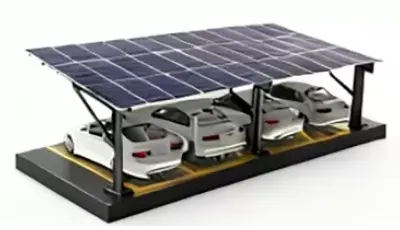

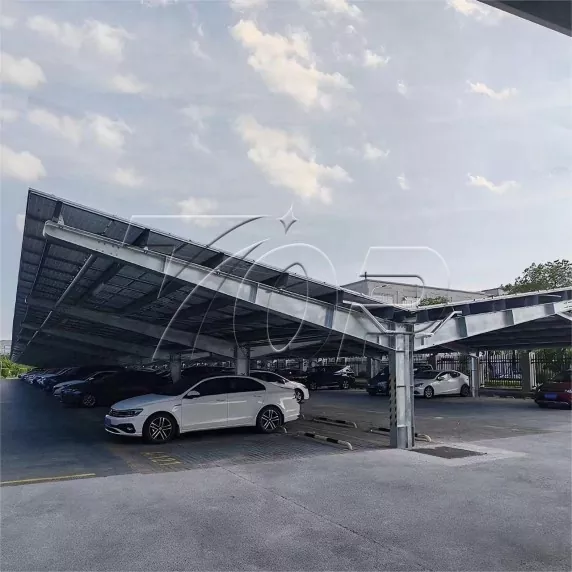

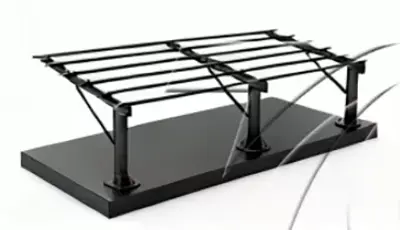

Photovoltaic Carport
1.Photovoltaic Carport manufacture by Topfencesolar can well provide electricity for vehicles on the basis of the existing parking lot, while also offering shade and rain protection for them. We not only have carbon steel materials but also aluminum alloy materials, which can meet the needs of different customers. Carbon steel is relatively hard and has excellent stability. Aluminum alloy material is relatively lightweight and easy to install. There are also waterproof and non-waterproof options, which can be customized according to the needs of different customers.
2.We use Q235 carbon steel material, and the surface treatment is hot-dip galvanizing, which has good anti-corrosion performance and can perform well outdoors. It can be used by individuals as well as in one's own yard. Commercial facilities can also be built in parking lots.
|
1. Brand Name |
2. Topfencesolar |
|
3. Product Name |
4. Solar carbon steel carport mounting system |
|
5. Surface Treatment |
6. Hot dip galvanizing |
|
7. Material |
8. Aluminum, Carbon Steel |
|
9. Function |
10. Waterproof or non-waterproof |
|
11. Installation foundation |
12. Concrete base or screw foundation |
|
13. Color |
14. Silver |
Features & Benefits
1. Carbon steel has excellent durability and high strength.
2. Different solar carports can be designed according to the different sizes of parking lots.
3. It provides sunshade and rain protection for the vehicle.
4. It has fewer parts, is easier to install and saves labor costs
How to install the solar carport?
Installation Guide below:
|
|
|
|
Ground screw mounting |

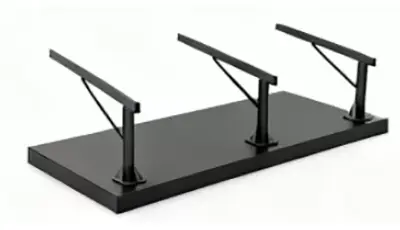

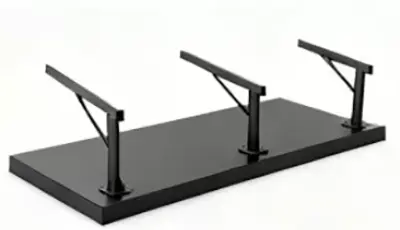

Pre-assembled bracket mounting |
|
|
|
|
Rooftop Rails mounting |

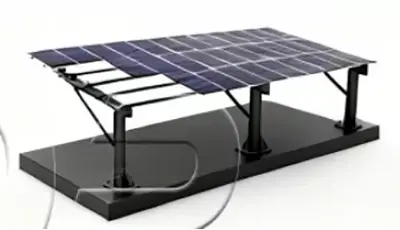

Solar panels laying on and fastening |
|
|
|
|
Fix the panels with clamps |
Finishing installation well for packing |
Before quote we need:
1. solar panels Dimensions : _________ (length * width * thickness)
2. Your panel wattage: ___wattage (like 550wp)
3. How many solar panels? ______ pcs.
4. What is the panel angle? :_______ degrees.
5.Could you provide us with the layout of the solar panel array? If not, please tell us the size (length and width) of the site you are installing?
6. What is the minimum height from the solar panel to the ground? _ millimeters
7. What is the installation direction of the solar panels? _______ (horizontal or vertical).
8. What are the wind speed and snow load? _m/s anti wind speed and _KN/m ² snow load.
9. What kind of foundation does your ground installation system require? ______ (ground screws/concrete/piles/poles)
- View as
Turnkey Solar Carport Solution Kit
The Turnkey Solar Carport Solution Kit provides a fully integrated PV system with pre-matched carbon steel structures, Tier 1 solar modules, string inverters, and complete electrical schematics, enabling rapid deployment of ready-to-install solar infrastructure while simplifying procurement and project approvals for commercial and municipal sites.
Solar Carport Structures
As an innovative manufacturer and supplier of solar carport structures in China, Xiamen Topfencesolar has developed a cutting edge energy conservation and emission reduction solution for car parking lots. Our customized PV carports convert solar energy into electricity, not only providing shade and protection for vehicles but also reducing reliance on traditional fossil fuels through the utilization of clean solar power.
Brand Name:Topfencesolar
Product Material:Aluminum AL 6005 -T5/T6, HDG Steel, ZAM
Product Function:Solar carport system
Service Life:≥25 years
Solar PV Carport
Solar PV Carport is a new kind of product from Topfencesolar Energy,It combines solar power technology with traditional carport designs.We have choices for one car or more. It provides shade and makes power. It is flexible, low cost, and easy to use.
Product Name:Solar Pv Carport
Product Material:Hot-dip Galvanized Steel/Aluminum Alloy
Install Site:Open Terrain
Service Life:25 years
Solar Steel Carport Structures
In China, Topfencesolar Solar steel Carport Structures is a really sturdy and durable solar parking solution. It not only provides shade and rain protection for vehicles but also serves the function of power generation. This solar carport is made of the high strength carbon steel, providing a stable and durable frame for installing solar panels.
Product Brand:Topfencesolar
Product Material:Q235B
PV panel orientation:Portait or Vertical
Warranty:10 years
Product Brand:Topfencesolar
Product Material:Q235B
PV panel orientation:Portait or Vertical
Warranty:10 years
As a reliable Photovoltaic Carport manufacturer and supplier in China, we have our factory. To get the price list of customized products, please contact us.
