High Quality Hanger Bolt Made in China

Hanger Bolt for solar structures mounting, produced by Topfencesolar in Xiamen bolt production city of China. Composed of main three parts below.

Description:

Item	Material	Size	Quantity	Unit Weight
M10 bolt	SUS304	M10*200	1	0.085
M10 flange nut	SUS304	M101510	3	0.011
Rubber pad	EPDM	M10*200	1	0.05

Product name: Solar Panel Bolts

Material: SUS304/316

Anti-rust: High performance of it

Installation Site: on Rooftops

Color: Natural or Customized

Function: Solar Panel Fasteners of structure

Pre-assemble before shipment

Solar panel bolts are the optimized structure option, no need complex installation. It makes the solar panel structure mounting be simplified and more effective to offer the reliable supporting to PV modules.

The loading capacity:

Max Wind Load: Max. Up to 60 m/s

Max Snow Load: Max. Up to 1.4 KN / m2

Suitable applications of roof sites: corrugated metal roof, trapezoidal roof, sandwich metal roof, tin roof, etc.

More Dimensions:

Picture	Specification
	M10X 150mm
	M10X 200mm
	M10X250mm
	M10X 300mm More…

Using Methods:

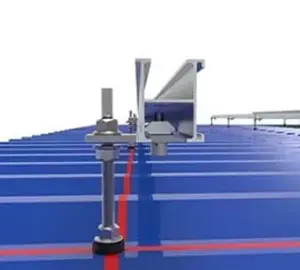

The solar hanger bolt is used in conjunction with L-feet mount kit for fastening solar rails with Mid-clamps and End-clamps.

Introduction manual

(1) Measure the roof and pre-drill mounting cavity position on metal beam or wood rafter.

(2) Screw the bolts into the pre-drilled holes and make sure the EPDM plate be tightly connected on the roof on purpose of eliminating water leakage risk.

(3) Adjusting the height for finally setting the panel high over rooftop, then fastening the locking nuts.

(4) Mount the L-feet block on its top and screw M10 flange nuts tightly.

(5) Connecting solar rails with rail connectors, mounting it on L-feet kits.

(7) Mount the solar panels on the structure with Mid and End Solar Panel Clamps to complete the entire roof paving.

View as

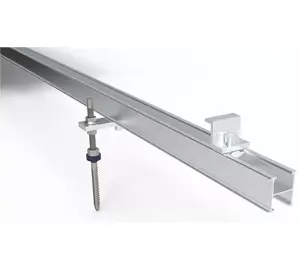

Wood Thread Hanger Bolt for Solar Mounting

As a professional manufacturer and supplier in China, The two heads Wood Thread Hanger Bolt for Solar Mounting designed from Xiamen Topfencesolar used to fasten solar rails on wooden or steel beams instead of hooks or cliplock clamps mounting. Making the solar panels mounting be easy and fast. It is suitable for corrugated and trapezoidal metal roofs of residential or commercial buildings, using areas such as in Germany, Poland, etc. Europe and Asian countries market.
Brand Name:Topfencesolar
Product Material:SUS304
Product Function:Mounting rails on the wooden/metal roof
Service Life:≥25 years

View More >> Send Inquiry >>

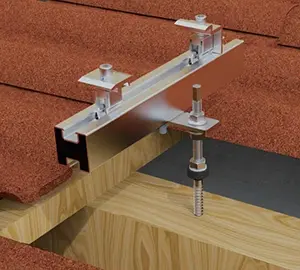

Hanger Bolts for Solar Panels

As a professional manufacturer, Topfencesolar, the Hanger Bolts for Solar Panels we designed are a component in the rooftop solar installation system. It is suitable for both metal roofs and tiled roofs. If you are interested, please send an inquiry.
Product brand:Topfencesolar
Product material:Stainless steel
Product function:Rooftop solar support
Service life:≥25 years

View More >> Send Inquiry >>

Hanger Bolt for Solar Roof Mounting

Stainless steel 304 Hanger Bolt for Solar Roof Mounting produced by Xiamen Topfencesolar is kind of stud bolt that one end is threaded for wood beam or metal longitudinal beam, while the other end has machine threads that could accommodate nuts and other fasteners. The pre-assembled design simplifies installation and reduces labor costs for fast solar installation.
Brand Name:Topfencesolar
Product Material:Stainless steel
Product Function:Wooden/Steel beams/purlins mounting
Service Life:≥25 years

View More >> Send Inquiry >>

As a reliable Hanger Bolt manufacturer and supplier in China, we have our factory. To get the price list of customized products, please contact us.
