Products

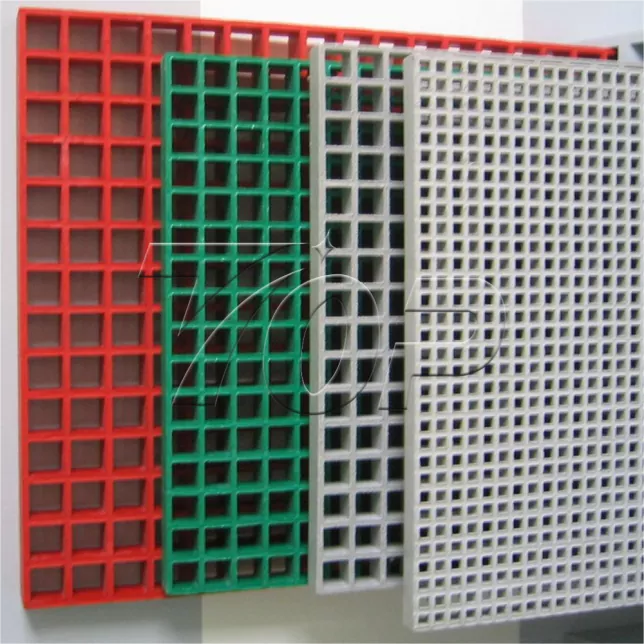

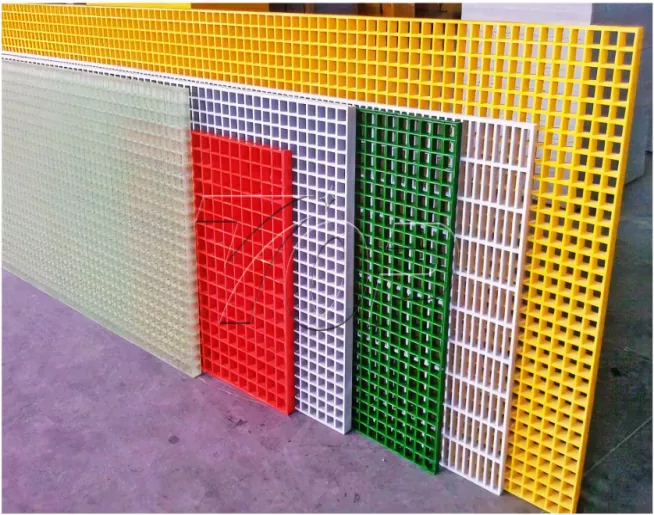

Fiberglass Grating

Topfencesolar Fiberglass Grating is widely used in rooftop solar systems. It is very light in weight, reducing the weighing pressure on rooftop photovoltaic solar panels. Moreover, compared with other materials, it also has excellent UV resistance. It has excellent anti-slip performance. It provides great convenience for the subsequent maintenance of the rooftop photovoltaic system and has low maintenance costs in the later stage. Its price is really lower than most of other materials, so it is very cost-effective. It is especially suitable for environments like deserts and coastal areas.

Its size can be constantly adjusted according to the customer's requirements. There are different colors to choose from, including yellow, green and gray, to meet the preferences of different customers. The size can be cut freely. Whether smooth or raised, it can be operated on the spot according to the customer's needs, with very high flexibility.


1. It is light in weight, has a strong load-bearing capacity, is elastic and not so easy to break.

2. It is UV-resistant and has excellent anti-slip properties

3. The size is really flexible and diverse of the FRP walkway, and it is also convenient for our customers to cut on site.

4. The color can be customized to meet the needs of different customers, like, red, blue, green,white and etc..

5. The structure is relatively simple, the construction is easy, and it saves time and labor costs.

6. Solar rooftop FRP Walkway has Long service life

Dimension details:

FRP Grating

Height of FRP(MM)

Single Unit size (mm*mm)

Length*Width

(mm)

Top width of FRP(MM)

Bottom width of FRP(MM)

Open rate(mm)

Whole plate weight (kg)



40

40*40

1007*3007

7

5

64

60

30

20*20

1007*4047

6.5

5

40

65

25

100*25

1007*3007

6.5

5.5

66

35

25

40*40

1007*3007

6.5

5

64

33

25

38*38

1220*3660

6.4

5

69

52

38

38*38

1220*3660

7

5

69

85

50

50*50

1220*3660

8

6

72

100

15

50*50

1220*3660

6.4

5

72

25

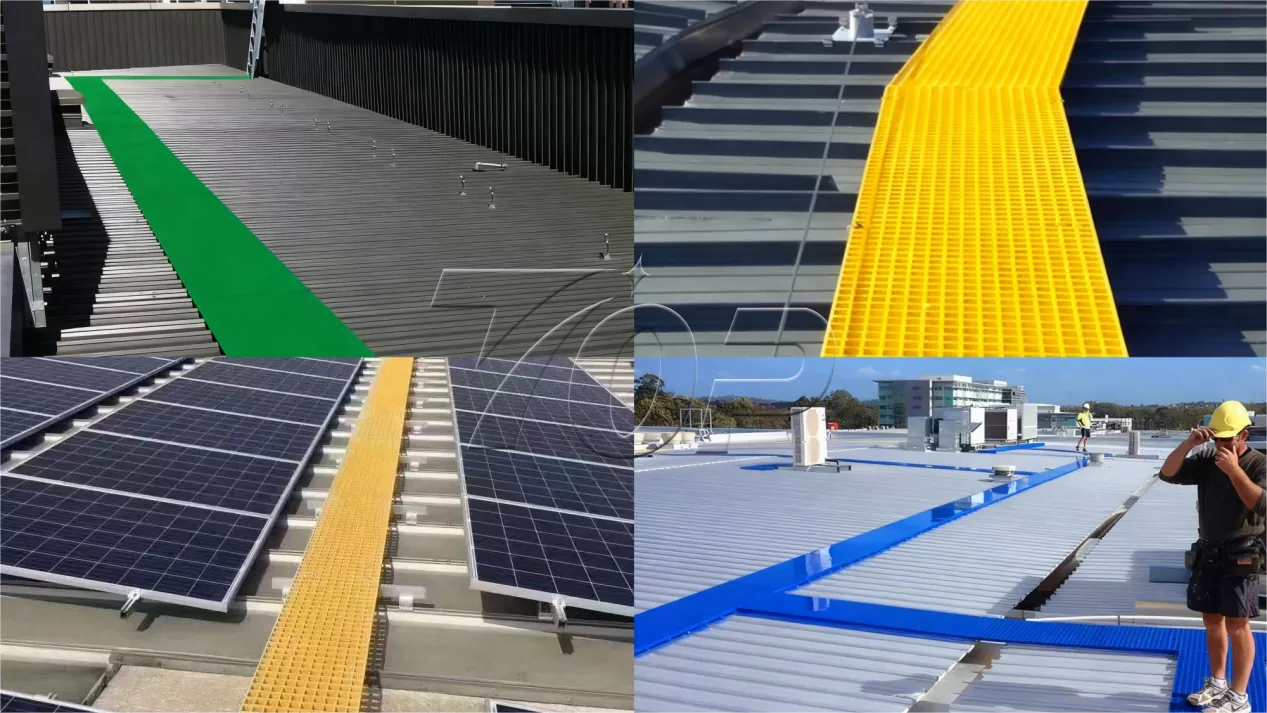

Application cases

View as

GRP Grating

GRP Grating

Compared with traditional metal sidewalks, Grp Grating can reduce the weight by about 30% -50%, minimizing labor and material costs during transportation and installation. At the same time, it also has a higher load capacity to meet the passage of staff and ensure the stability of the structure during long-term use.
Fiberglass has extremely strong corrosion resistance, greatly extending its service life, reducing maintenance costs, and can operate stably in extremely short environments.
Brand Name:Topfencesolar
Product Material:Fiberglass
Product Function:Safe path
Service Life:≥20 years
Molded Fiberglass Grating

Molded Fiberglass Grating

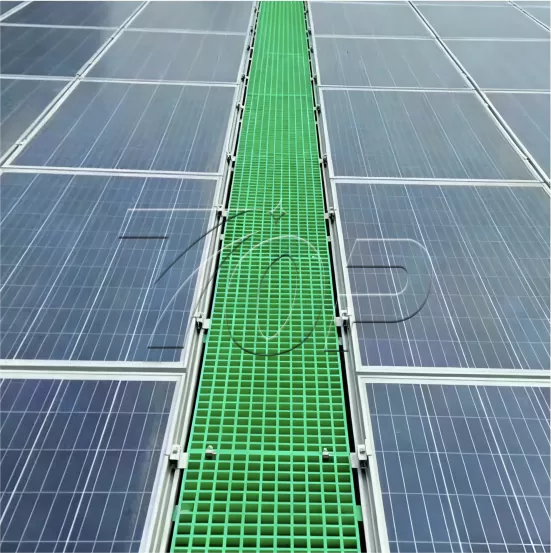

The Molded Fiberglass Grating designed and produced by Topfencesolar is lightweight and has high-performance corrosion resistance. It weighs only a quarter of ordinary steel, significantly reducing the load-bearing pressure on the roof. In today's solar energy project sites, this type of grid walkway is widely used as a solar panel inspection channel, rooftop solar stations, and large ground solar power plants.
Brand Name:TopFence
Product Material:Molded Fiberglass Grating
Product Function:Maintenance channel
Service Life:≥25 years
FRP Grating Walkway Fiberglass

FRP Grating Walkway Fiberglass

FRP Grating Walkway Fiberglass is a new type of walkway developed specifically for rooftop solar systems. Made primarily of fiberglass or carbon fiber, it overcomes the heavy weight and complex installation issues of traditional metal walkways in rooftop photovoltaic systems. Currently, FRP walkways have become a key component of photovoltaic systems.
Brand:Topfencesolar
Product Material:Fiberglass, Resin, Calcium powder, Phosphor powder
Application:Roof walkway
Service Life:25 years
As a reliable Fiberglass Grating manufacturer and supplier in China, we have our factory. To get the price list of customized products, please contact us.
