High Quality and Durable Solar Panel Roof Mounts Supplier
Topfencesolar is leading R&D and designing of solar panel roof mounts systems. We are professionally offering one-stop solar solutions. Our systems are including Flat Roof Solar Panel Mounting, Metal roof mounting system, Ground solar mounting system, carport solar system, BIPV solar roof system, and agrivoltaics solar system.
Building a solar power station directly on the rooftop of existing buildings, and there is no need to occupy additional land. It is a popular urban energy transformation solution at nowadays. Roof solar system is well combining solar structures and roof being a complete and integrated structures.
What kind of roofs could be installed with solar panels?
Roof category:
|
Tile Roof |
Metal Roof |
Asphalt Roof |
Concrete Roof |
|
|
|
|
|
Metal roofs such as Standing seam roof, corrugate plate, etc.
Pitched tile roof bottom with wooden beam
Pitched or flat asphalt roof
Cementing type concrete roof
More categories…
1. For metal roof, measure the roof size. the system is designed based on your existing roof size details as below.
2. Topfencesolar engineer team will match the best solution for the roofs accordingly.

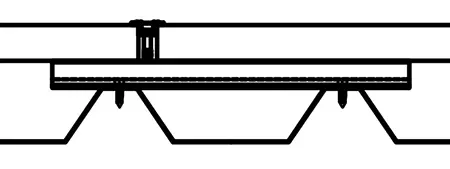

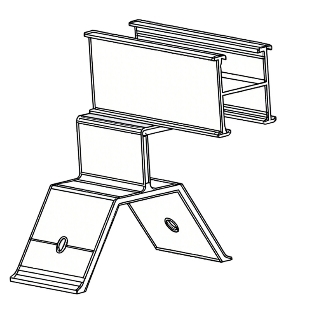

a. The metal roof choosing roof clamps with H rails optimized system, easy and fast installation.

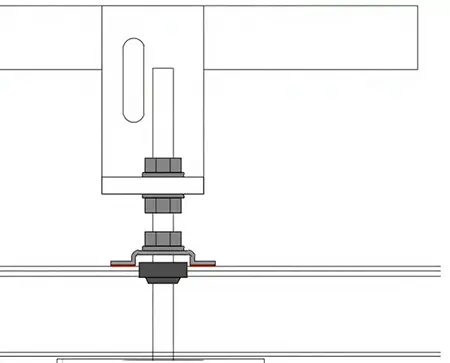

b. L-feet with bolts system for the corrugate metal roof.
c. Mini Rail system optimized the structure to make the loading weight smallest.

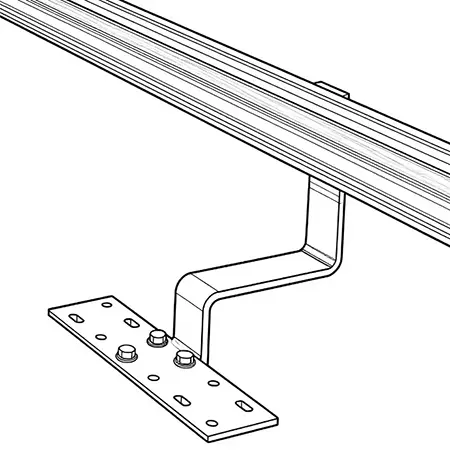

d. Tile roofs, we could choose using roof hook /two heads bolts + rail system.

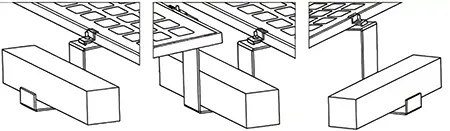

e. Flat roof mostly applied the ballast system or tripod design.

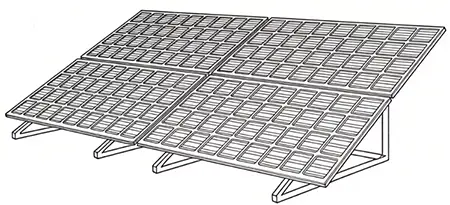

f. Tripod structure could meet different angles and high customization for better solar power generation on flat or pitched roofs.
More Solutions please contact us, we will give solutions regarding to your roof.
Roof Mounting Structure designing factors:
Design Load
|
Items |
Parameter (below info example) |
|
Panel's Dimension |
2278*1134*30 |
|
Panel's Weight |
30kg |
|
Panel's Orientation |
Vertical or Landscape |
|
Panel's Quantity/ per Set |
1 × 2 = 2 pcs |
|
Tilt Angle |
11° |
|
Regional Wind Speed |
72 m/s （3s gust speed） |
|
Ground Snow Loads |
0 Kpa |
|
Terrain Category |
3 |
|
Maximum Height |
10 m |
|
Installation Site |
Rooftop |
|
Regions |
C |
|
Design Standard |
AS/NZS 1170 (example) |
|

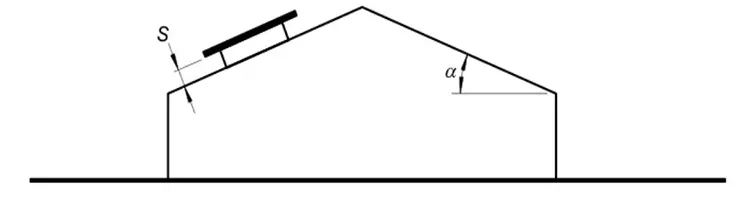

If α= 11 ° |
|
|
|
When, |
θ = °,positive |
= 0.600 |
|
When, |
θ = 0 °,negative |
= -1.400 |

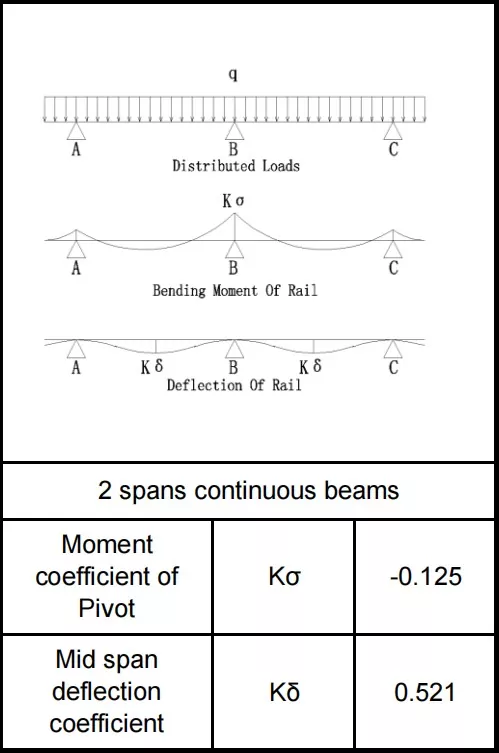

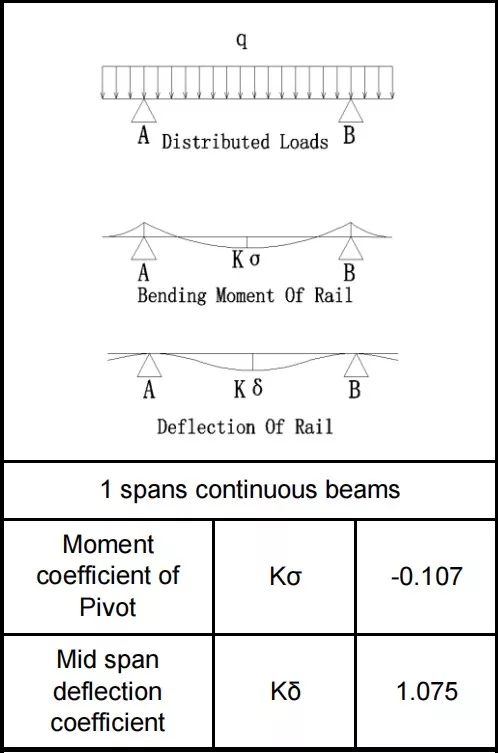

Stress Calculation Of Structure
Single rail load width sketch map
Span L=1.050m
Cantilever Ls=0.200m
Qty of spans n=2
Tilt angle θ=11°
Rails loaded width B=0.759m
Load Combinations
|
Load Combinations Of Rail |
|||
|
|
X Asix -Qx(N/m) |
Y Asix-Qy(N/m) |
|
|
Load |
Fixed Load-G |
17.49 |
89.97 |
|
Down Wind Load-W1 |
0 |
718.39 |
|
|
Up Wind Load-W2 |
0 |
-1676.24 |
|
|
Snow Load-S |
0.00 |
0.00 |
|
|
Load Combinations |
1.35G |
23.61 |
121.46 |
|
1.2G+0.6S |
20.99 |
107.96 |
|
|
1.2G+W1 |
20.99 |
826.35 |
|
|
0.9G+W2 |
15.74 |
-1595.27 |
|
|
|
|
|
|
A safe security roof solar panel structure design should be done under safe counting situations to support the long term using structure.
Our structure service life is ≥ 25 years
Warranty is 10 years.
- View as
Solar Triangle Ballast Flat Roof Mounting System
As the professional manufacturer, we would like to provide you high quality Solar Triangle Ballast Flat Roof Mounting System. Flat Roof Mounting System is engineered for various flat roof solar panel installation with non-penetrating design. Topfencesolar designed this ballast-secured system eliminates the needs of roof penetration, and eliminates the risk of water leaking in the roof. It is the ideal solution for commercial and industrial flat roof applications which is well proven and famously used in Europe, North America, MENA, and APAC regions. .
Brand: Topfencesolar
Product Material: Al6005-T5
Product Function: Ballast model installation for roof solar
Service Life: ≥25 years
Ballast Flat Roof Solar Mounting System
As the professional manufacturer, The Ballast Flat Roof Solar Mounting System from Topfencesolar, designed by considering with the high wind speed and heavy snow while complying your building regulations.
Topfencesolar Engieneer team are working out the ideal ballast system based on your roof structure, with the precisely structure loading calculating. We offer strengthen ballast structure simulating with wind load, snow load calculations and dead load as well to offer a complete safety solution for your flat roof.
Brand Name:Topfencesolar
Product material:Aluminum
Product function:Ballast support system
Service life:≥25 years
Topfencesolar Engieneer team are working out the ideal ballast system based on your roof structure, with the precisely structure loading calculating. We offer strengthen ballast structure simulating with wind load, snow load calculations and dead load as well to offer a complete safety solution for your flat roof.
Brand Name:Topfencesolar
Product material:Aluminum
Product function:Ballast support system
Service life:≥25 years
Flat Roof Solar Mounting Kits System
Xiamen Topfencesolar is one of the leading manufacturer for solar mount products in China, we supply high quality Flat Roof Solar Mounting Kits System . Professional design and OEM service can be provide accordingly to customers’ demands.
Brand Name:Topfencesolar
Product Material:Aluminum Al 6005-T5/ T6, Hot Dip Galvanized Steel
Product Function:Metal roof solar mounting
Service Life:≥25 years
Solar Ballast Mounting System
As the professional manufacturer, The non-penetrating Solar Ballast Mounting System produced by Topfencesolar provides a stable and non-drilling solution for solar panels installating on rooftops. It is replys on weighted based concrete blocks such as concrete slabs or ballast trays to secure the solar panels. No need to use the expansion anchor bolts to penetrate the concrete roofs. The simplified solution keeps roof integrity, and reduces the installation time, eliminates the risk of water leaks. Cheap, easy and fast installing for solar panels.
Brand Name:Topfencesolar
Product Material:Hot-dip galvanized Q235 Steel
Product Function:Metal roof solar mounting
Module Orientation:Landscape or Vertical
Brand Name:Topfencesolar
Product Material:Hot-dip galvanized Q235 Steel
Product Function:Metal roof solar mounting
Module Orientation:Landscape or Vertical
Tile Roof Hook Mounting System
Topfencesolar branded Tile Roof Hook Mounting System produced from China, it is an easy and fast installation solution to support solar panels on the pitched tile rooftop by mounted on the tile roof hooks and aluminum rails with clamps. No need on-site welding, and no damage to the roof structure.
Brand Name:Topfencesolar
Product Material:SUS304 steel
Product Function:Residential, commercial or industrial tile roofs
Service Life:20 years
Brand Name:Topfencesolar
Product Material:SUS304 steel
Product Function:Residential, commercial or industrial tile roofs
Service Life:20 years
Tile Roof Solar Mount
As the professional manufacturer, Topfencesolar has been specialized in R&D and manufacturering of Tile Roof Solar Mount system for tile roof. Aluminum material advanced of lightweight, corrosion-resistant, and easy installation. Aluminum hooks could enterly keep the tile roof (wanzheng) and safety. This application market covers Europe like as Germany, Spain, Italy, The Netherlands, etc. and Asian countries like as Indoensia, Thailand, Vietnam, etc.
Product Brand:Topfencesolar
Product Material:Hight grade aluminum
Product Function:Roof hook mounts rails and supports solar panels
Service Life:≥25 years
Product Brand:Topfencesolar
Product Material:Hight grade aluminum
Product Function:Roof hook mounts rails and supports solar panels
Service Life:≥25 years
As a reliable Solar Panel Roof Mounts manufacturer and supplier in China, we have our factory. To get the price list of customized products, please contact us.
