Lightweight Asphalt Shingle Roof Mounting System Supplier
Asphalt Shingle Roof Mounting System is one of Xiamen Topfencesolar tile roof solutions for whose building roof is asphalt shingle type, specially for residential buildings. Our lightweight and high-strength aluminum rail structures designed by considering ≥20 years service life reliability, high Anti-corrosion and UV protection.
The common slope of asphalt shingle roofs ranges are from 20° to 45°. Choosing bolts and L-feet base structures to mount solar panels is the optimal cost-effective solution.
Notice:
We need to specially pay attention to the asphalt shingle roof structure, waterproofing, load-bearing capacity.
Choosing Topfencesolar solution will fully take into account the risk of water leakage, or damage to the roof. Those are significant or impact on the system's lifespan.
If drilling is necessary, waterproof sealant (such as polyurethane) and waterproof kit (such as Flashings) should be used.
|
Water Proof Solution during installation |
|
|
|
|
Material Choosing
|
Materials |
Tensile strength (MPa) |
Salt spray resistance test (hours) |
Environment |
Service Life (Years) |
|
Hot-dip galvanized steel (≥65 μm) |
340-550 |
≥1000 (ISO 9227) |
C4 (Highly Corrosive Industryat Coastal Areas) |
25-30 |
|
Aluminum alloy 6005-T5/T6 |
160-215 |
≥2000 (after anodizing) |
C3 - C4 (Moderate Corrosion) |
20-25 |
|
Stainless steel304/316L |
485-515 |
≥5000 |
C5 (Extremely Salt Sprayat Chemical Corrosion areas) |
30+ |
By comparing with weight factor, Aluminum is the most suitable option for Asphalt Shingle Roof Mounting System.
- View as
Asphalt Shingle Solar Mount

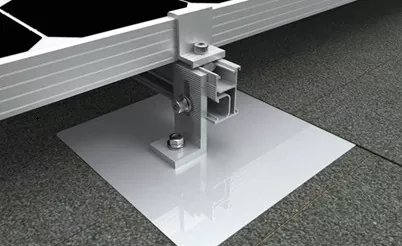

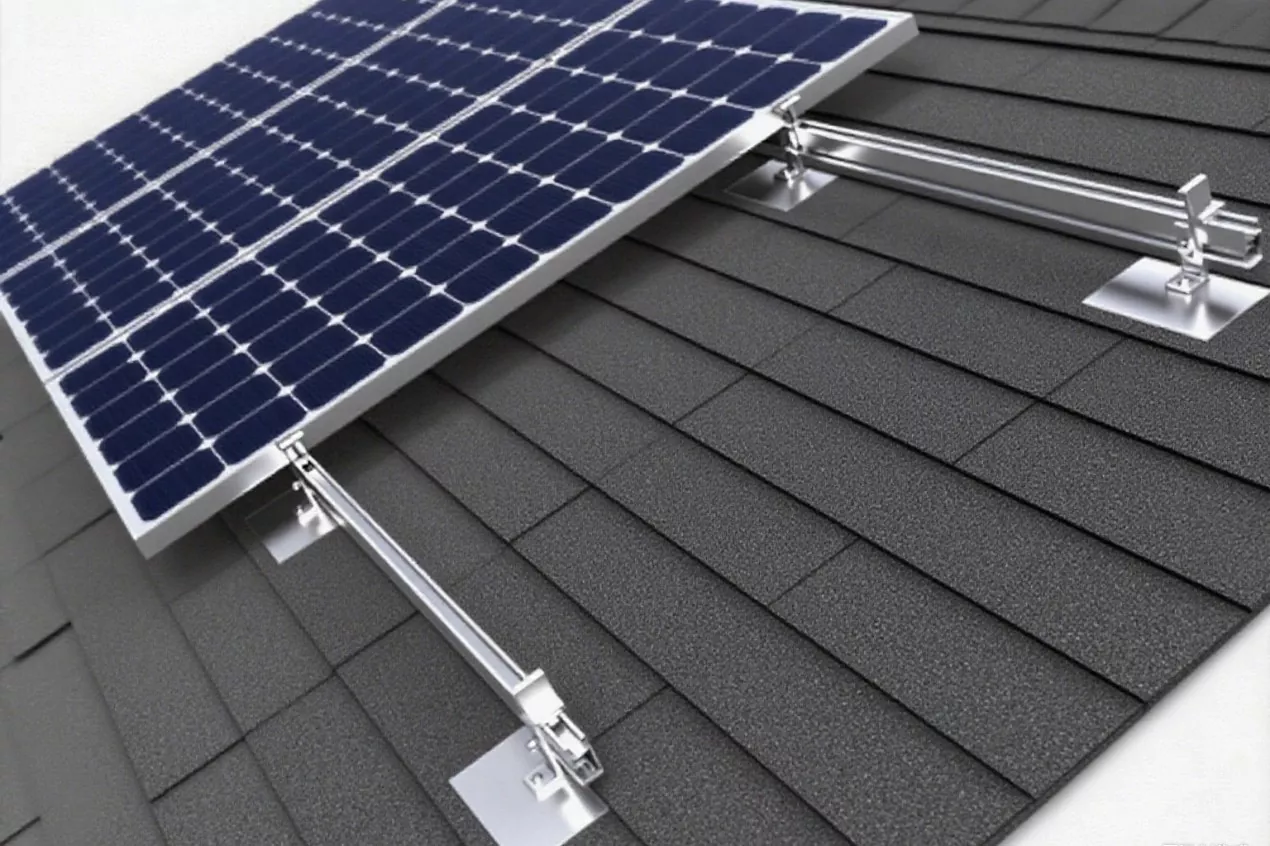

As the manufacturer and supplier in China, Topfencesolar Asphalt Shingle Solar Mount often use L-shaped brackets to secure solar panels. Their unique shape allows them to fit the slope of the roofop and support the solar modules. They are often use with EPDM. Currently, This is one of the most popular solar PV solutions for asphalt roofs.
Product Name:Asphalt Shingle Solar Mount Product Material:AL6005-T5 Product Foundation:Solar Roof Mounting Service Life:25 years
Product Name:Asphalt Shingle Solar Mount Product Material:AL6005-T5 Product Foundation:Solar Roof Mounting Service Life:25 years
Asphalt Shingle Roof Solar Mounting Brackets
As the manufacturer and supplier in China, Asphalt Shingle Roof Solar Mounting Brackets made by Xiamen Topfencesolar from China using roof hooks mounted on the beam to support B45 rails. Rail connectors connecting pieces of rails in one long rails rows by rows to array the solar panels in landscape or vertical orientation. It’s high reliablity performance are warmly welcomed by Europe, Asia, Amerian markets.
Brand Name:Topfencesolar
Product Material:SUS304 steel
Product Function:Specially designed for asphalt shingle roof
Service Life:≥20 years
Brand Name:Topfencesolar
Product Material:SUS304 steel
Product Function:Specially designed for asphalt shingle roof
Service Life:≥20 years
U Type Aluminum Rail for Solar Panel Mounting System
U type Aluminum rail for solar panel mounting System from Topfencesolar Energy is a key part of solar mounting systems. It is made from strong aluminum,so it is light, does not rust easily, and can hold heavy weight.Its shape is like a "U"，this shape has special slots and it can allow workers to clamp solar panels without drilling holes. They also help to organize cables neatly,and they make it easy to attach other parts,because of this design, the mounting system is stronger and safer.
Product :U type Aluminum rail
Product Material:Aluminum Alloy (AL6005-T5)
Application:Roof
Service Life:20 years
Aluminium Solar Panel Mounting Mini Rail
Topfencesolar's Aluminium Solar Panel Mounting Mini Rail is a solar panel installation solution suitable for metal roofs, specifically designed for residential and small commercial buildings. If you are interested in the product, we can provide quotations.
Non-Penetrating Solar Ballast Mount for Flat Roof
Stop risking your roof's warranty with unnecessary drill holes.At Topfencesolar, we have designed a suitable Non-Penetrating Solar Ballast Mount for Flat Roof foundation fixation device. We offer comprehensive customization services. This is an ultimate solution entirely based on the "gravity principle".
As a reliable Asphalt Shingle Roof Mounting System manufacturer and supplier in China, we have our factory. To get the price list of customized products, please contact us.
