Solar Agriculture
|
Product Name |
Solar Agriculture |
|
Product Material |
Hot-dip Galvanized Steelor Aluminum Alloy |
|
Installation site: |
Open field for farming purpose |
|
Service Life |
25 years |

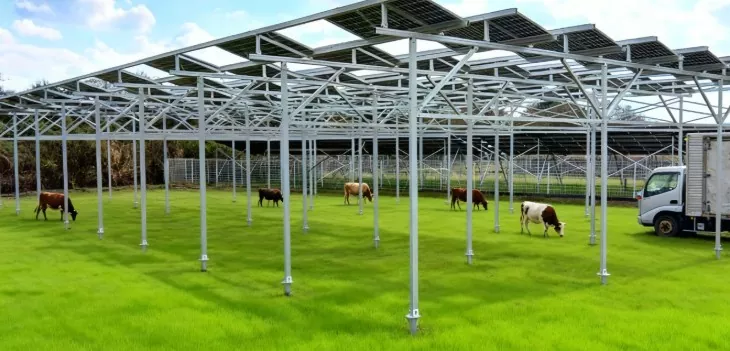

The Solar Agriculture is a security system from Topfencesolar Energy. It is designed to work for both farming and solar power. The system uses tall supports and special solar panels，and these panels let the right amount of light through for plants to grow. They are high enough so that farm machines and workers can move under them easily. This product is already used for growing mushrooms and tea, and for raising poultry. It will helps farmers keep farming their land. They can also make extra money by selling solar electricity. Our system lets the same land be used for two things: growing crops and making clean energy.
Product Installation:
|
1 |
|
2 |
|
|
|
Begin by installing the hot-dipped galvanized ground screw on the farm. |
|
Next, fasten the solar accessory base onto the ground screw flange using bolts. The solaierves as a vital link between the ground screw pile and the solar bracket. |
|
3 |
|
4 |
|
|
|
Unpack the pre-assembled solar bracket and secure it onto the solar accessory base using |
|
Proceed by adding the solar fixed bracket to further enhance stability. |
|
5 |
|
6 |
|
|
|
Mounting the triangular frame onto the pre-assembled bracket. |
|
Install the solar rail onto the triangular frame using rail clamps |
|
7 |
|
8 |
|
|
|
Once the solar rail installation is complete, proceed to the next step. |
|
Secure the solar panels onto the solar rails using module mid clamps and module end clamp. |
|
9 |
|
||
|
|
Finally, complete the installation of the solar panel mounting system. |
||
Technical parameters
|
Brand Name |
Topfencesolar Energy |
|
Product Name |
Solar Agriculture |
|
Surface Treatment |
Anodized |
|
Color |
Silver or customized |
|
Wind Load |
60m/s |
|
Snow Load |
1.4kn/m2 |
|
Module Orientation |
Portrait or Landscape |
|
Material |
Hot-dip Galvanized Steel/Aluminum Alloy |
|
Warranty |
10 years |
|
Our Service |
OEM,We Offer Professional Customization Services. |
Features & Benefits
1.They give crops shade and will help save water， It also can make crops grow better and yield more.
2.Farmers can put solar panels on these structures.This way, they can make electricity and farm at the same time，so the land is used very well.
3.Farmers make their own power，so they pay much less for electricity.
4.Solar agriculture structures system are strong and last long,it can make power for many years. Farmers need less power from other places，and this will saves money over time.
5.The designs work for different crops and ways of farming，and it fit different fields and needs
Application Case
- View as
Agrivoltaics Solar Mount System
Agrivoltaics Solar Mount System from Topfencesolar manufacturer is based on spiral ground piles. By combining agriculture with solar power generation, it provides a sustainable solution to maximize the use of land and is widely used in farmland solar support systems.
Brand Name:Topfencesolar
Product Material:AL6005-T5, Q235 or Q355
Product Function:Solar Mounting Structure
Service Life:More than 20 years
Solar Module Orientation:Landscape / Horizontal
Agricultural Shed Solar Mounting System
Agricultural Shed Solar Mounting System is a solar system solution designed specifically for agriculture, focusing on generating electricity without impacting agricultural production. By integrating agricultural photovoltaic mounting systems with agriculture, farmers can benefit from both agricultural operations and photovoltaic power generation using the unused space on the roof of the shed, creating a dual-income system.
Brand:Topfencesolar
Product Material:Aluminum 6005-T5, Carbon steel
Product Foundation:Agricultural filed with ground screw piling
Service Life:25 years
As a reliable Solar Agriculture manufacturer and supplier in China, we have our factory. To get the price list of customized products, please contact us.
