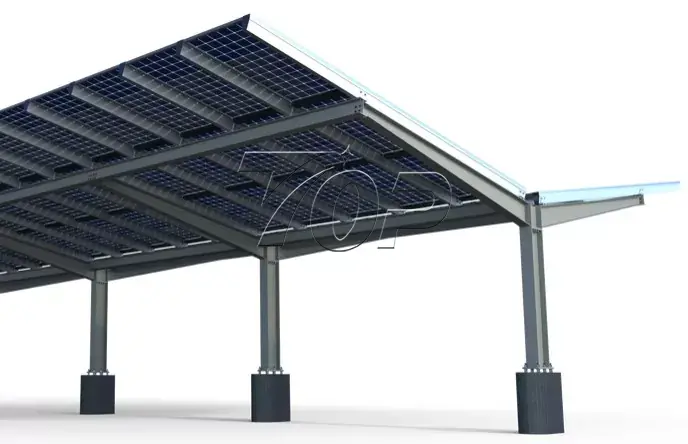

High Quality and Easy-to-Install Solar Carport Supplier

The Topfencesolar designed Solar Carport is an innovative form of solar energy application. It effectively integrates solar power generation with parking lots, and achieves efficient reuse of space and solar energy generating. Besides, it also improve the value of carports, the electricity generated from solar is green without pollution. Our design is an important element in promoting urban sustainable development and the application of smart energy.

Introduction of Carport PV

There are mainly two materials of solar carport.

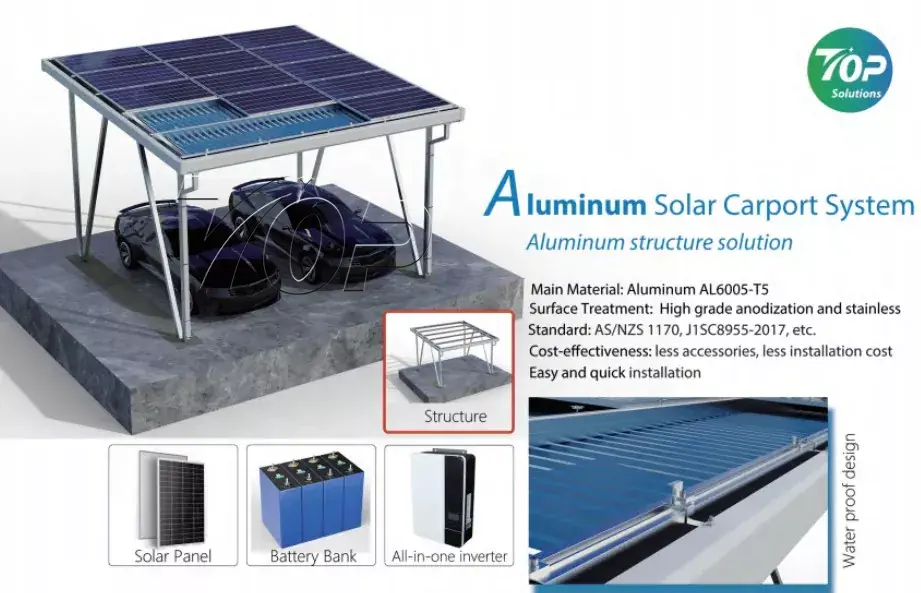

1. Aluminum structure

Aluminum structure has lightweight characteristic with excellent anti-corrosion performance.

The Aluminum characteristic makes it special that easy be installed by module design and

pre-assembled without drilling at site.

Fast installation feature decides you cost lower price

and less labor, short your installation time as

well.

Maximum wind speed: up to 60 m/s

Maximum snow loading: up to 1.4 KN/M2

Simple design easy for installation.

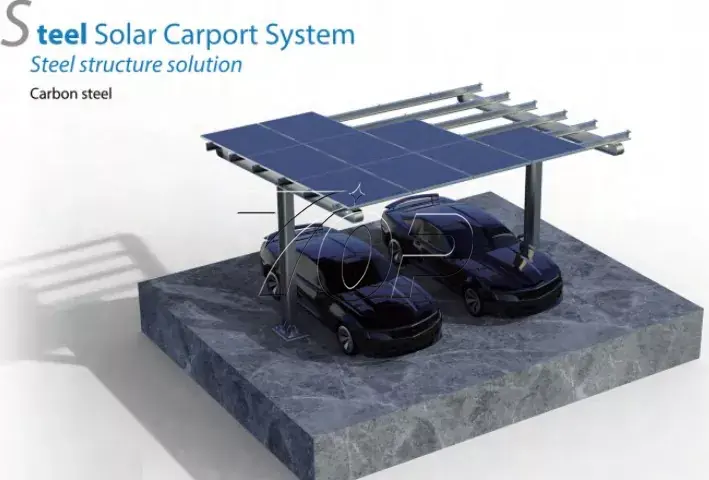

2. Carbon Steel Structure

The carbon steel material has strong compressive strength, it brings a stable structure, and outstanding resistance to wind and snow loads. These advantages can provide us a long-term and reliable rain and sun protection for vehicles. Moreover, the roof solar panels can convert solar energy into electricity, enabling self-generation of clean energy or grid connection for income. At the same time, the carbon steel structure is convenient to be installed with high efficiency. It is suitable for different site scales and parking requirements. This carport design combines practicality, economy, and environmental friendliness, so it is warmly welcomed by people in the market. It is the preferred solution for the energy comprehensive utilization of parking lots at present.

Seats of cars:

Regular design is one seat or two sites.

Shape of carport:

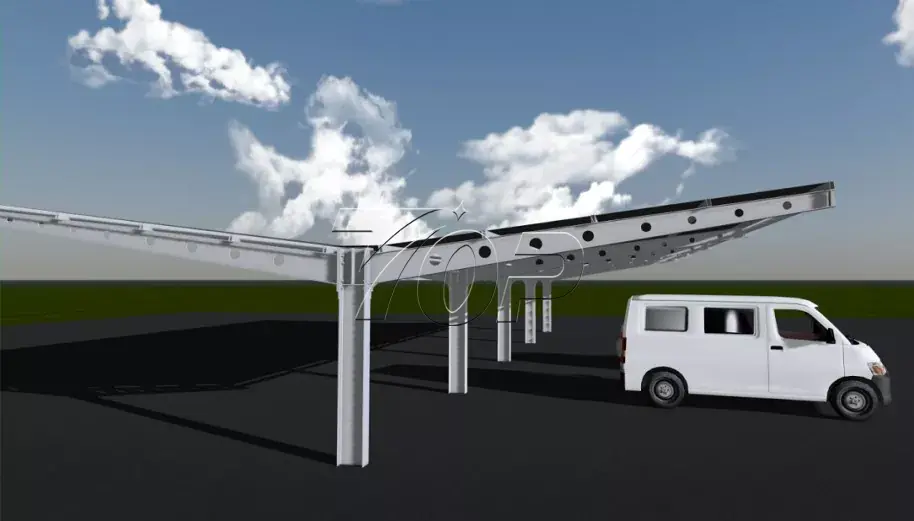

It could be one side or two sides as below.

How to design solar carport?

1. Measure the parking lot size.

2. Target your power capacity and car parking seats.

3. Offer the Minimum height between bottom of solar panel and floor.

4. Measure your spacing distance between two post of the structure

5. Checking the wind speed by m/s, the highest record for 30-50 years.

6. Checking the snow loading situation

7. One side or two side design you choose.

8. What is the tilt angle of the solar panel?

9. Then the important is what material you choose, or we could offer suggestion to you.

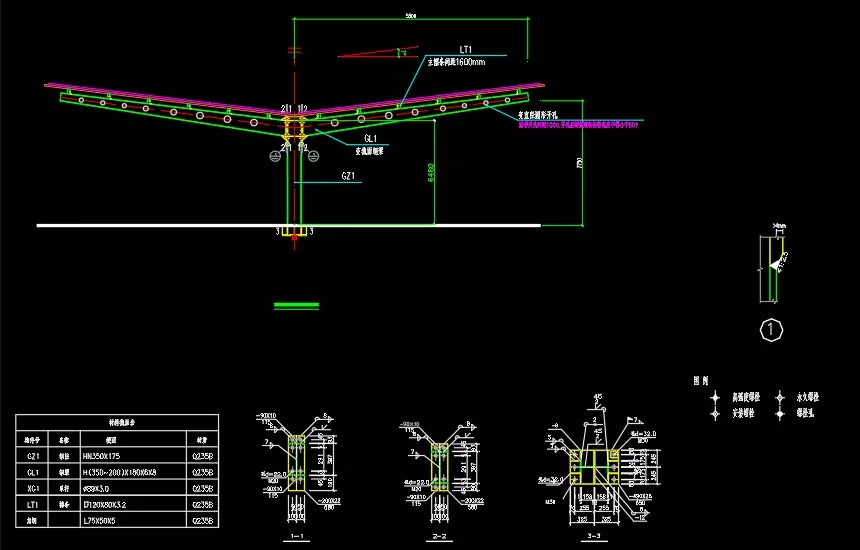

Here we are going to design the BIPV structure of solar carport for you.

Foundation options:

The comment foundations includes concrete foundation and earth screw foundation.

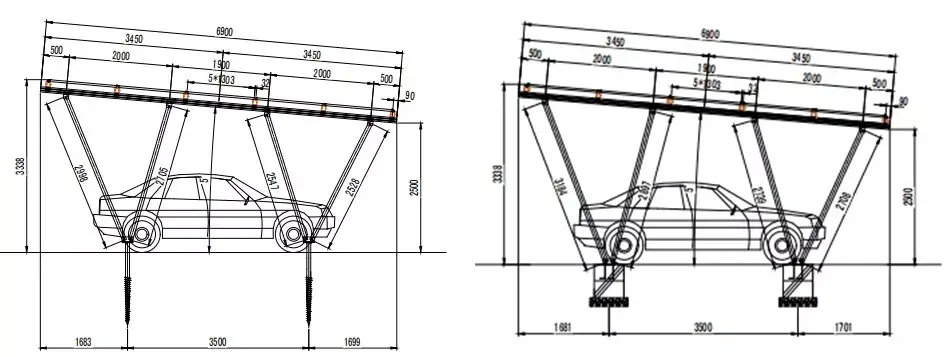

Minmum high of structure is around 2.5-3 meters, while spacing distance for two cars around 5 meters.

Tilt angle: 5 degree.

The dimension could be customized depending on the real sites space and sunshine conditions.

Applications：

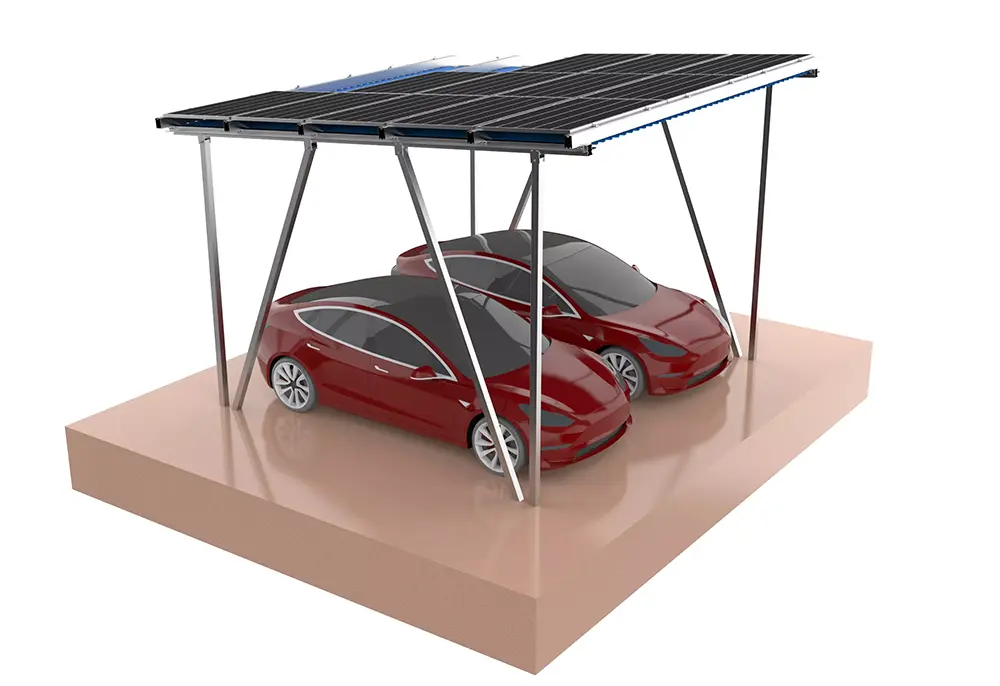

Residential carport for one or two car seats.

It is small module no need big space and easily installed around house.

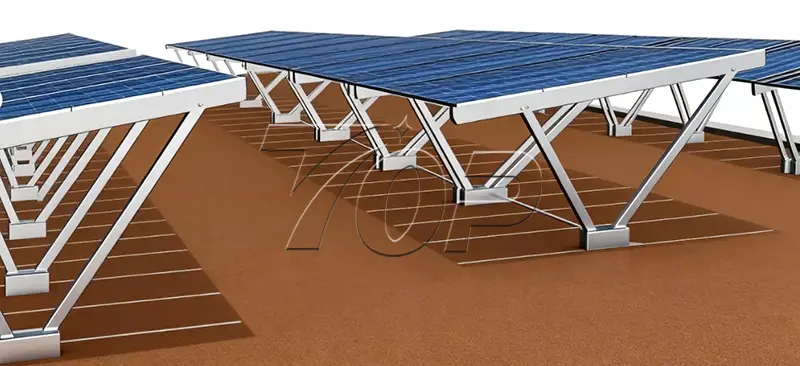

Commercial parking zones for big range.

Solar panel array layout will be finalized by considering of power capacity, car seats and investment, etc.
