Why More and More People Focus on Off-Grid Solar System?

The significant reason is this system offer a complete ESS solar storage system and electricity generated from solar power. It is effectively saving your own electricity consumer cost and saving the excessive electricity to be stored and be super power supply for day or night electrical devices using. The one time ESS investment solve long term huge electrical consumer cost and make the electricity using more freedom. What is more, solar energy really makes environmental friendly protection.

Our company core is building green energy, and making smart energy management.

We recently finish a micro type off grid solar system for commercial and industrial using.

Choosing reliable Topfencesolar brand roof solar mounting structure.

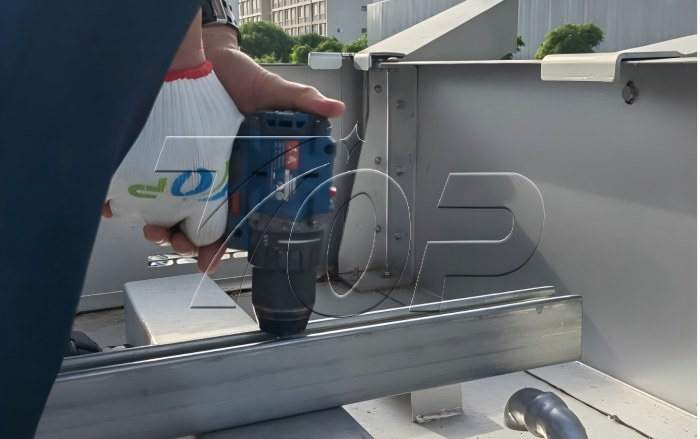

Step1. Mounting UV and high anti corrosion performance rails and beams on the metal rooftop.

As the main loading part, should be screwed tightly by electrical drill with tapping screws.

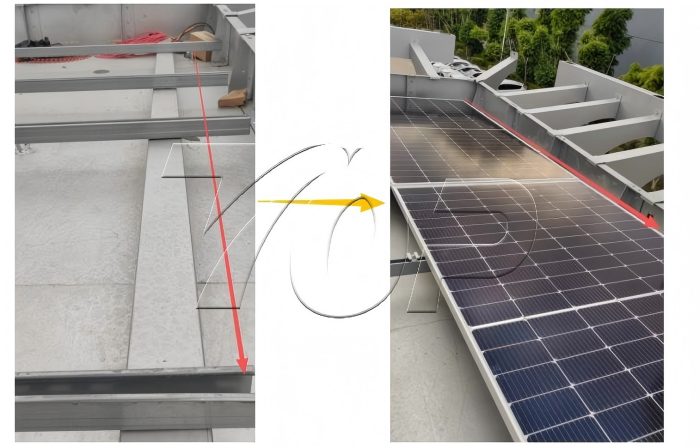

Step 2. Completing the rooftop beams rails installing, using the position line to fix the Solar End Clamps on end of rails. This step is very important to make the solar panel be laying in line and in correct position.

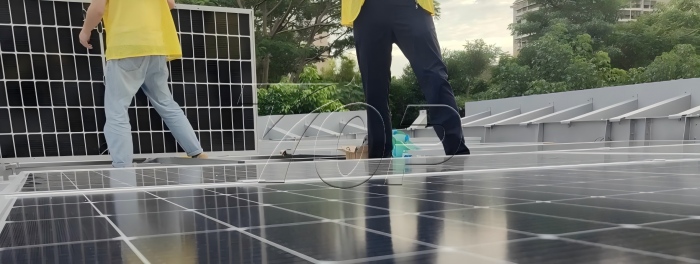

Step 3. Laying down the solar panels one by one, set by set on rails.

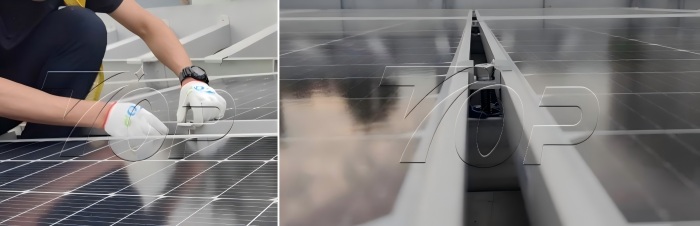

Step 4. Panels and panels connection will be firmly secured on rails with Mid Clamps. The ground clips put under mid clamps for well grounding protection.

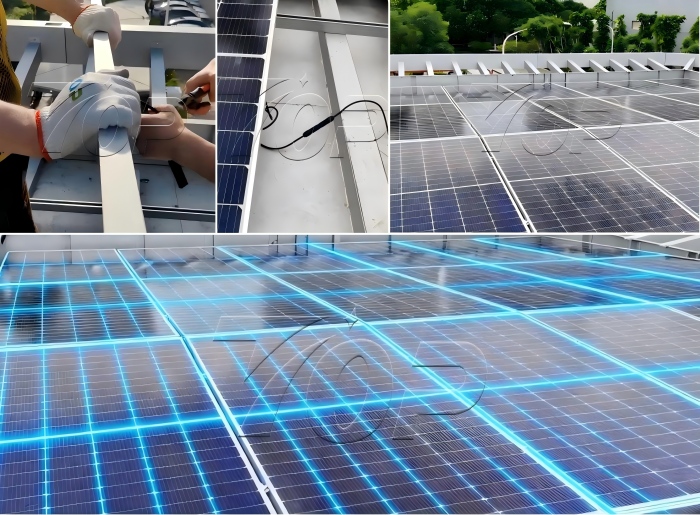

Step 5. Making sure all the panels were connected with MC4 connectors of cables from PV panels, connecting all the panels with cables to make sure all the panels generating DC electricity perfectly.

Step 6. Threading the cable from roof top to the inter of power distribution room downstairs.

Black cable and red cable lining. Preparing for inverter connecting, and storage connecting as below:

DC circuit breakers,

DC combainer box,

Inverter

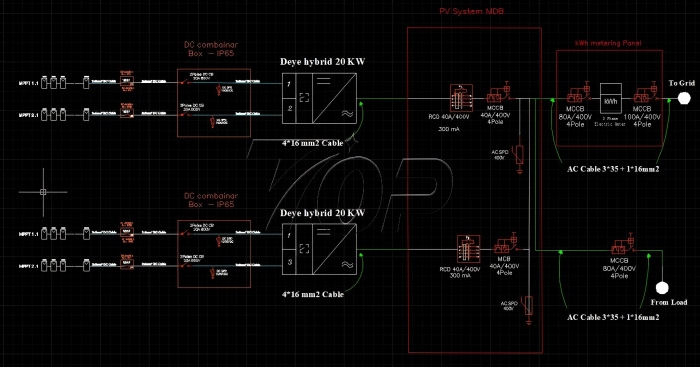

AC distribution boxBelow as the reference diagram for the ESS system solution (example only).

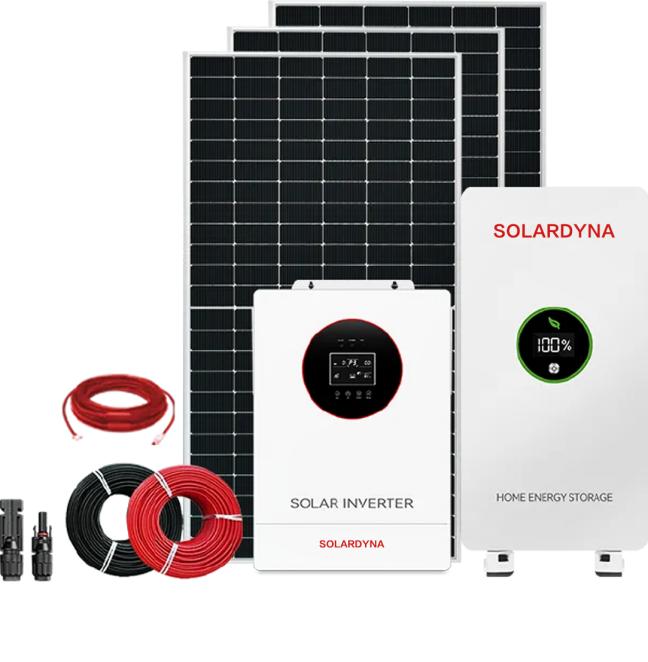

A complete solar mounting and ESS installation is a complete solar system. Topfencesolar and SolarDyna offers the structure and ESS systems to solve roof or ground solar power plant projects. Already win and completed projects in Overseas and in house by thousands. You need green energy, solar is anywhere around us, find us directly, our professional engineers team offer professional solutions for you completely.
