High Quality and Durable Solar Cable Tray Supplier
Solar Cable Tray could be divided into three parts.

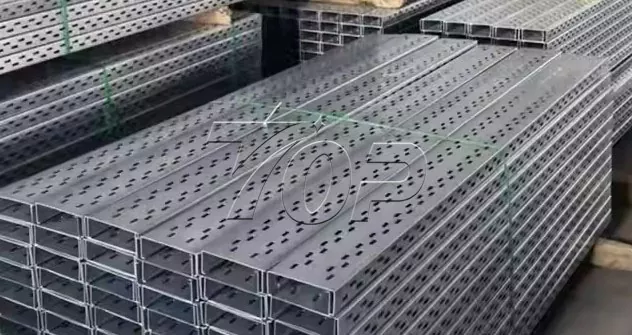

Trough Cable Tray: such as Perforated cable tray, which is galvanized steel solar cable tray system and also has aluminum and ZAM material kinds of solar cable tray
Wire Mesh Tray is wire mesh designed cable tray which is a easy and fast installation system for solar cable management.
Ladder Cable Tray:
Mesh Cable Tray are used to support and organize cables in industrial and commercial solar power planet settings specially used on the rooftop because of its lightweight.
Trough bridges are used to isolate and protect cables and pipelines in places requiring high hygiene and safety standards like solar power systems from hospitals, laboratories, and food processing plants
|
|
|
|
|
|
|
Processing |
One piece punching and bending |
|
Materials Options |
1. Hot Dip Galvanized Steel |
|
2. Aluminum |
|
|
|
Thickness: 0.5 mm-0.8mm- 1mm- 1.5mm- 2.0 mm |
|
Height:from25 to 500 mm |
|
|
Width:from50to 1200 mm |
|
|
Length: 2000 - 6000 mm (more options could becustomized) |
|
|
Surface Finish |
Finished: Pre-galvanized, hot dipped galvanized, power coating |
|
Package |
Wooden pallet or iron pallet, orcustomized specially |
Why should we use cable tray in solar power system?
We need to know about the functions of cable trays
1. Function of managing solar cable and laying in solar power system. It could saving space and making full using of rooftop solar sites, but also easy for future maintain of cables.
2. Protection of cables: It could prevent AC/DC solar cables from being damaged by mechanical effects, animal gnawing, or human damage. And specially it could help to guarantee the safety of cable and electricity running under environments with sunlight, rain, high temperature, and humidity.
3. Eases maintenance, Topfencesolar produced cable tray guarantee its quality and reduce the regular maintenance difficulty and cost.
4. Heat dissipation: Grid type and perforated cable trays can promote air circulation. It is very important for batches of DC cables laying together. The cable tray system creates well cable heat dissipation, and prevent faults caused by overheating of cables.
Applications:
|
|
|
|
|
Application1 |
Application2 |
Application3 |
Workshop and producing processing

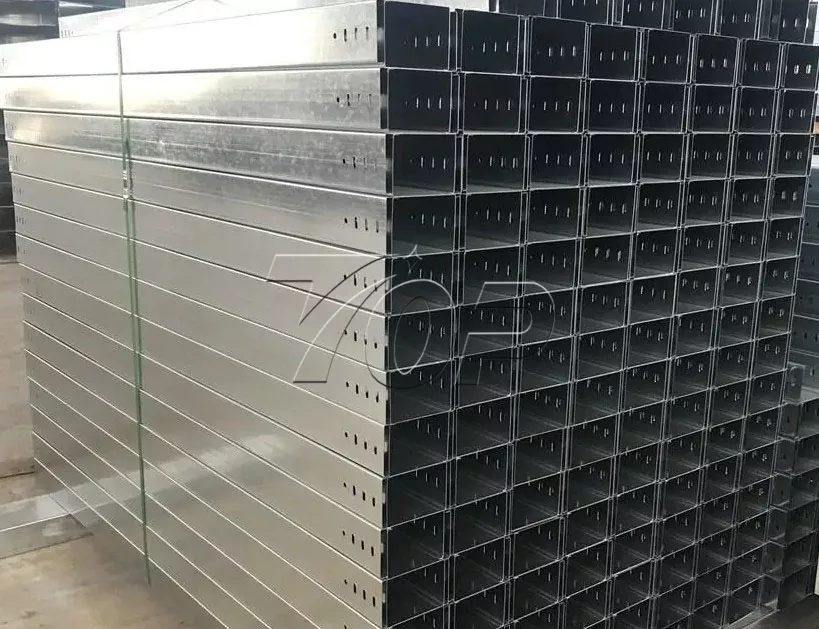

Packing sites
Packing method:
Packed with iron pallet good for shipment/transport protection for cable tray.
- View as
Cable Management Tray Steel Cable Tray
Cable Management Tray Steel Cable Tray manufactured by Topfencesolar is a highly efficient cable management solution. Not only does it provide cable management, but the sturdy steel structure also serves as a walkway, making system installation and maintenance much easier. Accepts height customization, length or width can meet different client's demand.
Brand:Topfencesolar
Product Material:ZAM Steel
Product Function:Cable Management
Type:ventilated perforated trough
Aluminum Cable Tray
Don't let messy wiring ruin your solar efficiency. Secure your solar investment with Topfencesolar brand Al6005 T5, T6 level aluminum cable trays. Designed specifically for the harsh demands of rooftop and ground-mount PV installations, the high quality trays from our factory provide superior corrosion resistance, excellent heat dissipation, and a lightweight structure that simplifies installation.
Brand Name:Topfencesolar
Product Material:Aluminum AL 6005 -T5, T6
Product Function:Managing solar cable on rooftop
Service Life:≥25 years
Galvanized Steel Solar Cable Tray Systems
Galvanized Steel Solar Cable Tray Systems manufactured by Topfencesolar well solve the solar DC and AC cable management. Functioning of cable managing and walk way for solar mounting, operating and maintaining. The galvanized steel coating with Zinc by minimum 60 μm thickness meeting international and regional construction regulars all over the world.
Brand:Topfencesolar
Product Material:Galvanized Zinc Steel
Product Foundation:AC, DC solar cable management
Length:2 meters Length * 100mm Hight*1mm Thickness
Channel-Type Cable Tray For Solar Systems
The Channel-Type Cable Tray for solar systems produced by Xiamen Topfencesolar adopts an integrated partition design, effectively separating different types of cables, reducing interference, and improving overall performance. It is made of high quality galvanized steel, and it has excellent structural strength, with great anti corrosion performance. So this design has a very long service life. It is specially suitable for commercial, industrial, and infrastructure projects.
Brand:Topfencesolar
Product Material:Hot Dip Galvanized Steel
Product Function:Used to support cables
Service Life:≥25 years
Wire Basket Tray Cable Tray
Xiamen Topfencesolar Co., Ltd. is a professional Wire Basket Tray Cable Tray manufacturer that has been deeply engaged in the cable tray for many years. We focus on providing customers with high-quality basket cable tray.
Whether it is standard specification or customized specification, it can be produced and delivered efficiently and with high quality, providing customers with mesh cable tray products with excellent quality and performance.
Brand Name:Topfencesolar
Product Material:HDG/Stainless steel
Product Function:Cable management
Service Life:20 years
Cable Ladder
Welcome to buy quality Cable Ladder from Topfencesolar. ZAM Coated Cable Tray System is different from traditional galvanizing type, and it is a high quality product of our factory. Step into the future with ZAM (Zinc Aluminum Magnesium) steel. Featuring advanced self healing technology that seals cut edges automatically, this tray offers 10 times of the corrosion resistance rather than standard galvanized steel. Welcome to contact for free samples and fast delivery.
Brand Name:Topfencesolar
Product Material:ZAM Steel
Product Function:Solar cable manage system
Service Life:≥25 years
As a reliable Solar Cable Tray manufacturer and supplier in China, we have our factory. To get the price list of customized products, please contact us.
