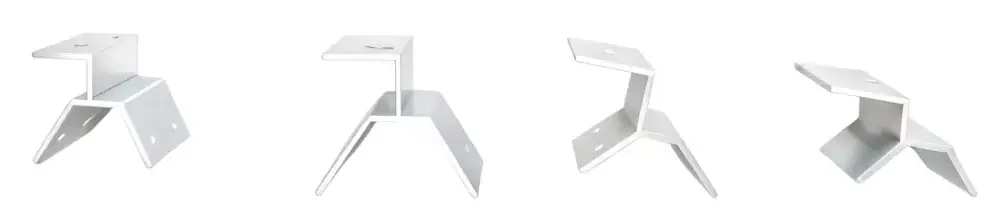

Solar Metal Clamp

Features:

Easy installation with fast and short operation time.

Reliability and flexibility that the solar panels could be adjusted and mounted flexible based on the real site pitched roofs.

High Compatibility, that the universal racking solutions could be adopted and fastened firmly on it.

Lightweight system offers the significant solution to rooftop on the metal roof type house. Light is necessary to considered by compared with ground solar power system.

Durability of using. Because Topfencesolar high quality alumium material which is higher grade rather than market sold. It offers durable and long life span for you.

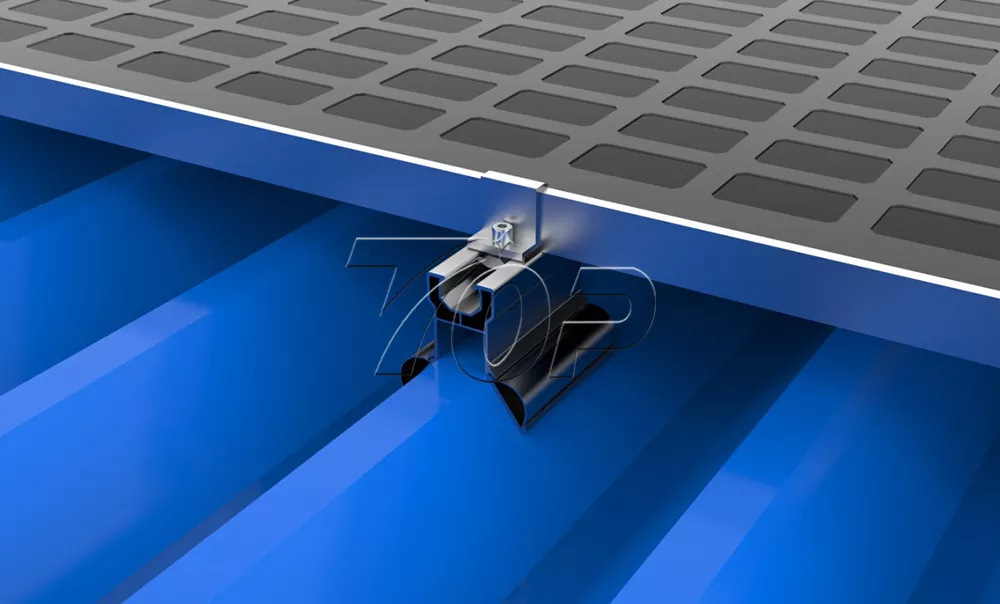

Standing seam metal roof installation could be very fast and convenient by fastening those metalroof clamps on roof, Solar panel fixing on the rails system which supported and mounted on the roof clamps.

Step 1：

Measure the dimension of rooftop and the beam under the metal roof.

Step 2：

Set the position of roof clamps to make sure the rails be mounted reasonable to support the solar panels.

Step 3: mounting the Aluminum clip locks on roof top with bolts or screws.

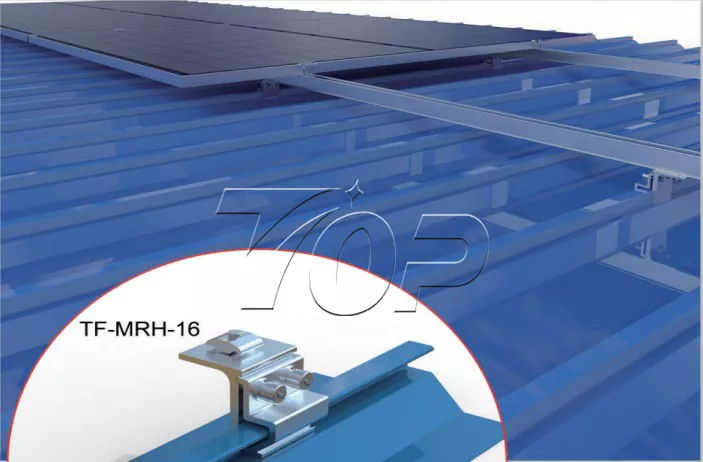

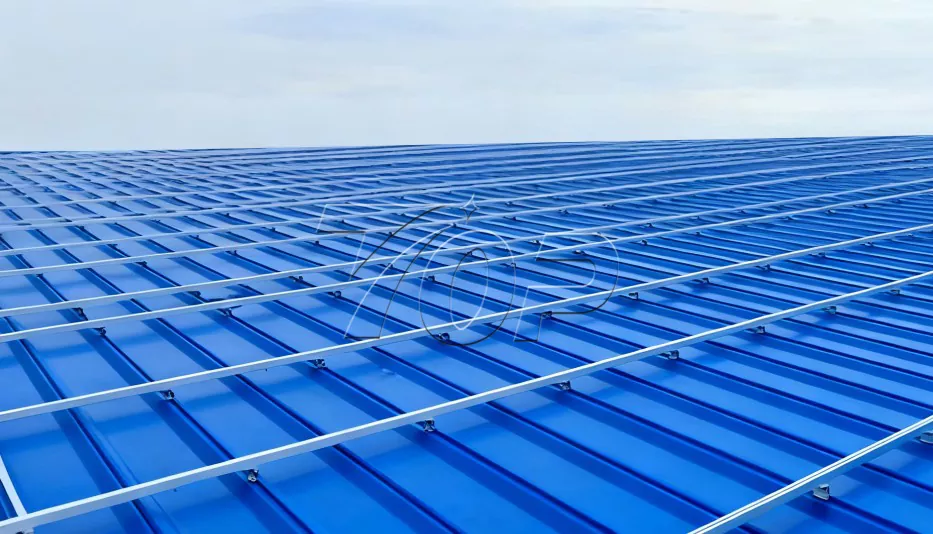

Step 4: put the rails on the clip locks, secure them by sliding rails through the T slot nut on the clamps.

Step 5: Laying the photovoltaic panels on rails and fastened with Mid clamps and End clamps.
