Solar Panel Earth Clips

Welcome new and old customers to Topfencesolar to purchase Solar Panel Earth Clips. As a factory, we offer components of high quality at low prices. Connect the metal parts such as the aluminum frame and bracket structure of the photovoltaic module to the grounding system (ground wire). If you would like to know more about photovoltaic products, please send an inquiry.

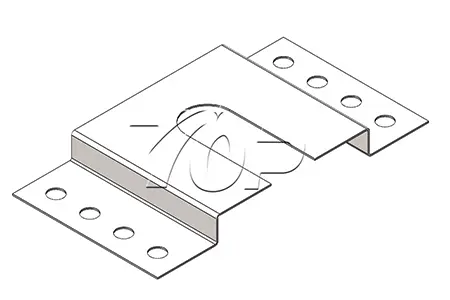

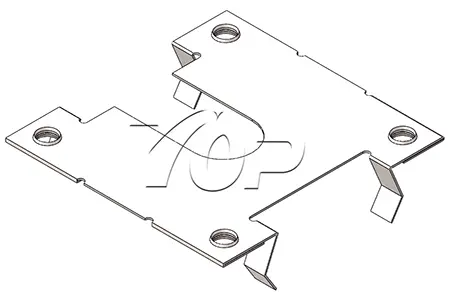

TF-E-EL-01(Portrait)	TF-E-EL-02(Landscape)

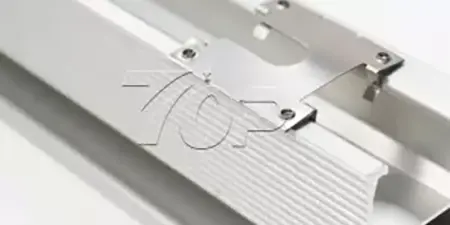

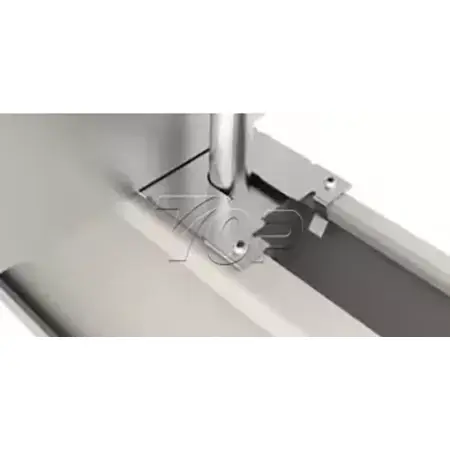

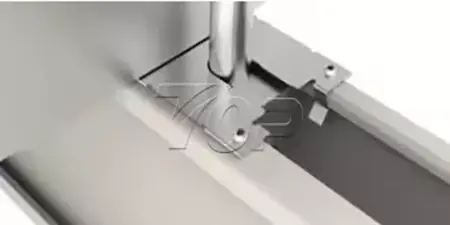

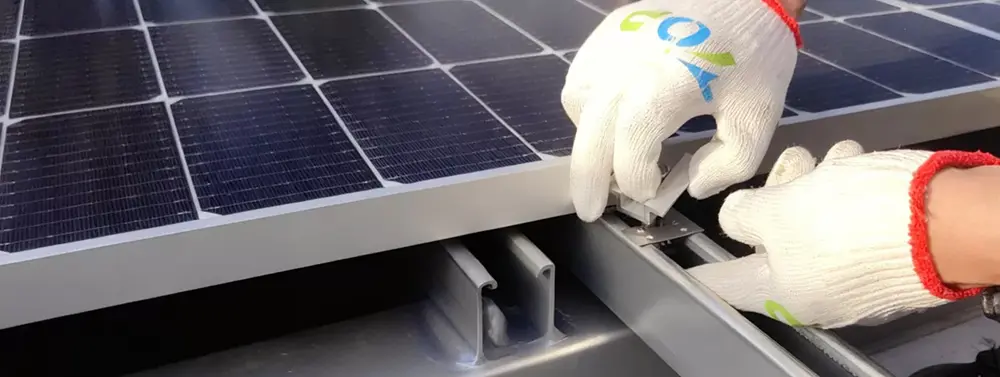

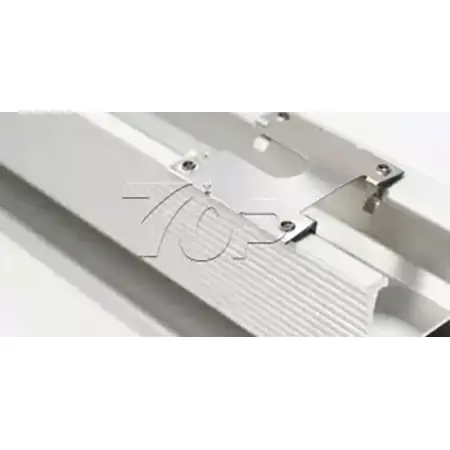

The working principle of Solar panel earth clips is that the spikes on the earth clip pierce the protection film on the surface of solar panel frame, making direct contact with the solar panel metal frame, and create a safe discharge path from solar panel to the mounting structure, and to the ground.

Once an electric leakage occurs in the solar PV system, the charge will quickly flow to the ground through the grounding wire, preventing damage to equipment and personnel from electric shock accidents.

Stainless steel grounding plates are the most used grounding plates. The stainless steel material has high mechanical strength and strong stability, the stainless steel keeps the ground plates not easily deformed or broken during installation, and can withstand the pressure of solar PV panel installation and the influence of external forces such as outdoor wind and vibration.

Strong corrosion resistance is another advantage of stainless steel material. The stainless steel material can efficiently resist outdoor weather conditions, like high temperatures, humidity, rain, snow, and salt spray (in coastal areas) to prevent rust and oxidation, and maintain grounding conductivity over a long period of time.

Stainless steel made grounding clips has a service life of over 20 years due to high mechanical strength and strong corrosion resistance, and it matches the lifespan of solar PV modules (typically 25 years), no need for frequent replacement and maintenance, meanwhile, saving a lot time and cost.

Topfencesolar provides a variety of Solar Grounding Clips, no matter it’s a solar ground mounting or solar roof mounting, no matter horizontal or vertical orientation,there will always be a most suitable grounding clips for your choice.

Technical parameters

Brand Name	Topfencesolar
Product Name	Solar panel earth clips for solar mounting

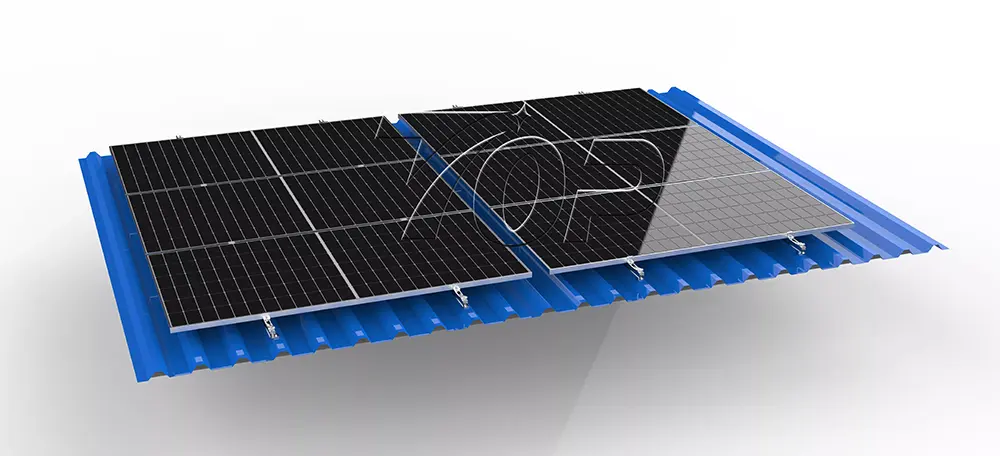

Install Site	Solar ground mounting and roof mounting
Module orientation	Portrait or Landscape
Material	Stainless steel
Color	Nature or customized
Warranty	10 years

Features & Benefits

1.High mechanical strength, no easy to deformed and broke;

2.Strong corrosion resistance, maintain long service life;

3.Various types to adapt different mounting situations such as roof type and ground type;

4.Easy installation, no need for frequent replacement and maintenance;

Application cases

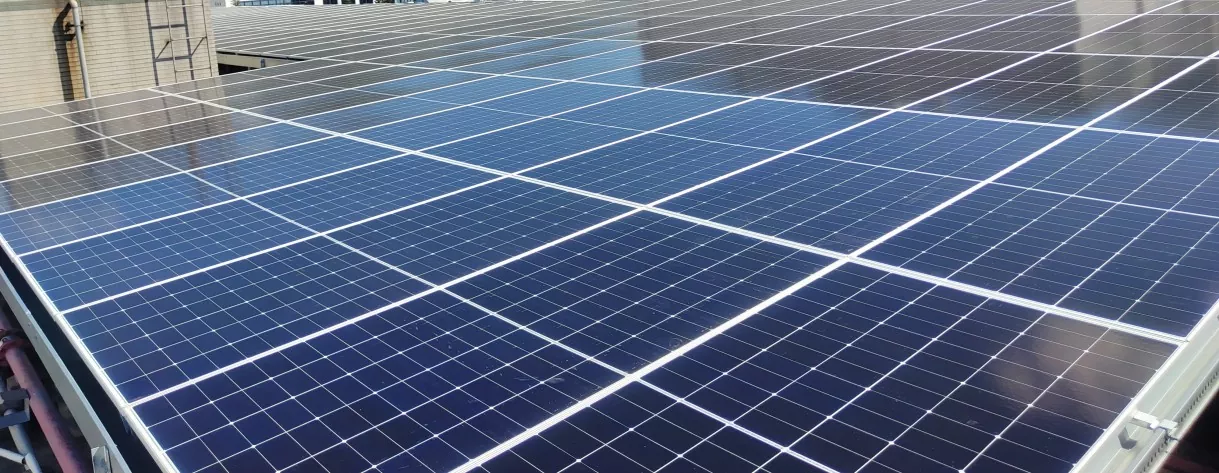

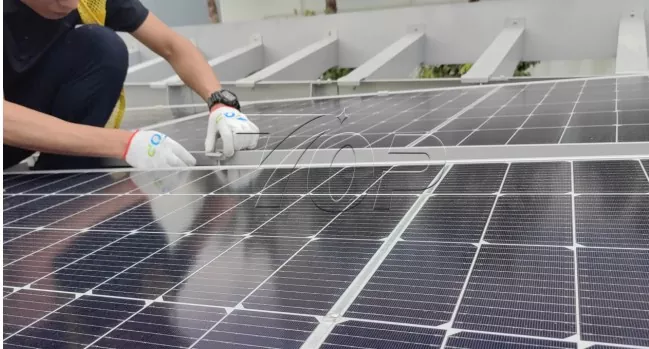

This is a 50kW rooftop solar mounting project with off-grid system. The earth clips be installed on roof under Mid Clamps. Case located in South Asia part.

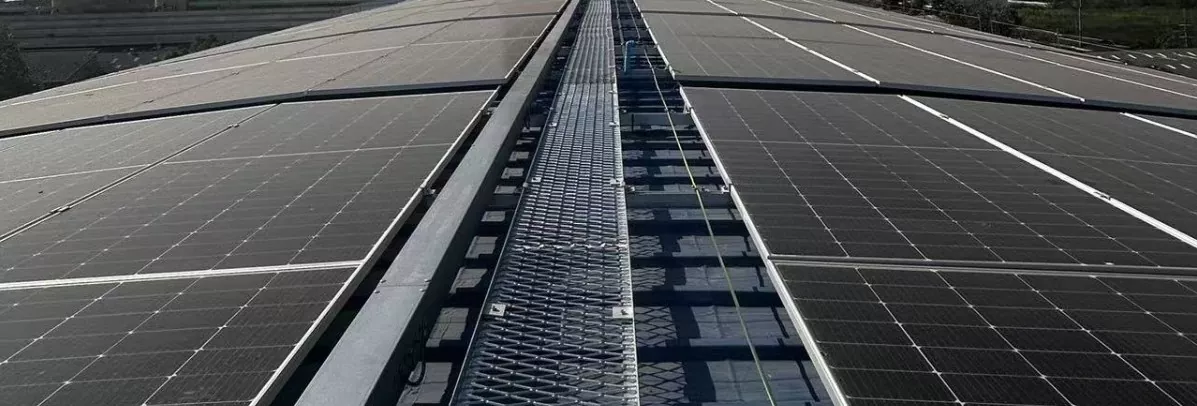

Installation case at Philippine with clips used on BIPV roof. Case with 70KW

Roof case from Iran with Topfencesolar clips installed on rooftop, projects over 100KW.
