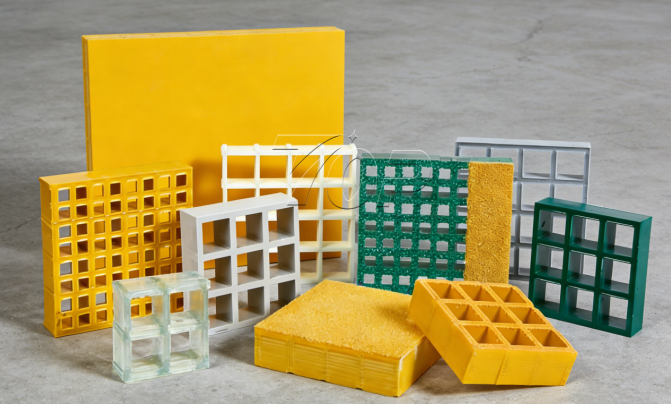

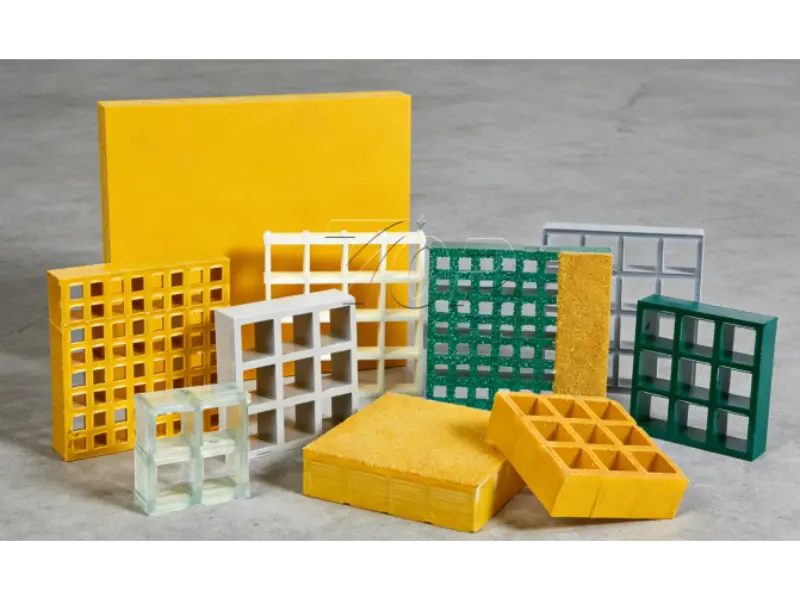

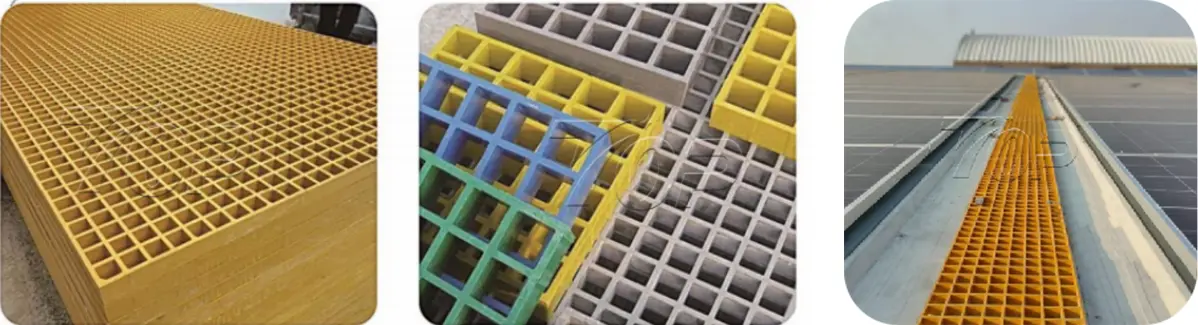

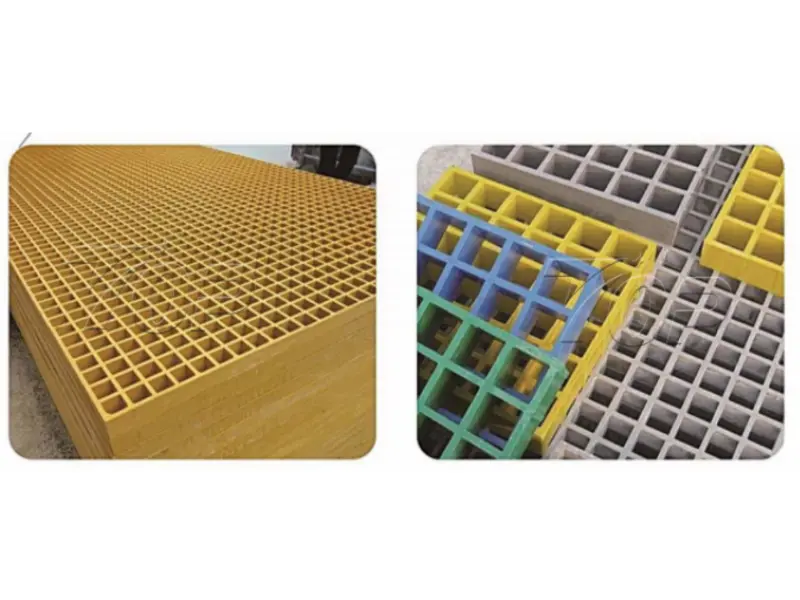

Solar Rooftop Fiberglass Grating FRP Walkway
Topfencesolar is one of the leading manufacturer for Solar Rooftop Fiberglass Grating FRP Walkway in China, we supply high quality solar mount products. They are used in various photovoltaic power stations, effectively improving the overall performance and safety of photovoltaic systems.
As a professional supplier, Topfencesolar provides Solar Rooftop Fiberglass Grating FRP Walkway, which is an important part of the standardization and safety of photovoltaic operation and maintenance. If you are interested in our products, please contact us.
parameter
|
Category |
Item |
Unit |
Molded Grating Type |
Pultruded Profile Type |
|
Basic Specifications |
Thickness |
mm |
25/30/38/50mm; customizable |
25–40 |
|
Grid Spacing |
mm |
38/48/64/80/etc; customizable |
38–50 |
|
|
Width |
mm |
305/380/406/480/etc |
Customizable |
|
|
Mechanical Properties |
Bending Strength |
MPa |
≥345 |
≥400 |
|
Uniform Load |
kN/m² |
≥5.0 |
≥8.0 |
|
|
Friction Coefficient (Wet Condition) |
- |
≥3.6 |
≥3.7 |
|
|
Core Components |
Core Fiber |
- |
e-glass fiber, resin (polyester/vinyl ester), etc. |
- |
|
Other Additives |
- |
UV stabilizers, defoaming agents, curing agents & accelerators, flame retardants, etc. |
- |
|
|
Core Characteristics |
Temperature Resistance Range |
℃ |
-40 to 80 |
-40 to 100 |
|
Oxygen Index (Flame Retardant) |
% |
≥28 |
≥30 |
|
|
Salt Spray Resistance |
H |
≥720 |
≥1000 |

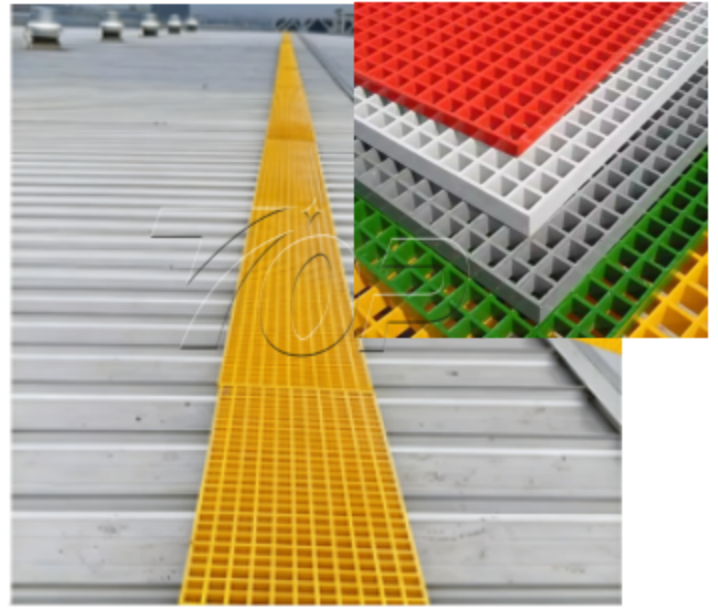

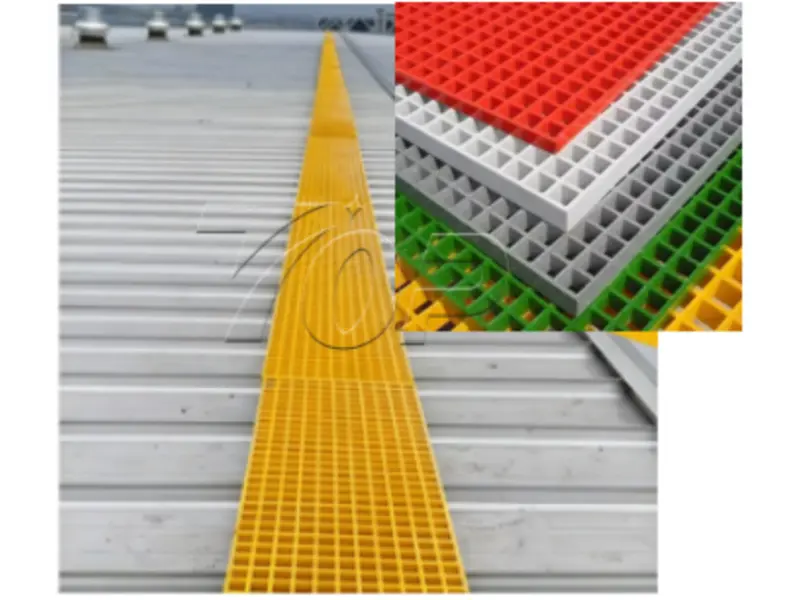

Solar Rooftop Fiberglass Grating FRP Walkway are widely used on rooftop for solar panel system maintenance.
It refers to a walkway structure made from Fiberglass Reinforced Polymer (FRP), with the characteristics of light weight, high strength, corrosion resistance, fire resistance and anti-slip.
It provides easy and safety access for regular panel inspection and cleaning, so as to improve the performance and longevity of your solar system.
Features& Benefits
FRP Materials
FRP Walkway has excellent flame retardant, Corrosion Resistance, and Waterproof.
Bright color, not easy to fade. Easy to customize all kinds of size. With certain toughness to leads a better foot feel.
Light Weight
They are strong yet lightweight, making them easy to install and handle, and lower transportation costs.
Grating design
Beautiful appearance and easy to maintain, anti-slip, they require minimal upkeep compared to other materials of walkways.
Convenient installation
They can be tailored to specific needs and applications.
Solar Rooftop Fiberglass Grating FRP Walkway has standardized components, simple installation method, short construction period, can be put into use quickly.
FAQ
What are the advantages of using aisles?
Solar Rooftop Fiberglass Grating FRP Walkways are low in cost, highly corrosion-resistant, lightweight, have low maintenance costs, and are easy to install.
How to get a quote?
You can directly send us the specifications you want for quotation.
Or share us your project information, like layout drawing, we will match the corresponding quantity and length of walkways for your project.
Can we get a sample?
Topfencesolar provides samples for customers, please contact us for further discussion on sample information and arrangement.
Do you provide rail supports for walkway?
Yes, We can also provide supports together with walkway system, as Topfencesolar is also professional in solar mount structure.
