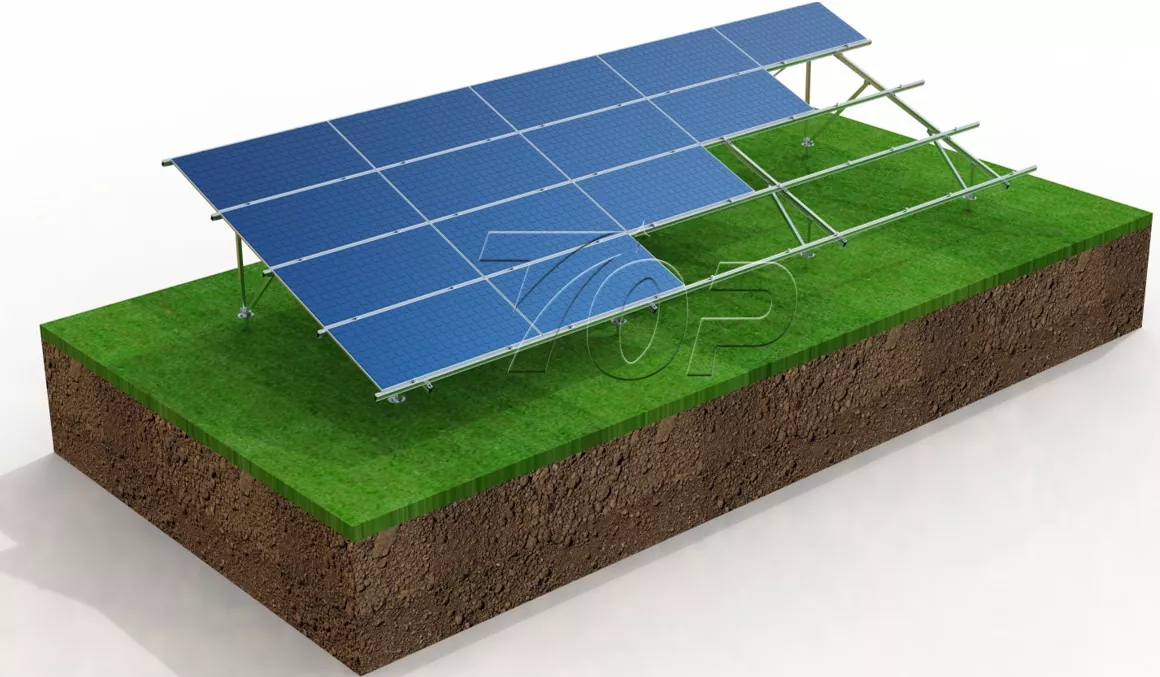

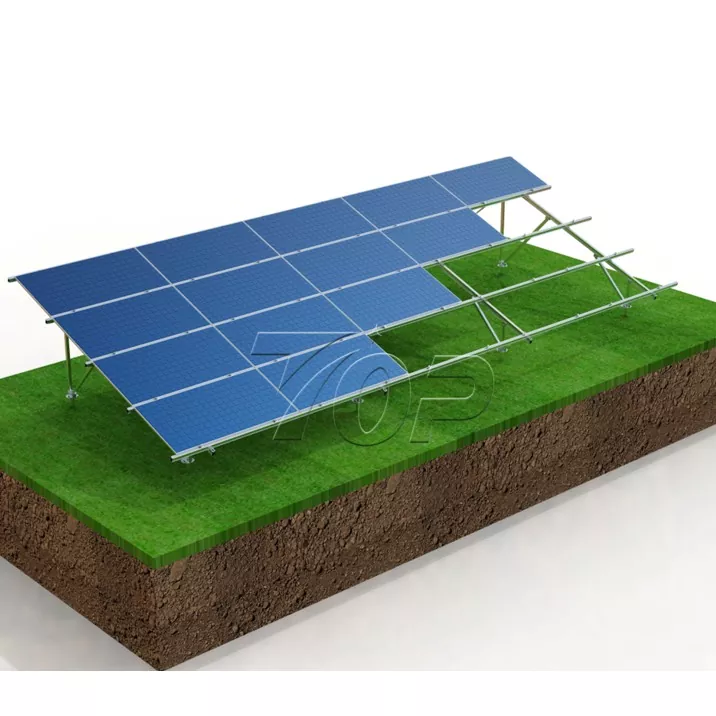

Aluminum Ground Solar Mounting System
Partner with Topfencesolar for Aluminum Ground Solar Mounting System, we offer the simulation design under specific wind load and snow load even earthquake factors. Our W shape aluminum structure is one of the most stable and reliable solutions gets the most of satisfy from market. It supplies more than 25 years service life with 10 years warranty.
Brand Name: Topfencesolar
Product Material: Aluminum AL 6005 -T5/ T6
Product Function: Ground solar power plant stucture
Service Life: ≥25 years
Brand Name: Topfencesolar
Product Material: Aluminum AL 6005 -T5/ T6
Product Function: Ground solar power plant stucture
Service Life: ≥25 years
As the professional China manufacturer and supplier, Topfencesolar design of an Aluminum Ground Solar Mounting System with a wind resistance of up to max. 60 m/s and a snow load capacity of up to max. 1.4 kN.
How about the corrosion and rust resistance result?
Our system's main materails of column, beam, rear forces and rails are made of Al6005-T5/T6 aluminum with excellent anti corrosion performance by ≥10μm surface treatment processing. The anodization ensures long-term durability in harsh environments.
|
|
|
|
|
|
|
H Column Connector |
Rails |
Rail Connector |
Beam |
While our fasteners of fastening system are made of SUS304 with excellent corrosion protection effectiveness below.
|
|
|
|
|
|
Rail Clamp Kits |
Mid-Clamp |
End-Clamp |
Earth Screw |
The complete W Type Ground Solar Mounting Brackets design is based on service life over 25 years with warranty 10 years.

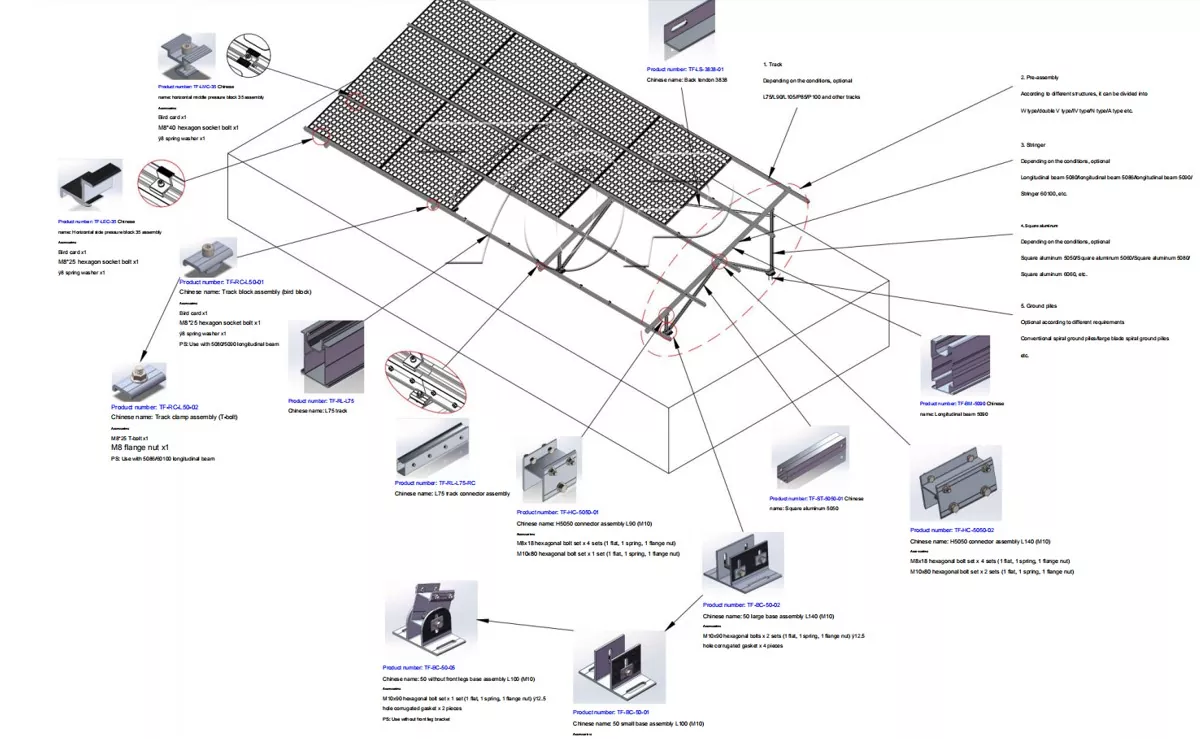

StructuralComposition
Base /H Column Connector/Rails /Rail Connector/Beam /Bolt /Nut /Screw /Washer/
Anchor, etc.

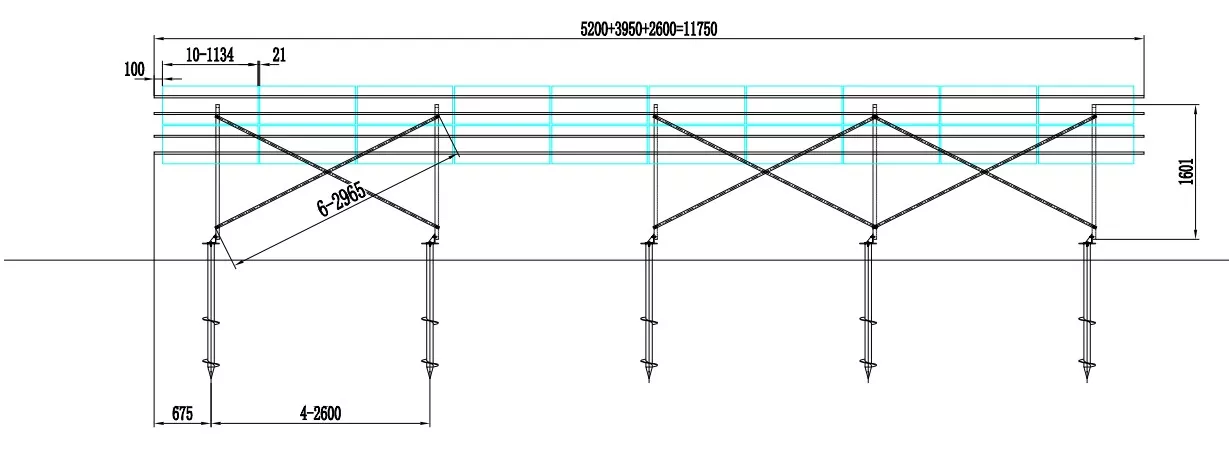

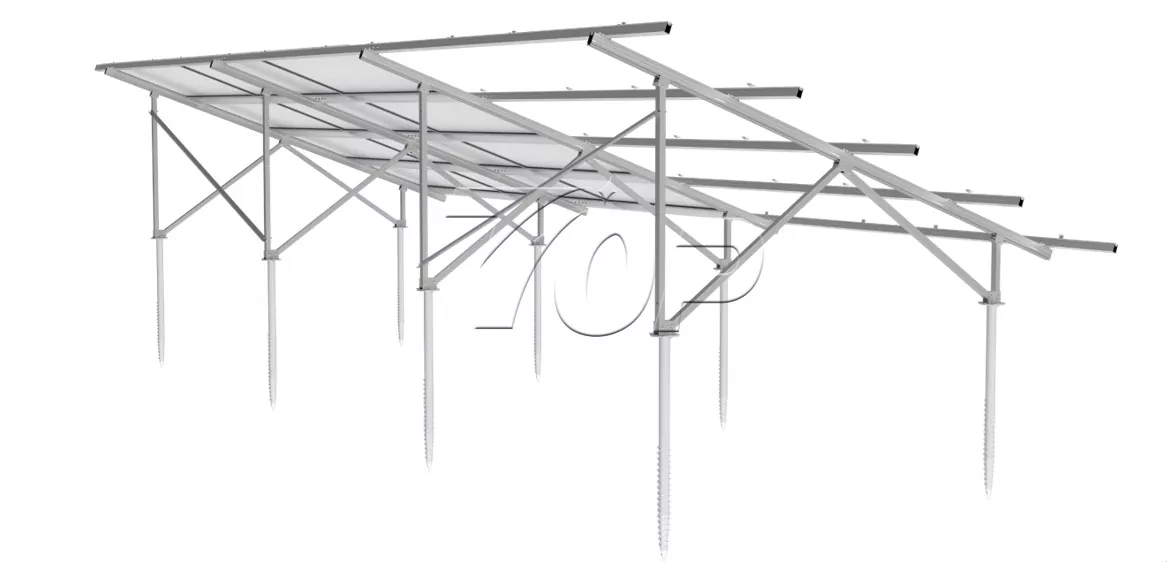

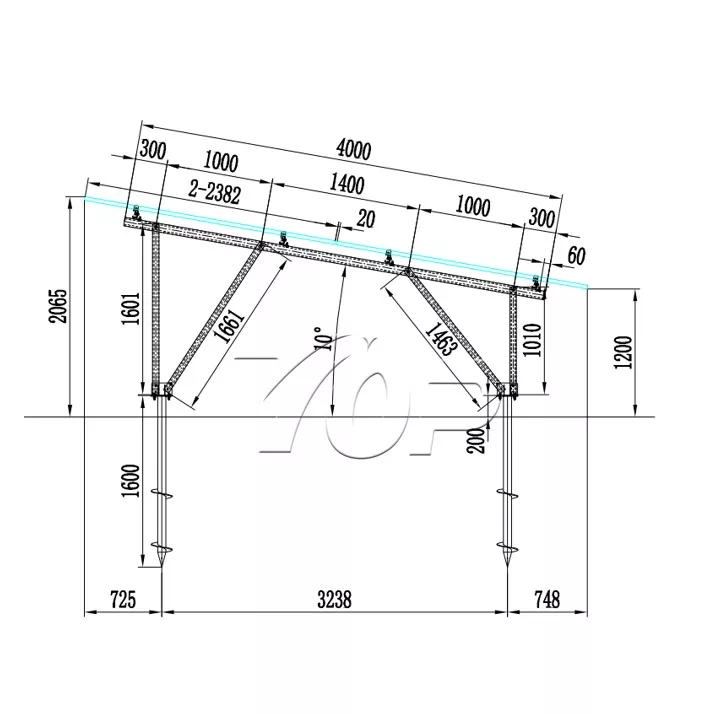

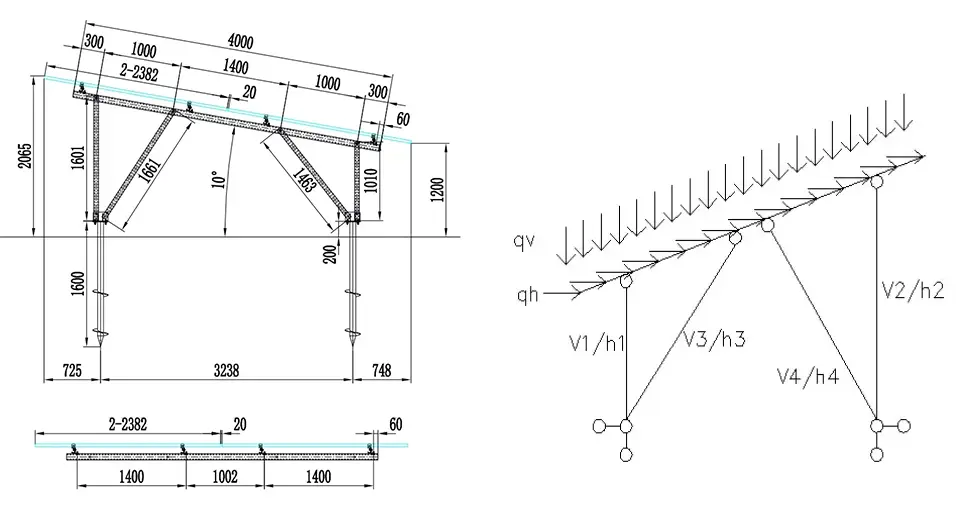

Below is the complete one set of the system diagram design for reference.
How to choose a correct foundation for supporting your solar system?
Appropriate installation methods should be selected based on different foundation types.
Such as:

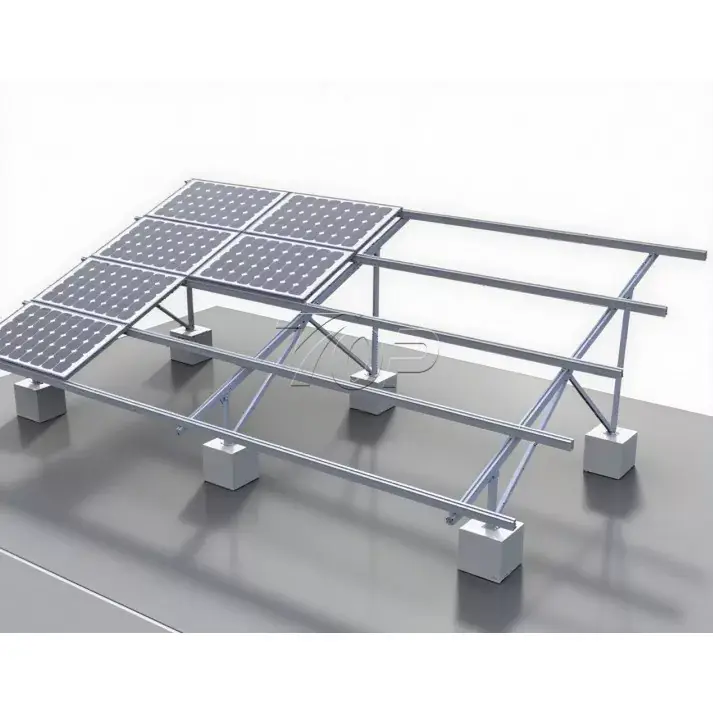

Concrete Foundations
Ground Screw Foundations
Pile-driven Foundations
The durable Aluminum Ground Mounted Solar Racking System is mainly considered about the soil-bearing capacity requirements of
Slope adaptation
Corrosion protection

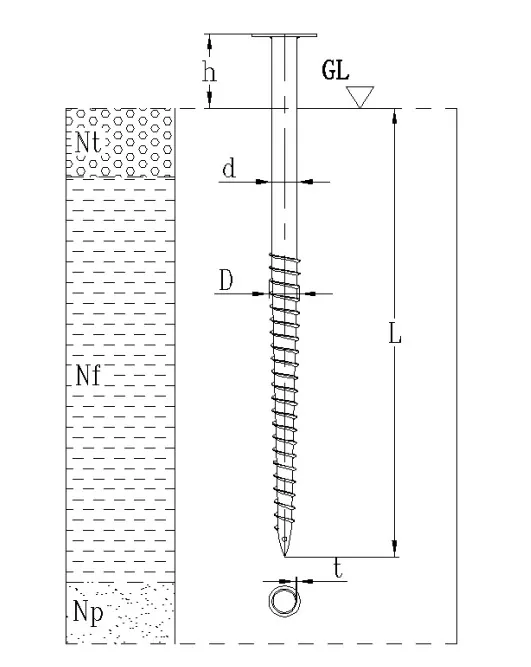

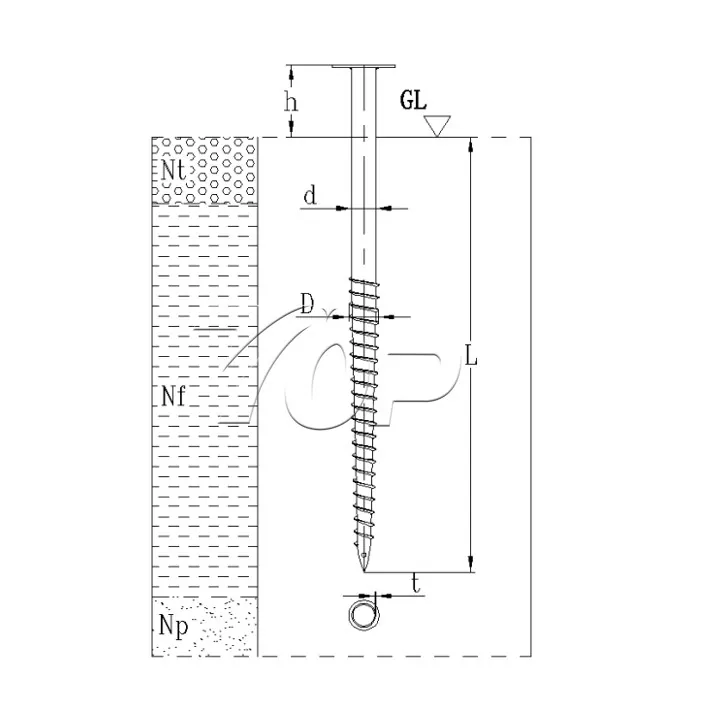

Take Helical Piles for example:
|
Parameter |
Requirement |
Example |
|
Shaft Diameter |
73mm~140mm |
Diameter of89mm steel pip |
|
Helix Plate |
Diameter 200mm-350mmbetween1-3 plates |
Double helixis300mm at bottom,250mmat top part |
|
Material |
Q235B |
Strength is over235 MPa |
|
Corrosion Protection |
Hot-dip galvanizing ≥85μm |
Coastal areas: Zinc coating + sacrificial anode |
Please contact Topfencesolar engineer team forprofessional selection.
The solar panels array layout is decided by your landscape size and site situation.
Normally could consider
2(row)* 10-24(column) , the exact will be designed based on your sites.

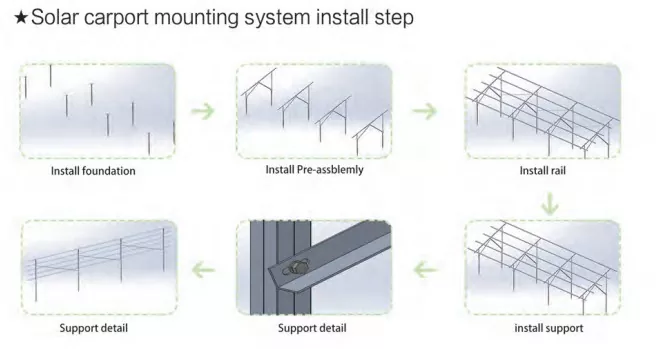

Installation Indications:

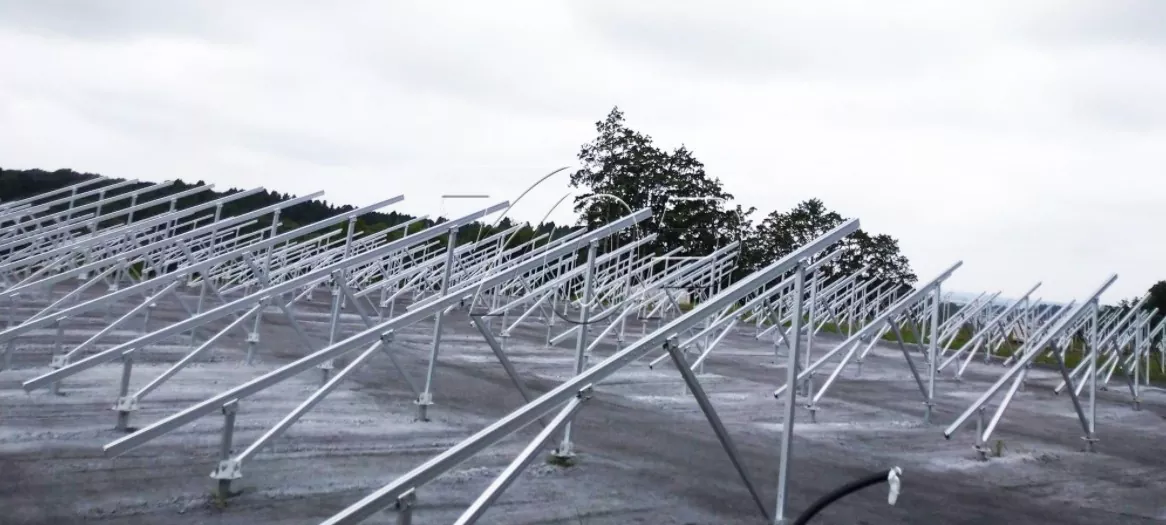

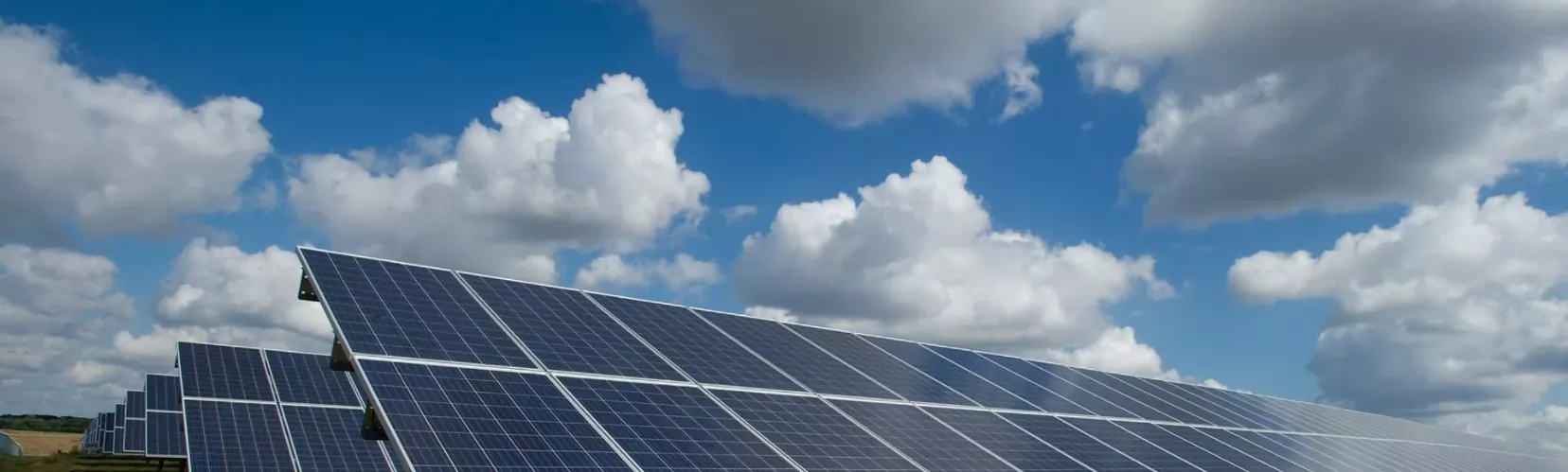

The real cases photo for reference.
