Non-Penetrating Solar Ballast Mount for Flat Roof

Stop risking your roof's warranty with unnecessary drill holes.At Topfencesolar, we have designed a suitable Non-Penetrating Solar Ballast Mount for Flat Roof foundation fixation device. We offer comprehensive customization services. This is an ultimate solution entirely based on the "gravity principle".

Product description

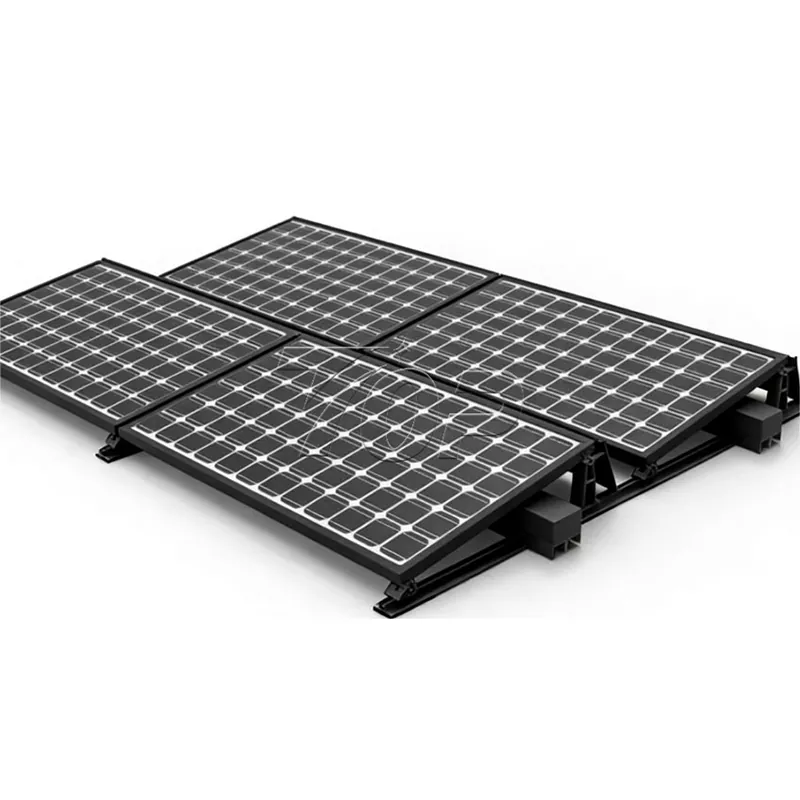

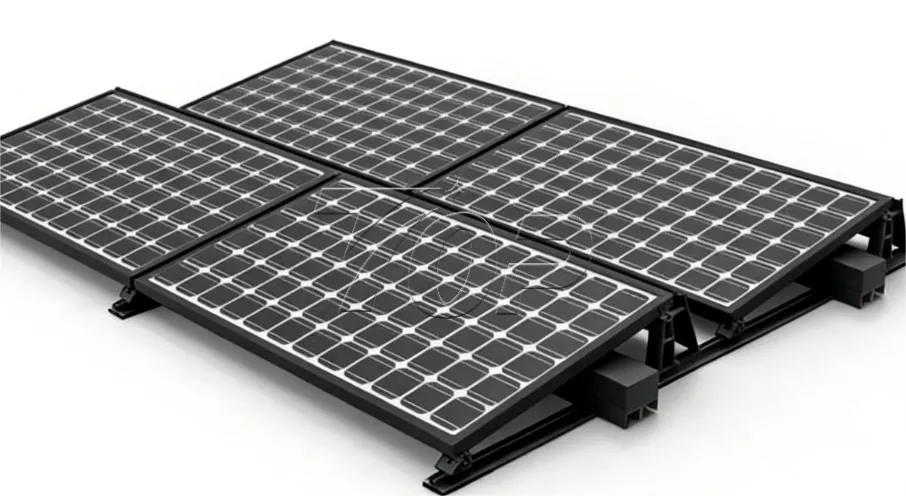

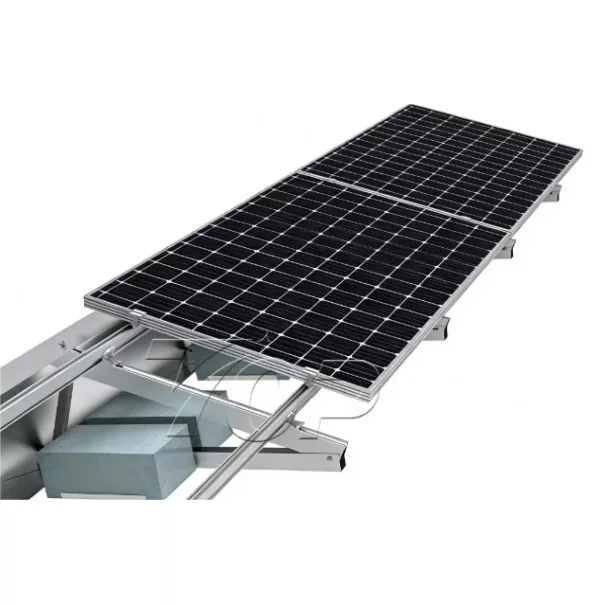

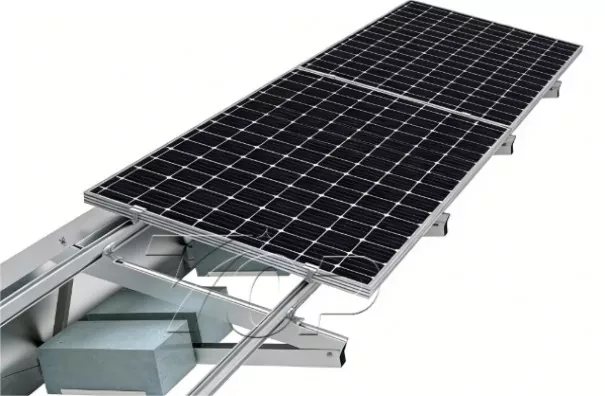

You can fully trust the Non-Penetrating Solar Ballast Mount for Flat Roof produced by TOPFenceSolar. As a professional manufacturer, we have used sturdy and durable aluminum materials to directly fix them on the roof surface. No mechanical anchorings that would damage the floor are needed; the tracks are fixed to each other through standard concrete blocks. This is a very stable array that can remain stable and not move even when the wind intensity increases.

Features & Benefits

1. No Holes, No Warranty Headaches

With this Solar Ballast Flat Roof Mounting System, your roof’s original seal stays 100% intact. You just lay down the protective rubber mats and set the trays right on top. Since there’s zero piercing, the building owner’s warranty stays valid, and you won’t get those "leaking roof" calls two years later.

2. "Drop-and-Go" Field Assembly

We’ve cut out the complicated hardware so your crew isn't fumbling with a thousand tiny screws. This system uses pre-aligned parts and a simple click-together logic. It’s all about getting the grid down and the rails dropped fast, which directly slashes your on-site labor costs.

3. Tailored Stability for Any Wind Zone

Not every roof is the same. The beauty of our system is how easily you can adjust the weight. You can stack more concrete blocks in the high-exposure corners and use fewer in the center. This flexibility lets you meet local safety codes without ordering custom hardware for every single site.

4. Using Aerodynamics as an Anchor

We do not merely rely on weight; we also utilize wind power to our advantage. Each set of Non-Penetrating Solar Ballast Mount for Flat Roof that we produce is equipped with a rear wind direction adjustment device. These devices can direct the airflow through the panel. In strong winds, this creates a natural "downforce", effectively securing the solar panels to the roof. This is a more intelligent design that avoids the need for you to carry additional heavy counterweights using a ladder.

Technical parameters

Application Case

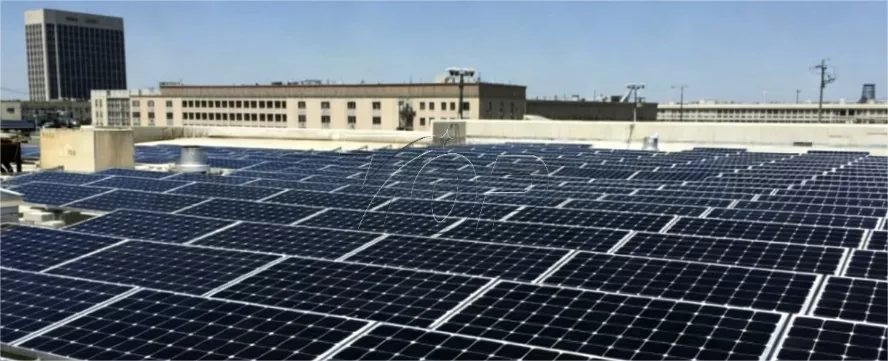

We have successfully delivered a wide range of customized Non-Penetrating Solar Ballast Mounts for Flat Roofs to numerous countries around the world. This non-penetrating installation system meets the needs of different regions and projects while being energy-efficient, facilitating the transition to green energy.

Product FAQ:

Can it really stay put without any roof bolts?

Definitely. While the Solar Ballast Flat Roof Mounting System doesn't use screws, it’s far from "loose." We design the grid as one interconnected unit, so the entire array acts as a single, heavy mass. Between the high-friction rubber mats and the wind deflectors that create down force during gusts, the system stays exactly where you installed it.

Will the ballast trays damage my roof membrane?

Not at all. We always include thick EPDM buffer mats that sit between our Solar Ballast Flat Roof Mounting System and the roof. This prevents any direct contact or rubbing against TPO, EPDM, or bitumen surfaces. Your roof stays 100% leak-proof, and your original building warranty remains safe.

How do I figure out the right amount of concrete weight?

You don’t have to guess. TOPFenceSolar provides a ballast layout based on your local wind speed and building height. The Solar Ballast Flat Roof Mounting System is flexible—you simply drop more blocks into the trays in high-pressure areas (like the roof corners) and fewer in the center to keep the load balanced and safe.
