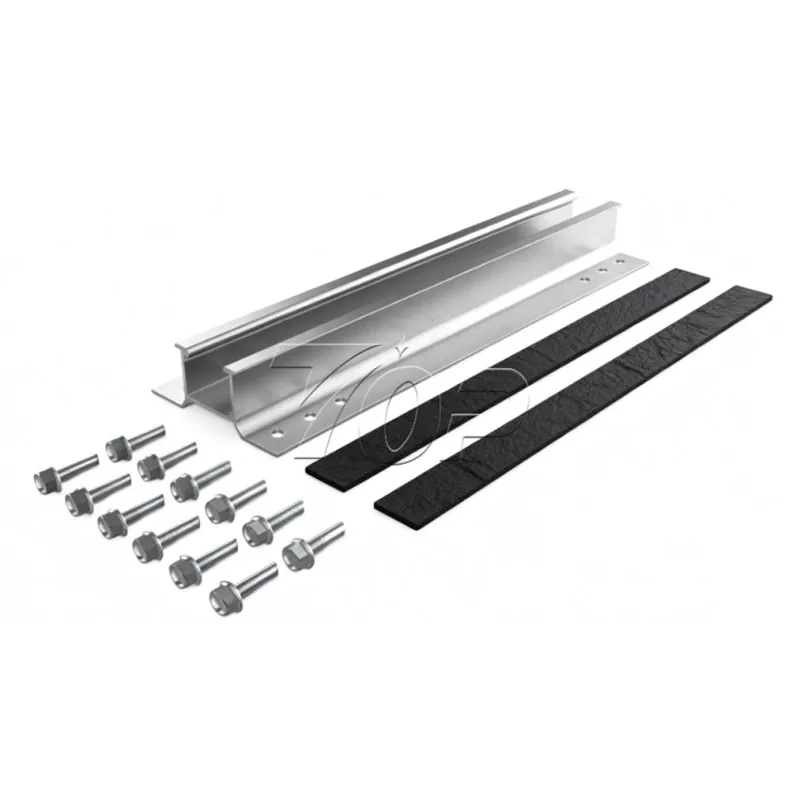

Aluminium Solar Panel Mounting Mini Rail

Topfencesolar, a professional supplier, provides Aluminium Solar Panel Mounting Mini Rail, which is a low-priced rail. It is made of AL6005-T5 and SUS304 stainless steel, which makes it lightweight yet sturdy. The length and height of our tracks can be customized, thus they can be well adapted to trapezoidal and corrugated metal roofs.

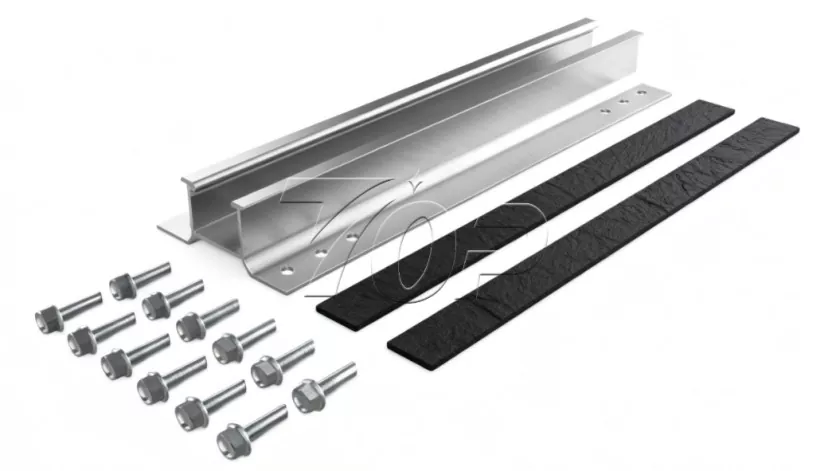

The installation is very simple, requiring only a few components, such as the middle clamp, end clamp and guide rail, so the installation is quick and convenient. This system is equipped with EPDM rubber pads, effectively preventing water leakage at connection points. Its compact design saves space, making it an economical and reliable choice for families and small businesses.

Technical parameters

Features & Benefits

1.It uses less aluminium and is light and simple. One person can complete the installation without the need for special tools or a team, saving both manpower and time.

2.The Aluminium Solar Panel Mounting Mini Rail is made of high-strength aluminum alloy (AL6005-T5) and stainless steel (SUS304 bolts) through CNC cutting and precise extrusion forming, which can ensure dimensional accuracy and structural consistency, thus achieving a seamless splicing.

3.Its compact design fits well in limited roof spaces and works with various roof types and solar panel thicknesses.

Product Installation:

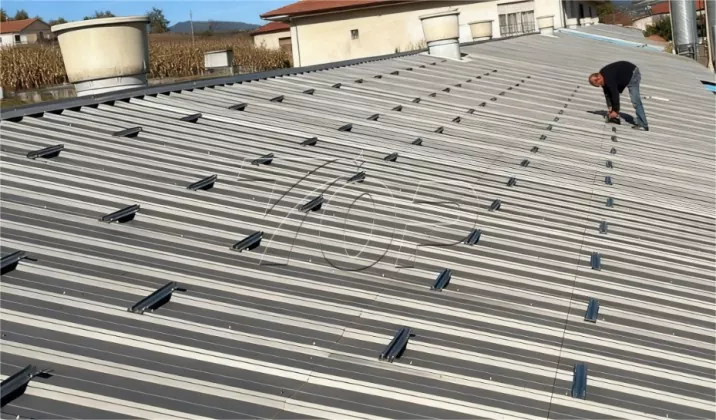

Topfencesolar summarizes the installation tips. First, based on the design drawings and the type of roof, determine the position of the mini track, fix it on the roof, and then install it on the base with stainless steel bolts. Place the Solar panels smoothly on the installed Aluminium Solar Panel Mounting Mini Rail. The middle clamp and end clamp firmly lock the panel onto the guide rail from both sides, completing the entire installation process. We have combined high-torque locking technology and anti-loosening washers, along with SUS304 stainless steel bolts, to ensure that the entire system does not loosen or deform.

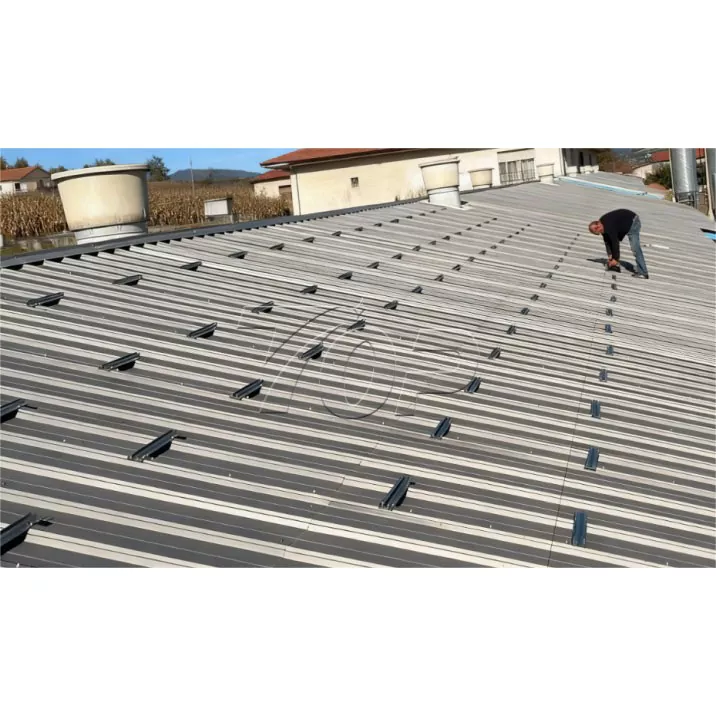

Application Case

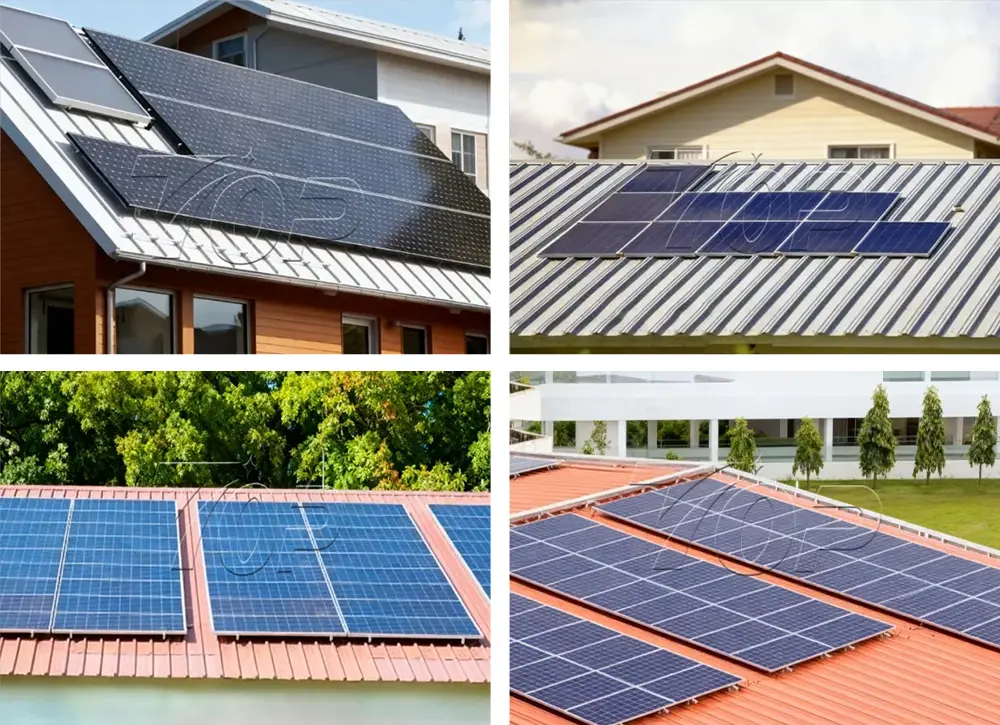

We have developed different Aluminium Solar Panel Mounting Mini rails for different house characteristics and attached instructions for easy installation. If you still have doubts about our products, please contact us.

Product RFQ:

Q1: can this system be installed on all types of metal roofs?

A1: It is mainly suitable for trapezoidal and corrugated metal sheet roofs. For standing seam or tile roofs, we recommend different mounting solutions.

Q2: What panel sizes are compatible?

A2: The mid and end clamps are adjustable and can fit framed solar panels with thicknesses between 30-40mm.

Q3: ls the system strong enough for high wind or snow areas?

A3: Yes, it is engineered to withstand local wind and snow load conditions in accordance with international standards.
