Ground Screw Pile For Solar Mounting System

As the professional China manufacturer and supplier, Topfencesolar Ground Screw Pile For Solar Mounting System is made of Q235 material, and each screw pile will be through Hot-Dip-Galvanized process, a zinc layer over 80um thickness will be formed on the screw pile surface after the process. The zinc layer brings excellent resistance to the screw pile, and will be a protection for the screw pile from rust and corrosion.

Technical parameters

Brand Name	Topfencesolar
Surface treatment	Hot-Dip Galvanized Steel
Material	Q235
Color	Nature
Height	1, 1.5, 1.6, 1.8 meter, etc.
Warranty	10 years
Lifespan	Over 25 years

Features & Benefits

1. Good strength

Screw pile made of Q235 material are very strong and will not easily bend.

2. Excellent corrosion and rust resistance

The zinc layer on the surface provide well protection for the screw pile, protect screw pile from rust and corrosion.

3. Spiral design, good grip performance

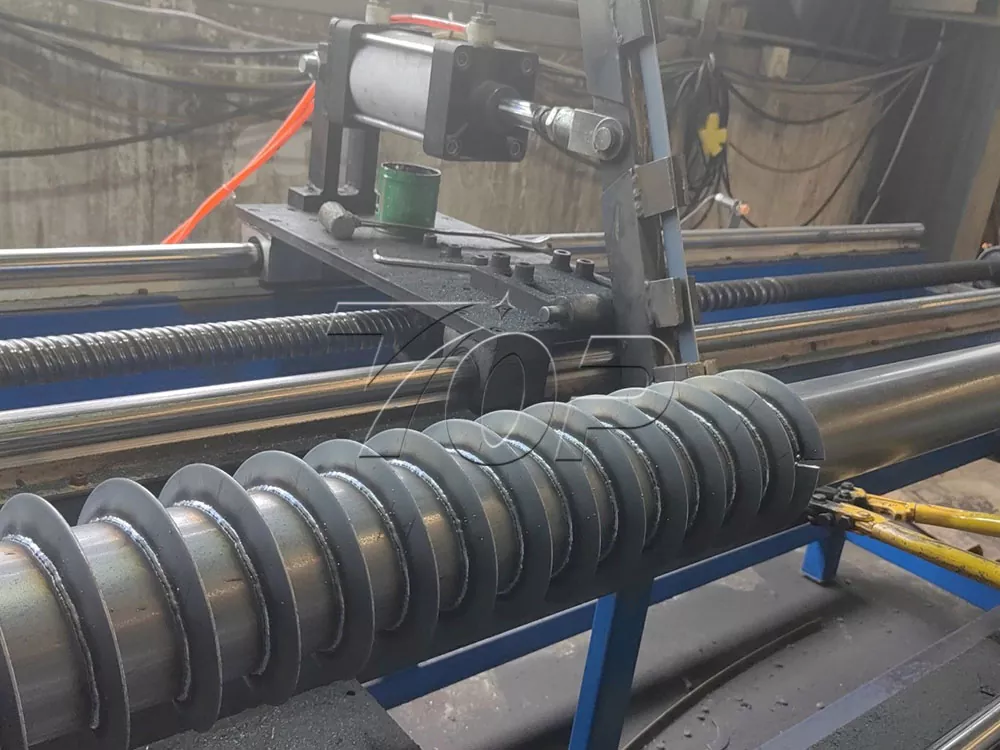

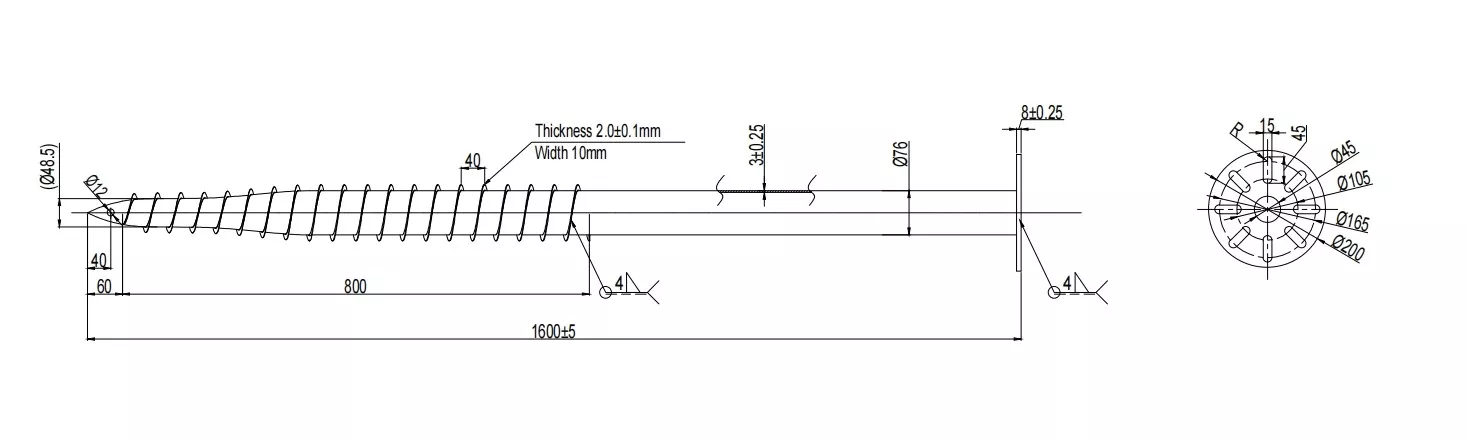

Solar Mounting with Ground Screw Pile adapts special spiral blade design, the special design bring good grip performance in installation.

4. Diverse application scenarios

Screw piles with different blade size and number are available for different application scenarios like sand, paddy field and marsh etc.

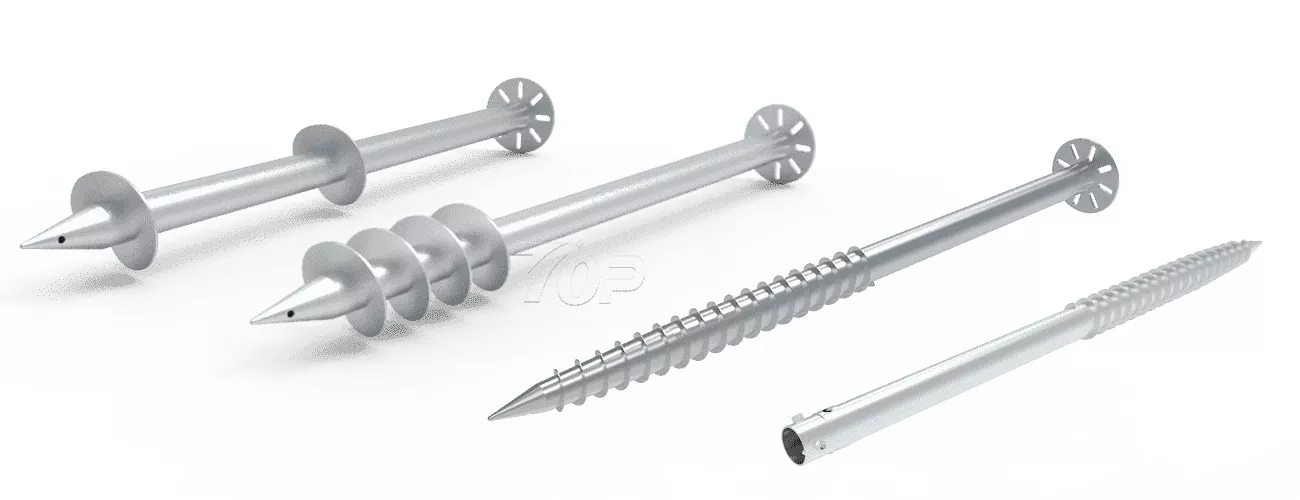

There are more types of ground screws for you.

How to choose a probable screws for your project?

1. Inspecting the soil checking its soft, hard situation

2. Checking local max. Wind speed.

3. Checking the snow loading

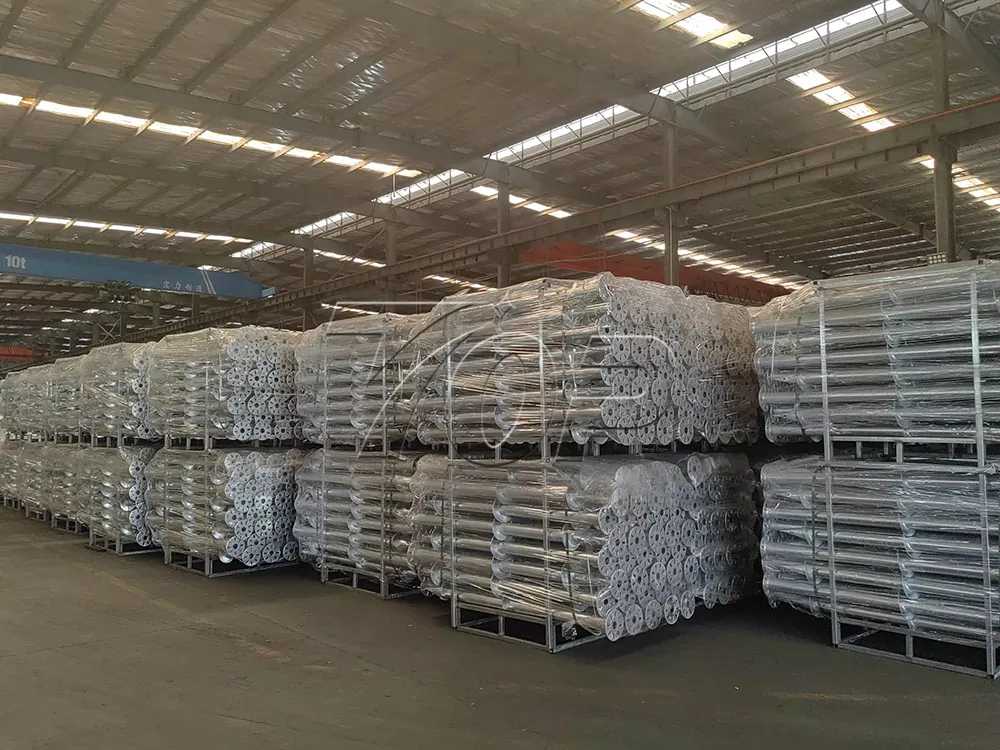

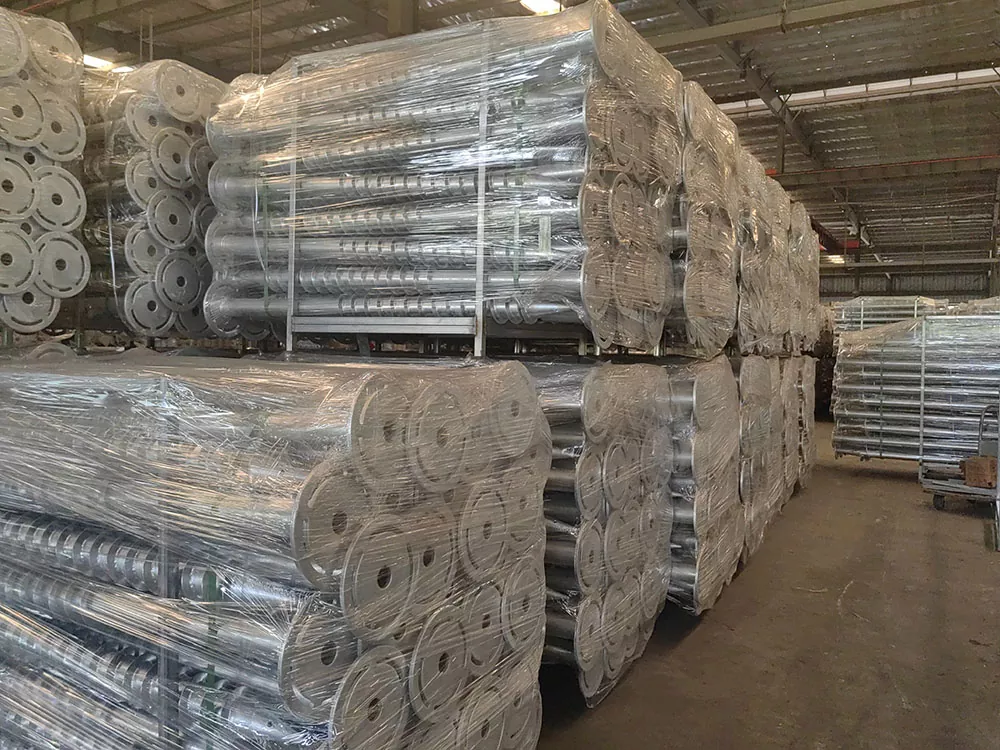

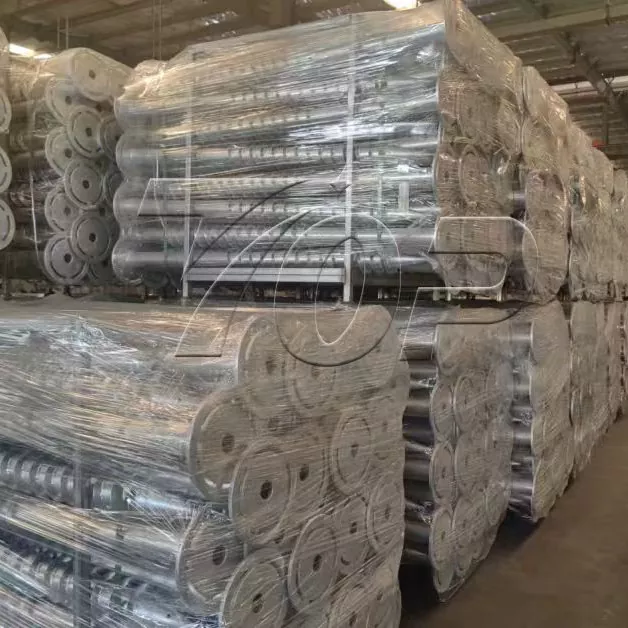

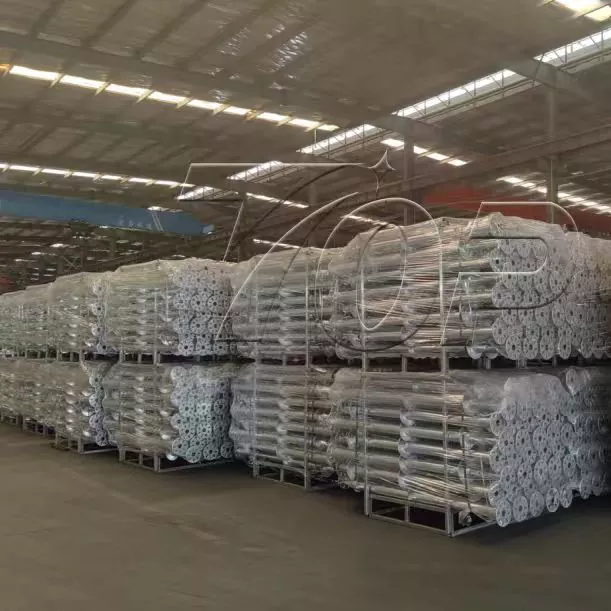

Shipping Packing:
