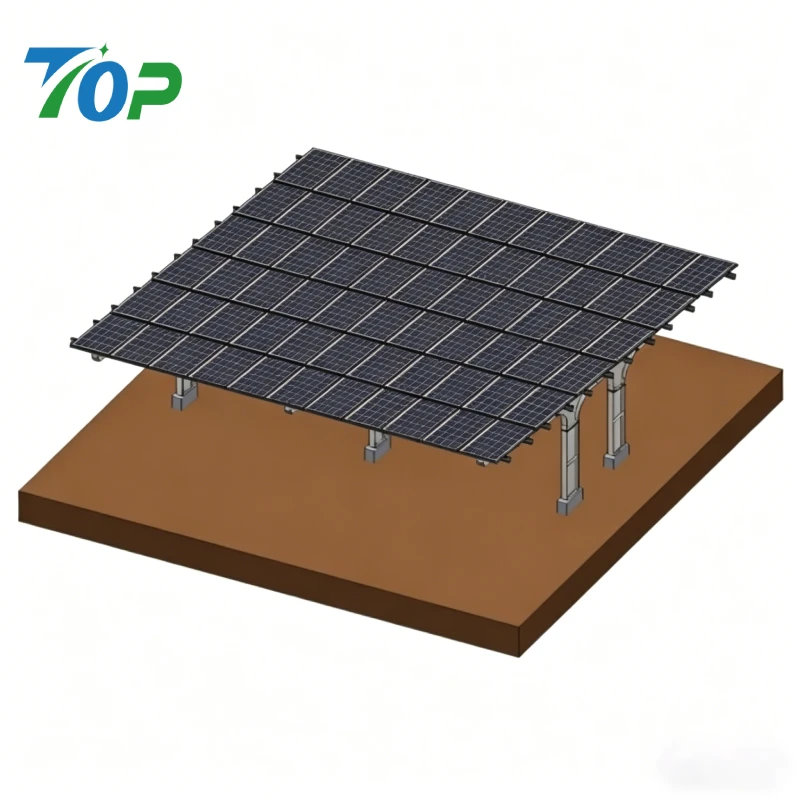

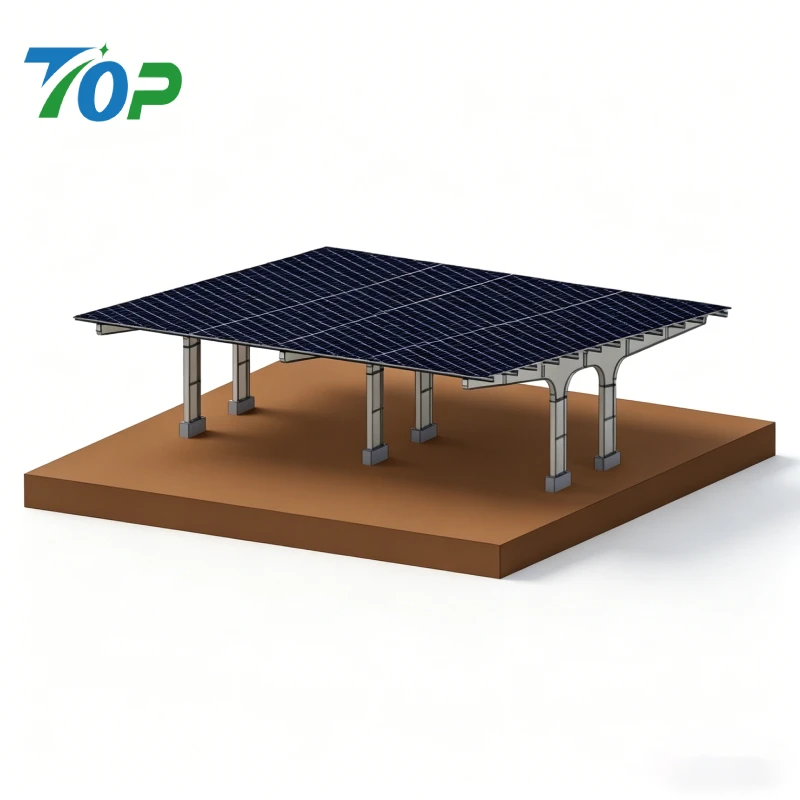

Hot-Dip Galvanized Solar Parking Carport Mounting System

Engineered Solar Parking Structure for Long-Term ROI

TOPFENCE solar parking carport system manufacturer provides engineered photovoltaic parking structures for commercial parking lots, residential communities, and energy investment projects. This solar parking carport system is designed to convert parking areas into revenue-generating clean energy assets, delivering long-term durability, high wind resistance up to 60 m/s, and snow load capacity of 1.4 kN/m².

Structural Specifications of the Solar Parking Carport System

• Material: Hot-Dip Galvanized Steel (Q235)
• Fasteners: 304 Stainless Steel
• Surface Treatment: Hot-Dip Galvanizing
• Tilt Angle: 5–20°
• Maximum Wind Speed: 60 m/s
• Snow Load: 1.4 kN/m²
• Clearance Height: 2–2.5 meters
• Foundation: Concrete Block

Corrosion-Resistant Solar Parking Structure with Low Maintenance

The hot-dip galvanized surface treatment forms a thick zinc protective layer that prevents oxidation and rust, even in humid or coastal environments. This corrosion-resistant solar parking structure significantly reduces long-term maintenance costs and ensures structural stability throughout a 25-year project lifecycle.

Modular Solar Parking Carport System for Commercial Projects

The modular structural design supports scalable expansion and flexible project layouts, making it suitable for small parking areas as well as large-scale commercial installations.

• Flexible single-bay or multi-bay expansion
• Scalable installation capacity
• Easy integration with EV charging stations
• Compatible with most framed photovoltaic modules

Optimized Installation Workflow for Solar Parking Carport Projects

The system uses pre-fabricated structural components and standardized rail-clamp connections, reducing on-site welding and minimizing labor costs. This optimized installation workflow improves efficiency and shortens construction timelines for EPC contractors and project developers.

Solar Parking Carport Installation Guide

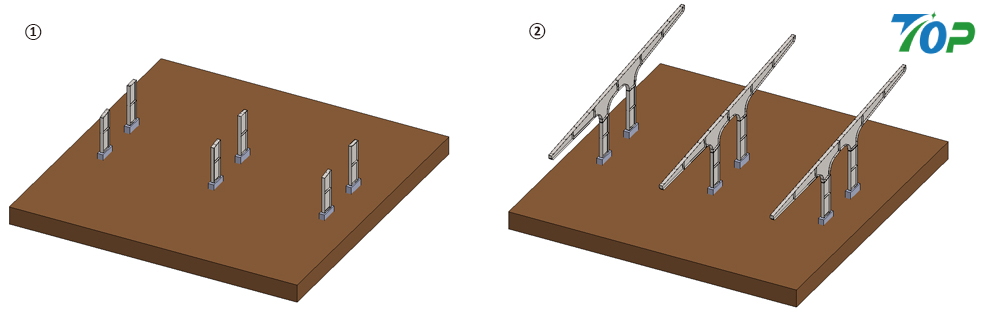

1. Fix the base support blocks according to engineering drawings and site layout.
2. Install and secure the upper support columns onto the lower supports.

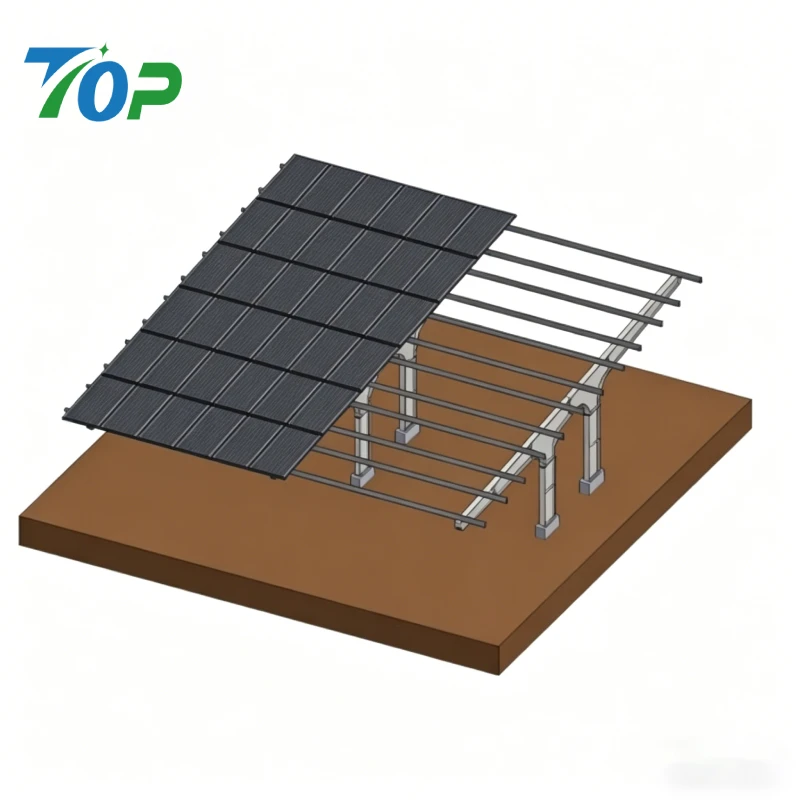

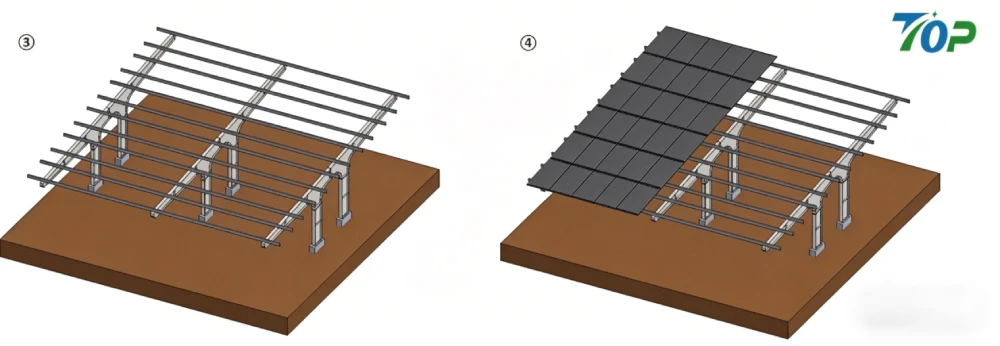

3. Mount and align the galvanized steel rails onto the structural beams.
4. Secure photovoltaic modules onto the rails using standard clamps until installation is completed.

Solar Parking Structure FAQs for Commercial Projects

1. What are the main advantages of installing a solar parking carport system?

A solar parking carport system increases land-use efficiency by transforming parking areas into power-generating assets while providing vehicle shading and protection. It enhances property value and supports long-term energy cost reduction.

2. How does the solar parking structure perform under high wind conditions?

The galvanized steel solar parking structure is engineered to withstand wind speeds up to 60 m/s. Structural reinforcement and optimized load distribution ensure safe operation in open-field environments.

3. Can the solar parking carport system support snow-heavy regions?

Yes. The structure is designed to handle snow loads up to 1.4 kN/m². Load parameters can be adjusted based on regional climate requirements and local building standards.

4. Is the solar parking carport compatible with different PV modules?

The system is compatible with most framed photovoltaic modules. Rail spacing and clamp configurations can be customized to match various module sizes and thicknesses.

5. Can the system be integrated with EV charging infrastructure?

Yes. The solar parking carport structure allows integration with EV charging stations, enabling combined solar power generation and electric vehicle charging solutions.

6. What foundation options are available for this solar parking structure?

The standard configuration uses concrete block foundations for stability and cost efficiency. Alternative foundation solutions can be designed according to soil conditions and project scale.

7. How long is the service life of the galvanized steel solar parking system?

With hot-dip galvanizing and high-strength structural steel, the system is designed for a 25-year service life, aligning with typical photovoltaic system warranties.

8. What documentation is provided for engineering approval?

We provide structural drawings, load calculation reports, material specifications, and installation manuals to support project approval, engineering review, and tender submissions.
