Solar Tile Roof Mounting Structures

Solar tile roof mounting structures different shapes can be customized according to the needs of different customers. Our design can meet various demands in the market. The length of the standard support can adapt to different situations of tile overlap and can be adjusted from different heights to fix various types of tile roofs. The hook is treated with advanced anodizing, ensuring extremely stable quality. It can guarantee the firm installation of your solar bracket system and has strong corrosion resistance. The lifespan of the tile roof support system we provide exceeds 25 years. We can quickly install the bracket system on the tiled roof, which is very time-saving and labor-saving. No complex tools or skills are required to achieve rapid installation.

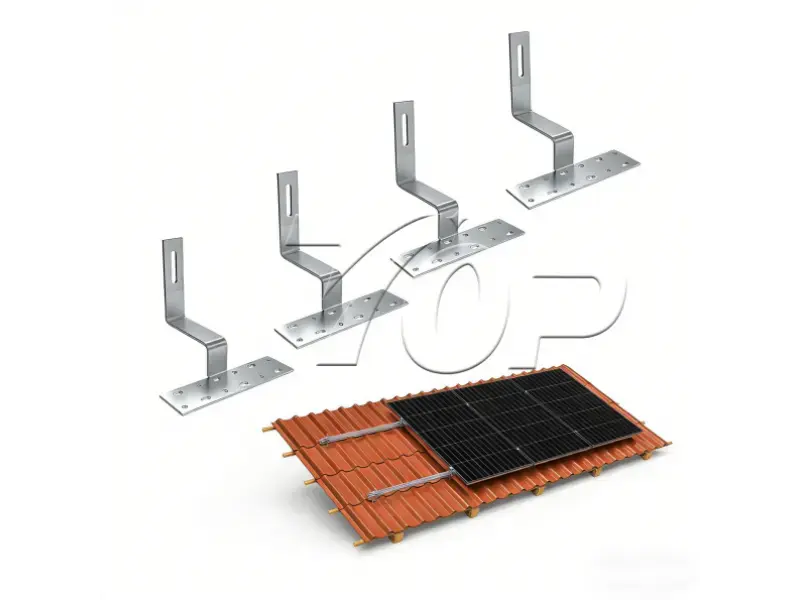

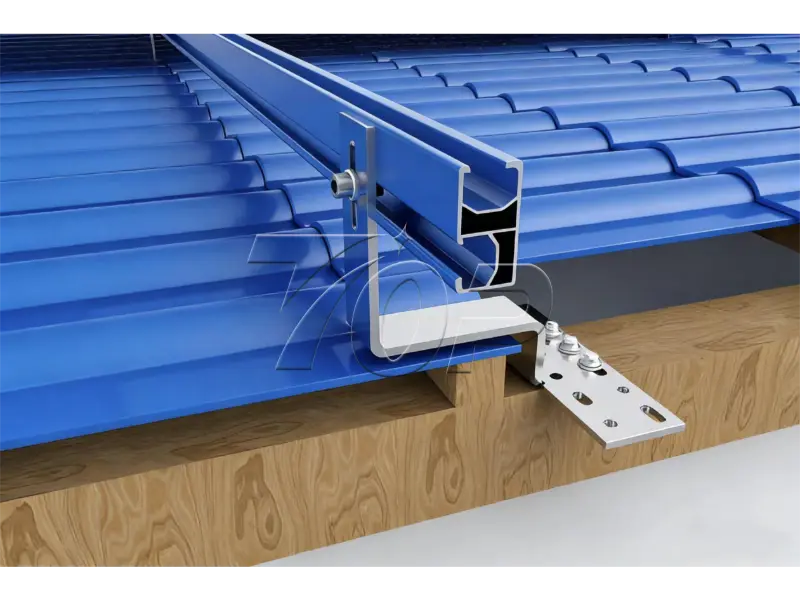

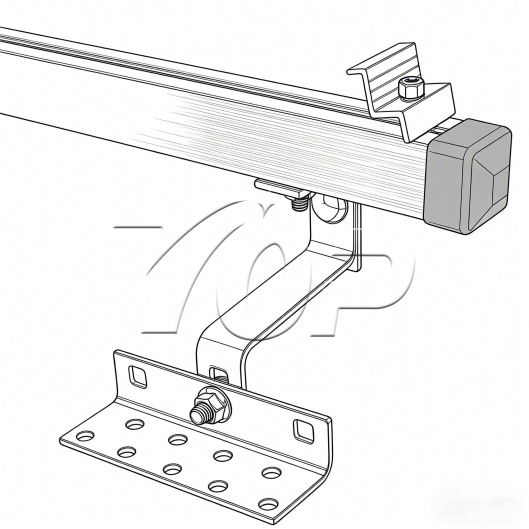

-Roof hook

-solar Rail

-Mid clamp: for vertical or horizontal solar panel

-End clamp: for vertical or horizontal solar panel

-Rail end cap

-A2 Flange head screw

-Wind loading: up to 60 m/s

-Snow loading: up to 1.4KN/m2

-PV panel orientation: Portait or Vertical

-The hook height could be adjustable (optional).

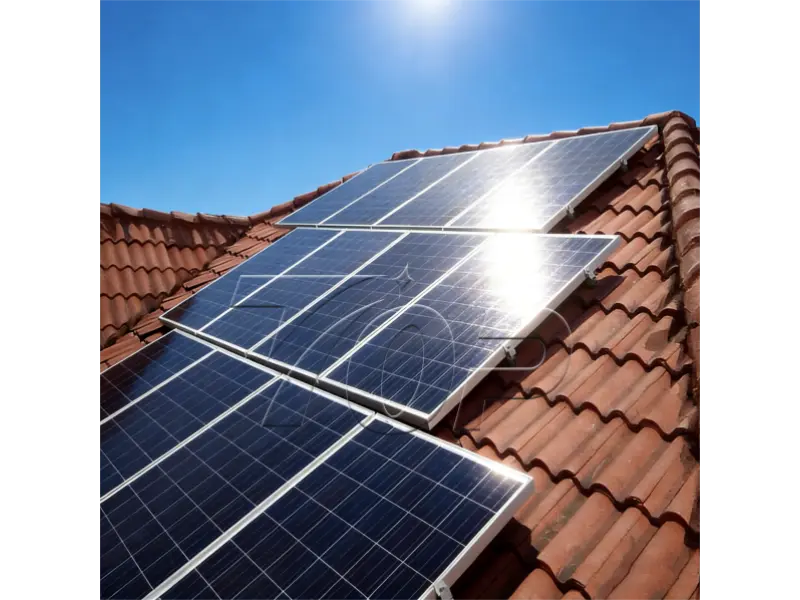

1. The tiled roof solar support system designed by Topfencesolar is suitable for residential or commercial use and has passed tests simulating wind loads up to 60 meters per second and snow loads up to 1.4 kilonewtons per square meter.

2. It can be flexibly adjusted by regulating the height to adapt to different roofs.

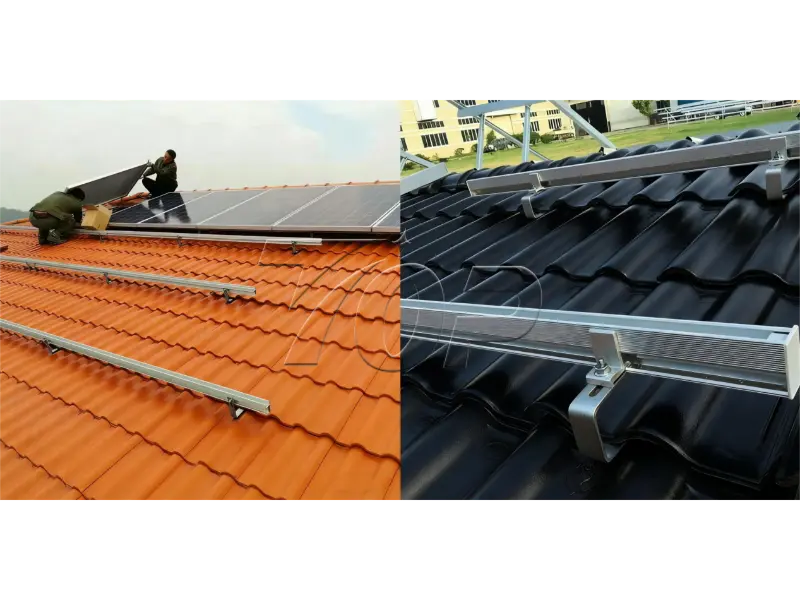

3. Easy to install, with a simple structure, it is convenient to install without the need for complex tools or skills, saving time and effort.

4.The hook system uses fewer brackets, has lower structural costs and labor costs.
