Z Bracket Solar Mounting Kits

With the increasing global demand for solar power, easy-installation solutions are becoming increasingly popular. TheZ Bracket Solar Mounting Kits was developed for this purpose and has gained widespread popularity due to its simplicity and efficiency.

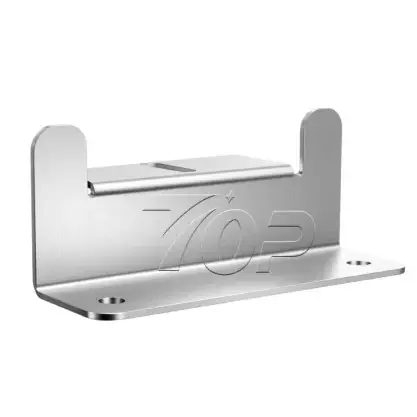

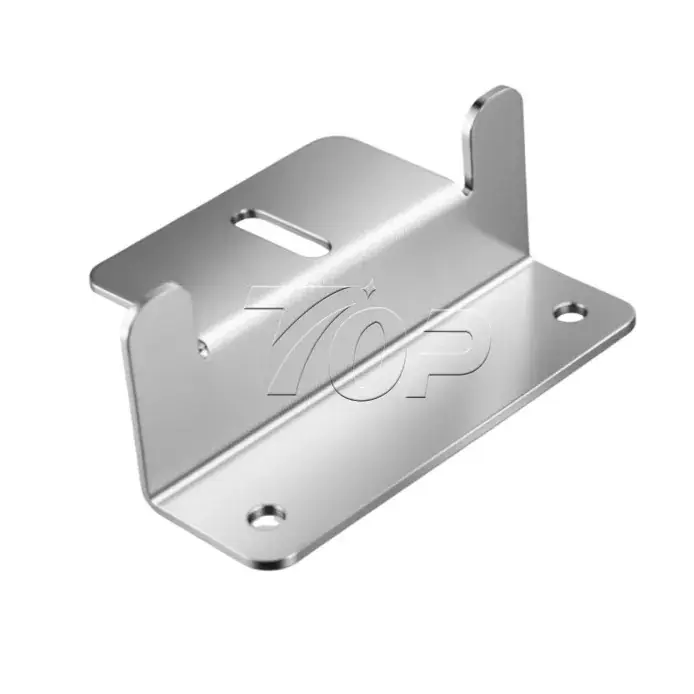

The kit Our Z-shaped mounting brackets are made of strong aluminum and comes complete with four corrosion-resistant bolts for secure panel attachment. They’re built to last and simple to install, helping you set up your solar system quickly and safely.

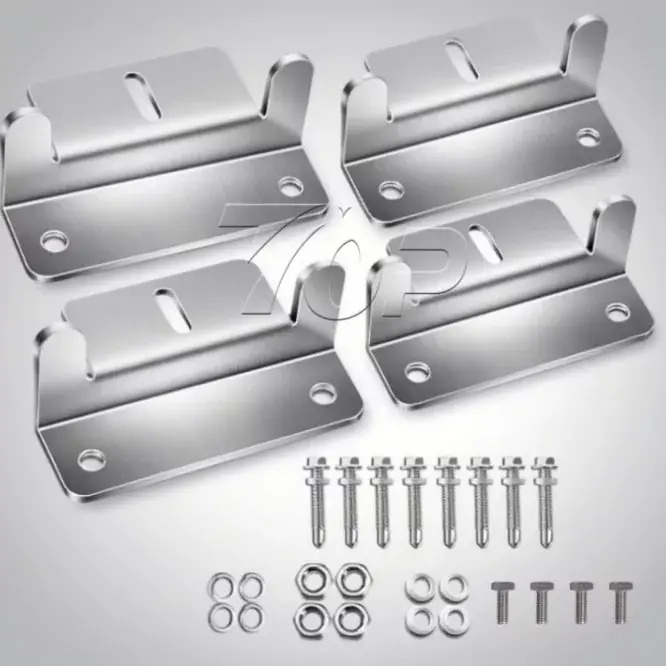

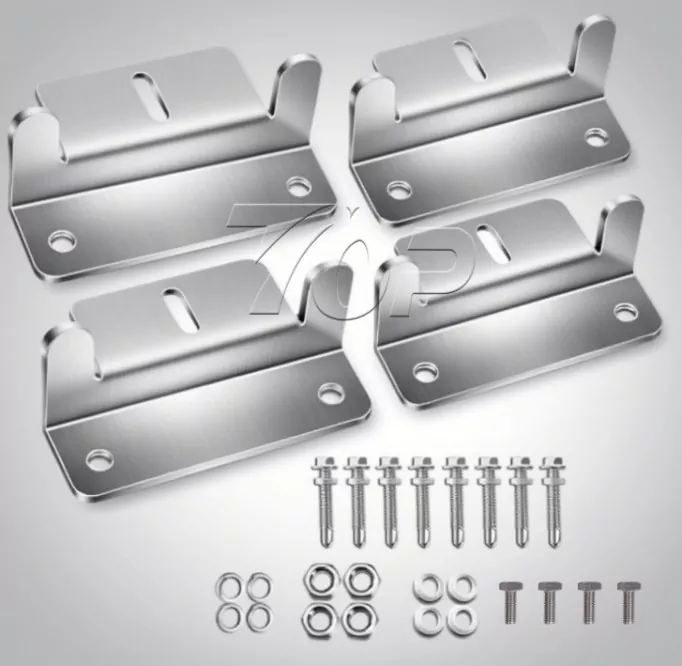

The Z type mounting kits for one panel are including:

4pcs of Z Bracket Base

8pcs of self-tapping screw

4sets of bolt set

This kit adopts an innovative Z-shaped design that greatly simplifying installation. It can be quickly assembled without professional tools. Compared with traditional installation systems, it uses fewer components, making the entire system more lightweight. This method also significantly reduces installation time and costs, making your entire solar project smoother and faster.

Installation Steps:

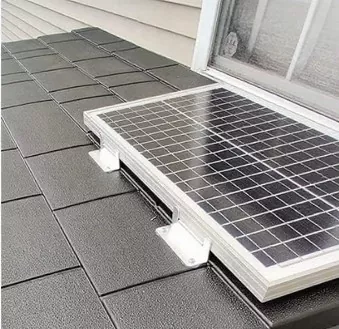

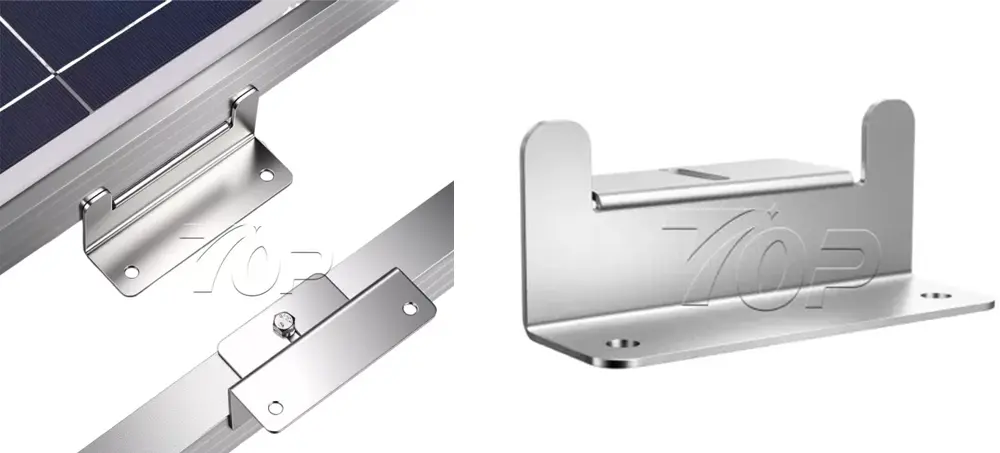

Typically, four Z-brackets for Solar Panel Mounting are used to mount one solar panel. The brackets are secured with bolts on both long sides of the panel, with two Z brackets installed on each side.

Next, move the panel into its desired location on the roof. Each Z bracket is then fastened to the roof with 2 self-tapping screws.

After all four brackets are fixed, the installation of one panel is complete.

Applications

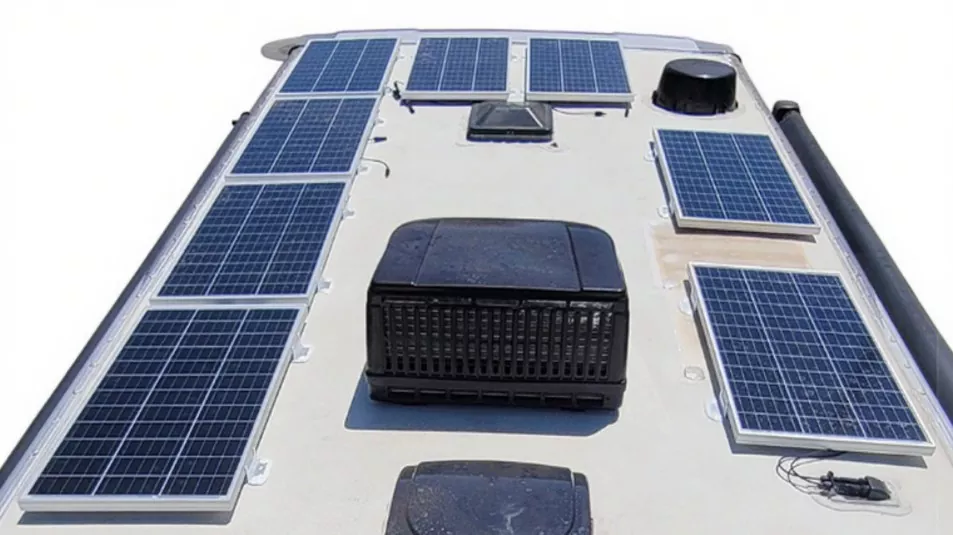

Designed for aluminum-framed solar panels, these Steel Easy Installed Z Brackets are ideal for Recreational Vehicles, boats, camper vans, and flat roof installations. We recommend using 4 brackets for small panels, 6 for medium sizes, and 8 for larger panels to ensure secure and stable mounting.

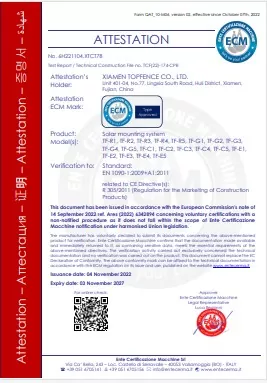

Certificates:

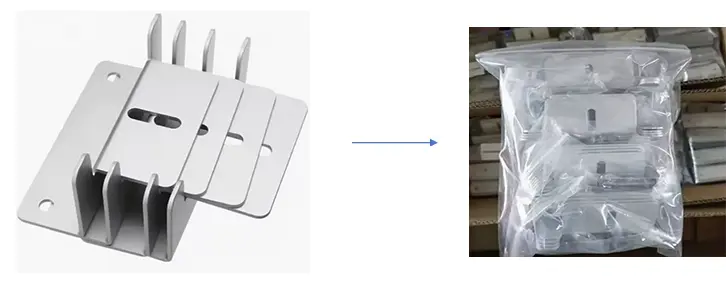

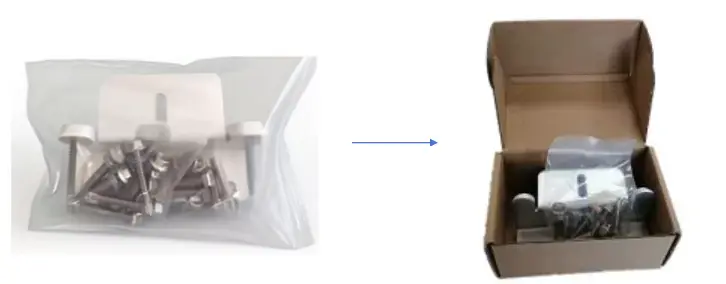

Package:

Package method 1: with individual box packing.

Package method 2: Polybag bulk packing

The Stocks Attention:

How we know the influence of the material?

The white rust is the result of a chemical reaction between zinc and the carbon dioxide, oxygen and water or moisture in the air.

C + O₂ → CO₂

Zn + ½ O₂ → ZnO

4Zn + 3H₂O + CO₂ → ZnCO₃·3Zn(OH)₂

The white rust happened on the surface of galvanized steel is kind of result of combined action of above-stated parameters and mostly in the case of stock-piled metal. The oxygen dissolved in water will react with Zn to produce zinc hydroxide, the carbon dioxide present in the air will react with zinc to produce zinc carbonate. The combined result of these two reactions will lead to the development of zinc carbonate zinc hydroxide, called white rust.

Keep the stocks in good condition, be placed in a good environment, please.
