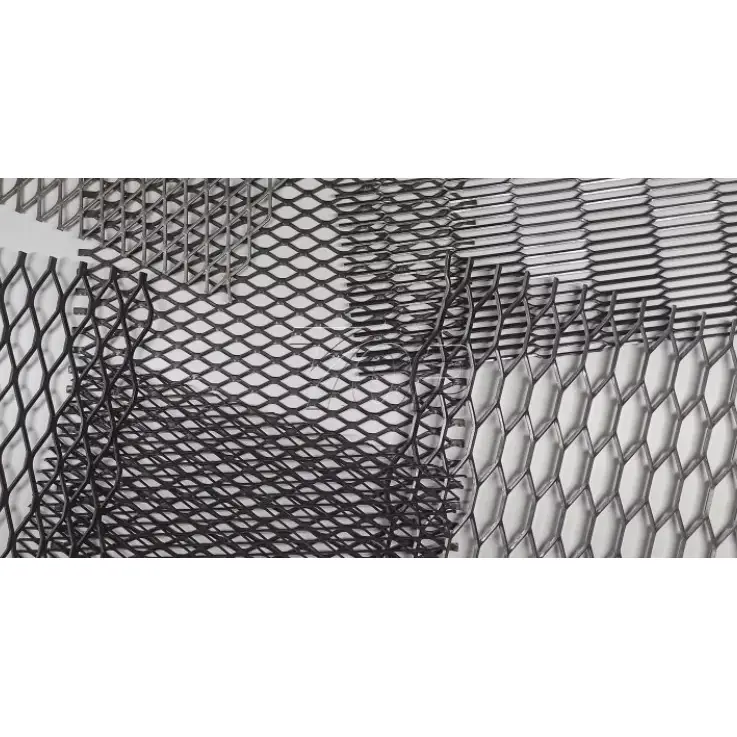

Diamond Shaped Wire Mesh Fence Solar System
Topfencesolar's Diamond Shaped Wire Mesh Fence Solar System feature strong holes and a long service life. They are primarily used in cement batching for civil engineering, mechanical equipment protection, handicraft manufacturing, high-end speaker grilles, highway guardrails, sports venue fencing, and road green belt protection.
Brand:Topfencesolar
Product Material:Steel
Product Foundation:Net Nesh
Service Life:25 years

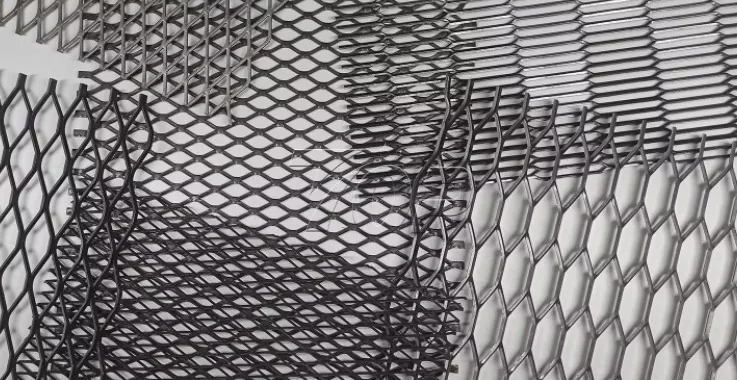

Diamond Shaped Wire Mesh Fence Solar System with its excellent aesthetics, has long been a widely used metal mesh product. Made from high-quality low-carbon steel, stainless steel, and other sheet metal, the expanded metal is manufactured using a hole-expanding machine. The metal sheets or coils are fed into the machine, where they are simultaneously slit and stretched. The resulting mesh has no seams or welds, and produces minimal waste.
Conventional diamond-shaped expanded metal is produced by cold-rolling and reducing standard expanded metal to create smooth diamond-shaped holes. We understand that the requirements for diamond-shaped expanded metal vary across different applications, so we offer customized services, tailoring everything from material, thickness, surface treatment, and dimensions to your specific requirements.
Parameters
|
Brand Name |
Topfencesolar |
|
Product Name |
Diamond Shape Expanded Metal Wire Mesh Sheets |
|
Material |
Steel |
|
Surface Treatment |
Galvanized or PVC Coated |
|
Advantage |
Longer life |
|
Hole shape |
Diamond Shape |
|
Warranty |
10 year |
Features
1. We use top-grade steel to make this diamond mesh, so it’s super strong against impacts and won’t wear out easily even after years of use.
2.The stamping process gives it neat diamond holes—they don’t just look clean but also let air and light through well for daily use.
3. It is light enough to carry and install easily, yet still tough enough to handle heavy loads in places like factories or bridges.
4.You can pick anti-rust finishes for Expanded Metal solar fence, which means it works great outdoors in rain or in dusty industrial areas without getting ruined.
Expanded Metal Mesh：
|

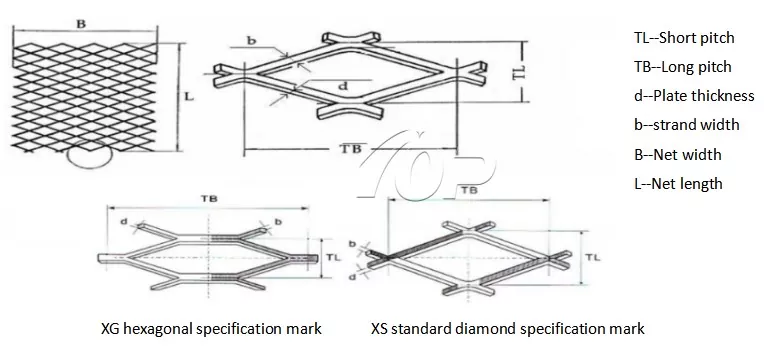

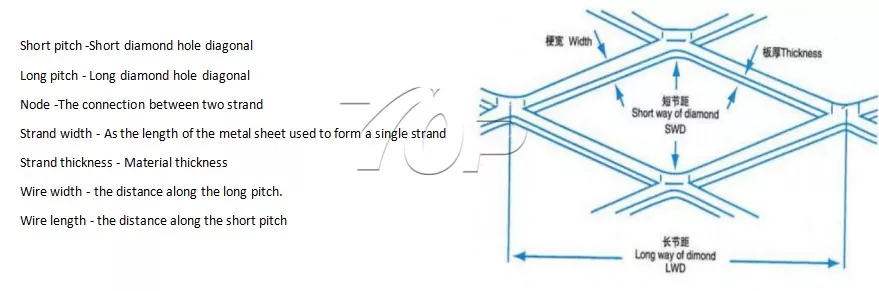

Specification： |
||||||||||
|
Type |
JIS |
（mm） |
（mm） |
Weight |
Standard dimensions L×S (mm) Weight (kg/piece) |
|
||||
|
Name |
Mesh size |
Strand size |
kg/m 2 |
914×1829 |
1219× 2438 |
1524× 3048 |
|
|||
|
|
SWD |
LWD |
T |
W |
|
|
||||
|
TF |
TS31 |
12 |
30.5 |
1.2 |
1.5 |
2.36 |
3.95 |
7.01 |
11 |
|
|
XS32 |
12 |
30.5 |
1.6 |
2 |
4.19 |
7.01 |
12.5 |
19.5 |
|
|
|
TS33 |
12 |
30.5 |
2.3 |
3 |
9.03 |
15.1 |
26.8 |
41.9 |
|
|
|
TS41 |
22 |
50.8 |
1.6 |
2 |
2.28 |
3.81 |
6.78 |
10.6 |
|
|
|
TS42 |
22 |
50.8 |
2.3 |
2.5 |
4.1 |
6.86 |
12.2 |
19 |
|
|
|
TS43 |
22 |
50.8 |
3.2 |
3.5 |
8 |
13.4 |
23.8 |
37.2 |
|
|
|
TS51 |
25 |
61 |
1.6 |
2.5 |
2.51 |
4.2 |
7.46 |
11.7 |
|
|
|
TS52 |
25 |
61 |
2.3 |
3 |
4.33 |
7.24 |
12.9 |
20.1 |
|
|
|
TS53 |
25 |
61 |
3.2 |
4 |
8.05 |
13.5 |
23.9 |
37.4 |
|
|
|
TS61 |
34 |
76.2 |
2.3 |
3 |
3.19 |
5.33 |
9.48 |
14.8 |
|
|
|
TS62 |
34 |
76.2 |
3.2 |
4 |
5.91 |
9.88 |
17.6 |
27.5 |
|
|
|
TS63 |
34 |
76.2 |
4.5 |
5 |
10.4 |
17.4 |
30.9 |
48.3 |
|
|
|
TS71 |
50 |
152.4 |
2.3 |
3.5 |
2.53 |
4.23 |
7.52 |
11.8 |
|
|
|
TS72 |
50 |
152.4 |
3.2 |
4 |
4.02 |
6.72 |
11.9 |
18.7 |
|
|
|
TS73 |
50 |
152.4 |
4.5 |
5 |
7.06 |
11.8 |
21.1 |
32.8 |
|
|
|
TS81 |
75 |
203.2 |
3.2 |
4 |
2.68 |
4.48 |
7.96 |
12.4 |
|
|
|
TS82 |
75 |
203.2 |
4.5 |
5 |
4.71 |
7.88 |
14 |
21.9 |
|
|
|
TS83 |
75 |
203.2 |
6 |
6 |
7.54 |
12.6 |
22.4 |
35 |
|
|
|
TS91 |
115 |
304.8 |
3.2 |
5 |
2.18 |
3.64 |
6.48 |
10.1 |
|
|
|
TS92 |
115 |
304.8 |
4.5 |
6 |
3.69 |
6.17 |
11 |
17.1 |
|
|
|
TS93 |
115 |
304.8 |
6 |
7 |
5.74 |
9.6 |
17.1 |
26.7 |
|
|
Special specifications can be customized

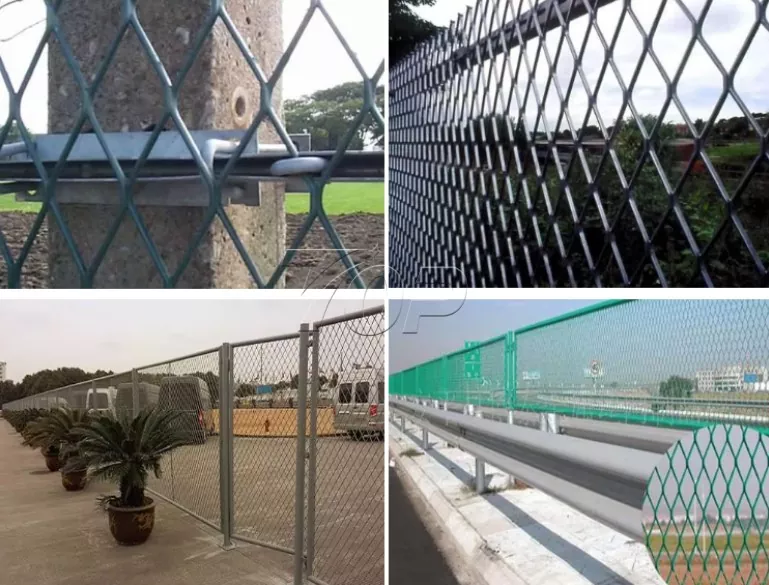

Application Case
