Wood Thread Hanger Bolt for Solar Mounting

As a professional manufacturer and supplier in China,  Wood Thread Hanger Bolt for Solar Mounting is maximumly simplifying the rail supporting structure. It could be flexible used on roofs, solving the challenges of structure overweight, roof structures damage, and corrosion resistance, etc. That is why the double-ended studs are commonly used in solar racking systems to connect structural components, such as solar rails to supports or adjusting mounting heights.

Major components:

Double-Ended Stud: M10×150 mm (M8, M10, M12, etc., with custom lengths based on installation needs.).

Nuts: 2 nuts per end (M10).

Washers: 2 flat washers + 1 spring washer per end.

Packaging: pre-assemble as a complete set.

Benefits:

Strong corrosion resistance

High temperature resistance

Resistant to rust

The size of solar panel bolts could be customized

Smooth surface treatment

Diameters at M10- M12, length could be customized as per the real needs

The surface is no burrs and quite smooth.

The stainless steel wont be easy rust under humid environment and the hardness performance better rather than copper and aluminum.

PARAMETERS

Product name	Wood Thread Hanger Bolt for Solar Mounting
Installation location	Metal Sheet Roof
Related components	Steel plate, L-feet clamp, etc.
Wind Speed	Up to60m/s
Snow Load	Max.1.4kn/m2
Customization	Available
Bolt service life	≥ 25 years

Application 1:

L feet screwed tightly with bolt, and fasten the rails on it to support solar panels.

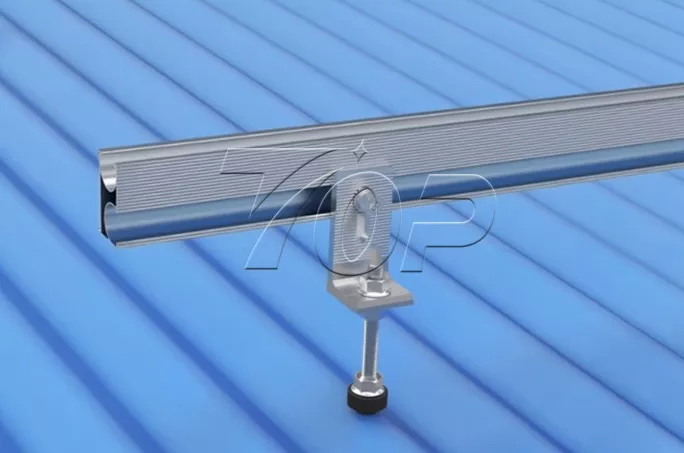

This are mostly used on the metal roofs, below is the diagram of the application.

Application 2:

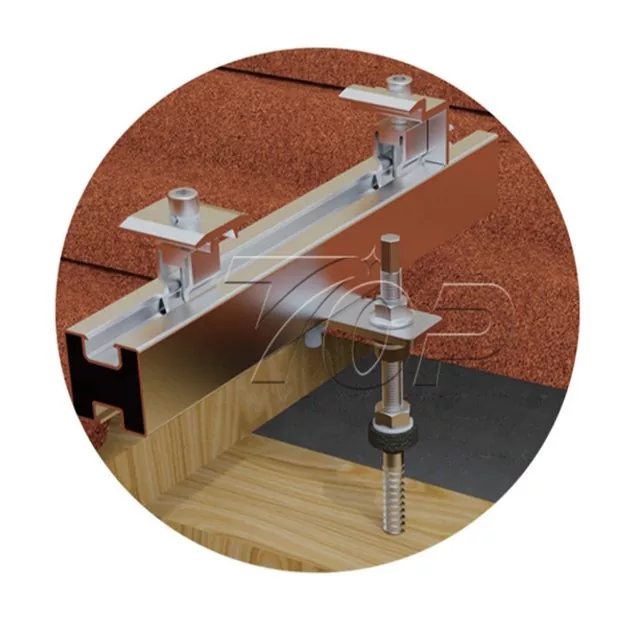

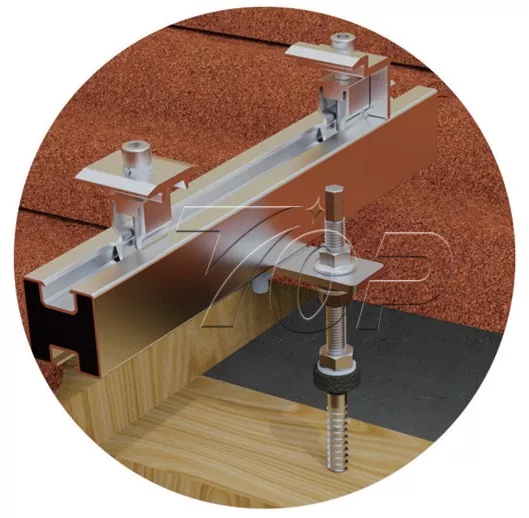

The bolts is used with SUS 304 steel plate, the rails are fastened on the planet safely. The PV panels are fastened with Mid clap and End clamps

ADVANTAGE

– Wood Thread Hanger Bolt for Solar Mounting are wildly used on all kinds of tile roofs, including asphalt tiles, glazed tiles, cement flat tiles, and slate tiles. Normally there are wooden rafter of the roof in Europe and steel purlin on the roof in Asia, SKA, US, etc.

– If there is hooks missing when doing EPC installation work of PV, the bolt is the best option to replace it and mount on the roof. It is a fast and simple installation solution for solar.

– The double end threaded stud application fields: on residential metal roof, commercial metal roof and warehouse or industrial metal roof.

– Highly corrosion resistant surface treatment with waterproof EPDM rubber integrated

Notice:

The SUS bolts might be scrated during delivery and shipment because of its mirror and smooth surface.

During installation, the bolts have certain tolerances within the normal range.

FAQ

1. What is the material of your hanger bolt?

It is corrosion resistance SUS304, 316.

2. What is your lead time?

The production time is 2 weeks for customization orders. Regular size, we have stocks for immediately shipment.

3. What is the dimension of Solar panel bolts?

Bolt sizes could be customized according to installation requirements. Common sizes are M8 and M10.
