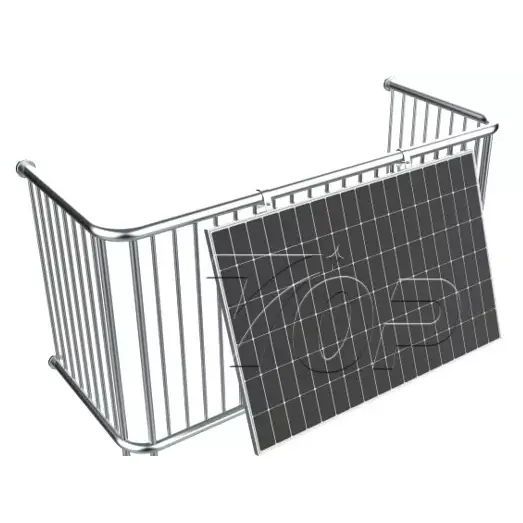

Solar Balcony System Kit

In terms of Solar Balcony System Kits design, Xiamen Topfencesolar innovatively combines balcony space with solar panels, designed specifically for urban residences with balconies. It fully utilizes balcony space and transforms traditional railings into balcony solar systems without affecting aesthetics and practicality. At the same time, it is easy to install and does not require excessive modification. It can be installed on the existing balcony railing foundation. In additional, the system is made of aluminum alloy material, which has high strength and strong corrosion resistance.

Parameter of the System:

Installation Steps

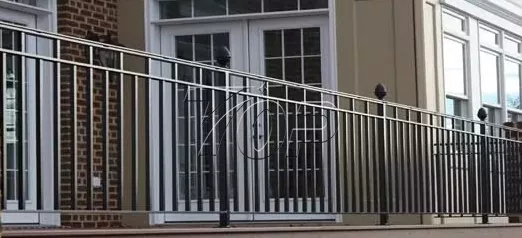

Measure balcony space: measure the position of the balcony railing and see if there is enough space to place Solar Balcony System Kits.

Check the load-bearing capacity: Ensure that the solar panel does not crush the balcony railing.

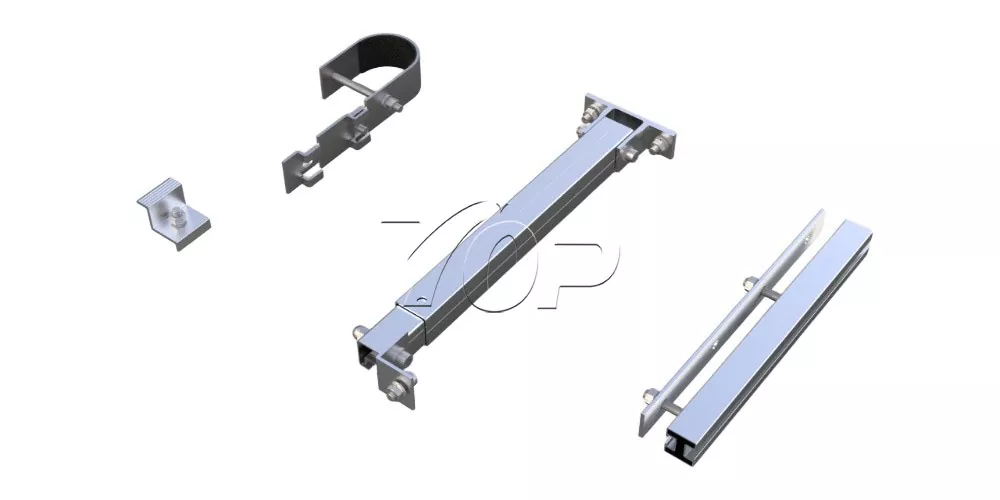

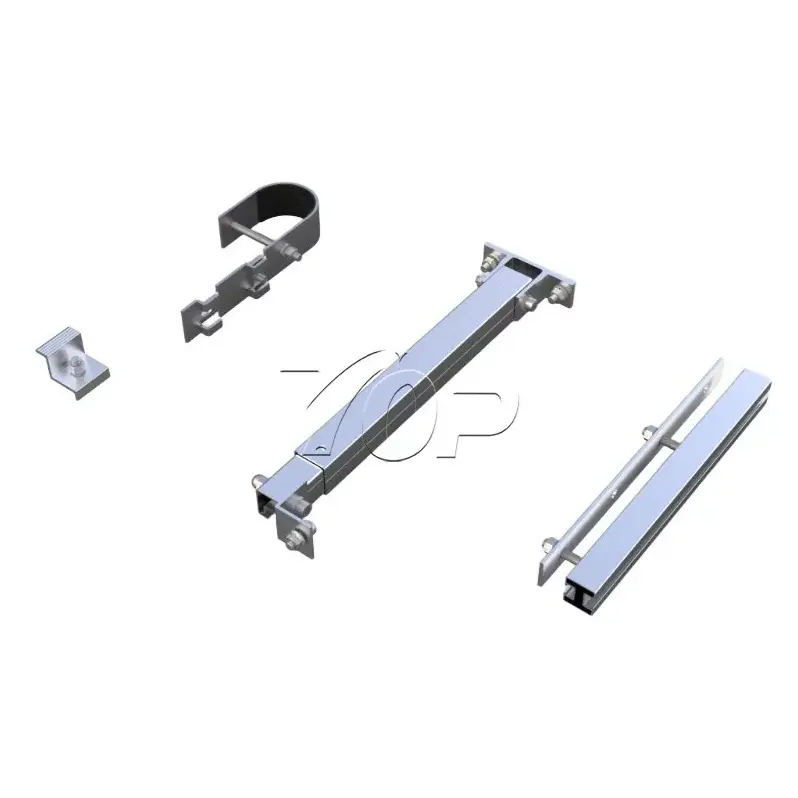

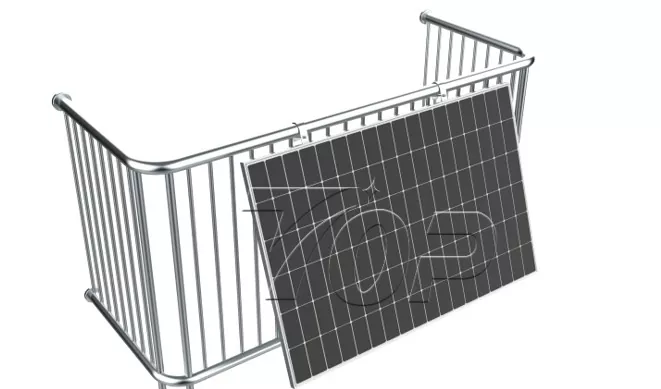

Install fixed panel: Mount the solar panel brackets on the balcony as blow indication shows.

Place the solar panel on the bracket and tighten it with bolts.

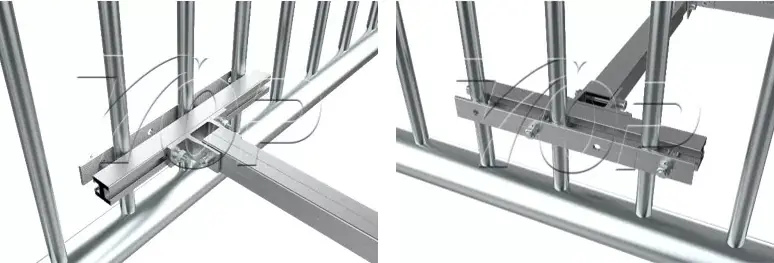

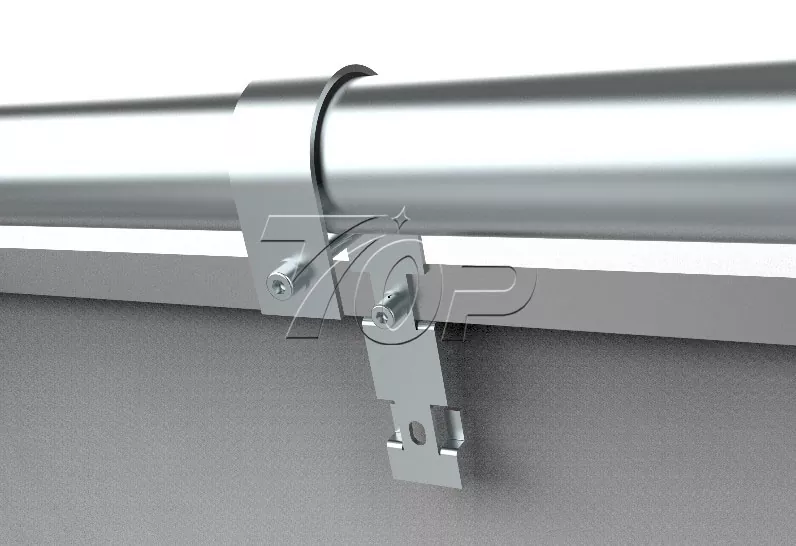

The top side will be fastened by mount hook and hangered on the balcony as below. Use bolts to fasten it tightly in case of panels moving.

Second fasten the bottom part of brackets to support the solar panel as kind of angle. To make sure the screws/bolts be screwed tightly.

This is connect the bottom of solar panel with brackets.

Connect the inverter: Connect the cable of the solar panel to the inverter.

Connecting the power supply: Connect the inverter output to the home power grid or electrical equipment. Insert it directly into a power outlet.

Our Advantages

1. Adopt green and clean solar energy to reduce dependence on traditional electricity.

2.TOP brand Solar Balcony System Kits support real-time monitoring through mobile apps, allowing users to monitor their actual power generation or energy consumption

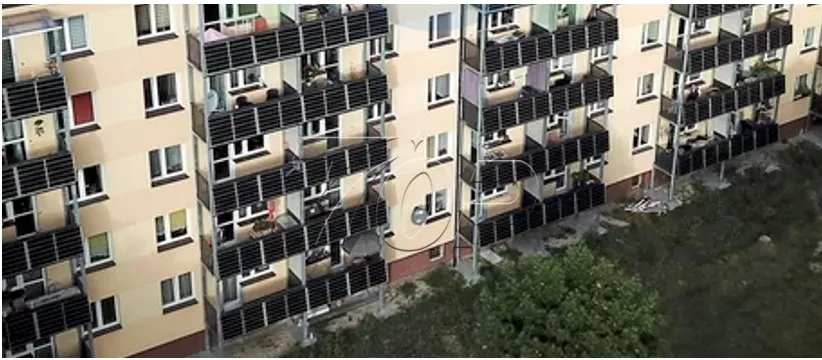

3. The combination of solar panels and balcony railings saves space, is beautiful and practical
