Solar Panel Rails

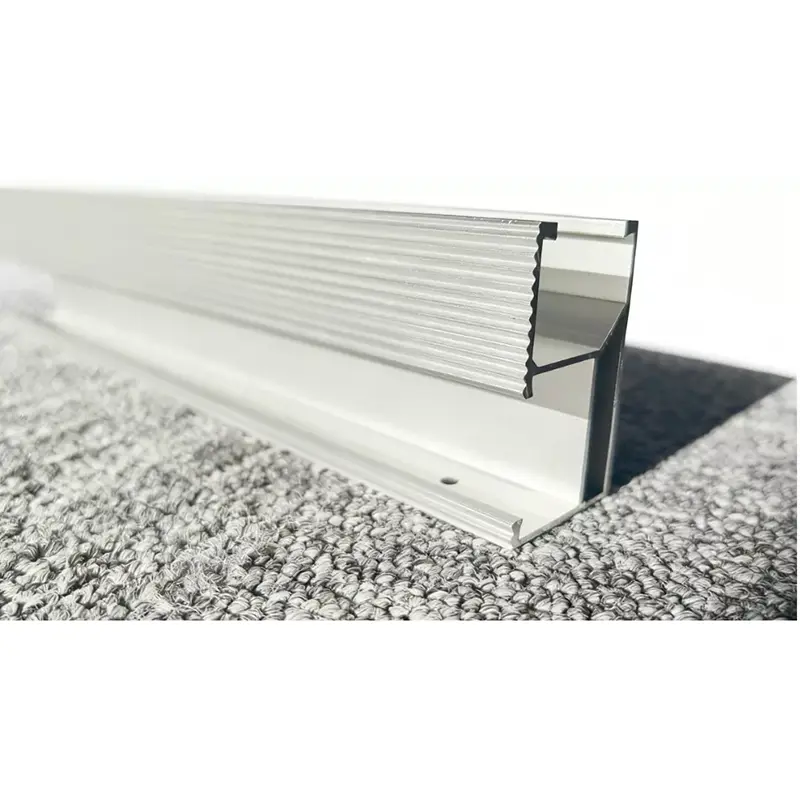

Solar mounting rail is an important component of solar mounting system, our special designed Solar H rail can withstand strong winds of 60m/s and snow loads of 1.6KN/m², ensuring the stability and safety of whole solar mounting system.

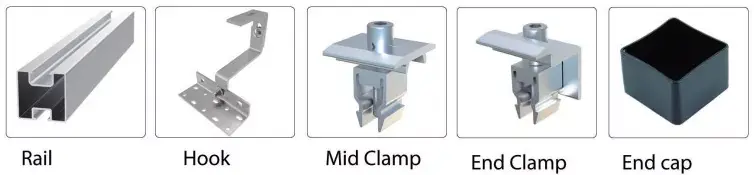

The application with Mid clamp and End clamp to fasten solar panels on the rooftop.

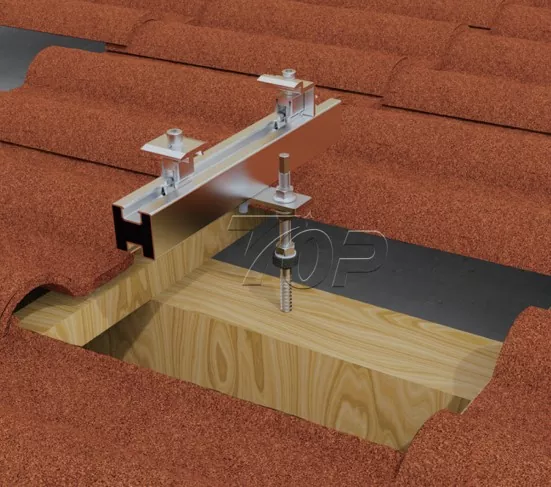

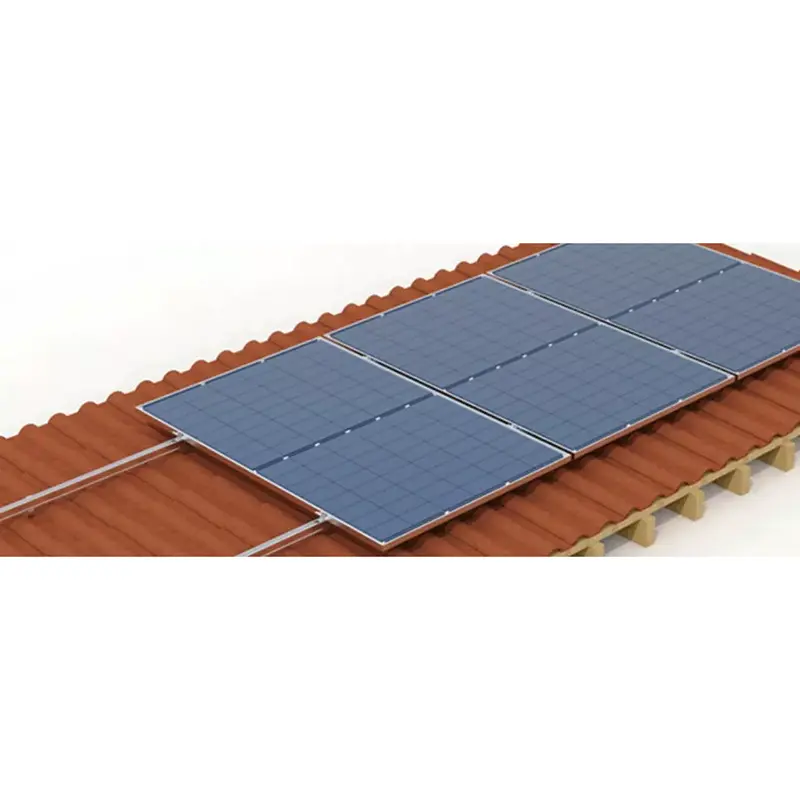

Connecting with hooks mounted on the wooden tile roof:

Product Features & Core Advantages

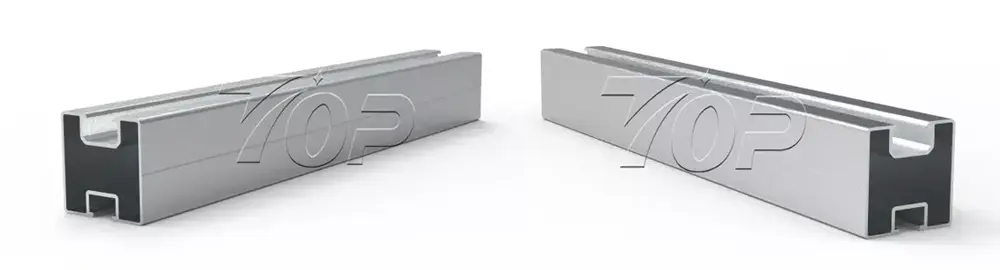

1. Symmetrical Structural Design for Rapid Installation

Mistake-Proof Mounting: The innovative symmetrical H-shape profile requires no orientation differentiation during layout. Installers can mount components instantly on either side, ensuring a highly efficient, time-saving roof installation.

Optimized Lightweight Profile: Engineered to reduce overall structural weight while maintaining high load-bearing performance, minimizing stress on the roof.

2. Extreme Weather Resistance & Structural Safety

Robust Load Capacities: Precision-designed to withstand extreme wind speeds up to 60m/s and heavy snow loads up to 1.6KN/m², guaranteeing the long-term safety and stability of the entire solar array.

Premium AL6005-T5 Material: Formulated from standard solar-grade aluminum alloy, providing a superior strength-to-weight ratio to prevent bending or deformation under pressure.

3. Ultimate Corrosion Resistance & Low Maintenance

Anodized Surface Protection: The professional anodizing layer offers exceptional rust, oxidation, and coastal salt-spray resistance, ensuring an outdoor service life of over 20 years without the need for frequent maintenance.

More kits details

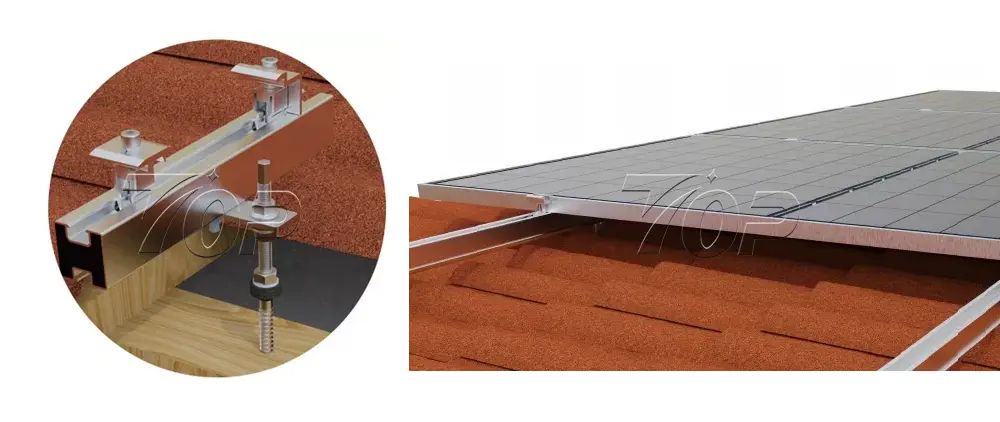

Connecting with bolts to be mounted on the tile wooden roof as below.

Technical parameters

More optimized designs:

Less weight and easy be installed at sites.

Benefits

Aluminum rail has excellent rust and corrosion resistance,

Solar Panel rails has good strength, and can withstand strong winds of 60m/s and snow loads of 1.6KN/m², ensuring the stability and safety of the system,

Racking rails have long service life, no need for frequent maintenance.

Special designed simple symmetrical structure, easy installation solution.

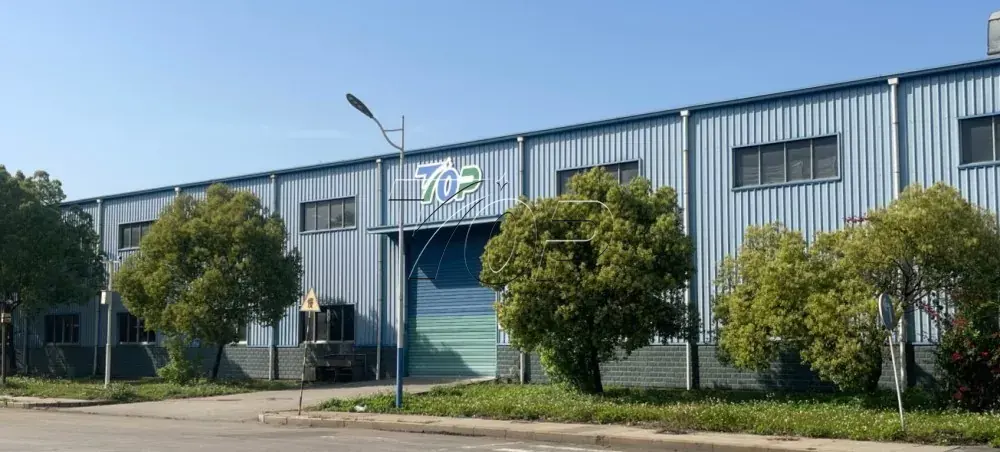

Factory view

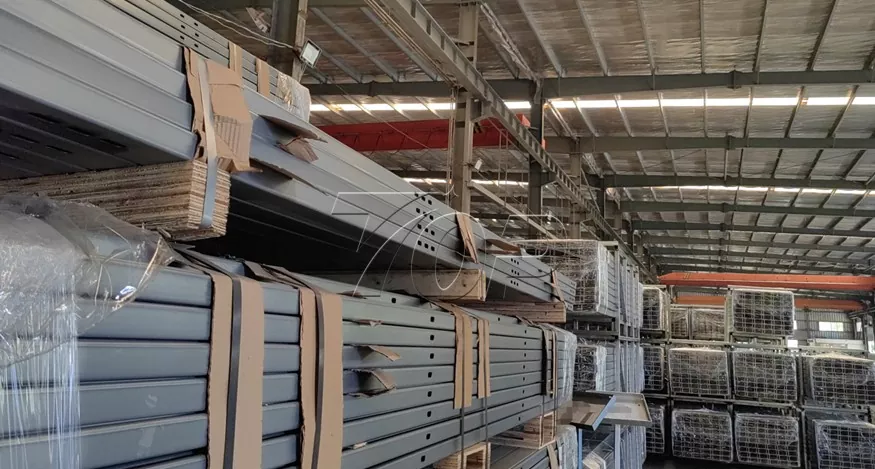

Production Line ground mounting rails showing (Galvanized steel):

Versatile Product Application Scenarios

Time-Critical Distributed PV Projects: Perfect for residential and commercial rooftop installations where minimizing installation labor costs and timeline is a top priority, thanks to the mistake-proof symmetrical structure.

Mixed Layout Solar Arrays: High suitability for complex roofs requiring both landscape and portrait solar panel layouts, providing seamless compatibility with universal mid/end clamps and various roof hooks.

Load-Sensitive Retrofit Roofs: Ideally applied to older residential tile roofs or light-gauge tin roofs where a high strength-to-weight ratio aluminum rail is required to minimize extra stress on the existing building structure.

All-Weather Outdoor Installations: Highly reliable for localized projects facing persistent rainfall, high humidity, or standard wind loads, ensuring long-term rust-free operation via the anodized surface layer.

Frequently Asked Questions

Q1: Can I get customized sizes for the solar panel rails?

A: Yes. We offer comprehensive OEM/ODM customization services. The length, profile design, and anodizing colors can be tailored exactly to your layout blueprints. Contact us to order custom free samples.

Q2: What is the benefit of the H-rail's symmetrical design?

A: The symmetrical profile eliminates top-and-bottom positioning confusion for the construction team. This mistake-proof feature accelerates the installation speed by up to 30%, lowering total project labor expenses.

Q3: Does Topfencesolar provide bulk wholesale discounts?

A: As a direct-supply manufacturing factory in China, we support flexible MOQ configurations and highly competitive tiered pricing for global distributors, EPC project contractors, and solar wholesalers.
