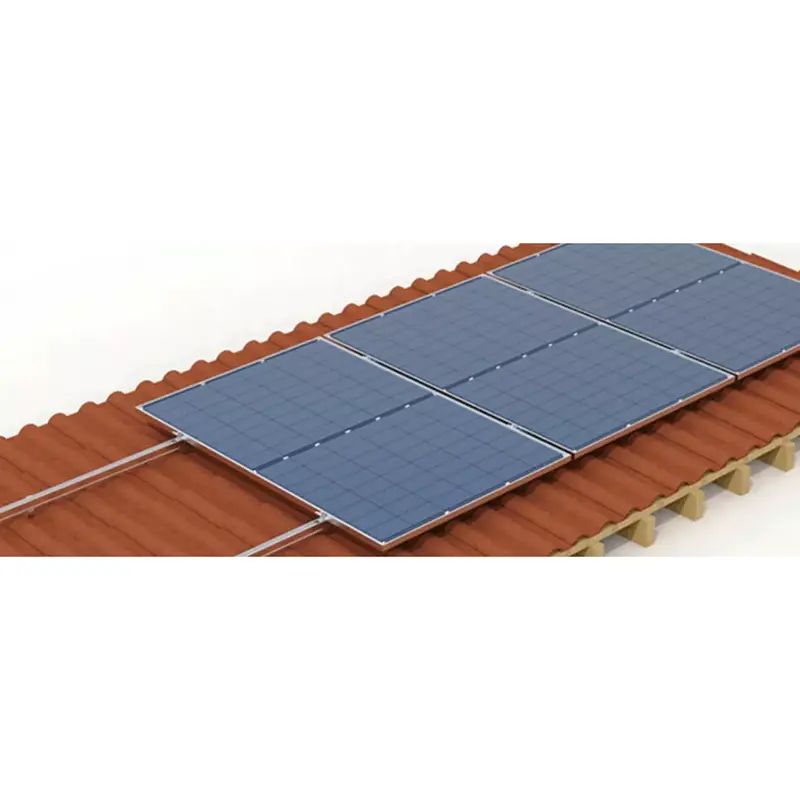

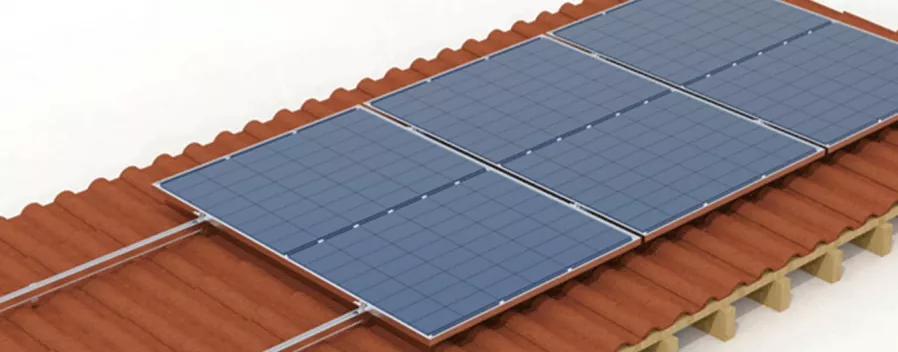

Solar Panel Roof Rack Mount

At Topfencesolar, both new and old customers can have high-quality Solar Panel Roof Rack Mount. You are welcome to visit the factory for inspection at any time. Whether it is arranged vertically or laid horizontally, we can achieve it easily. In terms of color, you can customize it exclusively according to your project style or brand VI. Welcome to send inquiries.

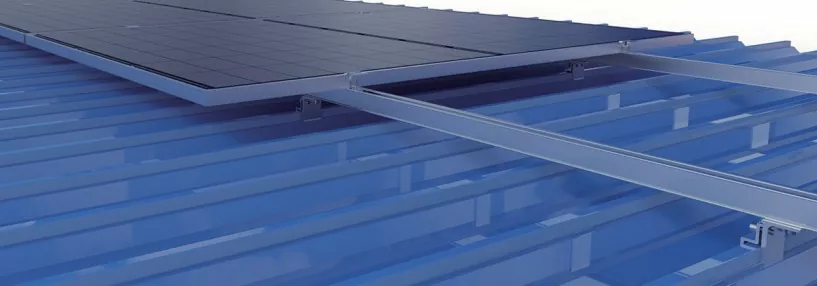

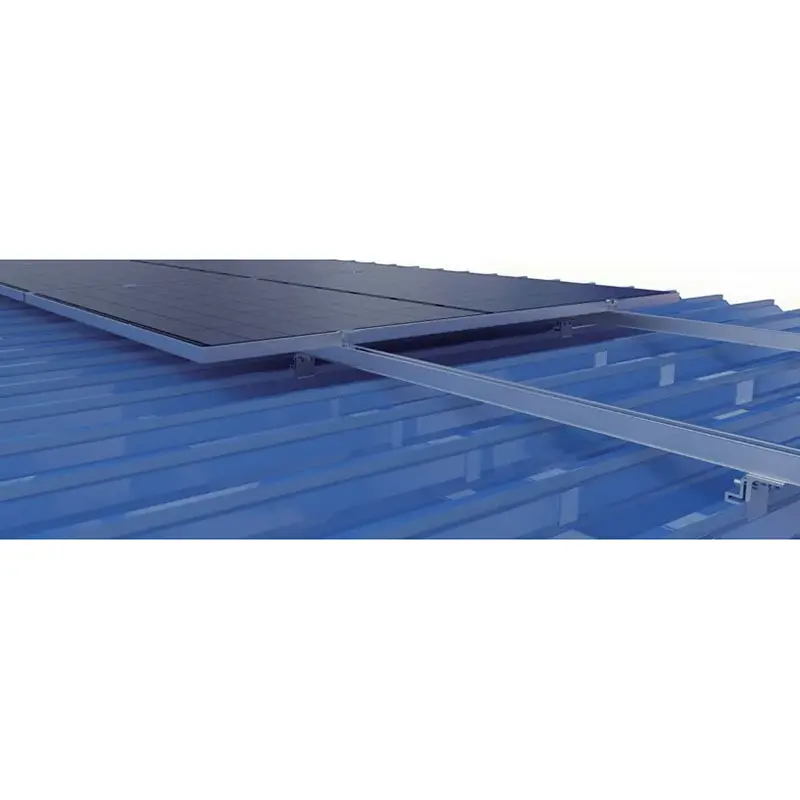

solar panel roof rack mount is flexibly adaptable to various solar mounting systems, can be used on different roofing systems, and can also be adjusted in Angle to meet the sunlight Angle requirements of different regions. For some parts, we will pre-install them, which greatly saves the time and workload of the installers. It also saves labor costs and time costs. The rail bracket is made of aluminium material, even it is light weight but it is no affecting its strength. The one complete set kits, there is an anti slip pad and waterproof gasket. They could be installed at the connection points between the brackets and the ceiling.

Technical parameters

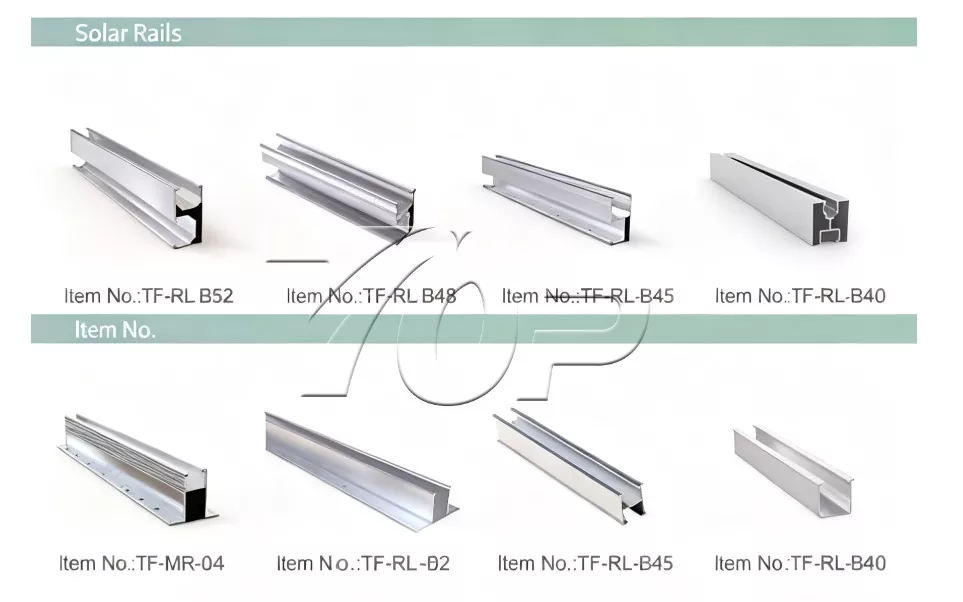

More rail types

Our products are not only of the current breadth, but also feature extremely strong R&D and manufacturing capabilities. What is provided is far more than just more types of tracks, all of which can be designed based on in-depth analysis of different installation environments, climatic conditions and load requirements.

Features & Benefits

1. Compared with other materials, like Carbon steel, it is lighter, and is convenient to install, and saves more time and other cost.

2. Aluminum alloy rail has excellent corrosion resistance and rust prevention performance.

3. It has a pre-assembled structure, facilitating quick on-site installation

4. Aluminum solar rooftop rail is made of aluminum 6007 T5, T7. This creates its durable using and long lifespan. The rails could withstand strong winds up to 60 meter per second and heavy snow loading. This racking system could offer stability and safety supporting for solar panels.

The rails are not long enough to lay on the rooftop, how to make it a complete array to mount PV panels?

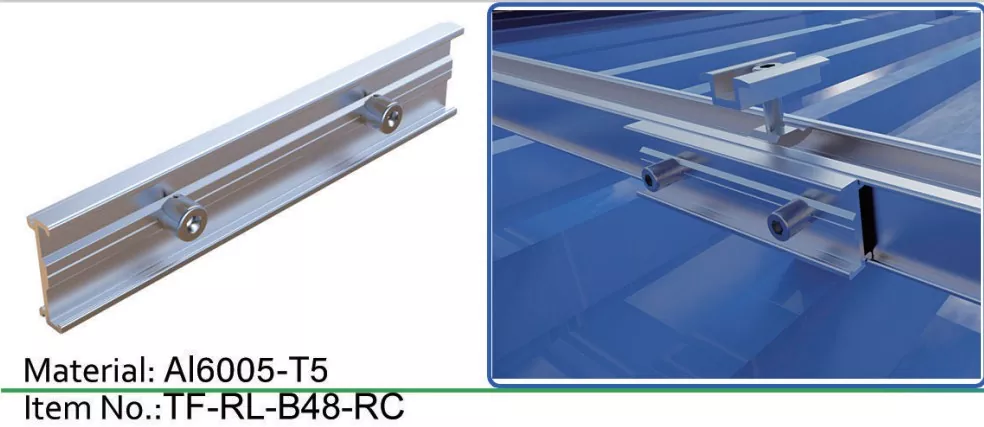

Using rail connectors between two rails, fastening with SUS304 bolts and nuts. Such as one piece of rail at 4.5 meter or 6 meters, with two or more pieces connecting, it could be double or more times of length.

Application case

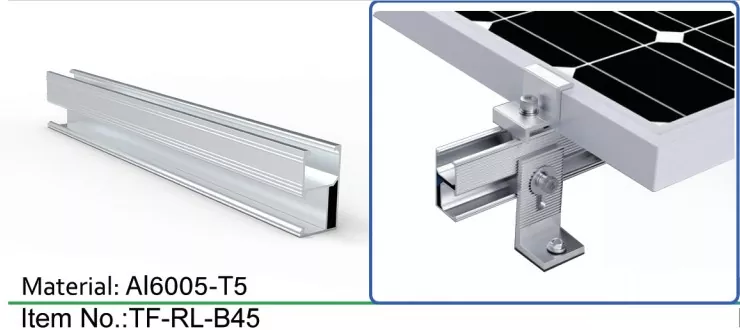

The long strip-shaped solar bracket system is one of the key structures of the solar panel roof bracket. The team adopted advanced aluminum profile processing technology and carefully selected AL 6005-T5/T6 high-strength aluminum materials as the track material. The carefully designed slots on the track allow installers to conveniently use the middle clips and end clips through these slots Firmly fix each solar panel to the roof to form a complete and reliable power generation system.
