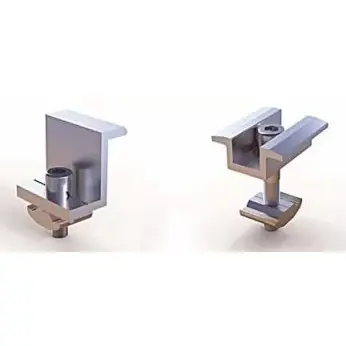

PV Aluminum Mid Clamps
The PV Aluminum Mid Clamps of Topfencesolar Energy are one of the important components of the solar installation system. The frames of two solar panels can be fixed together. It can cope with various weather conditions and ensure the safe and stable operation of the entire solar array outdoors. Welcome to purchase.
Topfencesolar is the manufacturer of PV Aluminum Mid Clamps and is a leading enterprise in the field of design and manufacturing in China.
PV Aluminum Mid Clamps are important parts for solarmounting installation. It is madeto hold solar panels with 25-50mm structure，it can makes the connection between panels strong and it can keeps them firmly attached to the rail.
You only need one bolt to install these clamps，this one bolt can lock two panel frames together，so the installation work very fast. These mid clamps can be used in all types of solar projects. They are light and will not rust，itcan handle rain and strong wind well.
Product Details

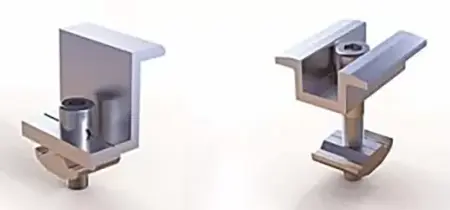

●To meet the demands of various scenarios, our PV Aluminum Mid Clamps offer a variety of color options. They are formed by precision die-casting or CNC stamping, and the surface is treated with high-quality anodizing or powder coating processes to achieve fullness, long-lasting color, and form a solid protective film.
|
|
|
|
Silver - Aluminum material colour |

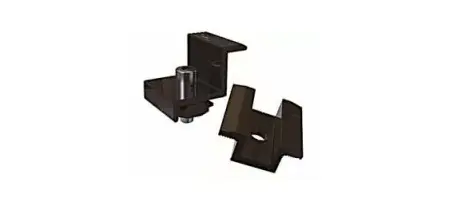

Black |
● Our colors are rich and we offer deep customization. Our technical team can precisely design and manufacture based on your specific parameters.

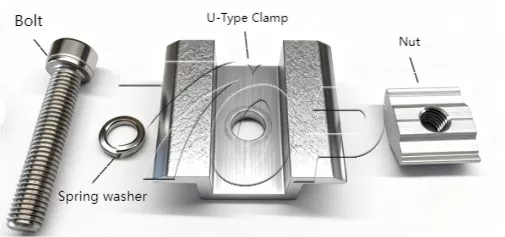

● The core components, which have been designed and selected, are composed of high-strength aluminum alloy tracks for the main body, stainless steel bolt systems, and photovoltaic-specific pressure blocks for precise fixation. All components are produced in accordance with unified quality standards.
Technical parameters
|
Brand Name |
Topfencesolar Energy |
|
Product Name |
Solar Mid Clamps |
|
Surface Treatment |
Anodized |
|
Color |
Silver or customized |
|
Wind Load |
60m/s |
|
Snow Load |
1.4kn/m2 |
|
Material |
Aluminum Alloy (AL6005-T5) |
|
Warranty |
10 years |
|
Our Service |
OEM,We Offer Professional Customization Services. |
Features & Benefits
1.Installation is very easy. It uses one bolt to lock. One action can fix two neighboring panels. This makes installation simpler, work faster, and saves labor costs.
2. TheTopfencesolar designed EnergySolar Mounting Mid Clamp is light and strong,it is made from high-strength aluminum alloy，so it will reduces the load on the support structure and roof.
3. Its surface has special treatment to prevent rust and its design can holds solar panels securely，so this mid clampcan handle rain, moisture, and sunlight well，so it willlasts for a long time.
4.This clamp fits most solar panels with 35-50mm frame thickness. It works for roof and ground solar projects.

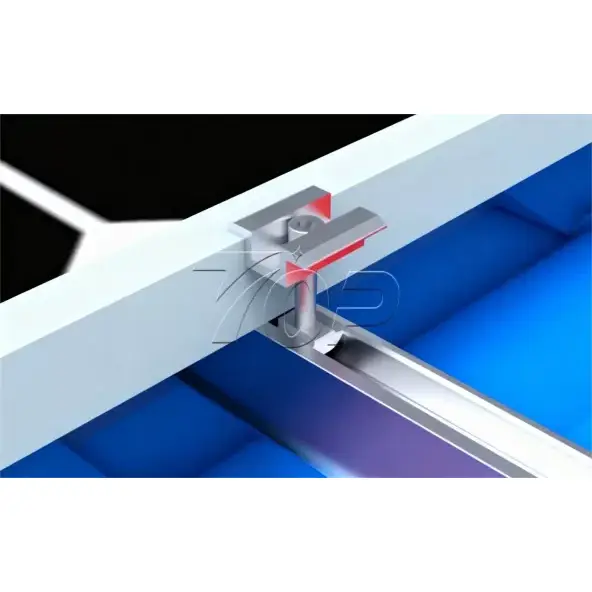

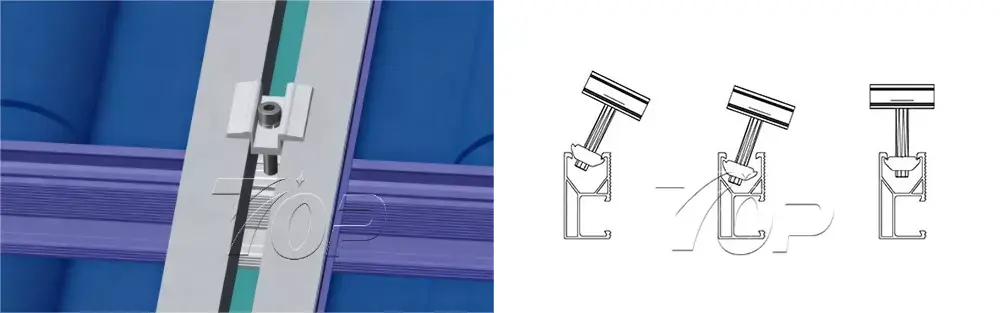

Product Installation:
|
|
|
1. Place the mid clamp at the seam between the edges of two adjacent panels； 2. Ensuring that the slots on both sides of the mid clamp securely engage with the panel edges. 3. Insert the bolt into the center hole of the mid clamp，tighten the bolt downwards. |

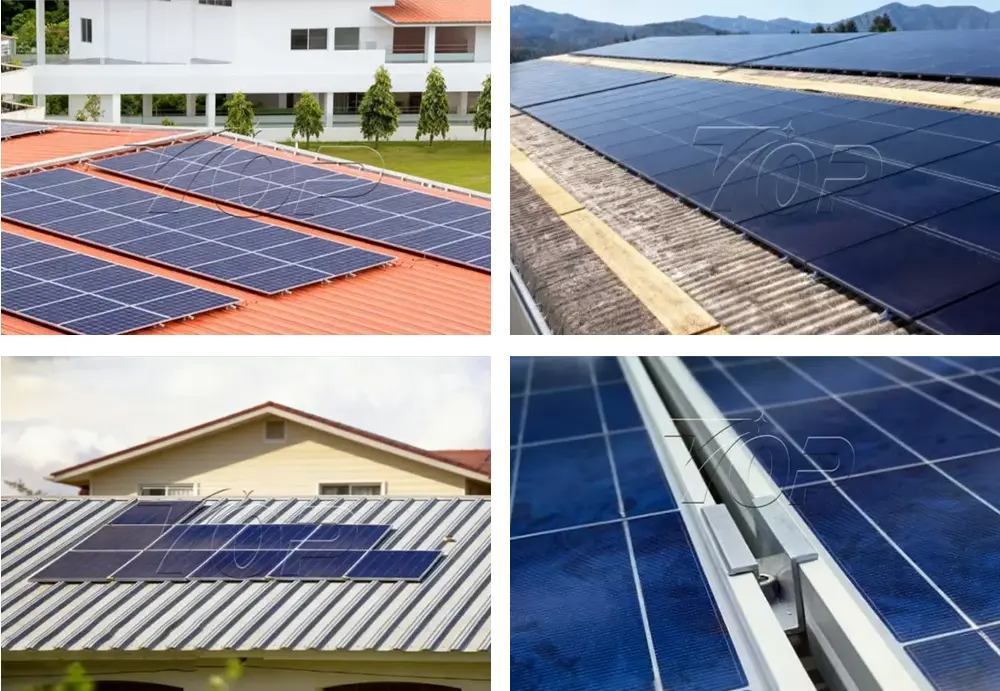

Application Case
Our business territory covers the world. From North America to Southeast Asia, our solutions have been successfully applied in over 50 countries and regions. The international capabilities and commitments to serving customers of different cultures and standards vary in different regions.

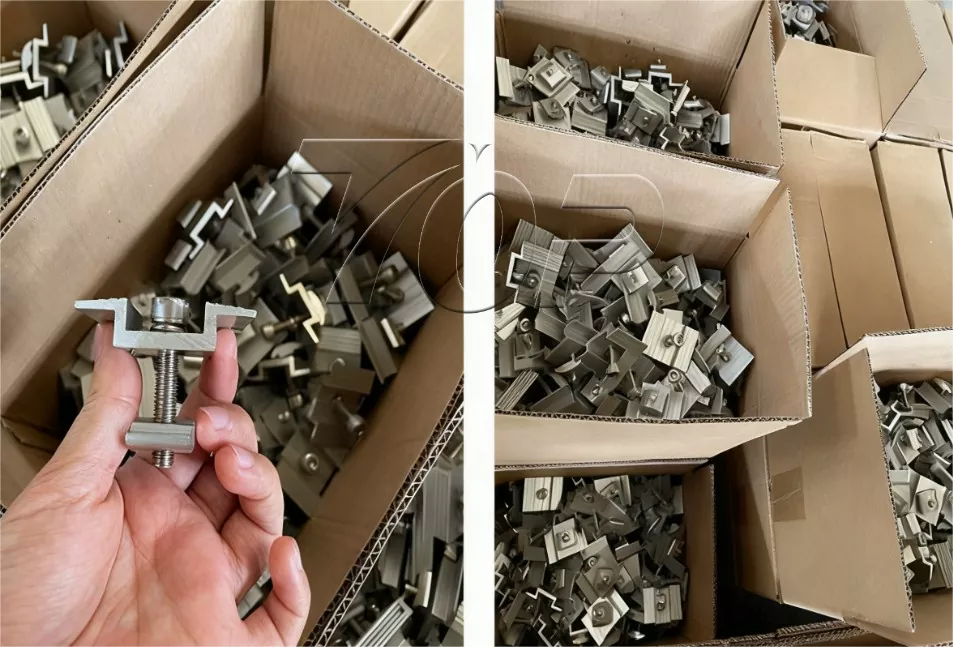

Packaging:
According to the order list, count all the PV Aluminum Mid Clamps and put them into the cartons in an orderly manner. Seal the cartons firmly with tape and affix the product labels, order numbers, shockproof and anti-toppling transportation marks, etc. on the outside of the cartons.
