Solar Standing Seam Clamps
As the professional China manufacturer and supplier, Xiamen Topfencesolar Co.,Ltd provides a variety of Solar Standing Seam Clamps to apply to different roof corrugations.

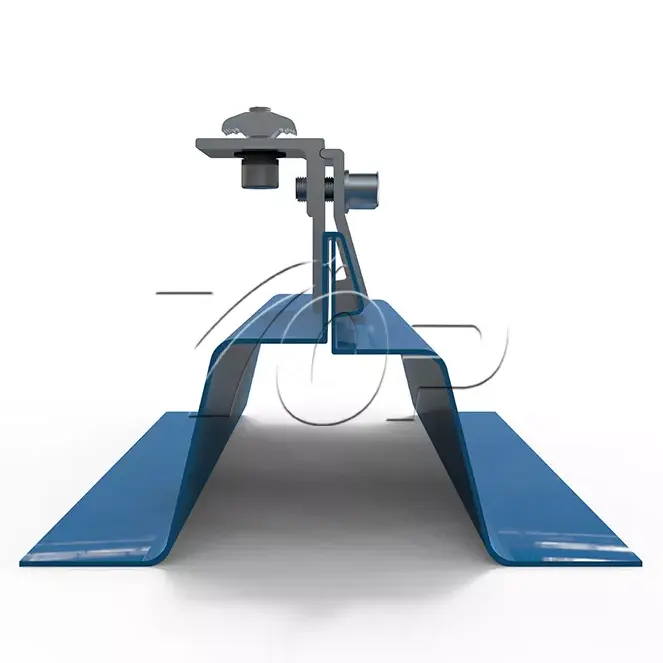

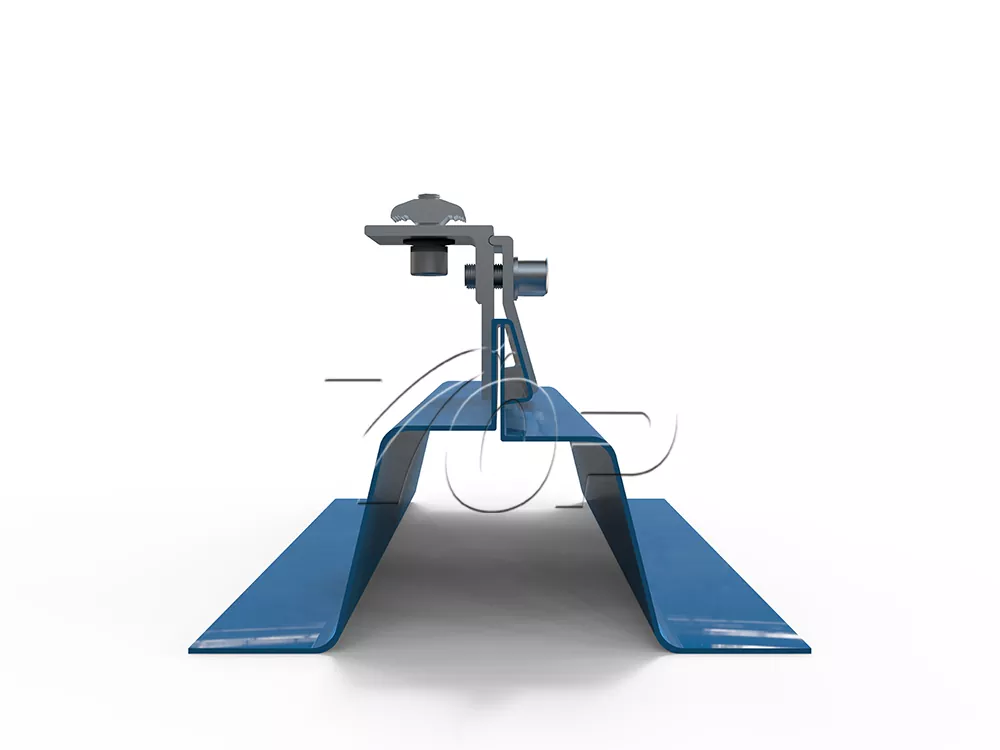

Metal roof Clamps are the most common type for solar metal roof project, it doesn’t require drilling holes in the rooftop and is fixed by clamping the roof crest, making it easy to install without damaging the rooftop.
Brand Name:Topfencesolar Product Material:Aluminum Product Function:Roof solar mounting support Service Life:20 years
Brand Name:Topfencesolar Product Material:Aluminum Product Function:Roof solar mounting support Service Life:20 years
As the professional China manufacturer and supplier, Topfencesolar Solar Standing Seam Clamps are key accessories for the installation of solar metal rooftop mounting systems, to achieve safe connection between solar PV modules and metal roof, good strength is required.
The metal clamps are made by high quality aluminum, the aluminum material brings good strength but light weight features to the clamp. Clamps are designed to withstand wind loads up to 60 m/s and snow loads up to 1.6 KN/m. Therefore it has enough strength to support mounting structure and solar PV modules on it, meanwhile due to light weight, it won’t bring additional weight to the roof.

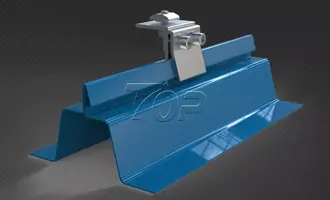

Rooftop Klip lok clamps are specially designed to be no penetration installation type, by special modular structure, it can easily clamp the roof crest, and be tightened by high quality stainless steel bolt sets. The clamp can easily resist 1000N pull-out force.

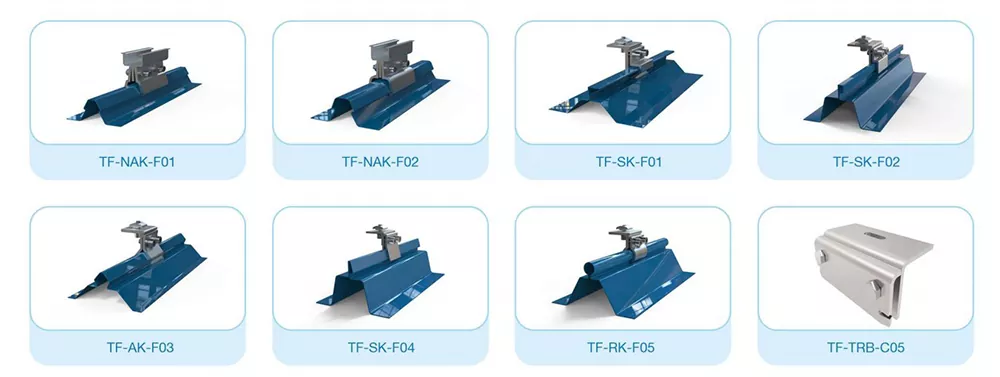

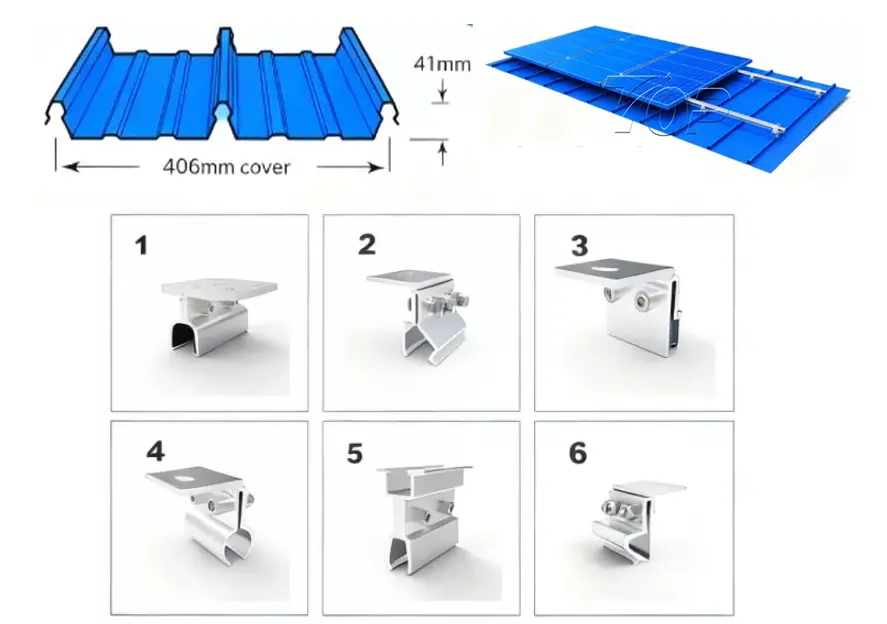

More Series of Standing Seam Clamps

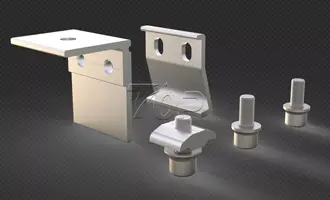

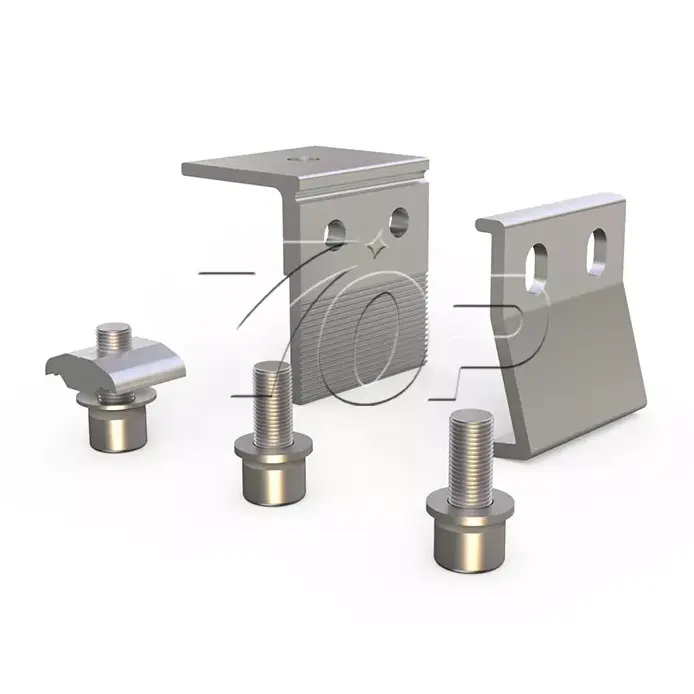

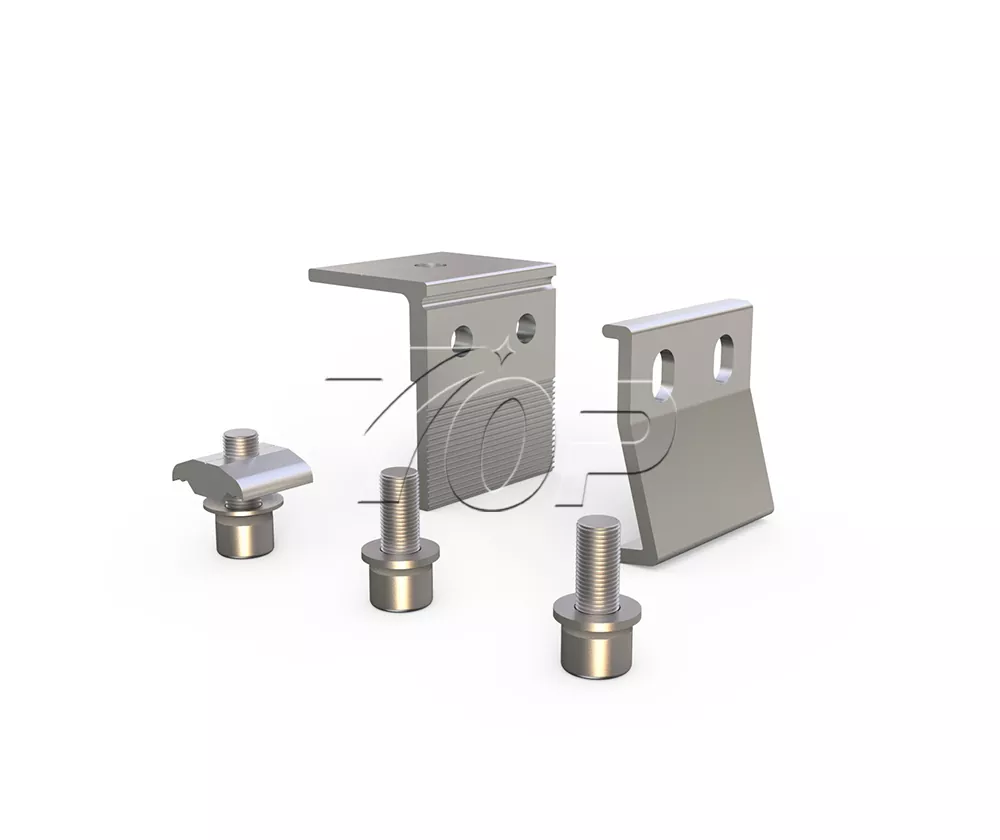

Standing Seam Clamp components
|
Left part |
Right part |
T-block |
Bolt set |
||
|
|
|
|
|
||
|
|
|
|
|||
Technical parameters
|
Brand Name |
Topfencesolar |
|
Product Name |
Roof Solar Standing Seam Clamps |
|
Install Site |
Metal roofs such as trapezoidal sheet roofs and corrugated roofs |
|
Module orientation |
Portrait or Landscape |
|
Material |
Aluminum |
|
Color |
Nature or customized |
|
Surface Anti-corrosive Treatment |
Anodizing ≥10μm |
|
Warranty |
10 years |
The related rooftop clamps mounting rails and accessories:
|
|
|
|
|
|
|
Rooftop clamp |
Aluminum Rails |
Connector |

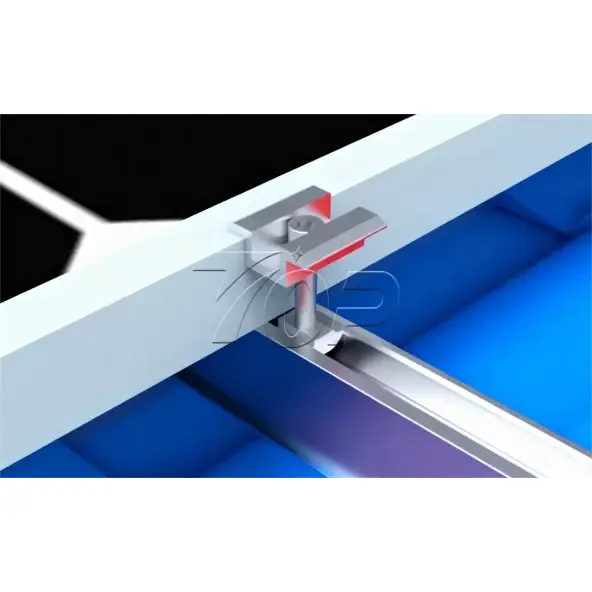

Mid Clamp |
End Clamp |

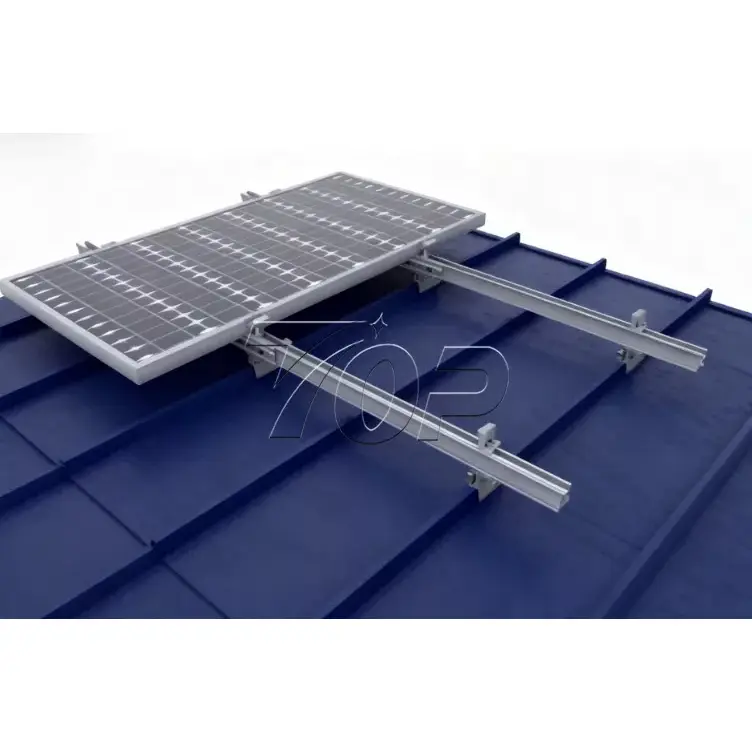

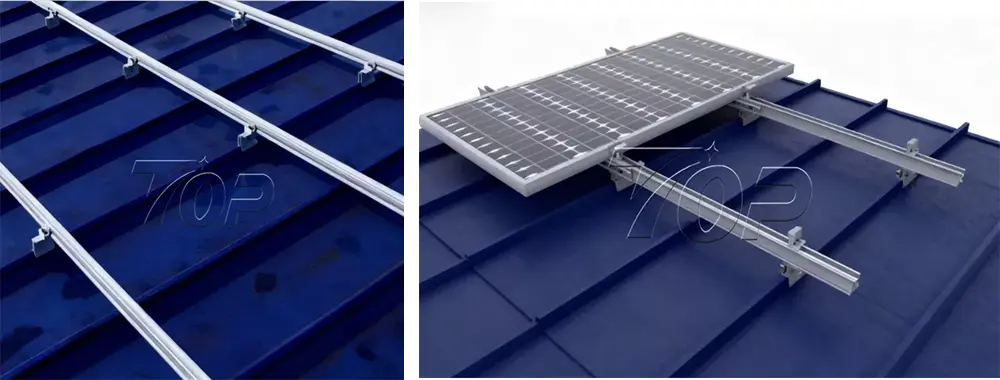

Installation vision:
Package information:
|
Single item |
Rooftop Clamps |
|
Packing Method |
Carton box |
|
Selling Units |
Customized available |
|
Single package size |
450*320*200mm |
|
Single gross weight |
20.0 kg |
Features & Benefits
1. The variety of roof metal clamps suitable for various metal roof corrugations,
2. Made of high-grade aluminum 6005-T5 and uses stainless steel fasteners for enhanced durability,
3. Designed to withstand wind loads up to 60 m/s and snow loads up to 1.6 KN/m2,
4. No penetration installation, no water leaking risk,
