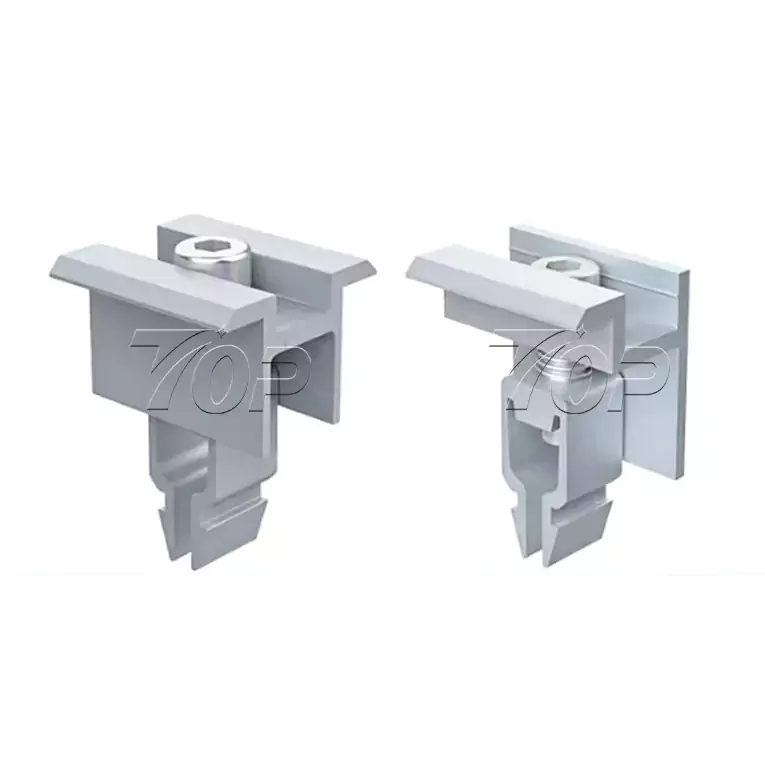

Solar Clamp with Grounding Pins
As a leading manufacturer of solar panel structure, Topfencesolar pay high attention to the research and development of solar mounting products, we design and offer all kinds of Solar Clamp with Grounding Pins over 10 years, with high quality and excellent services.
Brand Name:Topfencesolar
Product Material:AL6005-T5
Product Function:Solar Mounting
Service Life:More than 25 years

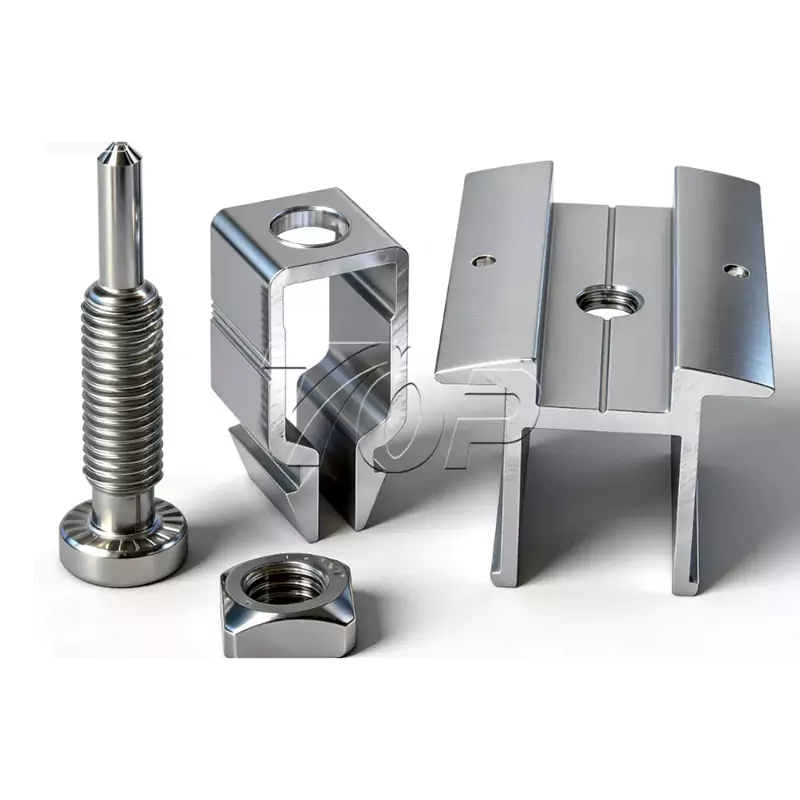

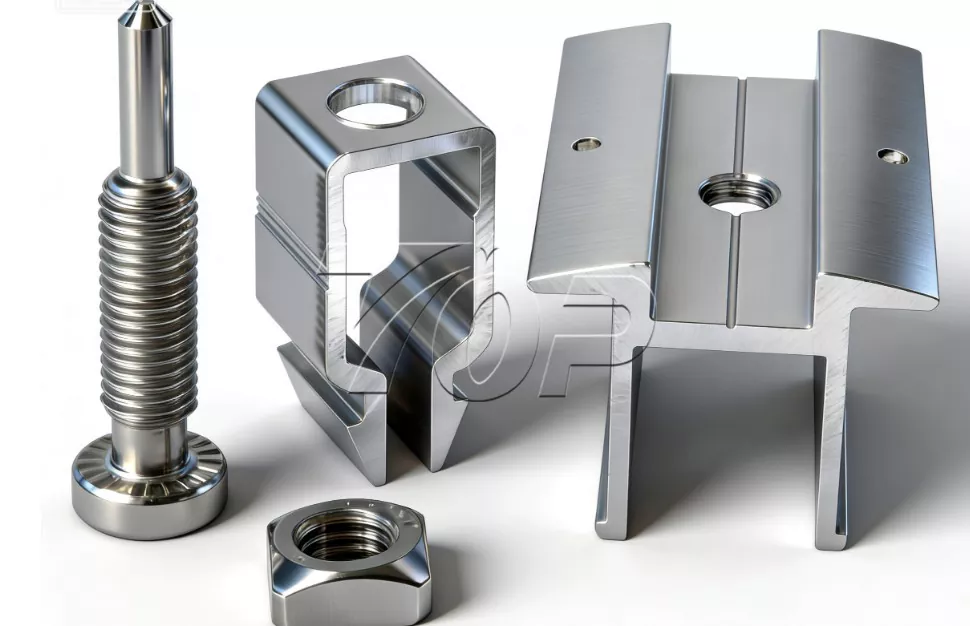

The Grounding Pin Aluminum Clamp is a cost-effective accessory. It grounds the entire PV system by penetrating the anodized film of solar rails. This achieves lightning protection and leakage prevention. They are strictly comply with national standards and can fit all PV modules.
|
|
|
▶ Product Name: Solar Clamp with Grounding Pins
▶ Function: Improve the conductive effect
▶ Materials: Aluminum 6005-T5, Stainless steel 304
▶ Duration: More than 25 years
▶ Dimension: Various types and size are available as options / accept customize
What is the purpose of a ground clamp?
It is specially designed for the PV solar panel clamping and fastening on the roof solar system or ground solar system.
It could withstanding the maximum 60m/s wind speed and up to 1.4KN/M2.
The role of it in solar system works as a fasten component to make the array of solar panels more stable and safe.
Performance Comparison: PV Systems with/without Grounding Pin Clamps
|
Indicator |
With Pins |
Without Pins |
Diff. Rate |
|
Grounding Resistance (Ω) |
≤ 4 (stable) |
15–30 (fluct.) |
Down 80–87% |
|
Lightning Damage Rate (%) |
0.2 |
8.5 |
Down 97.6% |
|
Leakage Trip (times/month) |
0–1 |
12–18 |
Down 91.7–94.4% |
|
Continuous Operation |
360 |
320 |
Up 12.5% |
|
Inspection Pass Rate |
100 |
45 |
Up 122.2% |
Notes
1. 12 - month test on 500 PV systems (250 each group)
2. National standard: grounding resistance ≤ 10 Ω
How Do Solar Clamps Work?
Penetrates Anodized Layer - This Solar Clam sharp teeth pierce the anodized coating on aluminum rails, ensuring direct metal-to-metal contact.
Creates Conductive Path - The Earthing plate bonds the solar frame, rail, and grounding wire, channeling stray currents safely to the earth.
Prevents Electrical Hazards - Install solar earthing plate will educe risks of electric shock, fire, and equipment damage caused by fault currents or lightning strikes.
