Solar Panel Mid Clamps

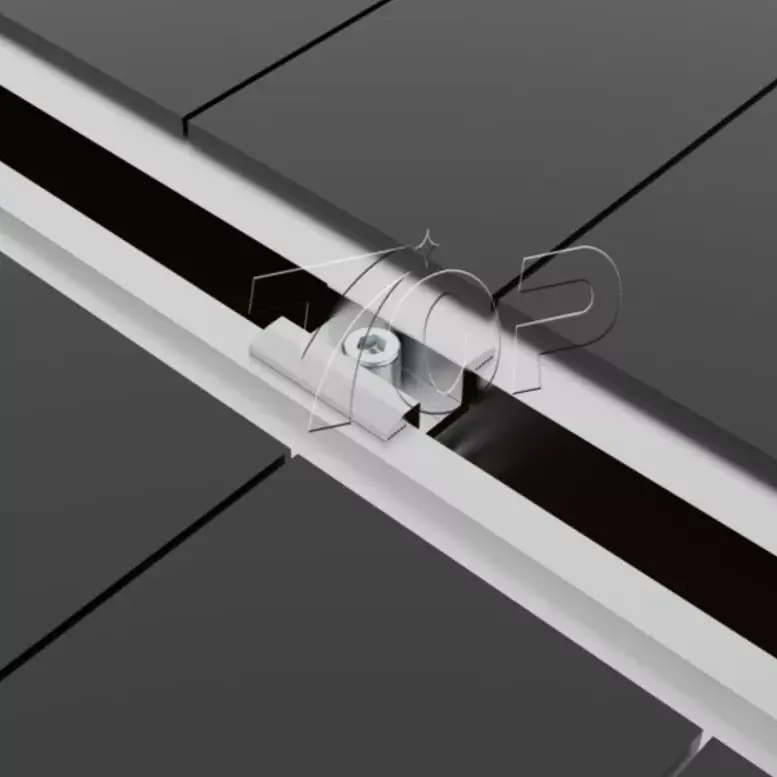

Known as one of the most competitive solar panel Mid clamps manufacturers and suppliers, Topfencesolar has own factory. And we can provide you with not only the latest engineered designs but also a competitive price list and quotation. This panel Mid clamps is a key component in PV mounting systems, installed between adjacent PV modules to improve panel stability and structural integrity. Topfencesolar produced made from high-strength aluminum alloy (AL6005-T5), it offers excellent performance and corrosion resistance, making it suitable for long-term outdoor use.

Parameters

Brand Name	Topfencesolar
Material	AL6005-T5
Surface Treatment	Anodized
Wind loading	up to 60 m/s
Snow loading	up to 1.4KN/m²
PV panel orientation	Portrait or Vertical
Installation Site	Roof
Color	Silver/Black
Warranty	10 years

Product Features

◆ Serrated edges can enhance grip on the solar panel frame

◆ A corrosion-resistant anodized coating makes long-term reliability in outdoor environments

◆ Pre-assembled components simplify installation and reduce time

◆ Compatible with a variety of panel frame sizes, offering secure and adaptable mounting

◆ The Solar Panel Mid Clamps can provide a heavy-duty connection that secures PV modules perfectly without damaging the aluminum frames, preventing any shifting, misalignment, or slippage.

Core Product Competitive Advantages

- Serrated Anti-Slip Locking Design, Zero Panel Displacement: The clamp contact surface adopts precision serrated edge structure, which greatly enhances the friction force with the solar panel frame. It can firmly grip adjacent double panels, effectively preventing module slippage, misalignment and offset caused by long-term wind vibration, ensuring the overall flatness and structural integrity of the PV array.

- Industrial Anodized Layer, Full Weather Resistance: Adopts standardized anodized surface treatment process, which effectively isolates air, rainwater and salt fog erosion. The product features excellent anti-oxidation, anti-corrosion and UV aging resistance, adapting to high temperature, heavy rain, cold snow and other harsh outdoor environments, maintaining stable performance for 25+ years.

- Pre-Assembled Integrated Structure, Save On-Site Costs: All accessories are pre-assembled and matched in the factory, requiring no on-site assembly and accessory screening. Only a standard hex wrench is needed for rapid locking installation, greatly shortening construction time and reducing manual labor and management costs for EPC projects.

- Wide Compatibility & Customized Adaptation: Universally compatible with mainstream framed solar panels on the market, covering 30–45mm conventional frame thicknesses. Support personalized customized size and color according to project requirements, perfectly matching various aluminum mounting rail models and rooftop PV system solutions.

- Protective Locking, No Damage To Panel Frames: Optimized arc contact structure and uniform stress design realize heavy-duty stable connection. It locks the solar panel firmly without squeezing or scratching the aluminum frame, avoiding component damage and subsequent power generation loss, and protecting project investment benefits.

- Authoritative Third-Party Certified Quality: Batch products pass SGS mechanical performance test and ISO international quality system certification. Wind and snow load resistance indicators meet global PV industry standards, with reliable structural safety, supporting project bidding and engineering acceptance.

Our Certificate

Advantages Of Choosing Our Factory Supply

- Self-Owned Factory Production, Strict Quality Control: As a professional solar mounting accessories manufacturer with independent production lines, all mid clamps are fully produced and inspected in-house. Adopting CNC precision processing and standardized anodized technology, batch quality stability is guaranteed, no outsourcing quality difference risk.

- Certified Qualification Support, Global Project Adaptation: Support free provision of SGS third-party test reports and ISO qualification certificates, fully complying with international PV installation standards. It can meet the bidding, acceptance and customs clearance requirements of global engineering projects.

- Original Design & Cost-Effective Pricing: Independent R&D and optimized structural design balance strength and usability. Direct factory sales eliminate middlemen markup, providing customers with competitive quotation and customized solution support.

- Flexible Customization & Sufficient Spot Supply: Conventional silver/black standard clamps are in stock for fast delivery; support non-standard size, color and structural customization according to customer project drawings, adapting to personalized engineering needs.

- Professional Engineering Matching Service: The technical team provides one-on-one pre-sales parameter matching and scheme guidance, recommending the most suitable clamp specifications according to local wind and snow load parameters and panel models, ensuring project safety and compliance.

- Complete After-Sales & Long-Term Warranty: Provide 10-year official warranty and 25-year structural quality assurance, with 24/7 online technical support and after-sales response, solving product usage and project technical problems for customers in real time.

Production Equipment

On-Site Installation & Usage Guidelines

- Confirm Panel Frame Specification Before Construction: Verify the thickness and model of the on-site solar panel frame in advance, select the matching mid clamp model, and avoid poor clamping or installation failure caused by specification mismatch.

- Keep Mounting Rail Surface Flat & Clean: Ensure the installation position of the aluminum rail is flat, without debris, dirt and deformation, to guarantee the clamp fits closely with the rail and panel frame, and avoid virtual locking.

- Control Locking Torque Reasonably: During tightening operation, keep uniform force and standard torque. Excessive force will crush the panel frame, while insufficient force will cause loose clamping and hidden dangers of panel displacement.

- Ensure Symmetrical Installation Of Adjacent Clamps: Install mid clamps at equal intervals between adjacent solar modules to ensure uniform stress of the entire PV array, avoid local stress concentration and improve overall structural wind resistance stability.

- Check Pre-Assembled Accessories Integrity: Before installation, confirm that the internal bolts, nuts and spring washers of the pre-assembled clamp are complete and flexible, no jamming or missing parts, to ensure smooth on-site construction.

- Final Overall Inspection After Installation: After batch installation, conduct a comprehensive inspection of all mid clamp locking status, check for looseness and deviation, and eliminate potential safety hazards for long-term system operation.

FAQ

Q1. What types of modules are your solar panel mid clamps compatible with?

Suitable with most solar panels on the market, suitable for common frame thicknesses such as 30mm, 35mm, 40mm, and 45mm. Customizable requirements are available.

Q2: Are specialized tools required to install these intermediate mid clamps?

A: No. Our solar mid clamps feature a smart, pre-assembled design. A standard hex wrench is all that is required for quick tightening on the rail system, significantly cutting down on-site labor time.

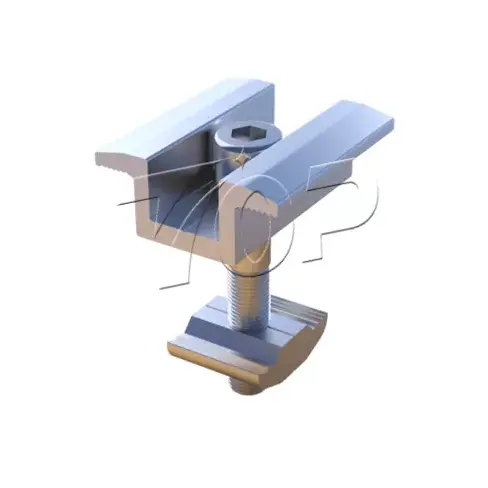

Q3: What components are included in a standard solar mid clamp assembly?

A: Each set typically includes a mid clamp block, bolts, nuts, and spring washers (if applicable). Different locking methods can be selected based on the rail system.

Q4. Do you provide third-party test reports or certifications?

Yes, we can provide test reports, such as SGS and ISO upon request.

Diversified Application Scenarios

- Residential Distributed Rooftop PV Systems: Suitable for household small and medium-sized solar power generation projects, applicable to conventional residential metal roofs and flat roofs. It ensures neat arrangement and stable fixation of household solar panels, adapting to daily outdoor wind and rain weather changes.

- Commercial & Industrial Rooftop PV Projects: Ideal for large-area solar arrays on factory buildings, warehouses, office buildings and commercial complexes. It meets the high-standard structural stability requirements of large-scale PV projects, supporting long-term stable power generation operation of industrial and commercial photovoltaic systems.

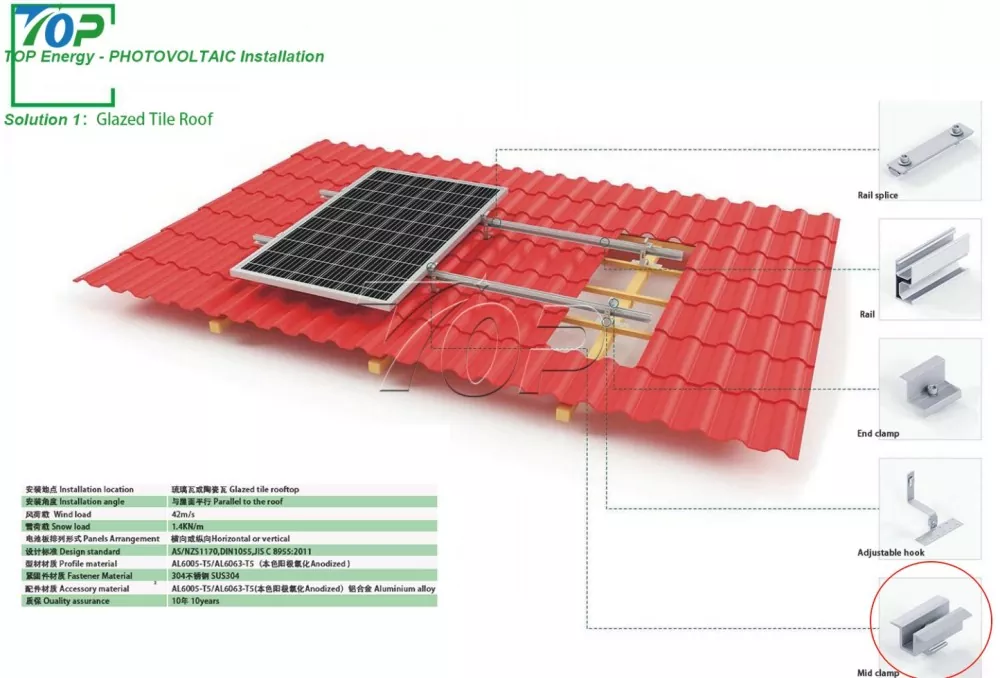

- Standard Roof Solar Mounting Supporting Projects: Matches all mainstream aluminum alloy solar rail mounting systems, used for interval connection and fixed locking of adjacent solar modules. It is a universal standard accessory for standardized rooftop PV installation projects worldwide.

- Multi-Climate Global PV Engineering Projects: With excellent wind resistance, snow resistance and corrosion resistance, it is widely used in European, Southeast Asian, American and other global regional projects, adapting to coastal salt fog, alpine snow, high temperature and other complex climatic environments.

Get a quote for our quality Solar Panel Mid Clamps with competitive prices!
