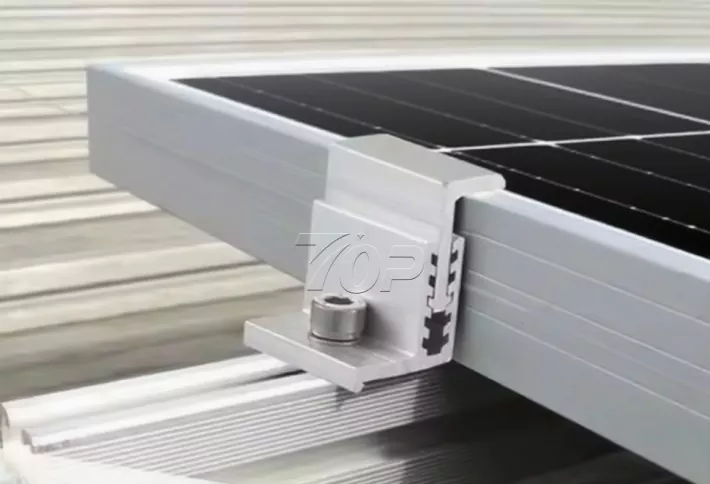

End Clamp Solar Panel

As the manufacturer in China, Topfencesolar can offer high-quality End Clamp Solar Panel. The product is a key component in photovoltaic systems. The clamp manufactured by Topfencesolar is made of aluminum alloy, which is light but very strong. It is not only wind-resistant and corrosion-resistant, but also earthquake-resistant.

We used this serrated aluminum End Clamps invarious applications such asa large-scale 500KW commercial solar project. Theinstallation team found that installation efficiency increased by 20% compared to traditional end clamps. Statistics show that within one year of using this end clamp, maintenance costs for the project were reduced by 25% compared to conventional end clamps.

Distinctive Product Characteristics

- Innovative Serrated Anti-Slip Structure, Stronger Edge Locking:

Adopts exclusive multi-tooth grinding serrated design on the clamping contact surface, which significantly enhances friction adhesion compared with traditional smooth end clamps. It tightly bites the edge frame of solar panels, effectively solving the common industry pain points of edge warping, shaking and micro-displacement caused by long-term wind vibration.

- Wide-Range Adjustable Adaptability, Zero Model Restrictions:

Supports flexible clamping adjustment for 30mm to 50mm thick solar panel frames, covering almost all mainstream PV module specifications on the market. It eliminates the trouble of frequent accessory replacement caused by different panel models and greatly simplifies on-site material selection and procurement work.

- Lightweight & High-Toughness Integrated Performance:

Made of high-purity AL6005-T5 aluminum alloy material, it realizes perfect balance of ultra-light weight and high structural strength. The product is easy to carry and install on site, while possessing excellent wind resistance, seismic resistance and impact resistance, adapting to complex outdoor stress changes.

- Full Weather Anti-Corrosion & Anti-Aging Ability:

Equipped with premium anodized surface protective layer, it can effectively resist ultraviolet radiation, rain erosion, high humidity oxidation and coastal salt fog corrosion. It maintains stable structural performance and appearance without fading or rusting after long-term outdoor exposure.

- Universal Project Compatibility:

It is not limited by project scale and installation form, perfectly matching small household distributed rooftop systems and large utility-scale ground photovoltaic power stations, realizing one-product multi-scene universal application.

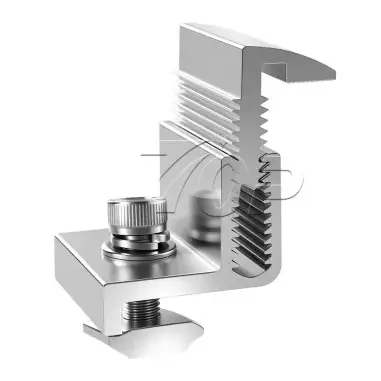

One End Clamp Kit：

The End Clamp Solar Panel is not only of high quality, but also adjustable. It can be used for solar panels with a thickness of 30-50mm. Due to its unique design, high-quality materials, and easy installation, the solar serrated edge clamp can be used in many demanding projects, including both residential and commercial projects.

Product dimension：

Adjustable size：

Parameters

Core Product Competitive Strengths

- Project-Verified Efficiency & Cost Reduction: Validated by practical 500KW large-scale commercial solar projects, this serrated end clamp improves overall on-site installation efficiency by 20% compared with traditional products. Meanwhile, it reduces annual project maintenance costs by 25%, bringing stable long-term economic benefits for EPC contractors and project owners.

- Stable Edge Protection to Avoid Array Failure: The optimized edge locking structure can uniformly disperse external wind pressure and vibration stress, prevent the outermost modules from loose deviation and edge damage, ensure the overall flatness and structural integrity of the PV array, and reduce hidden dangers of power generation loss caused by component displacement.

- Low Maintenance & Long-Term Stable Operation: High-strength aluminum alloy body and anti-aging surface treatment effectively avoid product deformation, rust and failure. It reduces later manual inspection, replacement and maintenance workload, realizing low-operation and high-stability operation of photovoltaic systems.

- Standardized Pre-Match Design for Quick Installation: Adopts integrated kit design with supporting complete accessories, no need for on-site secondary assembly and accessory matching. The installation process is simple and efficient, lowering the technical threshold for construction workers and shortening project delivery cycle.

- Super Long Warranty & Reliable Quality Guarantee: Backed by 20-year official warranty and 25-year structural service life, far exceeding the industry average warranty standard. It provides continuous quality safety guarantee for the whole life cycle of solar projects.

- The End Clampsare perfectly suited for rooftop or ground-mounted projects, large power plants or small systems.

- Due to their flexible adjustment capabilities, they are compatible with the vast majority of solar panels on the market, eliminating procurement constraints caused by model differences, reducing selection difficulties, and improving procurement efficiency.

- The unique grinding design of these End Clamp Solar Panels enhance surface friction, significantly improving strength compared to conventional end clamps. This provides a more secure engagement between the panel and the rail, ensuring system stability.

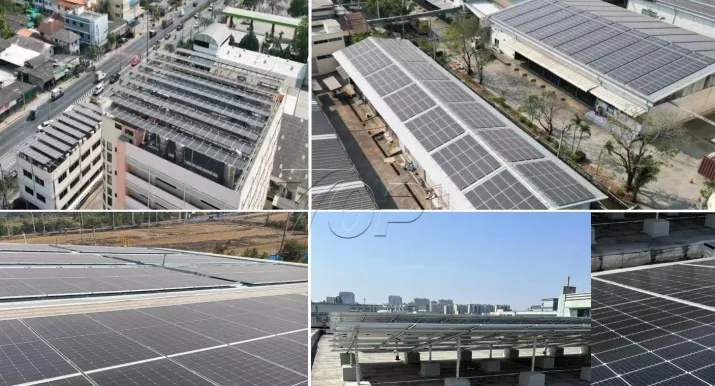

Application Show

- Household Residential Rooftop PV Systems: Suitable for small distributed household solar power generation projects, used for edge fixing of rooftop solar panels. It features simple installation, stable performance and low later maintenance, perfectly adapting to daily residential outdoor weather changes.

- Commercial & Industrial Rooftop Projects: Ideal for large-area PV arrays on factory buildings, warehouses and commercial buildings. It meets the high-stability and high-efficiency construction requirements of medium and large-scale commercial photovoltaic projects, effectively reducing project operation costs.

- Utility-Scale Ground Solar Power Stations: Applicable for edge locking fixation of large ground photovoltaic power station modules. The super anti-slip and wind-resistant performance adapts to long-term open-air complex environmental tests, ensuring the stable operation of large-scale power generation systems.

- Global Multi-Climate PV Engineering Projects: Relying on excellent corrosion resistance and weather resistance, it is widely used in European, Southeast Asian, American and other global regional projects, adapting to coastal salt fog, alpine snow, high temperature drought and other harsh climatic environments.

Our Certificate Show

Production Equipment Show

Professional Factory Manufacturing Advantages

- Independent R&D & In-House Integrated Production:

As a professional solar mounting accessories manufacturer, we own complete aluminum extrusion, CNC precision grinding, anodized surface treatment and one-stop production lines. All end clamps are fully self-produced without outsourcing processing, ensuring precise product size and stable batch performance.

- Strict Raw Material Screening & Process Control:

Adopts 100% new AL6005-T5 raw aluminum materials, no recycled materials. Each production link implements standardized process inspection, from serrated tooth depth uniformity to anodized layer thickness, all indicators strictly comply with international PV industry standards.

- Authoritative Qualification & Test Report Support:

Products pass SGS third-party mechanical performance, anti-corrosion and weather resistance tests. We can provide complete test reports and factory qualification certificates to support global project bidding, engineering acceptance and export customs clearance.

- Flexible Customization & Sufficient Spot Inventory:

Conventional silver and black standard end clamps are in stock for rapid delivery. We support personalized customization of special sizes, colors and structural parameters according to customer project requirements to meet differentiated engineering needs.

- Professional Technical Team & One-Stop Service:

Equipped with professional photovoltaic engineering technical team, providing free pre-sales scheme matching, parameter consultation and on-site installation guidance. 24/7 after-sales response ensures timely solving project technical and product usage problems.

- Factory Direct Sales & Transparent Pricing:

Direct factory output eliminates intermediate markup links, providing customers with high-quality products at competitive factory prices, helping customers reduce overall project procurement costs.

Key Installation & Usage Precautions

- Confirm Panel Frame Thickness Before Installation: Verify the actual thickness of on-site solar panel frames in advance, select the corresponding adjustable gear of the end clamp, avoid excessive clamping gap leading to loose fixation, or excessive clamping force causing frame extrusion and hidden crack damage.

- Ensure Serrated Clamping Surface Fits Closely: During installation, keep the serrated anti-slip surface fully fitted with the solar panel edge frame, no offset or tilting, to give full play to the friction anti-slip performance and ensure stable edge locking effect.

- Standardize Locking Torque to Avoid Structural Damage: Control uniform and moderate tightening torque during construction. Excessive force will deform the clamp body or crush the aluminum frame; insufficient force will reduce wind resistance and cause component displacement in strong wind weather.

- Unified Horizontal Installation of Edge Clamps: All end clamps on the outer edge of the PV array shall be installed horizontally at the same level, avoiding height difference stress concentration, to ensure the overall uniform stress and consistent wind resistance of the entire solar array.

- Check Accessory Integrity Before Construction: Confirm that the matching bolts, gaskets and other accessories are complete and intact, no missing or damaged parts, to avoid virtual installation and affect the long-term stability of the system.

- Full Inspection After Batch Construction: After completing batch installation, conduct a comprehensive inspection of all end clamp locking status, check for looseness, offset and untightening problems, and eliminate potential safety hazards for long-term outdoor operation.

Frequently Asked Questions

- Q1: What thickness of solar panels can this adjustable end clamp adapt to?

A1: Our upgraded end clamp supports flexible adjustment for 30mm to 50mm solar panel frame thickness, covering almost all mainstream residential, commercial and utility-scale PV module specifications on the market, with extremely high universality.

- Q2: What is the core advantage of your serrated end clamp over ordinary flat end clamps?

A2: The unique multi-tooth serrated structure greatly enhances the friction between the clamp and the panel frame, effectively preventing edge warping and displacement. Verified by actual projects, it increases installation efficiency by 20% and reduces annual maintenance cost by 25%, with far better stability and economy than traditional products.

- Q3: What is the warranty and service life of the end clamp?

A3: We provide an industry-leading 20-year official warranty for this end clamp, and the overall structural service life can reach more than 25 years. High-quality aluminum material and anodized treatment ensure long-term stable outdoor operation.

- Q4: Is the product suitable for both rooftop and ground solar projects?

A4: Yes. This End Clamp Solar Panel has strong scene compatibility, applicable to residential and industrial rooftop distributed solar systems, as well as large-scale centralized ground solar power stations, realizing universal use for multiple project types.

- Q5: Can you provide third-party test reports and certifications?

A5: All products have passed SGS authoritative third-party testing. We can provide complete official test reports and factory qualification certificates to support global project bidding and acceptance.

- Q6: Does the end clamp cause damage to solar panel frames?

A6: No. The product adopts optimized stress balance design. The serrated structure only enhances friction and locking force without squeezing or scratching the panel aluminum frame. Standard installation can fully protect the integrity of solar modules.

- Q7: Do you support customized end clamp specifications and colors?

A7: Yes. Conventional silver and black colors are in stock. We support personalized customization of special clamping ranges, sizes and appearance colors according to customer project drawings and actual installation needs.
