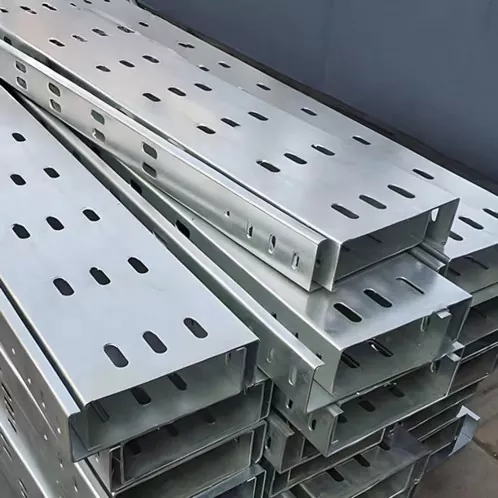

Cable Management Tray Steel Cable Tray

Cable Management Tray Steel Cable Tray has two functional uses. First, it manages cables neatly and beautifully. The slotted design allows for better ventilation and heat dissipation. Second, it can be used as a walkway. ZAM material is very durable, making it easier to install, clean, and maintain on the roof. It plays a vital role in solar systems.

Technical parameters

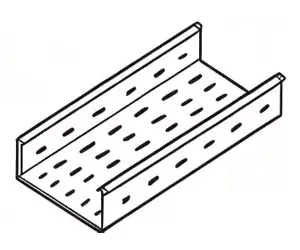

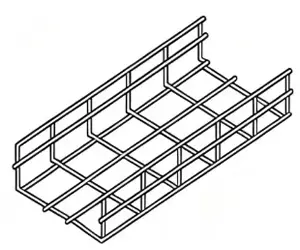

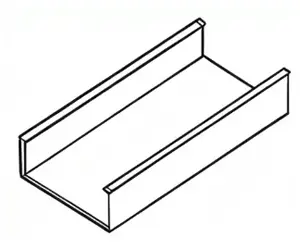

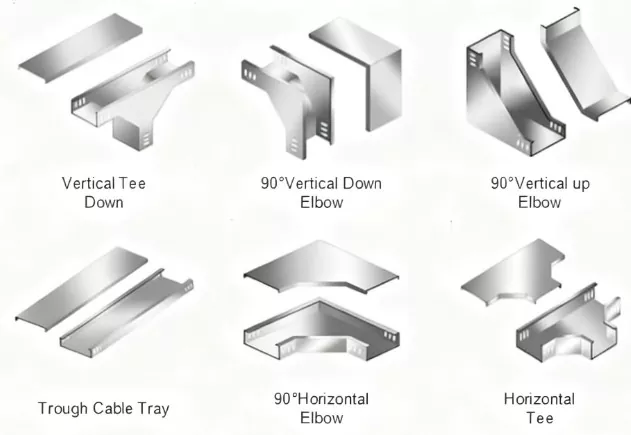

Types of Cable Tray

Features & Benefits

1. ZAM Tray cable offers excellent durability, a long service life, and sturdy material, making it suitable for customers who frequently handle and maintain cables.

2. It offers excellent heat dissipation, with its perforated design helping to effectively dissipate heat from the cable.

3. It is flexible and easy to operate, making it easy to adjust complex cable layouts on-site.

4.Solar RoofCable Tray is suitable for a wide range of applications, including general indoor environments and industrial workshops.

The length of main trough cable tray could be customized, thickness regular from 1.2, 1.5, 1.8mm with different strength to support the real site cable loading.

And holes on the cable tray makes the heat dissipation better in case the loaded AC/DC solar cable are heating during power plant running and loading electricity.

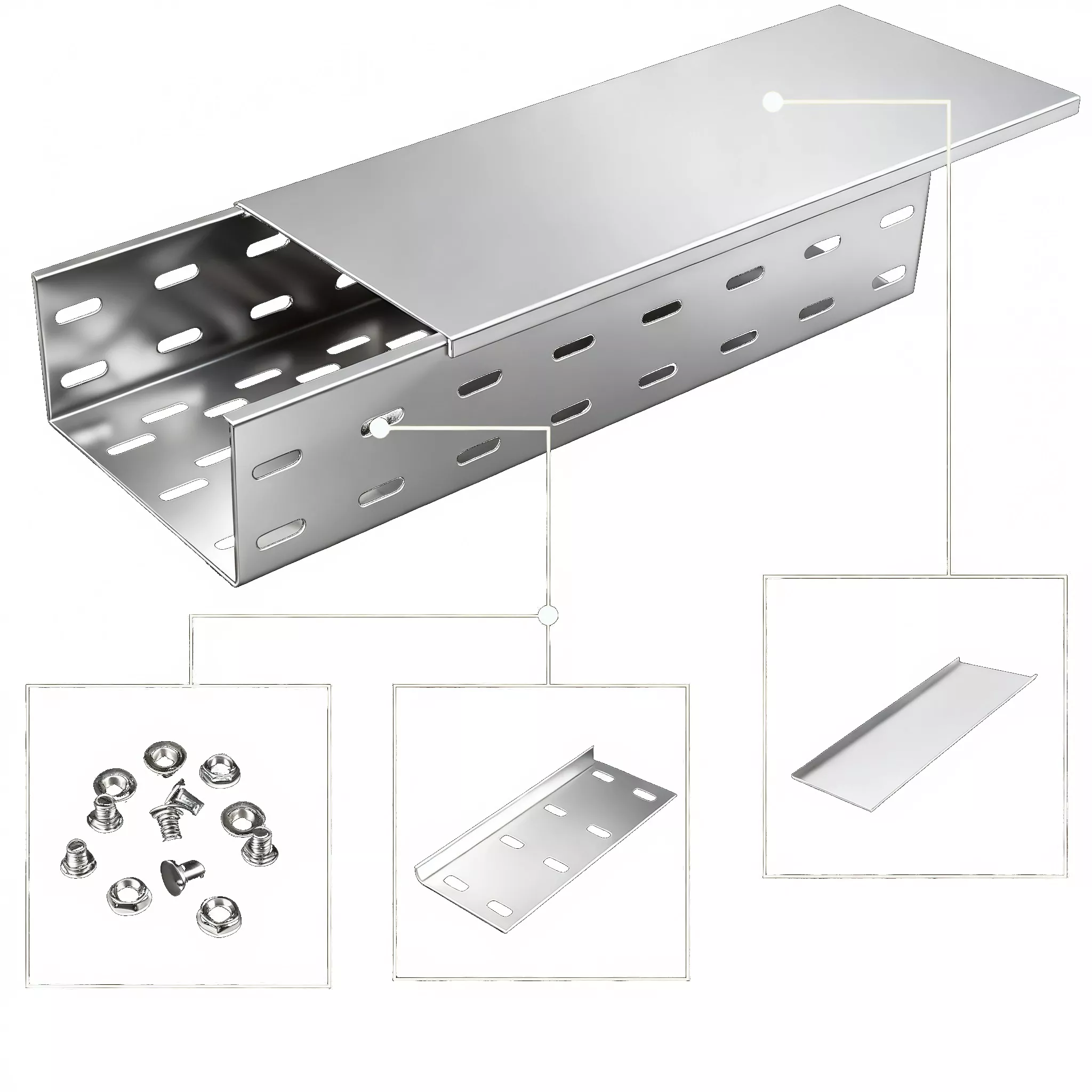

The cover of cable tray helps cables from dust, dirty, raining damage, etc. Effects better protection for cable management.

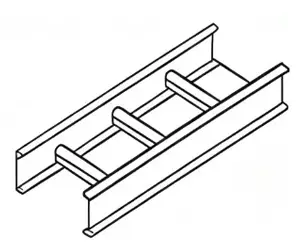

Available shapes options with different edges.

For the more related products for system building.

The rough cable tray could be customized depending on real sites needed.

How to choose cable tray?

The cable tray choosing should be based on the real sites situations:

The application real environment, AC/DC solar cable layout and loading.

How to install cable tray?

Step 1: Preparing the tools such as electrical drill tools, measuring meter, level, safety gloves, etc.

Step 2: Checking the layout of cable, and make sure the length with pointed path, cutting the cable tray accordingly.

Step 3: Mounting the cable tray with supports and brackets on the solar structures or roof structures. And make sure the spacing of supports strength and safety for the cable loading.

Step 4: Installing the cable tray with connectors

Using Topfencesolar matched accessories and connectors to connect cable tray to needed length and shape.

Lifting the cable tray fastening with screws, nuts, and brackets.

Step 5: To make sure the cable tray at the same level, and checking the fasten and stability.

Step 6: placing the solar cables by trough the cable tray, then cover the cable tray cover to keep cable safe.

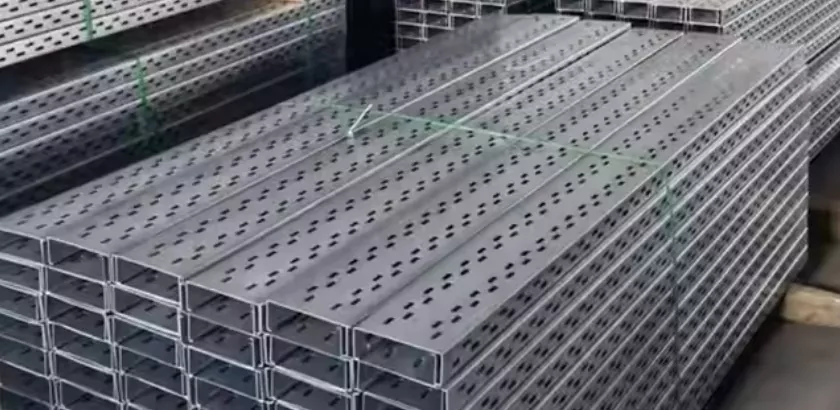

Package:

Wooden pallet or iron pallet for high transport protection.

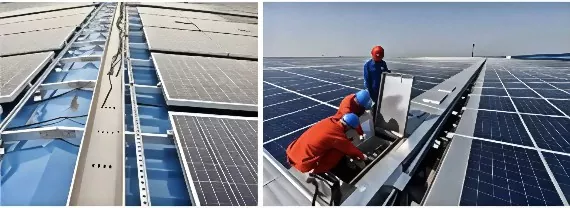

Application case
