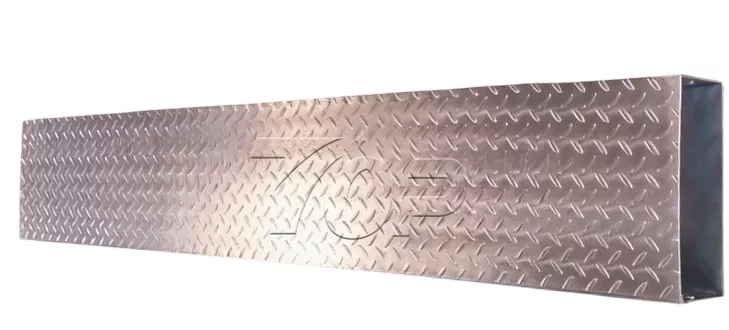

Galvanized Steel Solar Cable Tray Systems
Galvanized Steel Solar Cable Tray Systems manufactured by Topfencesolar well solve the solar DC and AC cable management. Functioning of cable managing and walk way for solar mounting, operating and maintaining. The galvanized steel coating with Zinc by minimum 60 μm thickness meeting international and regional construction regulars all over the world.
Brand:Topfencesolar
Product Material:Galvanized Zinc Steel
Product Foundation:AC, DC solar cable management
Length:2 meters Length * 100mm Hight*1mm Thickness
Galvanized Steel Solar Cable Tray Systems manufactured from Topfencesolar are wildly used in various of solar power plants.
The hardness and loading capacity are the main factors for users’ considering.
Below details will clarify the details
|
Brand Name |
Topfencesolar |
|
|
Design purpose |
For cable managing and security using |
|
|
Material |
Galvanized Steel or ZAM option |
|
|
Surface Treatment |
60+μm Galvanization |
|
|
Application |
Solar cable management |
|
|
Installation Site |
Solar roof sites |
|
|
Color |
Galvanized silver material color |
|
|
Size |
200-300-400mm Width with 2000mm length |

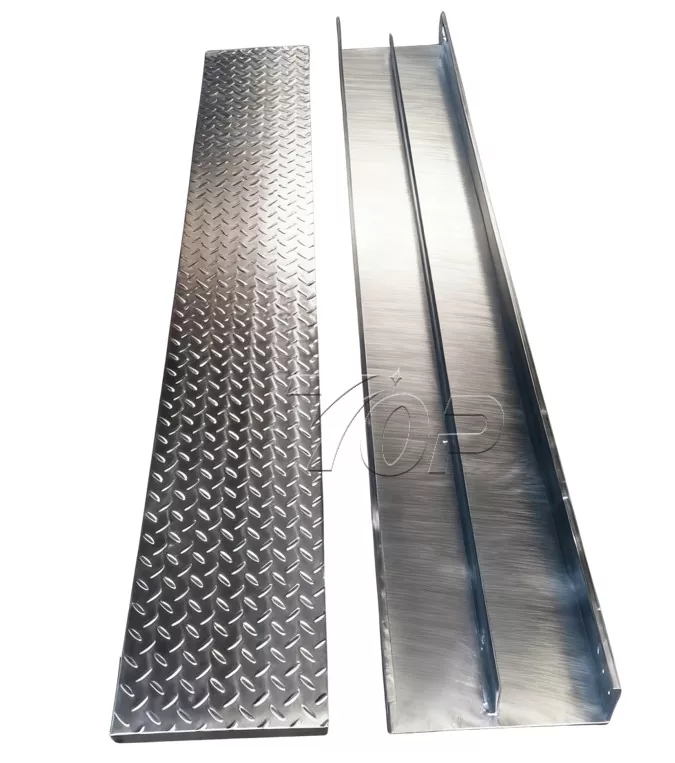

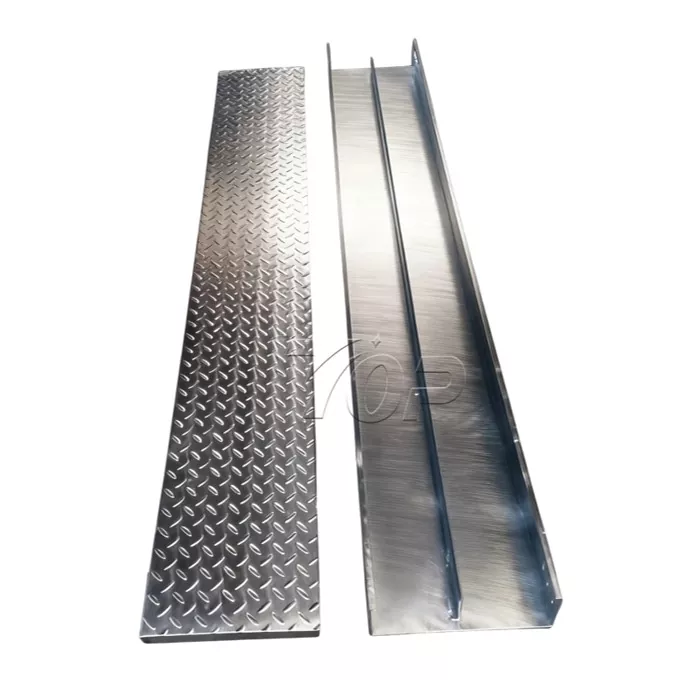

Trough Material: silver color galvanized steel, benefits to durable usage with excellent corrosion protection performance.
Functions: loading solar AC cable or DC cable with 4m2 or 6 m2 or more diameter types solar cables.
Trough Length: 2000mm

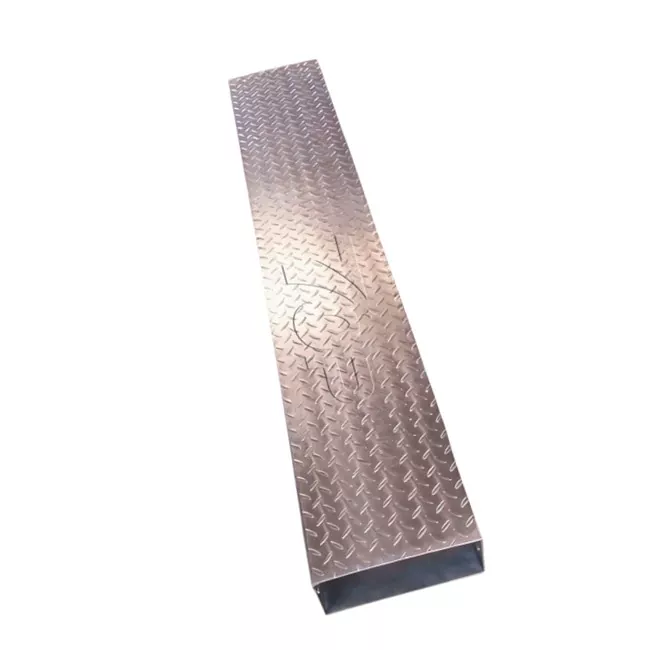

Cover: patterned galvanized steel for anti-slip

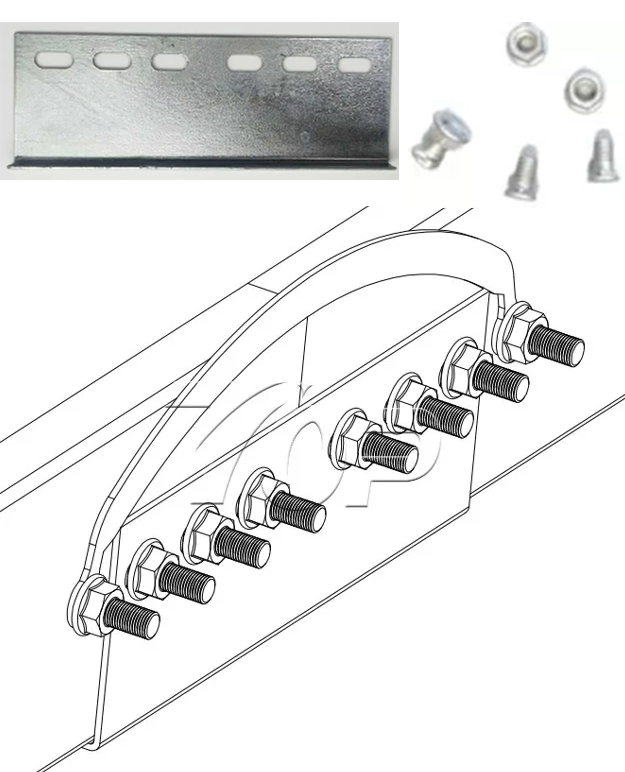

L shaped connectors: no worry about the real needed length at sites of projects. The L connectors could connect each cable tray to the exact length you need.
For Solar Steel Cable Tray Management especially for the solar power plant, the cable layout security is necessary considered. Below cable are specially customized for cable tray with purpose of grounding connection. Connecting part is at the L connector sides.
You must be interested in the real loading capacity of cable tray.
|
Width |
50-100 mm |
200-300 mm |
|
Span (between supports) |
1000 mm |
2000 mm |
|
Loading Weight |
75-100 kg/m |
125-150 kg/m |
Dimensions:
|
Description |
H (mm) |
W (mm) |
T (mm) |
Length (mm) |
Galvanization |
Unit reference weight |
|
Galvanized double slot cable tray |
100-150 |
200-300 |
1-1.5 |
2000 |
≥60μ |
≥33.5kg |
|

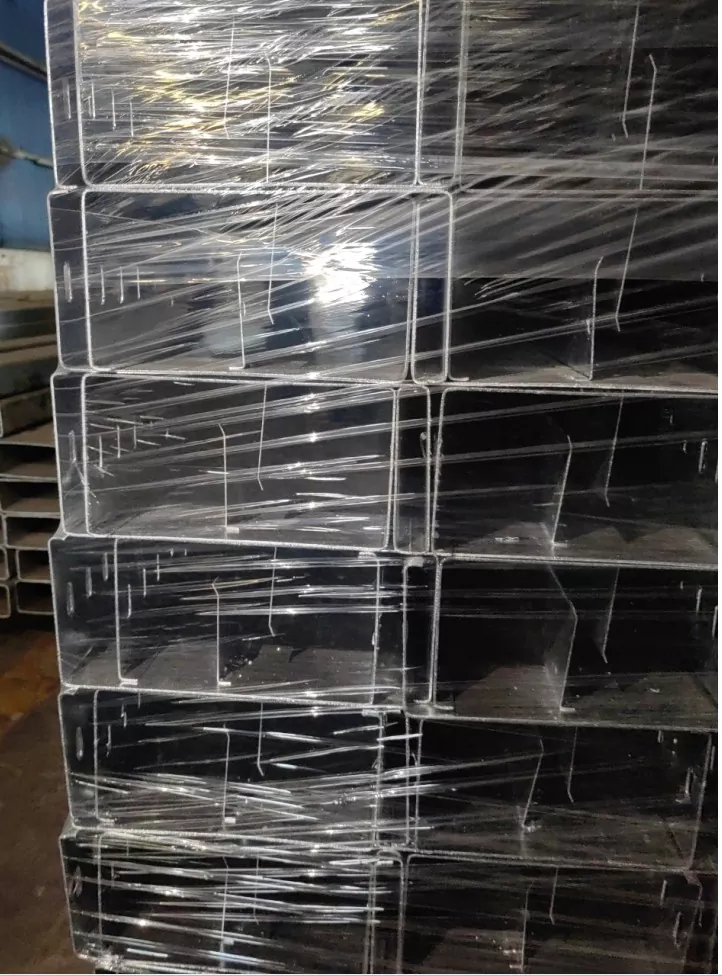

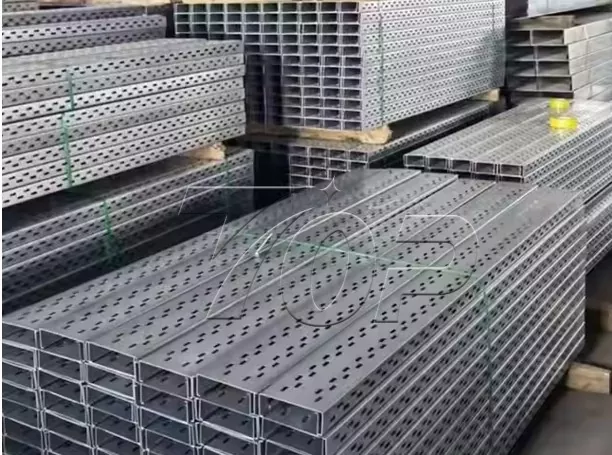

Package Pic |
|
|||||
Applications cases

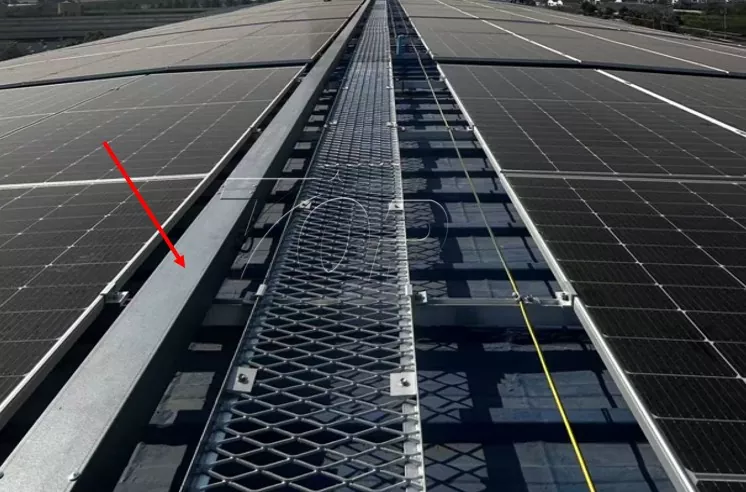

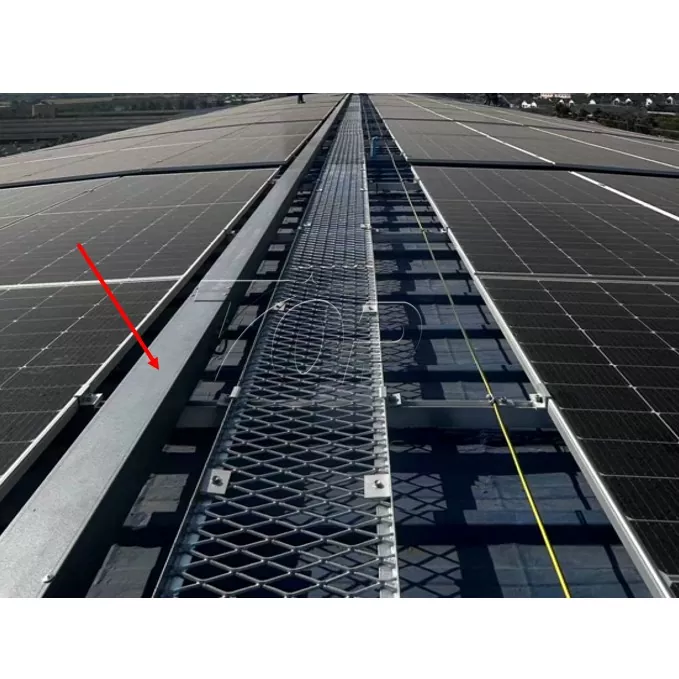

Cable tray and walkway for roof top solar mounting system.
FAQ:
Q1: Does Topfencesolar offer solar panel mounting solutions?
A1: Yes, Topfencesolar is not only manufacturing cable tray, but also offer one stop solutions of solar mounts.
Q2: Do you offer solar mounting structures designing?
A2: Yes, we have professional experienced engineer team offer the most suitable solar mounting structure design, loading calaculation and structure estimation.
Q3: How many kinds of cable tray materials?
A3: The regular materials are Galvanized steel and Aluminum-Zinc-Magnesium Alloy two types.
Q4: What is the cable tray used for?
A4: It is popular to well use Cable Tray of Solar Cable Management in the solar power plant for AC/DC solar cable managing.
