Solar Panel Cable Tray Management System

The Compose parts of the Solar Panel Cable Tray Management System which is designed by Topfencesolar are popular used in the market.

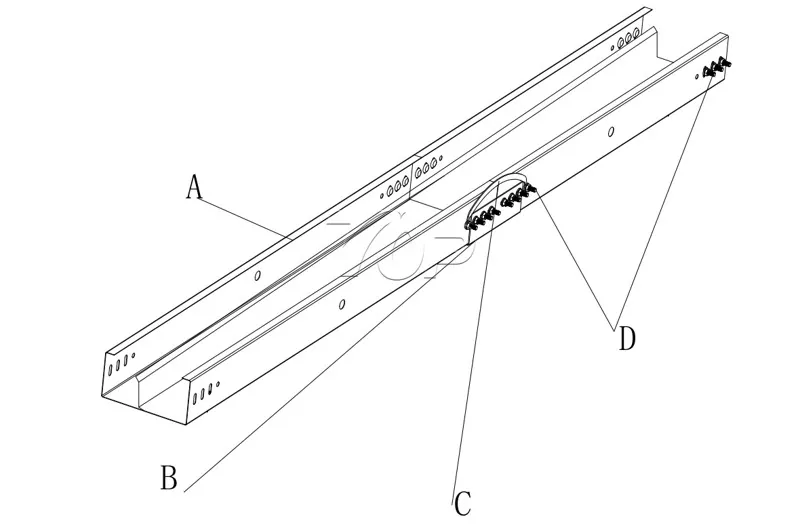

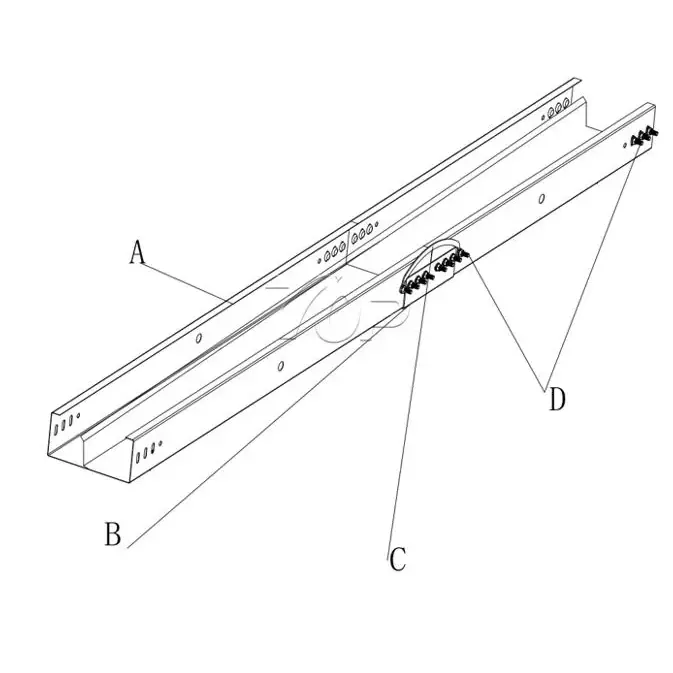

A: Main body of the double slot cable tray with pattern covers

B: Connectors fastened by screws

C: Grounding wire prevents electric shock

D: Screws for fastening cable trays piece by piece

Material: Galvanized Steels

Dimensions:

More options could be customized.

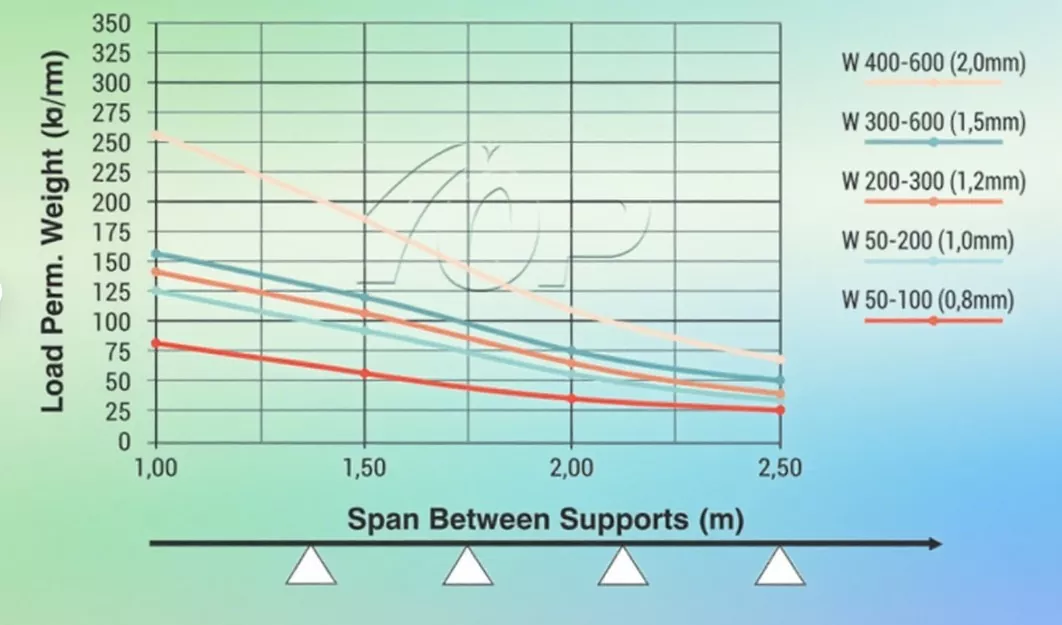

Here you will see the reference of our testing date result based on the loading situation below.

Function:

It centrally accommodates and orderly manages a large number of cables between photovoltaic arrays as well as those leading to inverters and combiner boxes, preventing mechanical damage and UV aging, and ensuring neat and safe wiring.

Parameters

How to use it?

Place the cable tray section on the support, and fix it using the special connecting plates and bolts to ensure electrical continuity (forming a reliable grounding path).

The processing of production line:

More information of materials:

Protection of Galvanized Steel Solar Cable Management product stocking

The galvanized sheet metal is known to be particularly sensitive against the effects of materials of acidic character, polluted air, water and relative humidity present above a certain rate.

The service life of galvanized sheet metal will be influenced in the industrial areas specially where the air is densely polluted.

The most important element of atmospheric air pollution is sulphur dioxide.

C + H + S + O₂ → CO₂ + H₂O + SO₂

SO₂ + ½ O₂ → SO₃

SO₂ + H₂O → H₂SO₃

SO₃ + H₂O → H₂SO₄

In order to protect the stacked sheet metal, however, the following conditions must be strictly observed.

· The metal must never be stocked under high humidity area with water.

· There should be sufficient space for continuous circulation of air.

· The temperature differences in the places of stockpiling must be between 5-10 °C.

More application cases of various of cable tray.
