Flat Roof Concrete Solar Ballast Mounting Rack

In China, Topfencesolar is a professional Flat Roof Concrete Solar Ballast Mounting Rack manufacturer. Integrating excellent structural stability, convenient on site installation and strong scene adaptability, this Concrete Solar Ballast Mounting Rack takes "non destructive installation, high efficiency and long term durability" as its core positioning. such as monocrystalline silicon, polycrystalline silicon and thin film.The system is composed of high quality triangular support frames, high density ballast components, anti corrosion guide rails and precision fasteners. It adopts a modular pre assembly design, where all core components are prefabricated and debugged in the factory, greatly simplifying on site construction procedures.

Structural features

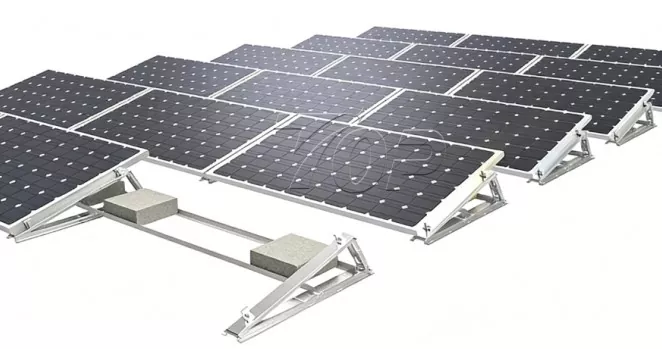

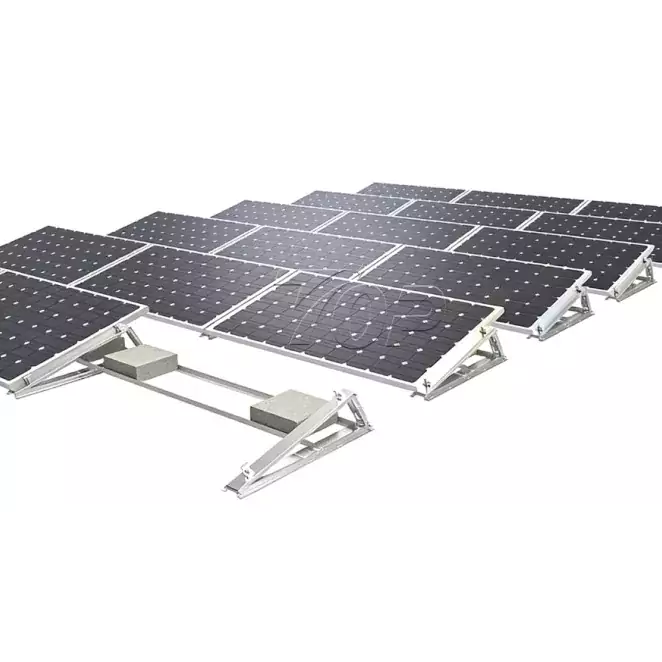

The Flat roof triangular support frame as the core force bearing structure, uses optimized mechanical design to evenly transfer the weight of PV modules to the ballast components, realizing stable fixation without drilling or damaging the roof, thus fundamentally eliminating the hidden danger of roof leakage and effectively protecting the integrity of the building structure.

To maximize energy utilization and roof space efficiency, the system of the Flat Roof Concrete Solar Ballast Mounting Rack is equipped with adjustable module tilt function and flexible layout options, which can be customized according to local sunlight conditions and roof sizes.

Technical parameters

Features & Benefits

1.PV flat ballast mounting system fixing avoids roof drilling, eliminating leakage risks. It fits waterproof sensitive roofs without extra reinforcement, cutting maintenance costs and roof damage.

2.Prefabricated panels enable simple on site assembly without large equipment, boosting efficiency by 30% vs traditional structures, shortening construction time and labor costs.

3.5°-30° adjustable tilt optimizes light absorption and flexible layouts adapt to different roof sizes.

4.High strength anodized aluminum and stainless steel resist corrosion, UV and low temperatures, ensuring more than 25 year service life matching solar panels.

5.Flat roof triangle ballast Solar mounting no extra drilling or waterproof treatment reduces costs; modular design of the Flat Roof Concrete Solar Ballast Mounting Rack shortens payback period, with easy expansion and lightweight design lowering roof load and initial investment.

Factory-Backed Expertise & Proven Project Success

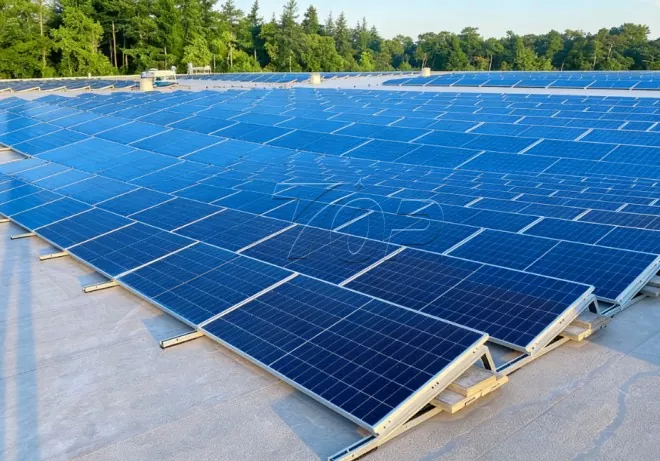

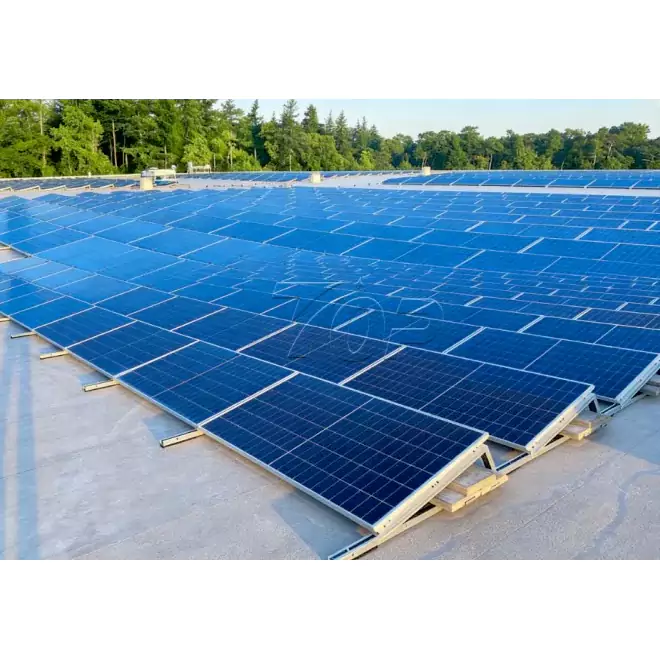

Unlike trading companies, TopfenceSolar owns its own manufacturing facility, giving us extensive hands-on experience in the research, production and application of Flat Roof Concrete Solar Ballast Mounting Racks. Our products have been widely adopted in flat roof PV projects across China—covering commercial, industrial and residential sectors—and have earned consistent recognition from customers for their stable performance and efficient installation. We have a deep understanding of the unique demands of different project types: commercial projects’ focus on construction efficiency and cost control, industrial projects’ emphasis on structural stability, and residential projects’ need for non-destructive installation. Through years of project practice, we have developed mature solutions; our modular pre-assembly design, for instance, has been refined based on on-site construction feedback to ensure each project is completed efficiently and to the highest standard.

Advanced Design & Customized Solutions, Achieving Performance-Efficiency Balance

Our professional capabilities are evident in every aspect of product design, material selection and production, aligning perfectly with your procurement priorities—installation efficiency, structural safety, energy utilization and cost reduction:

- Sophisticated Structural Engineering: Centered on a triangular support frame as the core load-bearing structure, our system uses optimized mechanical design to evenly distribute the weight of PV modules (including monocrystalline silicon, polycrystalline silicon and thin film) to the ballast components. The non-penetrating ballast fixing approach eliminates the need for roof drilling, completely eradicating the risk of roof leakage, preserving the building’s structural integrity, and suiting waterproof-sensitive roofs without additional reinforcement—thus cutting down on maintenance costs and roof damage.

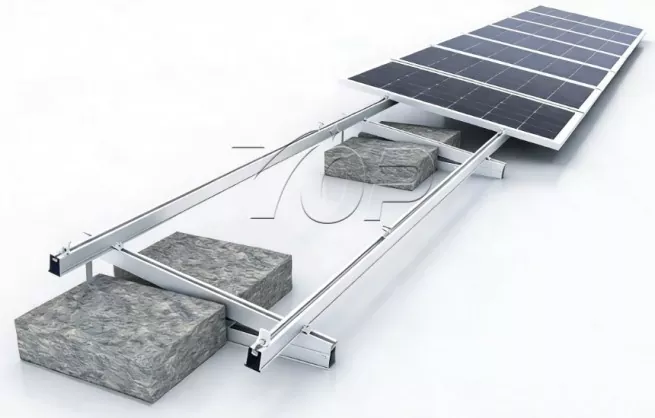

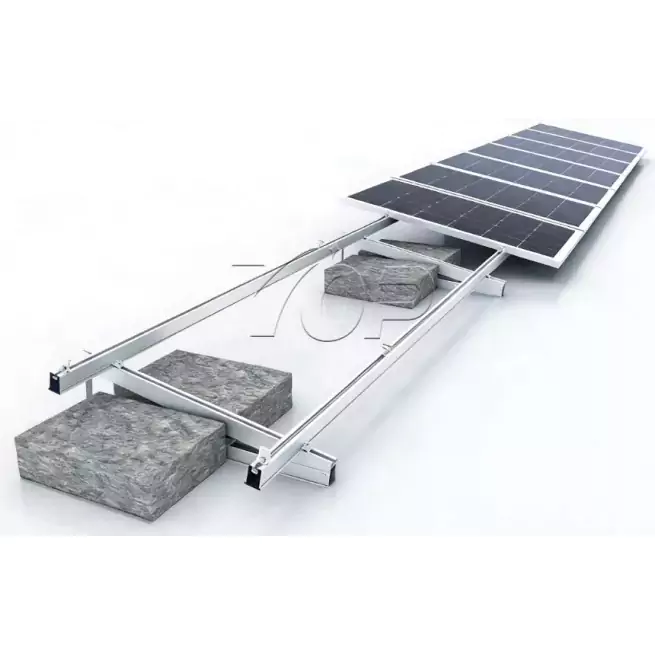

- Time-Saving Installation Design: All key components—triangular support frames, high-density ballast parts, anti-corrosion guide rails and precision fasteners—are prefabricated and tested in our factory, featuring a modular pre-assembly design. On-site assembly requires only simple operations and no heavy equipment, boosting construction efficiency by 30% compared to traditional systems. This significantly shortens construction timelines and lowers labor costs, making it an ideal choice for projects requiring rapid deployment.

- Flexible Adaptability & Customization: The system offers an adjustable module tilt angle (5°-30°), which can be tailored to local sunlight conditions to optimize light absorption and maximize energy output. Additionally, flexible layout options accommodate various roof sizes, and the modular design allows for easy expansion. We also provide professional OEM and customization services, crafting solutions based on your specific project type (commercial/industrial/residential), roof dimensions and sunlight conditions to fulfill your unique requirements.

- Premium Material Selection: We utilize high-strength anodized aluminum, hot-dipped galvanized Q235B steel and 304 stainless steel, which boast excellent corrosion resistance, UV resistance and low-temperature tolerance. This ensures a service life of over 25 years—matching that of solar panels and avoiding the costs associated with frequent replacements. The anodized surface treatment also enhances corrosion resistance and aesthetic appeal, making the product suitable for diverse outdoor environments.

Standardized Production & Industry-Recognized Quality

As a professional manufacturer, TopfenceSolar has established a rigorous quality control system, ensuring all products undergo strict inspections from material sourcing and production to delivery. Our Flat Roof Concrete Solar Ballast Mounting Rack complies with international industry standards, with clear and reliable technical parameters: wind load resistance up to 60m/s, snow load resistance up to 1.4kn/m², anodized surface treatment, and silver or customized colors—all meeting the requirements of global flat roof PV projects. With its core positioning of "non-destructive installation, high efficiency and long-term durability", our product has gained widespread industry recognition, becoming the preferred choice for flat roof PV deployments and building a strong brand reputation in the sector.

Transparent Commitments, Factory Advantages & All-Round Service

Integrity is the cornerstone of our cooperation, and all our commitments and services are open and transparent, fully addressing your concerns regarding procurement, delivery, payment and after-sales support:

- Transparent Factory Identity & Delivery Guarantees: We are a direct factory, not a trading company—allowing you to enjoy factory-direct pricing, eliminate intermediate links and reduce initial investment. For standard products, the delivery time is typically 15 days, ensuring your project stays on schedule.

- Clear Payment Terms: We offer reasonable and transparent payment terms: for orders ≤10,000USD, 100% payment in advance; for orders ≥10,000USD, 30% T/T in advance and the balance before shipment—providing you with flexible and secure payment options.

- Transparent Quality & Cost Benefits: We stand by a 10-year product warranty and a service life of over 25 years, with all product parameters clearly stated and no false advertising. The non-drilling design eliminates extra waterproof treatment costs, the modular design shortens the investment payback period, and the lightweight materials reduce roof load and initial investment—helping you save costs throughout the project lifecycle.

- Comprehensive Service Support: We provide end-to-end services, from pre-sales consultation and customized solution design to on-site installation guidance and after-sales maintenance. Whether you have questions about product selection, installation or usage, we respond promptly with professional solutions, ensuring the long-term stable operation of your PV system.

FAQ

Are you trading company or manufacturer ?

We are factory.

How long is your delivery time?

Generally it is 15 days for the standard product.

What is your terms of payment ?

Payment<=10,000USD, 100% in advance. Payment>=10,000USD, 30% T/T in advance, balance before shippment.

Welcome to buy our quality Flat Roof Concrete Solar Ballast Mounting Rack, we will give you more benefits!
