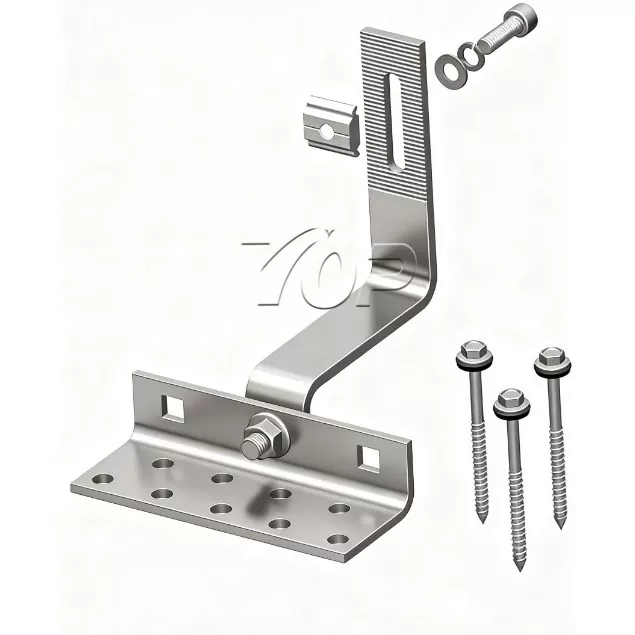

Solar Hook Roof Mounting

Topfencesolar Solar Hook Roof Mounting is a perfect solution for solar tile roof project. The hook can be installed without damaging the tiles. It’s fixed on the roof wood structure under tiles, and tiles will be covered on the hook.

The traditional and most used roof hook is made of stainless steel, thestainless steel hook has good strength, also good rust and corrosion resistance.

Recently, aluminum hook is becoming an option for solar tile roof project. The aluminum hook has lightweight, when it is installed on the tile roof, it won’t put huge weight on the roof structure. Aluminum hook is known by more and more clients, and it’s becoming a popular option when client is considering solar roof mounting solution.

ZAM material hook is similar with stainless steel hook, it also has great strength, rust and corrosion resistance, but the ZAM material is cheaper.

The difference of stainless steel and ZAM material is surface treatment, the stainless steel surface is brighter, and ZAM material hook surface is not that brighter. It’s up to client’s choice.

Customized service is available, we support customization of various sizes.

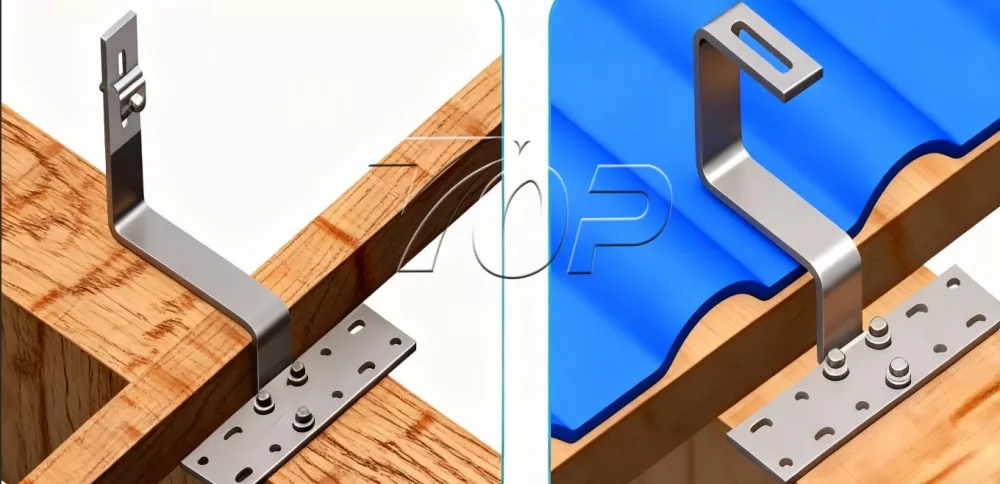

Installation method:

The roof hooks are installed on the wooden purlin under the tile. The different hooks type will be selected depended on the exact roof type.

After installed, put the tile back to keep the rooftop complete safe.

Technical parameters

Features & Benefits

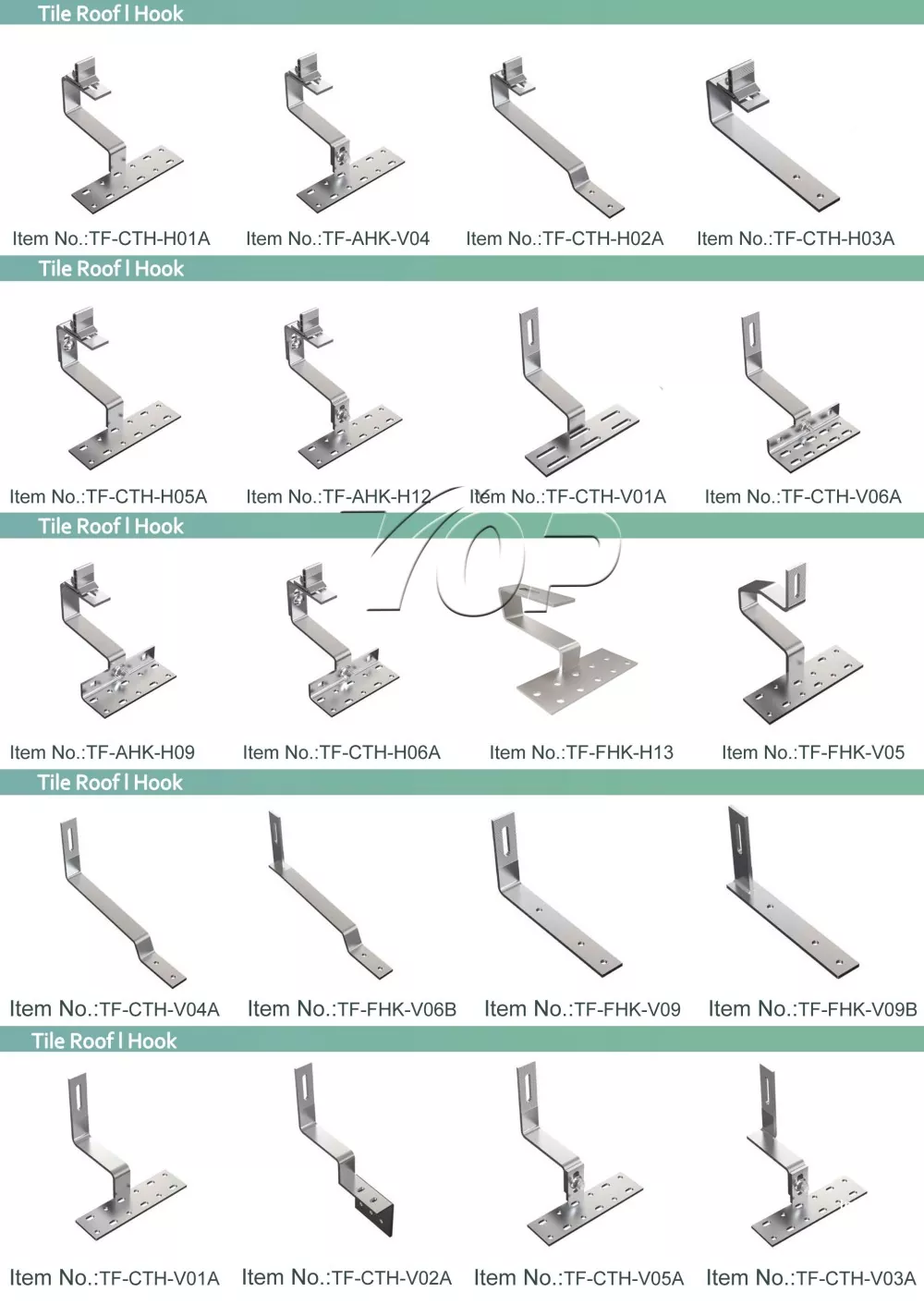

1. Various types, suitable for different solar tile roof project.

2. Great strength, support all the mounting structure and solar panel on it.

3. Rust and corrosion resistance.

4. Pre-assembled, simple and cost-effective installation.

5. The solar rood hook is designed to withstand wind load up to 60 m/s and snow loads up to 1.6 KN/m2.

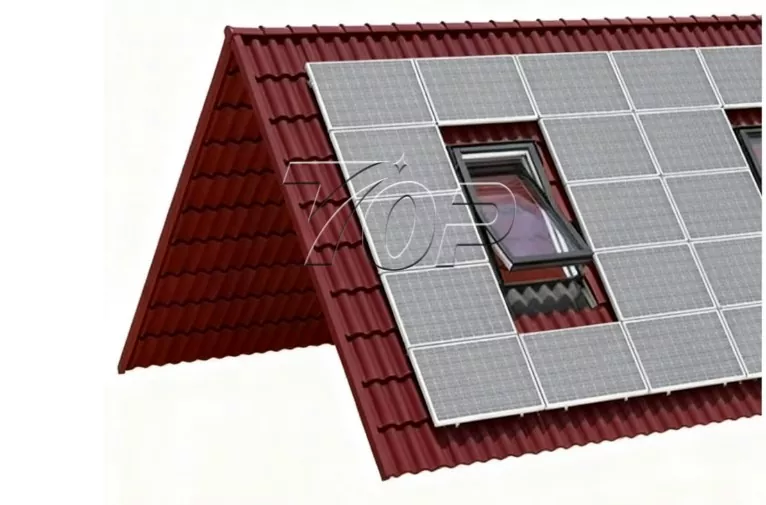

Application View:

Package:

Selling Units

Single item

Single package size

60X50X40 cm

Single gross weight

2.000 kg
