Solar Panel Ground Mount Rack

To get a high-strength and lightweight solar mounting rack for your ground system, you can contact Topfencesolar and let us be your supplier of this C-shaped solar panel ground mount rack.

This high quality ground mounting system will reduce the weight of the entire support system including solar panels while ensuring sufficient carrying capacity. Its lighter brackets are very convenient to carry during transportation and installation. The other one of good advance is that it is reducing the load bearing requirements of the foundation.

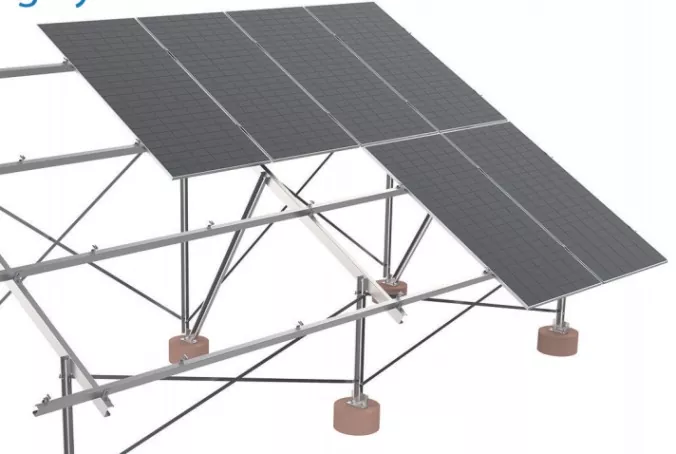

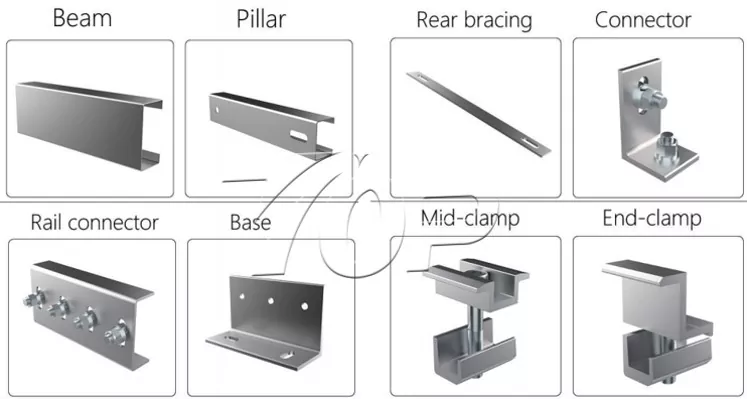

Components:

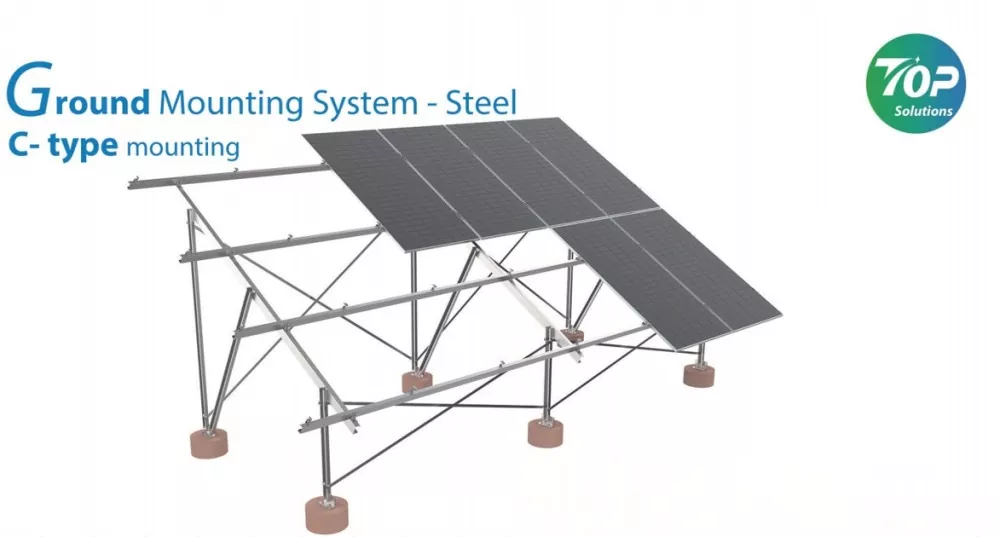

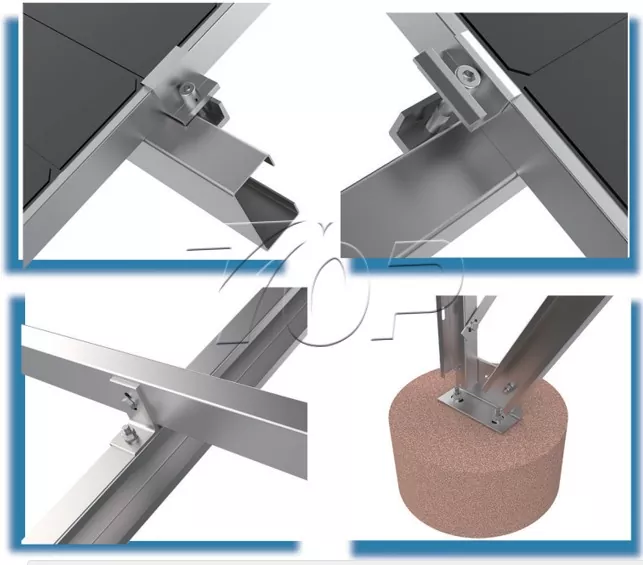

Structure connection part details

Installation Steps:

1 Preparing for Installation

Site checking: Check the flatness of the ground and the type of soil (anchor screws or concrete foundations are recommended).

2 Installation Procedure

Foundation fixation:

If concrete bases are used: pour concrete piers with a depth of at least 80cm and insert support base bolts.

If using anchor screws (recommended) : Screw the screws into the ground to the design depth (usually 1.2-2m).

Support assembly:

Fix the C-shaped steel column vertically on the foundation and tighten it with bolts.

Install transverse support beams and diagonal braces to make sure the solar panel ground mount rack structure is level (calibrate using a level).

Install solar panels:

The solar ground panels are placed on the beam and fixed with aluminum alloy clamping fixture to ensure uniform spacing (recommended spacing ≥10cm for heat dissipation).

Advantages:

High strength material: Hot dip galvanized steel (HDG) or anodized aluminum provides excellent corrosion resistance and structural strength with a life span of more than 25 years.

Modular design: Solar panel ground mount rack supports rapid assembly and adjustment, compatible with a variety of solar panel sizes.

Wind resistance: Through optimized ground mount solar rack structural design and foundation fixing, it can resist wind speed above 60 m/s, suitable for high wind pressure areas.

Flexible installation Angle: Support fixed tilt Angle (15°-60°) or seasonal Angle adjustment to maximize power generation efficiency.

Low maintenance: no need for concrete foundation, reduce construction pollution, low maintenance costs.
