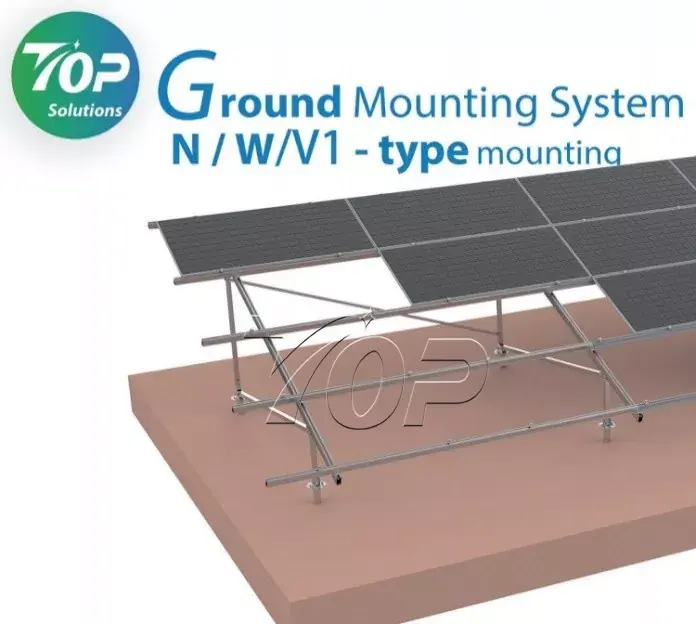

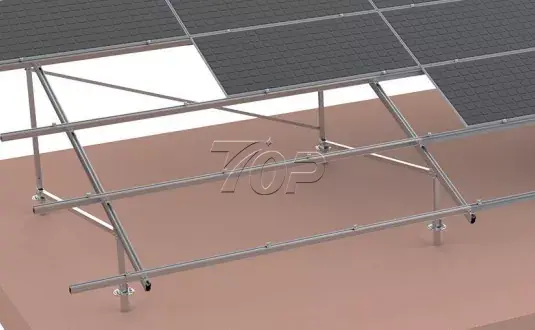

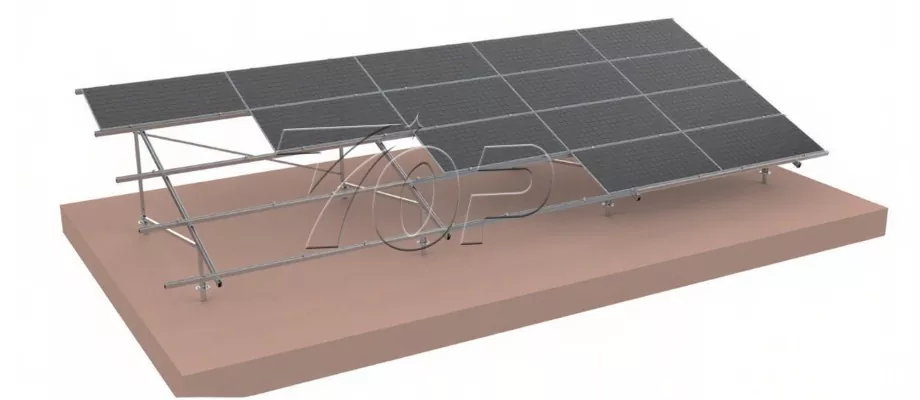

Solar Panel Aluminum Ground Mounting Racking System

As the professional China manufacturer and supplier, Topfencesolar offers solutions of N type Solar Panel Aluminum Ground Mounting Racking System for efficient ground solar panel mounting. The most popular and light weight high-quality aluminum materials are advanced concepts to ensure easy installation, structural stability and maximize the efficiency of solar energy. The system is also suitable for a variety of applications in commercial, farming and residential ground solar power plants.

Product Features:

*The N type Solar Panel Mounting System structure is stable and suitable for all kinds of terrain.

*The installation Angle is fixed and suitable for areas with stable sunshine conditions.

* The N type Solar Panel Aluminum Ground Mounting Racking System offers high flexibility and scalability for ground-mounted solutions.

Structures composing:

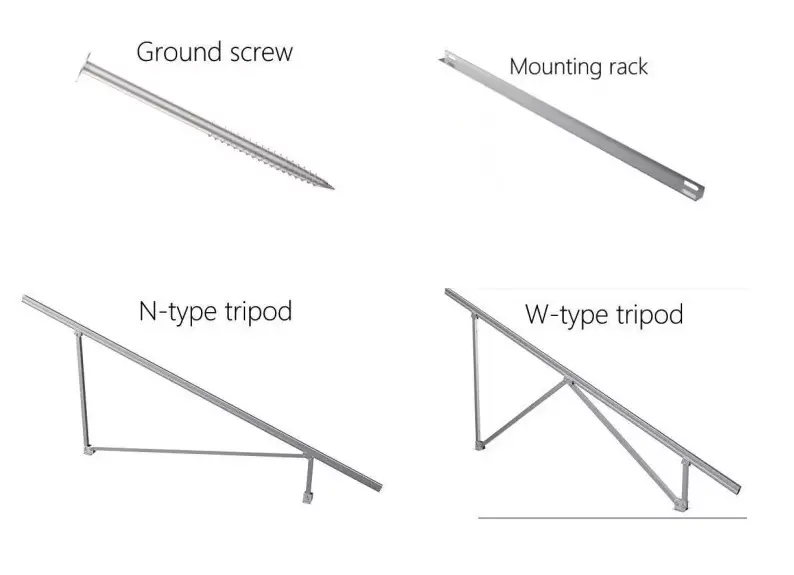

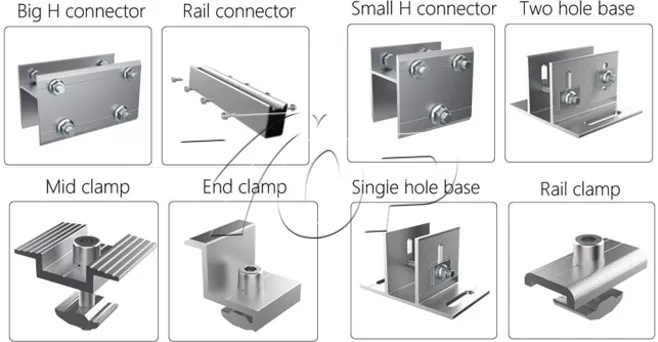

Components

Installation steps:

1. Foundation construction: According to the Solar Panel Racking System design drawings, anchor bolts are embedded in the ground or concrete foundation is poured.

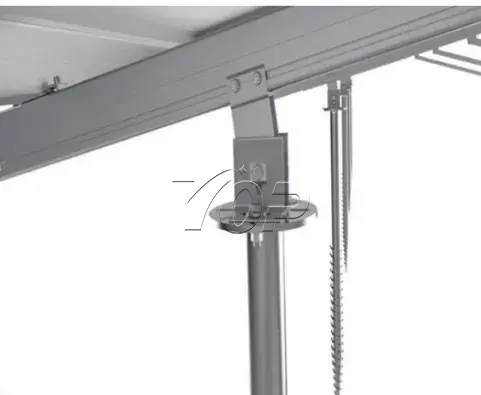

2. Bracket support installation: Fix the support column of Aluminum racking on the foundation to ensure perpendicularity and levelness.

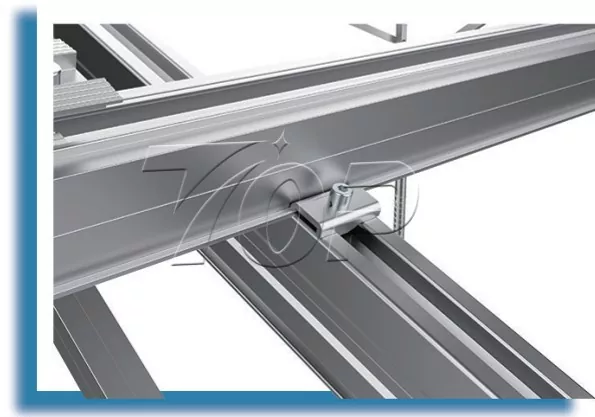

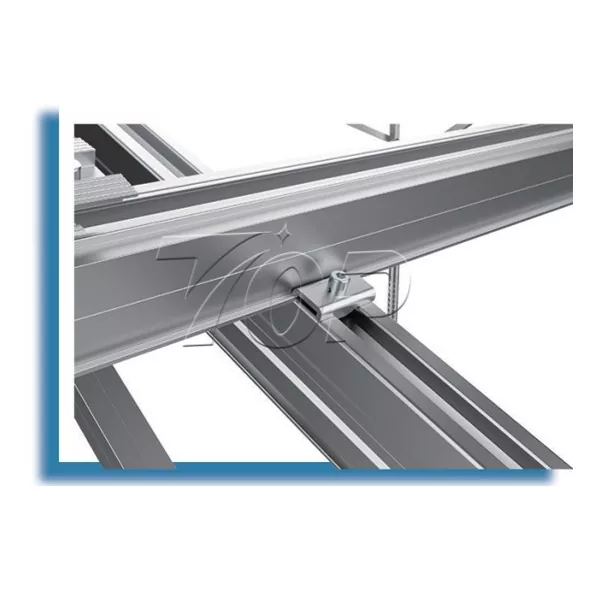

3. Rail installation: Install the rails on the support column and adjust the Angle and direction of it.

4. Solar panel installation: Fix the solar panel module on the rail with mid-clamp and end-clamps, mounting accessories, then complete the electrical connection.

Installation advantages:

1.Fast installation: Modular design reduces installation time and labor costs.

2.Flexible adaptation: Suitable for all roof types and floor conditions.

3.Safe and reliable: The strong wind load and snow load capacity, ensures the stability of the system in harsh environments.

4.Environmental protection and energy saving: The Solar Panel Aluminum Ground Mounting Racking System installation process does not require complex construction, reducing the impact on the environment.
