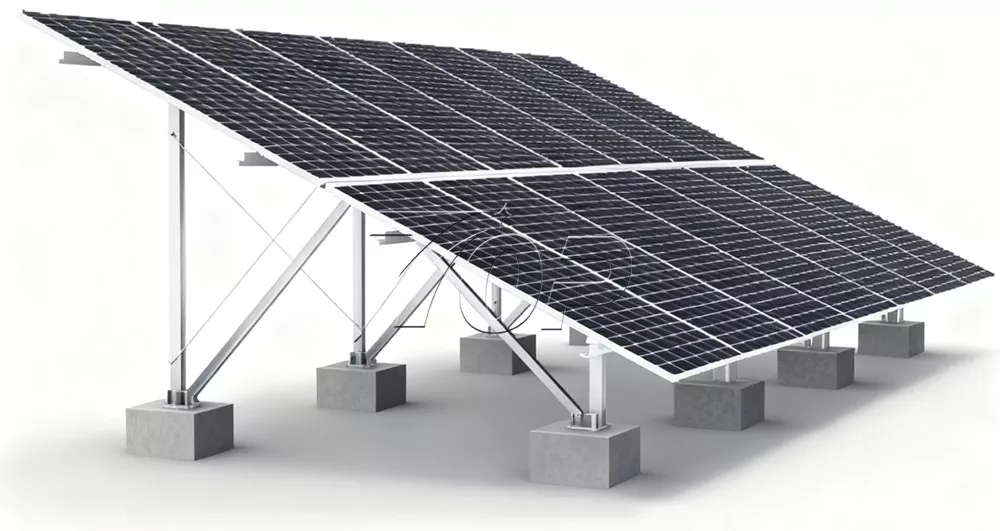

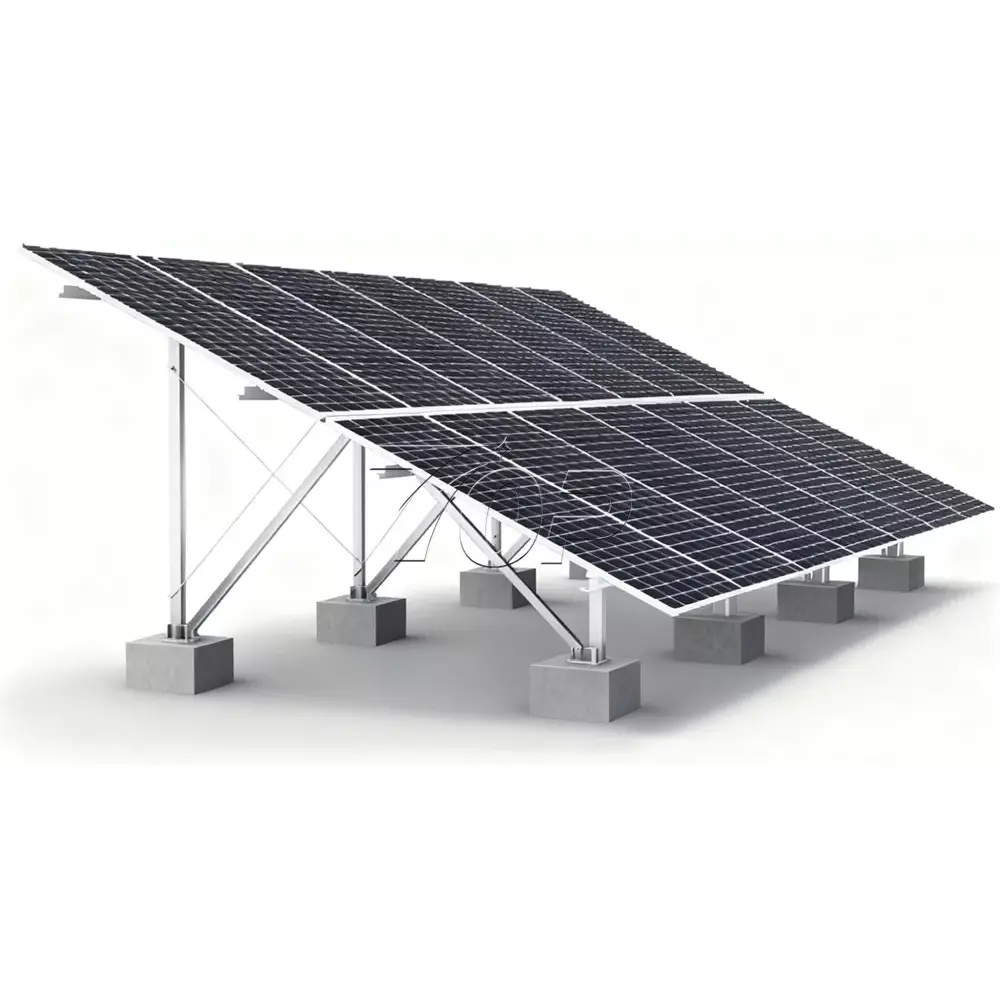

Ground Solar Mounting Racking System

As the professional China manufacturer and supplier, Topfencesolar brand Ground Solar Mounting Racking System is special designed by mature wind/snow factor loading calculating. Difference from Aluminum or Hot-dip galvanized steel, we are using the latest Zn-Al-Mg galvanized aluminum magnesium Coating technology.

Principle Background of ZAM material:

Zinc Aluminum Magnesium structural possess excellent anti-corrosion performance.

(More sizes offer options)

The anti-corrosion principle mainly relies on the synergistic effect of alloy elements: zinc, as the primary sacrificial anode element, corrodes preferentially over iron, thereby protecting the support base; aluminum can form a dense oxide film on the surface, further hindering the invasion of corrosive media; magnesium can refine the grain structure, enhancing the alloy's corrosion resistance and mechanical properties. This combination of multiple alloys makes zinc aluminum magnesium supports have a much longer anti-corrosion lifespan than traditional anti-corrosion supports such as ordinary galvanized ones in complex and harsh environment. It is effectively ensuring the long term stable operation of solar panel and other systems, and reducing maintenance costs and safety hazards caused by corrosion.

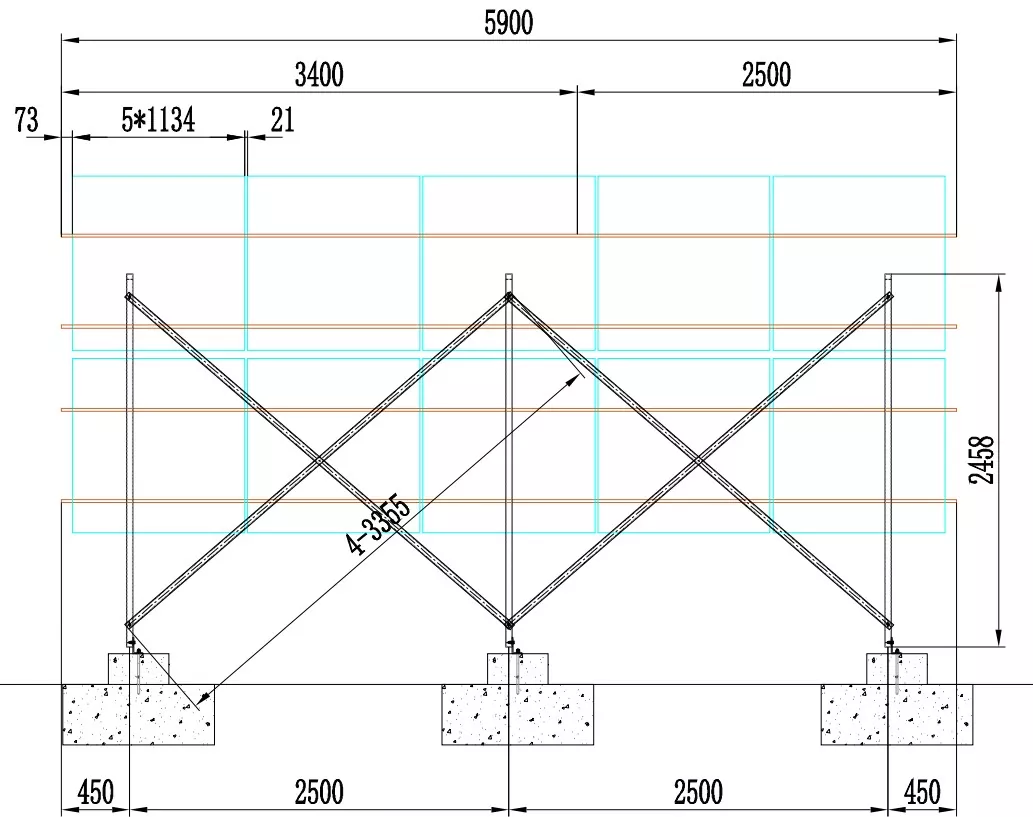

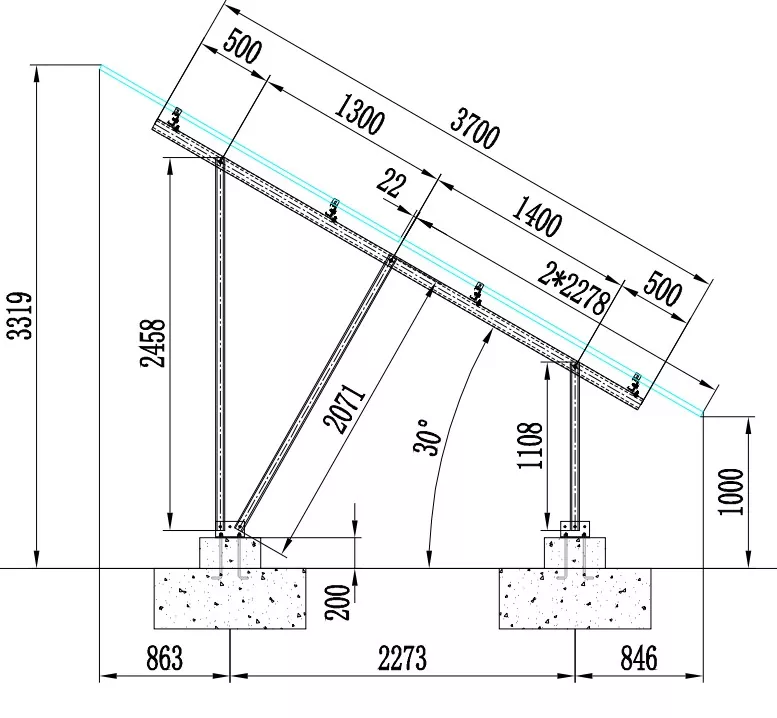

Data of structure:

Structure name: Ground Steel Solar Mounting System

Minimum height between bottom of solar panel and floor: 1000mm.

Maximum height is 3319mm

Tilt angle: 30°

Foundation: Concrete

Row of solar panel array: 2 panels

Installation orientation: Vertical ( Portrait also could be customized)

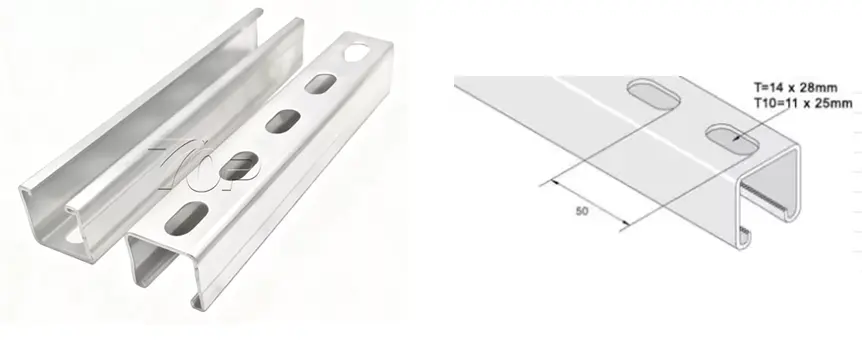

Back Rib: U shape ZAM steel with holes

Material: ZAM

Fastener: SUS304 screw/nuts/bolts

The Structure BOM of Topfencesolar

The size of the U shape could be customized for different sizes.

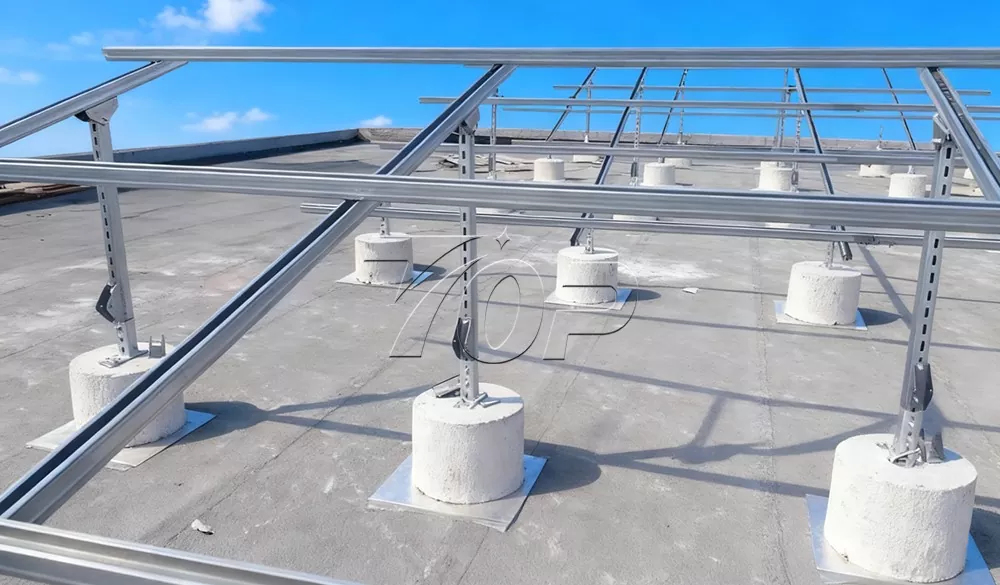

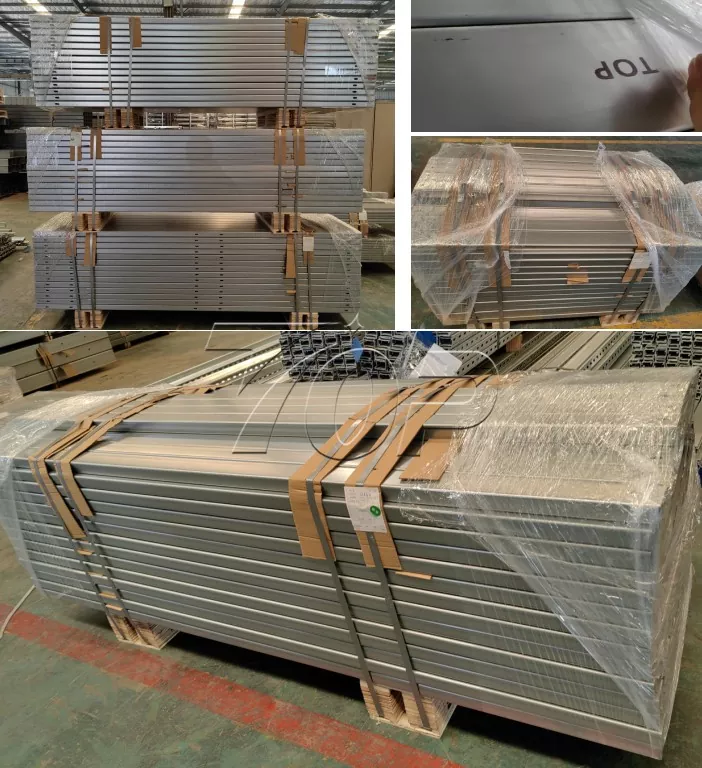

Finished production pictures.

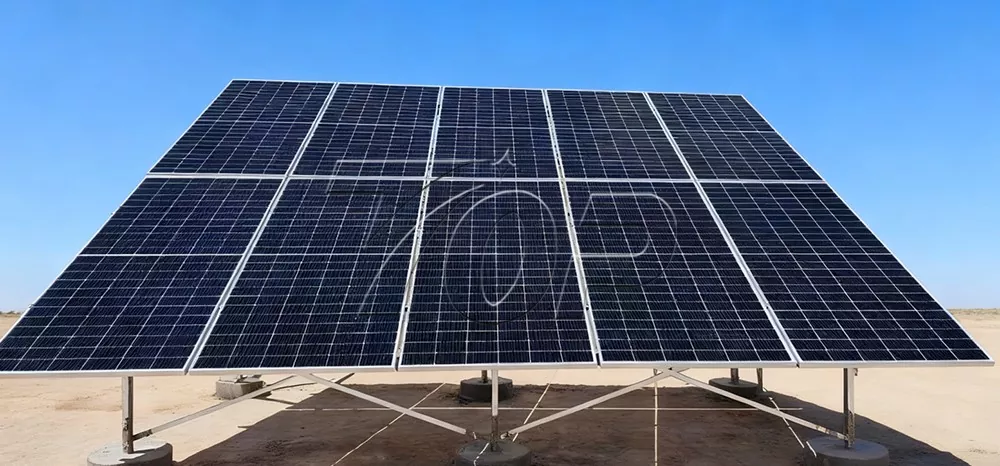

Real Application Cases
