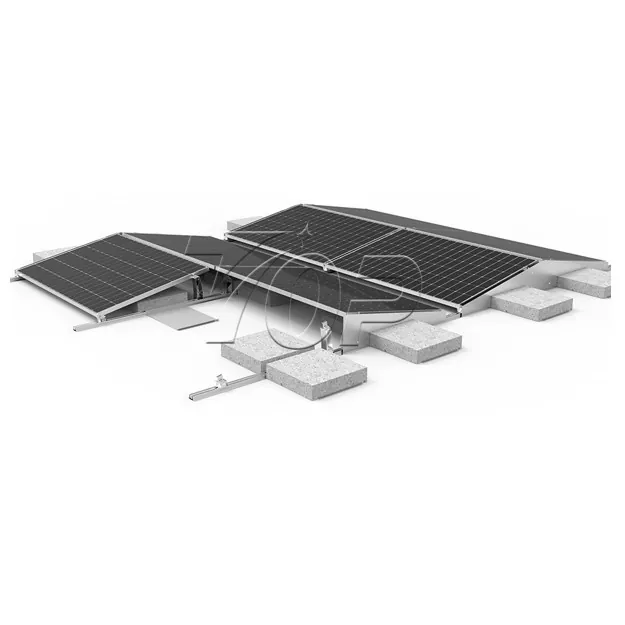

Non-Penetrating Solar Ballast Mounting System

Product Introduction

Non-Penetrating Solar Ballast Mounting System is a professional rooftop solar mounting solution designed and manufactured by Topfencesolar, focusing on flat roof solar installations that require zero damage to the building structure. Using a gravity-loaded design supported by concrete ballast blocks or ballast trays, this system secures solar panels firmly without drilling, expansion bolts, or any roof penetration. It preserves roof integrity, prevents water leakage risks, and delivers a fast, low-cost installation method for commercial and residential flat rooftop solar projects worldwide.

Core Product Features & Structural Benefits

• 100% non-penetrating mounting structure that requires no drilling, cutting, or anchoring into the roof surface.
• Relies on concrete ballast blocks or ballast trays to provide stable gravity loading and strong wind resistance.
• Effectively eliminates roof waterproof damage and water leakage risks common in traditional mounting systems.
• Compatible with 30mm, 35mm, 40mm and other conventional solar panel frame thicknesses.
• Supports both vertical and landscape panel orientation for flexible layout design.
• Constructed from hot-dip galvanized Q235 steel with a coating thickness above 60μm for extreme corrosion resistance.
• Equipped with high-quality aluminum clamps and stainless steel fasteners for long-term durability.
• Wind load resistance up to 60m/s and snow load capacity up to 1.4kN/m² for stable outdoor performance.
• Simplified bracket structure reduces component quantity and lowers overall project material cost.
• Tool-friendly design of the Non-Penetrating Solar Ballast Mounting System allows for fast on-site installation, greatly reducing labor time and construction cost.

Technical Performance & Material Durability

• Hot-dip galvanized Q235 steel main structure ensures high strength and long service life under complex climates.
• Aluminum alloy parts use anodized surface treatment ≥15μm to enhance anti-corrosion and anti-aging performance.
• Stainless steel fasteners provide stable and secure connections without rust or deformation.
• Strictly complies with SGS, CE, TUV certification standards to meet international solar mounting requirements.
• Stable structural performance adapts to flat rooftops in different regions with varying weather conditions.
• Optimized structural design improves stress distribution and enhances overall system safety and stability.
• Long-term durability reduces maintenance frequency and extends the effective life cycle of solar installations.
• Low-maintenance structure reduces long-term operating costs for solar power station owners.

Application Scope & Project Scenarios

• Flat roof solar mounting projects for commercial buildings, factories, warehouses, and shopping centers.
• Residential rooftop solar installations requiring non-drilling and roof-protection solutions.
• Renewable energy projects where roof waterproof integrity must be strictly maintained.
• Large-scale megawatt and gigawatt solar farm projects in Asia, Europe, the Middle East, North and South America.
• Retrofit solar projects where roof penetration is prohibited or not allowed by property management.
• High-efficiency solar systems pursuing low installation cost, fast construction, and stable operation.

Custom Design & Engineering Support

• Professional engineering team provides free roof measurement analysis and layout planning.
• Customized installation angle design based on project location to maximize solar power generation efficiency.
• Professional simulation and calculation of wind load, snow load, and seismic resistance for each project.
• Detailed structural design drawings and complete BOM list for smooth project implementation.
• Flexible customization for different roof sizes, solar panel types, and project power requirements.
• Sample orders and pre-production testing supported to confirm structure performance before mass orders.

Topfencesolar Manufacturer Strengths

• Founded in 2008, with over 20 years of professional experience in solar mounting system R&D and manufacturing.
• Advanced production lines including cold roll forming, CNC punching, laser cutting, welding, and galvanizing equipment.
• Complete quality control system and certified products conforming to SGS, CE, TUV standards.
• Global project experience including Japan 2.8MW ground mounting system, Tokyo flat roof projects, and more.
• One-stop service of the Non-Penetrating Solar Ballast Mounting System will be from design, production, packaging to logistics and after-sales support.
• Branch offices in Japan and stable shipments to more than 30 countries and regions worldwide.

Key Technical Specifications

• Brand: Topfencesolar
• Main Material: Hot-dip Galvanized Q235 Steel
• Mounting Type: Non-Penetrating Ballast System
• Wind Load: Up to 60m/s
• Snow Load: Up to 1.4kN/m²
• Panel Frame: 30mm, 35mm, 40mm
• Orientation: Vertical & Landscape
• Certificates: SGS, CE, TUV
• Installation: No Drill, No Penetration

Customer Frequently Asked Questions

• Q: What makes this system different from traditional solar mounts?
  A: It is a fully non-penetrating design that uses concrete ballast instead of drilling, protecting the roof completely.
• Q: Is this Non-Penetrating Solar Ballast Mounting System suitable for all flat roofs?
  A: Yes, our engineers will evaluate your roof and provide a safe, optimized layout based on size and location.
• Q: What materials are used in this system?
  A: Main structure is hot-dip galvanized Q235 steel, with aluminum clamps and stainless steel fasteners.
• Q: Do you provide custom design and engineering support?
  A: Yes, we offer free load calculation, layout design, structural drawings and BOM list for each project.
• Q: What certificates does this product have?
  A: It fully complies with SGS, CE and TUV certification standards.
• Q: How long does installation take?
  A: The simplified structure enables very fast installation, greatly reducing labor and time costs.
• Q: Does this Non-Penetrating Solar Ballast Mounting System damage the roof?
  A: No drilling, no penetration, no expansion bolts — zero risk of roof leakage or structural damage.
• Q: Are you a direct manufacturer?
  A: Yes, Topfencesolar is a professional solar mounting manufacturer with our own factories and R&D team.
