Rail-less Solar Panel Roof Rack Mount

As the manufacturer and supplier in China, Rail-less Solar Panel Roof Rack Mount is the market trend, which can directly fix solar panels to the sloped roof without using rails.

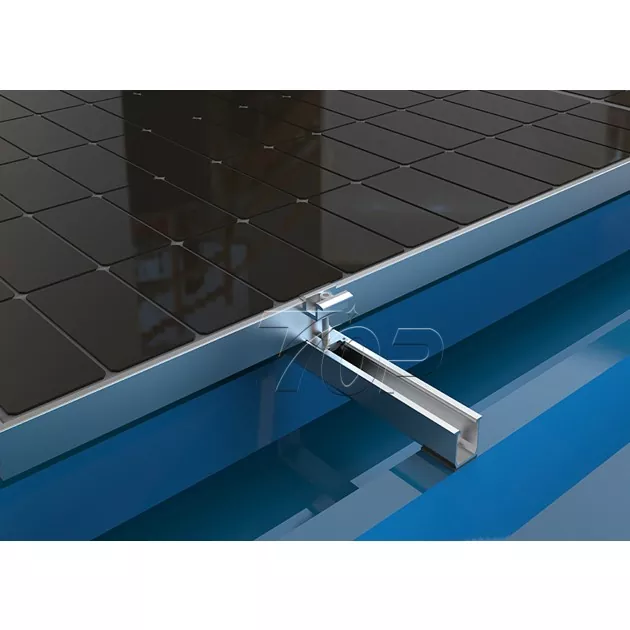

The Mini rail kits consists of a set of rail brackets, EPDM rubber and self tapping screws, it is the most economical choice for metal roof mounting as it saves on the material cost of the racking system. The solar panels can be placed in landscape or portrait position without affecting the overall system.
Brand Name:Topfencesolar
Product Material:Rails is Aluminum, Fasten accessories are SUS304
Product Function:Metal roof solar mounting
Service Life:≥25 years

▶ Product Name:Rail-less Solar Panel Roof Rack Mount

 Regular size: 120*26mm (reference)

 Installation Site: Metal tin roof

 Materials: Aluminum 6005-T5 rail profile & SS304 fasteners.

 Wind speed: 60m/s

 Snow Load: 1.4kn/㎡

Xiamen Topfencesolar Co.,ltd is specialized in Rail-less Solar Panel Roof Rack Mount for more than 10 years, The optimized solution provided by us is popular with competitive prices and excellent quality.

Rail-less Solar Panel Roof Rack MountRail-less Solar Panel Roof Rack Mount

ADVANTAGE

Rail-less Solar Panel Roof Rack Mount

1. The railless design is the most economical choice since it no need to use extra solar rails. You can fix solar panels on it directly.

2. The compact design ofRail-free solar system is light and cost-effective. It saves lots of transportation cost as it no need long piece rail.

3. The installationis flexible and simple, save labors cost as well.

4. This Rail-less Solar Panel Roof Rack Mount structure facilitates the rapid mounting of PV modules on almost all trapezoidal and sandwich roofs. they are easy to carry and together with EPDM pad to seal the screw against the metal sheet.

Rail-less Solar Panel Roof Rack Mount


FAQ

1. What is the length?

Normally the length of Rail-less solar racking is 100-400mm per piece, it depends on the wave distance of the roofs.  Any other lengths could be flexible customized

Rail-less Solar Panel Roof Rack Mount



2. What the mount kits are including?

The system contains four components:

Base mounting clip, Self-tapping screws, End clamp, Mid clamp


3. Do I need to order EPDM pad separately?

We have including EPDM pad for each Mini Rails, so you don’t need to purchase it separately. Feel free to contact us if you have any other specialized request.

Rail-less Solar Panel Roof Rack Mount
