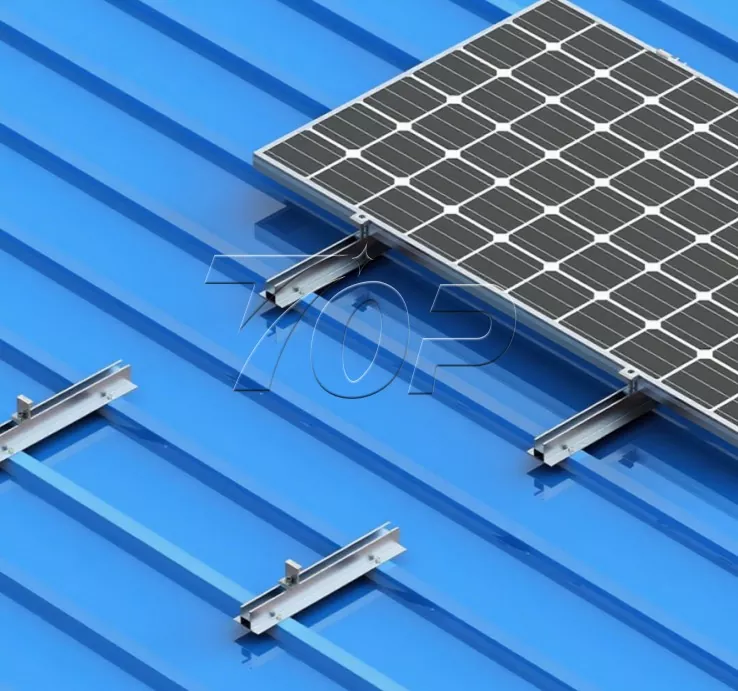

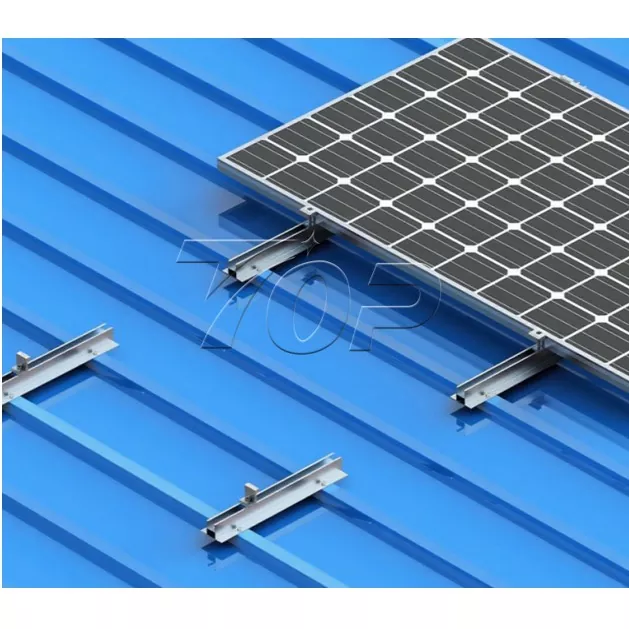

Aluminum Mini Rail Solar Mounting System

1.Solar Panels

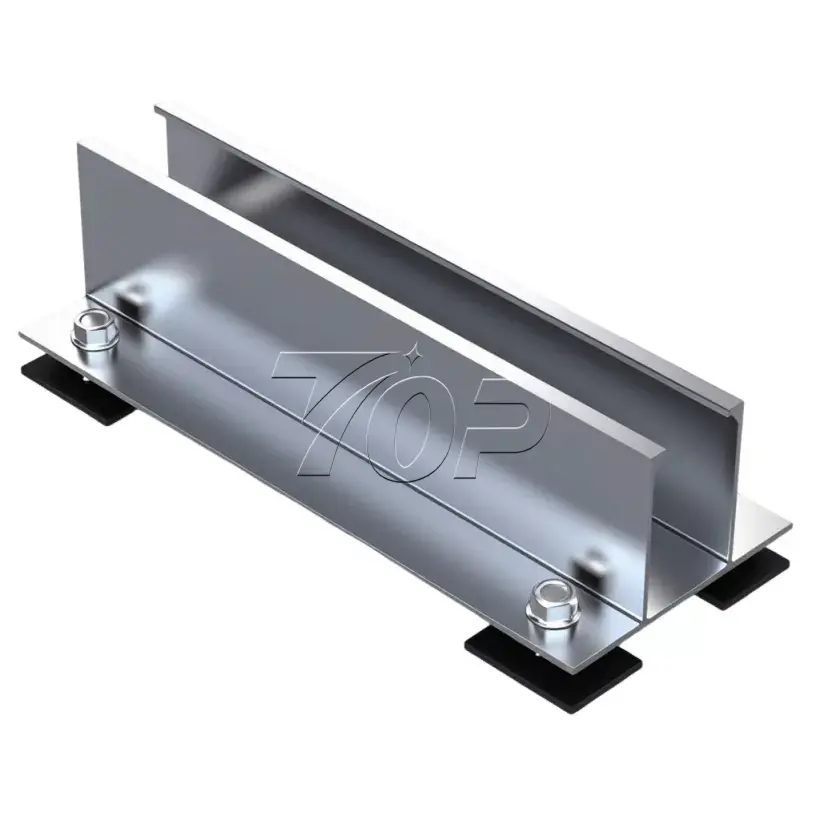

2.Aluminum Mini rails

3. Mid Clamp

4. End Clamp

5. Bolt

6.Self-Tapping Screw

7.Rubber Pad

8. Grounding Lug

9. Cable Clip

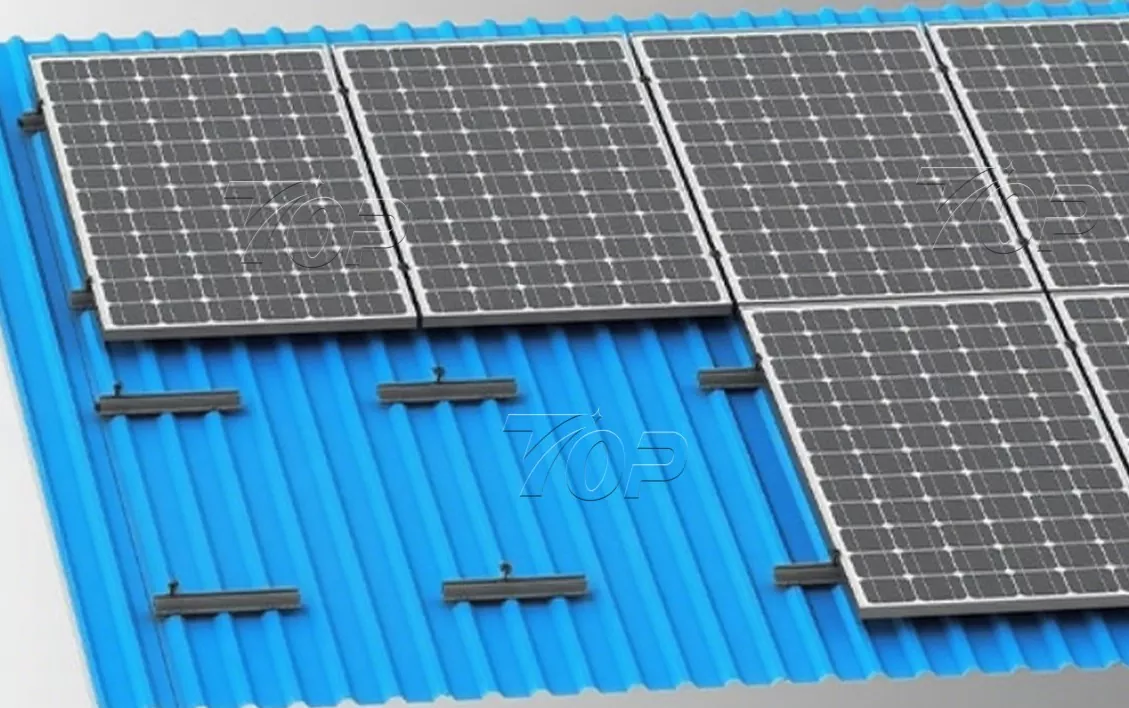

The layout of solar panel on the mini rail diagram indication show as below.

The solar panel width is 1134mm. Length could be 2278mm, Thickness of panel is 30mm, 35mm. (It also fits other dimensions of solar panels. ) The solar panel quantity array could be arranged based on your site roof size.

Parameters

This solution design specifically for metal roof solar panel installation. It can adapt to various of solar roof projects with different scales and layouts. The Aluminum Mini Rail Solar Mounting System could includes trapezoidal sheet roofs and corrugated roofs, etc. Regular specifications are 200mm length (support customizations), Topfencesolar Railless Mini Racking Solution for Metal roof benefits from lightweight and being easy to be carried and installed, effectively alleviating the extra load-bearing burden on the roof and reducing installation difficulty. The bimetal screw with Rubber pad takes effects of preventing water leaking throught roof when mount the rails on metal roof.

Features

1. The pre-assembled design, easy and high efficient installation.

2. Our this optimized Mini Rail for Solar mounting System could be adapted to metal roofs of residental house, commercial building roof, warehouse roof.

3. Aluminum 6005 - T5 material from Topfencesolar has sepcial high grade by from market, our system has high performance on light weight and strength.

4. It can withstand strong winds spead up to 60m/s and snow loads of 1.4KN/m², ensuring the stability and safety of solar panel structure.

Low cost, cheap structure, and also reducing the installation labor cost and installation time.
