Metal Roof Klip Lok Solar Mounting System
As the manufacturer and supplier in China, Xiamen Topfencesolar is leading R&D and manfacturing of Metal Roof Klip Lok Solar Mounting System for metal roof solar panel installation. The klip lock clamp will be the most proper solution applied on trapezoidal tin roofs. The rubbuer pad solve water proof. Large scare solar panel could layout on strength aluminum rails by clamps connection and securing.
Brand Name:Topfencesolar
Product material:Aluminum Al6005-T5
Product function:RoofTop solar panel mounting
Service life:≥25 years
Brand Name:Topfencesolar
Product material:Aluminum Al6005-T5
Product function:RoofTop solar panel mounting
Service life:≥25 years
Topfencesolar, a Chinese Metal Roof Klip Lok Solar Mounting System manufacturer and supplier. We maintain strict inspections from production to shipment, and the price is reasonable. Metal Roof Klip Lok Solar Mounting System desigend from Xiamen Topfencesolar has well wecomed be used in Asia, Europe and North US markets.
Topfencesolar’s Klip Lok clamp is the non-drill solution, keeping the integrity of the metal roof, no drill, no penetration. Rubber pad is extra waterproof effectiveness.
The pre-assembly clamp is the mount set of two seperate clamps block and bolts.
Aluminum Al6005-T5, thickness ＞5mm
Bolts/Screws: SUS304 stainless steel
|
Brand Name |
Topfencesolar |
|
Surface |
Anodized ≥15μm |
|
Product Name: |
Metal Roof Klip Lok Solar Mounting System |
|
Material |
Main:AL6005-T5/ Fasten accessroies:SUS304 |
|
Application |
Stand seam metal roofs |
|
Color |
Silver color |
|
Thickness |
3.0, 3.5 and 4.0mm, offer customization. |
|
Length |
The customization is available |
|
Duration |
≥25 Years |
|
Warranty |
10 Years |
Two Applications

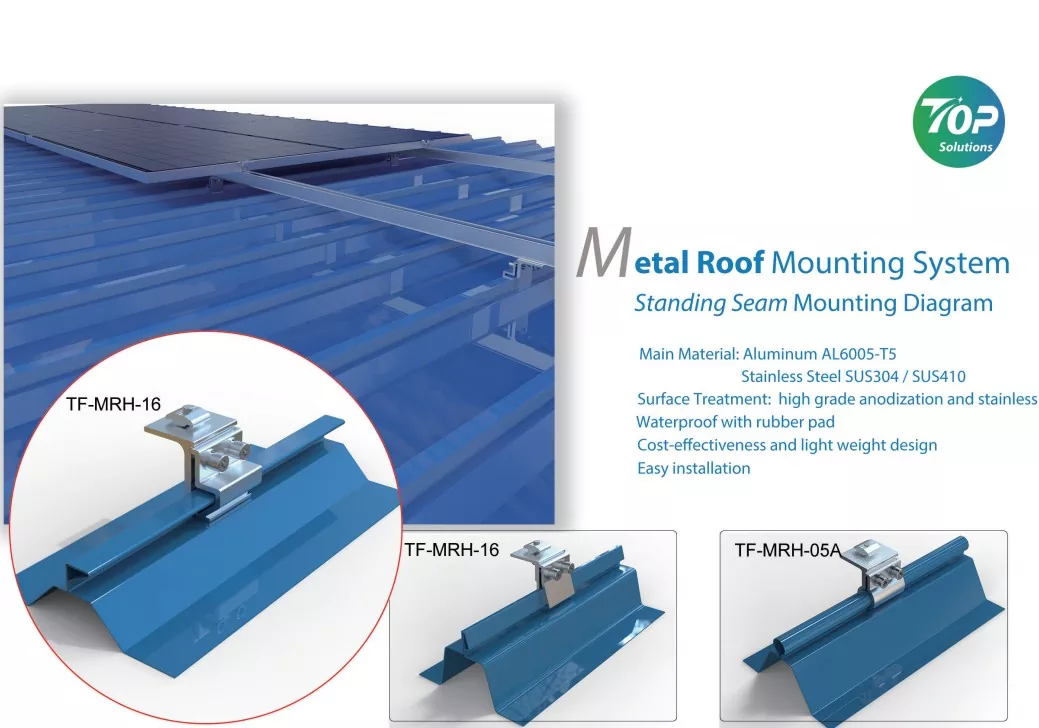

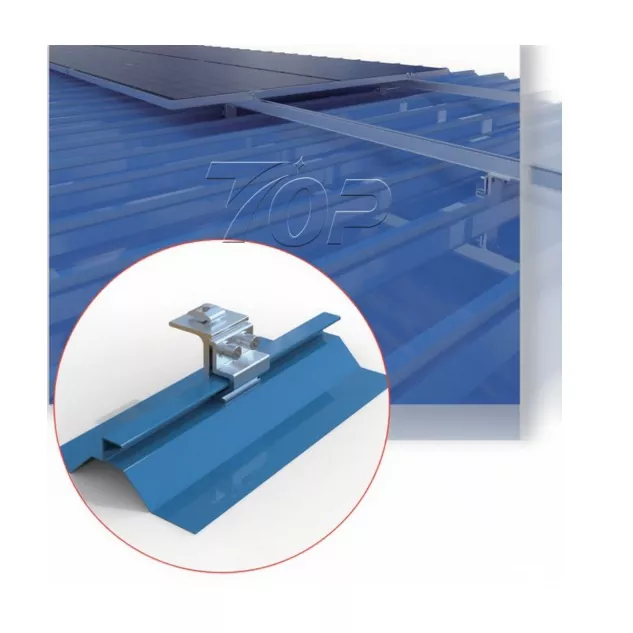

1st: Select the Klip lok related clamps mounts on the metal roof.
2nd: Mount the Aluminum rails on with L-feet to fasten the rail firmly.

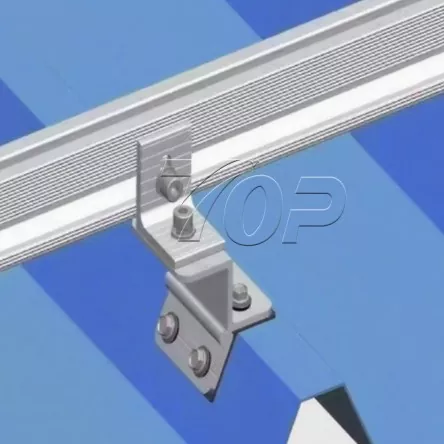

L-feet is fastened on the cliplock.
Below is the real mounting pictures.

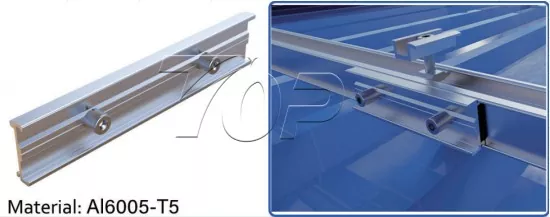

3rd: Connect the rails with rail connectors, to connect 4200mm/4500mm length pieces of rails to be a long rails.

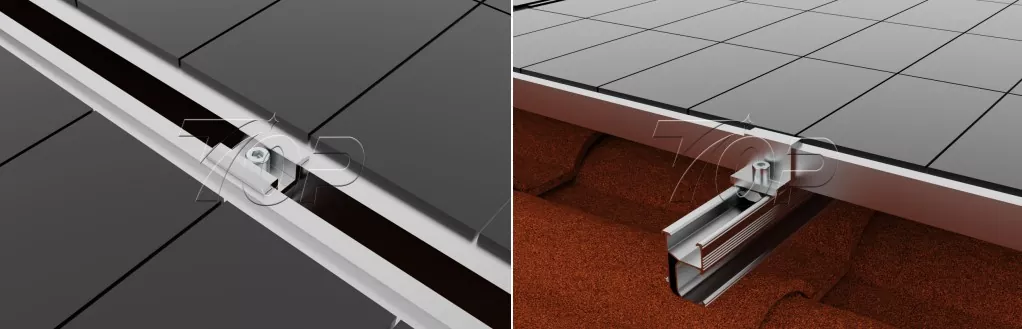

4th: Mounting solar panelson the rails, connected by Mid-Clamps. End with End-clamps.
Features & Advantages:
1. Topfencesolar Klip-Lok Metal Roof Solar Mount Brackets are suitable for both horizontal and vertical solar panels arrays.
2. Made of high-grade aluminum Al6005-T5, SUS304 stainless steel fasteners for enhanced durability.
3. Compatible with various types of standing seam metal roofs.
4. Pre-assembled, simple and cost-effective installation.
5. The clamps are only attached to the raised seams, so there is no damage to the roof surface, no water leaking risk.
6. Designed to withstand wind loads up to 60 m/s.
7. Withstands snow loads up to 1.6 KN/m2.
FAQ:
Q1: Is it the Klip-Lok Metal Roof Racking System structure too heavy to be overweight on the roof?
A: No, it won’t be. The aluminum material is lightweight but high strength material could withstanding solar panels firmly.
Q2: Does the installation be easy?
A: Yes it is easy to do installation with clamps, connectors. Fast and easily.
Hot Tags: Metal Roof Klip Lok Solar Mounting System
