Triangular Solar Mounting System for Metal Roofs

Triangular Solar Mounting System for Metal Roofs offered by Topfencesolar are considering of Elevated Mounting being good for thermal regulation and higher solar power generation rate effectiveness.

Structure designing

Application sites:

Residential roofs

Commercial Buildings

Factory roofs

Agricultrual solar shelters

Roof Types:

Color Steel Tile, Corrugated Metal Roof, etc.

Flat roof, tile roofs with other mounting systems.

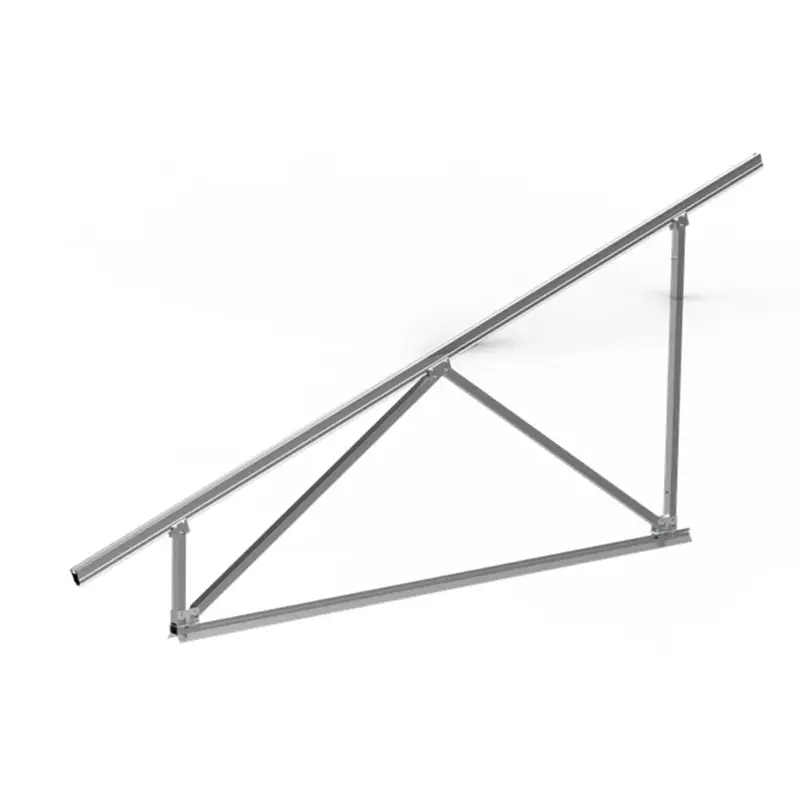

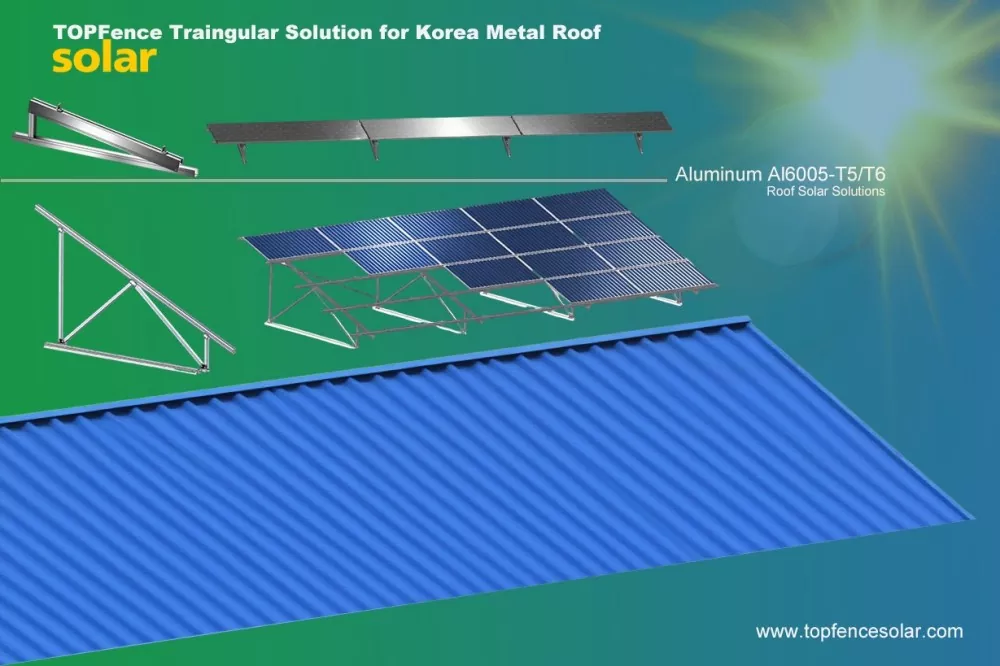

Structure mounting of one set.

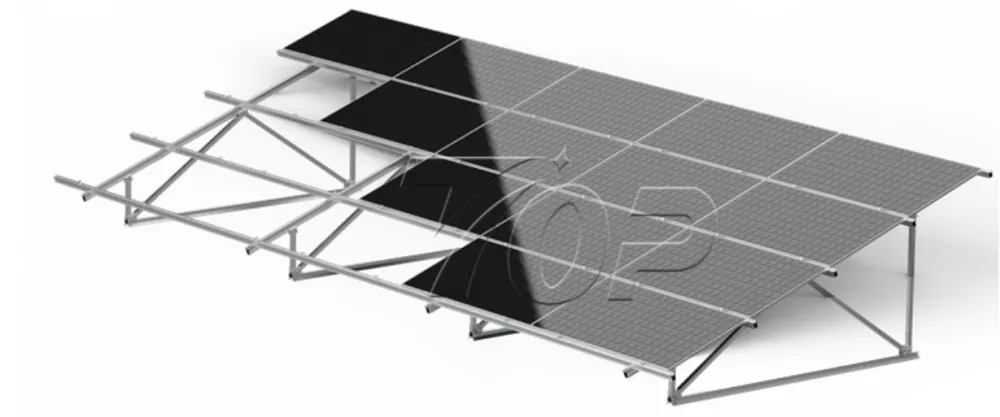

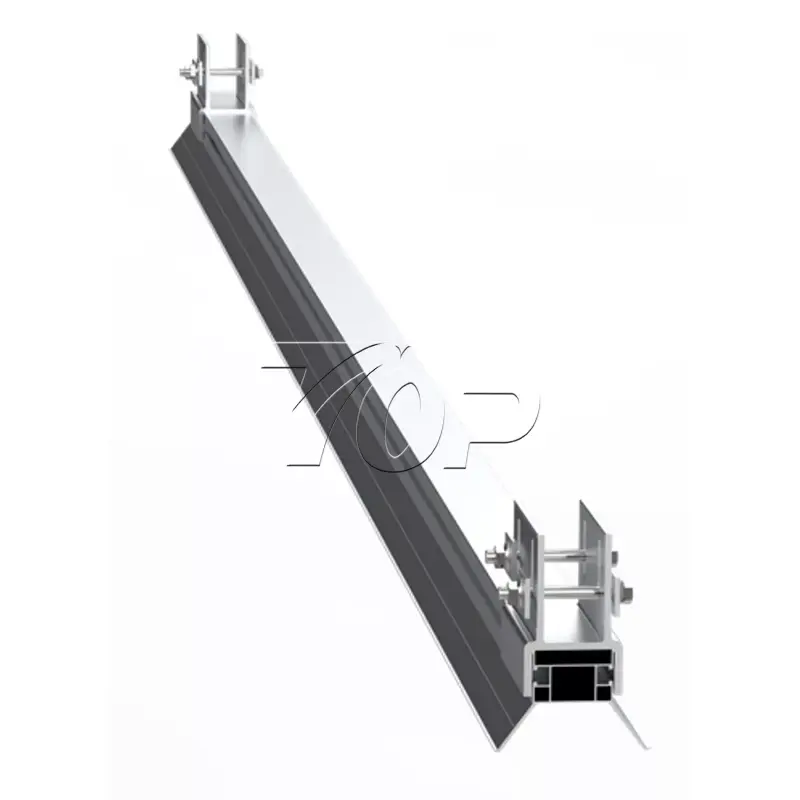

This structure base could be more perfect mounting on the metal roof, below special design base for mounting.

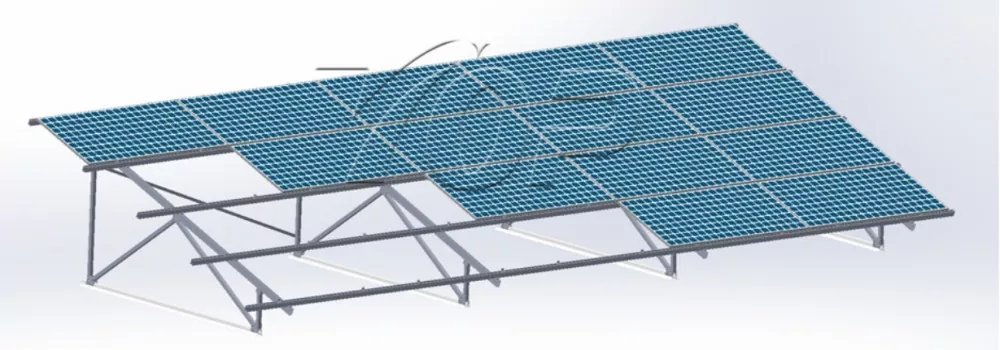

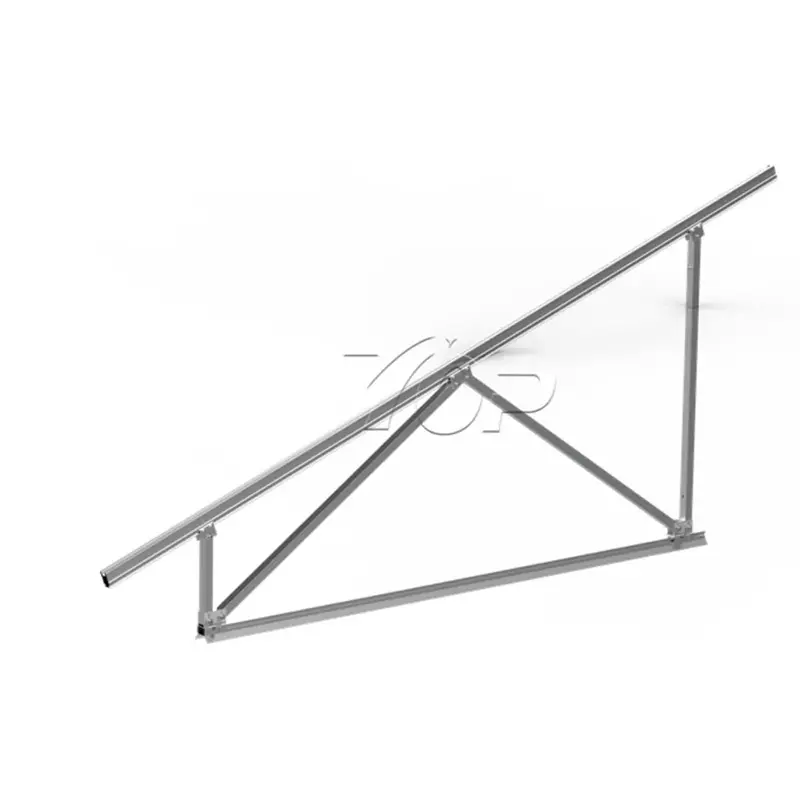

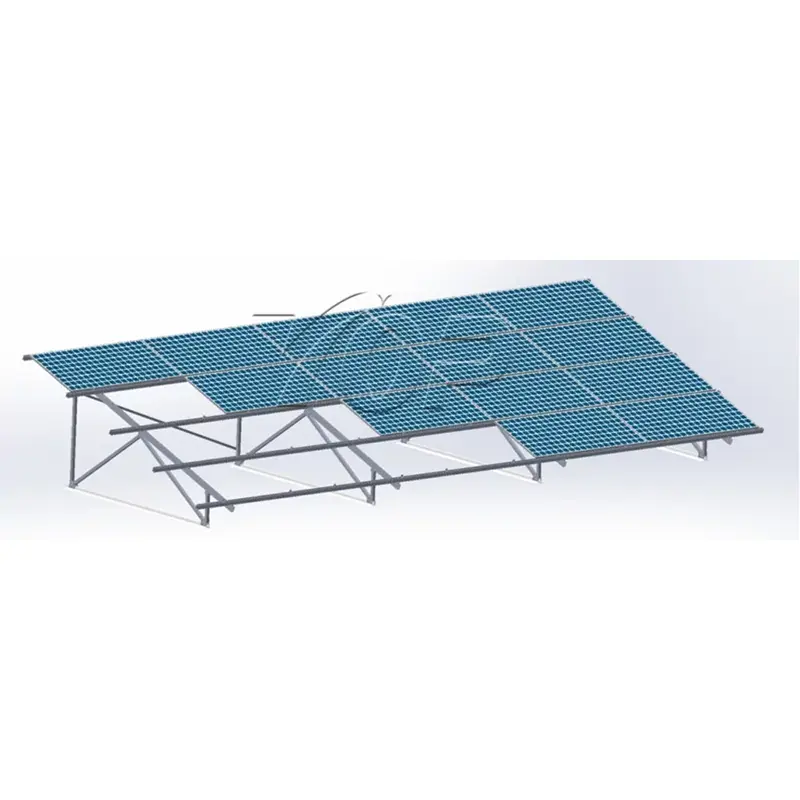

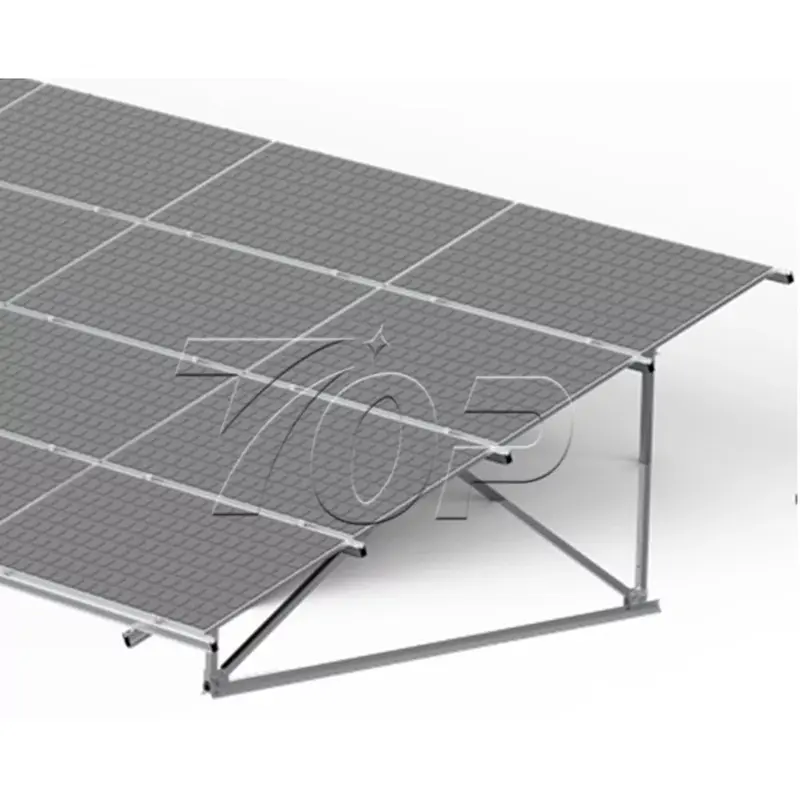

Complete Triangular Solar Mounting System for Metal Roofs:

Structure Material and parameter:

Lightweight Anodized Aluminum, Code: Al6005-T5/T6

Color: Silver

Anodization: ≥10μm

Wind loading: Max. up to 60m/s

Snow loading: Max. up to 1.4KN/M

Features of this application:

-No Drilling, Non Penetrating on the roofs

-Modular design, pre-assemble shipment, quick Installation and reducing installation cost and time.

-Typhoon and wind resistant performance is very important under the adverse weather conditions

- Compatible with Korean Solar Panels

- Anti-Corrosion Coating: Galvanized Steel (for ground), Anodized Aluminum, etc.

Why using Triangular Solar Mounting System for Metal Roofs?

Background: The metal roof in Korea area will be extremely hot in summer (some areas might reach to above 60°C),

Solar panel knowledge:

And for every 1°C increasing of the temperature from the solar panel modules,

the efficiency drops by approximately 0.4% to 0.5%.

Topfencesolar Solution:

The elevated structure keeps an air circulation layer under solar panels.

It is well utilizing natural convection to low down the temperature of those panels.

According to the engineers’ study, Topfencesolar produced elevated structure will increase the power generation by 5% to 10%.

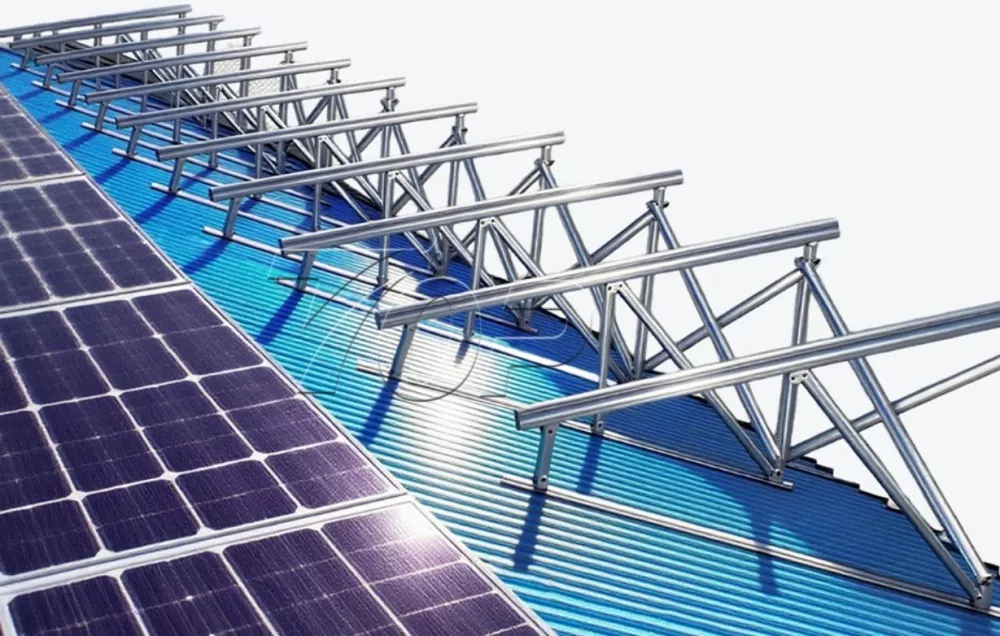

More solar tripod metal roof mounting system designs on slope roofs as below.
