U-Style Mini Rail Solar Mounting System

In China, Topfencesolar factory's U-Style Mini Rail Solar Mounting System has abandoned the traditional heavy main rails and instead adopted a high-strength aluminium U-shaped small rail. So it is suitable for long-term outdoor use. The system comes with special fixing clamps. No drilling into the roof is required during installation. The clamps securely lock onto IBR roof ridges. This method does not damage the roof structure. All components use a standardized design.

The structure is very simple and the weight is light. It makes on-site installation easier. The entire solution improves material efficiency and shortens construction time.So it is suitable for commercial, industrial roof projects, residential rooftop solar projects.

Technical parameters

Features & Benefits

1.This U-Style Mini Rail Solar Mounting System uses AL6005-T5 aluminum alloy, with specialized performance of high strength and low weight. It is significantly reducing the additional load on the roof structure. This ensures strong corrosion resistance at open area. And making it suitable for long term use in harsh environments.

2.The rail-less design and pre-punched holes eliminate the measuring, cutting at sites. No need to assemble long rails. The modular installation kit makes the process simple and straight. In additional, it is greatly reducing labor hours and directly lowering installation and labor costs.

3.U-Style Mini Rail System for Easy Railless Installation provides stable three-point support for solar panel frames,and the dedicated clamps tightly lock with the roof corrugation, forming a secure mechanical connection with strong wind resistance. The overall system stability far exceeds that of traditional clamping methods.

4.By eliminating long main rails and numerous connectors, the system significantly reduces raw material usage. The compact mini rails and standardized packaging can save storage space and transportation costs, lowering per-watt logistics and material expenses, delivering direct economic benefits to customers.

Product Installation

Application Case

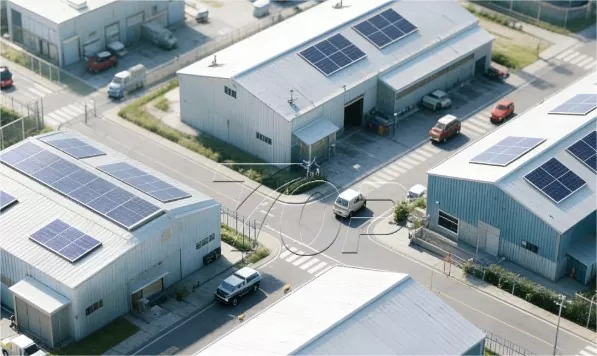

Topfencesolar, as a professional manufacturer, has designed high-strength U-shaped tracks for the complex roof environment and load-bearing restrictions of industrial buildings. Compared to traditional designs, these tracks reduce weight by approximately 30%, thereby lowering electricity costs. We supply low-cost, high-efficiency, and green energy upgrading photovoltaic modules. If you have any drawings or require professional customization, please feel free to send them to us.

Product FAQ:

Will this mounting system damage my metal roof?

No, it will not. The system uses specialized clamps that grip directly onto the peaks of your IBR roof. No drilling, no damage to the waterproofing layer or the roof structure. This system is completely eliminating any risk of leaks.

How is its wind resistance? Is it safe?

The U-Style Mini Rail Solar Mounting System offers a stable three-point support, ensuring even distribution of the load. The special clamps are tightly integrated with the roof corrugations to form a mechanical lock, and its wind resistance capability exceeds that of traditional clamping methods.

What is the installation process for this system? Are special tools needed?

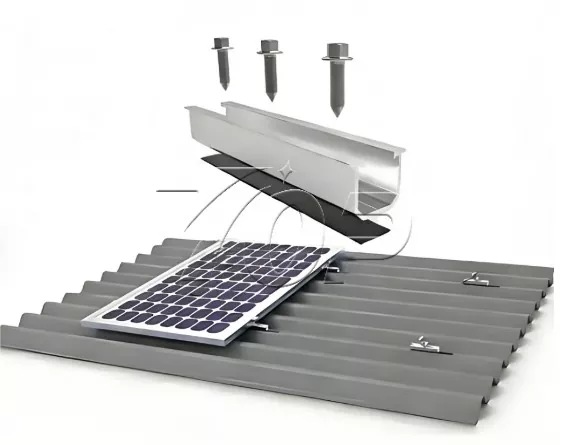

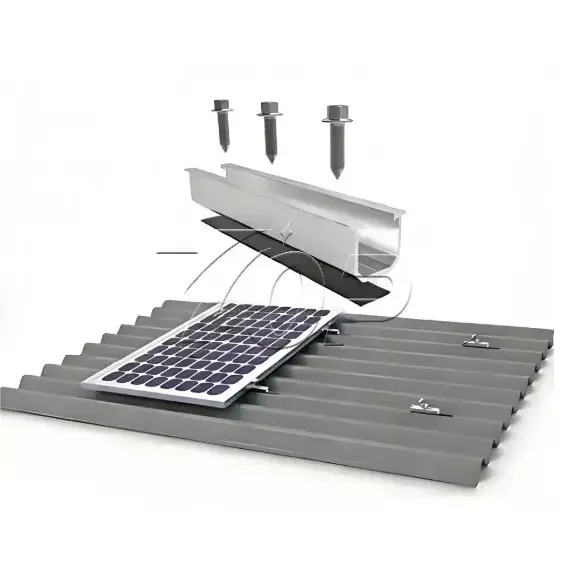

The process is very simple. First is layout and marking. Second it is placing the U style mini rails. Third is securing the rails to the roof peaks with clamps. Fourth is securing the solar panels.

How does the "railless" design impact the system's torsional stiffness and long-term performance?

The distributed support of multiple U-rails provides excellent torsional stability. The direct, short-span connection between the panel frame and the roof structure reduces leverage effects and dynamic stress, contributing to superior long-term fatigue resistance compared to long-span rail systems.
