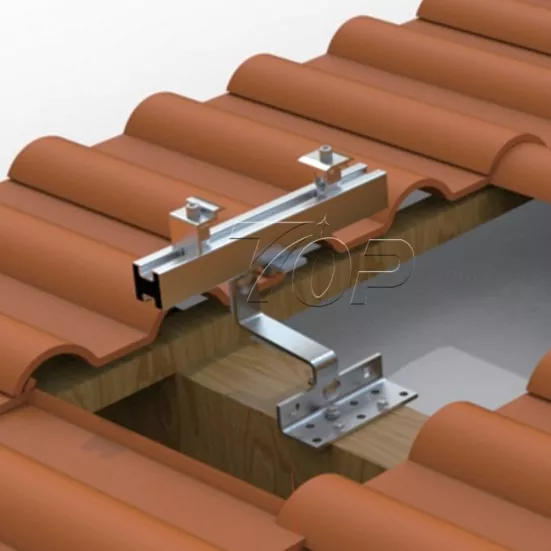

SUS304 Tile Roof Hook Mounting System

Product Overview

Quality SUS304 Tile Roof Hook Mounting System is a premium, all-in-one solar support solution independently researched and developed by Topfencesolar, dedicated to pitched tile rooftop solar installations. Taking high-grade SUS304 stainless steel as the core material, this integrated system combines hooks, rails, clamps and supporting accessories into a cohesive, high-performance whole—realizing non-damaging installation, exceptional durability and efficient construction, and becoming a reliable partner for global residential, commercial and industrial solar projects.

Integrated System Design & Core Highlights

• Whole-system integration design, integrating SUS304 stainless steel hooks, Al6005-T5 aluminum rails, mid-clamps, end-clamps, rubber flashing and stainless steel fasteners—no need for separate part sourcing, avoiding compatibility issues between components.
• Customized hook curvature design, perfectly fitting the shape of various tile roofs, achieving 100% non-contact with roof tiles, effectively protecting the original roof structure and waterproof layer, and eliminating the risk of water leakage.
• Optimized system layout, ensuring uniform force distribution of the entire mounting system, enhancing structural stability, and avoiding local stress concentration that may cause component damage or roof deformation.
• Flexible adaptation to different tile roof types and sizes, supporting both vertical and landscape solar panel orientations, maximizing the utilization of roof space and improving solar energy absorption efficiency.
• Low-profile system appearance, blending naturally with tile roof aesthetics, without damaging the overall beauty of the building, especially suitable for residential and commercial buildings with high aesthetic requirements.
• Non-penetrating installation mode, no roof drilling or cutting required, greatly reducing the difficulty of installation and the risk of roof damage, and shortening the project construction cycle.
• Pre-assembled components before shipment, eliminating on-site welding and specialized processing, reducing labor intensity and installation costs, and ensuring the consistency of installation quality.

SUS304 Stainless Steel: Material Foundation of Durability

• All core load-bearing components (hooks, hook arms, connecting pieces) are made of high-purity SUS304 stainless steel, which has excellent mechanical properties, high tensile strength and impact resistance, and can stably support solar panel arrays of various specifications.
• SUS304 stainless steel hook arms adopt a 5mm thick design, with a length ranging from 120-150mm, ensuring sufficient load-bearing capacity and structural rigidity, and no deformation or damage even under long-term heavy load and extreme weather conditions.
• SUS304 stainless steel has superior corrosion resistance and rust prevention performance, which can effectively resist the erosion of humid air, coastal salt spray, rainwater and other corrosive media, and adapt to complex climate environments around the world.
• Compared with ordinary carbon steel, SUS304 stainless steel has better anti-oxidation and anti-UV performance, avoiding component aging and performance degradation caused by long-term outdoor exposure, and extending the service life of the entire system.
• All stainless steel fasteners are made of the same SUS304 material, ensuring the consistency of material performance, avoiding galvanic corrosion between different materials, and further enhancing the overall durability of the system.
• Strict material selection and testing process, all SUS304 stainless steel raw materials pass professional quality inspection, ensuring that the material meets international standards and lays a solid foundation for the system's long-term stable operation.
• Coordinated with Al6005-T5 aluminum rails with ≥15μm anodized surface treatment, the system forms a double protection against corrosion, making the service life of the entire system reach more than 20 years.

Structural Safety & Extreme Weather Resistance

• The SUS304 Tile Roof Hook Mounting System is designed and tested in accordance with international standards, with strong wind load resistance, able to withstand wind speeds from 2m/s to 70m/s, ensuring stable operation even in typhoon, strong wind and other extreme weather conditions.
• Optimized hook and rail connection structure, using high-strength fasteners to fix, ensuring tight connection, no loosening, and effectively preventing solar panel displacement or system damage caused by wind vibration.
• Precision welding technology is adopted for SUS304 stainless steel hooks, with evenly dense weld seams, smooth surface, no undercuts, cracks, blowholes and other defects, ensuring the load-bearing capacity and structural integrity of the hooks.
• All components are subjected to professional deburring and polishing treatment, with no sharp edges or corners, which not only ensures the safety of installation personnel, but also avoids scratching roof tiles and solar panels.
• Unidentified tolerances strictly comply with M grade (GB/T 1804-2000), ensuring the precision of each component, perfect fitting between components, and further improving the overall stability of the system.
• The system has passed SGS, CE, TUV international certification, and has gone through strict strength, safety and durability tests, fully meeting the quality and safety requirements of global solar projects.
• Lightweight and high-strength structural design, while ensuring the load-bearing capacity, effectively reducing the overall load on the roof, protecting the building's structural safety, and adapting to various types of tile roof structures.

Construction Efficiency & User-Friendly Operation

• Simple and easy-to-operate installation process, divided into four steps: fix the SUS304 stainless steel hook to the roof wooden beam with screws, connect the aluminum rails with dedicated connectors, adjust the position of the rails, and fix the solar panels with mid-clamps and end-clamps—no specialized tools or professional skills required.
• Pre-assembled components, clear installation instructions and structural drawings are provided, which can be installed by a small team, greatly reducing labor costs and shortening the project construction cycle.
• The hook height can be flexibly adjusted (compatible with TF-AHK-H12 dual-height adjustable model), adapting to different tile thicknesses and roof structures, and improving the adaptability of on-site installation.
• Rubber flashing is pre-installed on the hooks, which can effectively seal the connection between the hooks and the roof, further enhancing the waterproof performance and reducing the risk of water leakage.
• Black color option is available, which is in line with the aesthetic preferences of the European market, can better integrate with various tile roof colors, and improve the overall aesthetic effect of the building.
• Easy maintenance and operation, the high-quality SUS304 stainless steel and anodized aluminum components are not easy to damage, requiring minimal regular maintenance, reducing the long-term operation and maintenance costs of the project.
• Compatible with various standard solar panel sizes, the number of panels per row and column can be flexibly adjusted according to the roof size and project power requirements, with strong flexibility and practicality.

Global Market Adaptability & Application Scenarios

• Widely applicable to pitched tile roofs of residential buildings, commercial facilities, industrial workshops, villas, schools and other buildings, covering global markets such as Europe (Germany, Poland, Austria, Spain), Japan, Indonesia, Thailand and Southeast Asia.
• Perfect for solar retrofitting projects, especially for buildings where roof damage is prohibited, and it can realize solar installation without changing the original roof structure.
• Suitable for small-scale residential rooftop solar systems (single-family homes), medium-sized commercial solar power stations (office buildings, shopping malls) and large-scale industrial solar projects (factories, warehouses), with strong versatility.
• Adaptable to various tile roof types (such as flat tiles, curved tiles, Roman tiles), and can be customized according to the tile specifications and roof conditions of different regions to meet the needs of local markets.
• Highly recognized in markets with strict requirements for product quality and durability, such as the European Union and Japan, and has accumulated a large number of successful project cases.
• Compatible with both grid-connected and off-grid solar systems, providing flexible support for various solar project types, and helping customers achieve energy conservation and emission reduction goals.
• It is an ideal choice for solar installers, project owners and brand operators, balancing performance, cost and installation efficiency, and creating greater value for customers.

Brand Strength & Full-Cycle Service Guarantee

• Topfencesolar, founded in 2008, has more than 20 years of experience in R&D, production and project implementation of solar mounting systems, and is a leading direct manufacturer in the industry, with strong technical strength and production capacity.
• Equipped with a complete set of advanced production equipment, including laser cutting machines, precision welding equipment, cold roll forming machines, automatic surface treatment lines, etc., ensuring the precision and quality consistency of each component of the system.
• Strict quality control system runs through the entire production process, from raw material inspection, production process monitoring, finished product testing to packaging and delivery, ensuring that every SUS304 Tile Roof Hook Mounting System meets high standards.
• Professional R&D and engineering team, committed to the research and improvement of tile roof mounting systems, can provide customized design solutions according to the project's geographic location, roof type, power requirements and other factors, including layout planning, wind load analysis and technical guidance.
• Perfect one-stop service system, providing pre-sales consultation (roof assessment, product selection), in-sales production supervision, logistics and transportation (global delivery), and after-sales maintenance (technical support, troubleshooting), solving all problems for customers in the whole project cycle.
• Rich global project experience, including Japan's 2.8MW ground mounting system, Tokyo flat roof mounting system, European residential tile roof solar projects, etc., verifying the reliability and performance of the products.
• Committed to providing cost-effective, high-quality solar mounting solutions, adhering to the concept of customer-centric, and winning the trust and praise of customers around the world.

Key Technical Parameters

• Brand: Topfencesolar
• Product: SUS304 Tile Roof Hook Mounting System
• Main Materials: SUS304 Stainless Steel (hooks, fasteners), Al6005-T5 Aluminum (rails)
• Hook Thickness: 5mm
• Hook Length: 120-150mm
• Rail Surface Treatment: Anodized ≥15μm
• Wind Load Resistance: 2m/s - 70m/s
• Service Life: ≥20 years
• Certifications: SGS, CE, TUV
• Installation Type: Non-damage, non-penetrating
• Roof Type: Pitched tile roof
• Panel Orientation: Vertical & Landscape
• Model Compatibility: TF-AHK-H12 (dual-height adjustable)
• Color Option: Black (for European market) & Customizable

Customer Common Questions & Answers

• Q: What is the core material of this mounting system?
  A: The core components (hooks, fasteners) are made of high-grade SUS304 stainless steel, which ensures excellent durability, corrosion resistance and load-bearing capacity.
• Q: What are the advantages of SUS304 Tile Roof Hook Mounting System compared with ordinary mounting systems?
  A: It adopts integrated design, SUS304 stainless steel material, non-damaging installation, has longer service life, higher stability and better corrosion resistance, and is more suitable for long-term outdoor use.
• Q: Will this system damage my tile roof?
  A: No, the system adopts non-penetrating and non-contact design, no roof drilling or pressing on tiles, which can fully protect the original roof structure and waterproof layer, and avoid water leakage.
• Q: Is the installation process complicated?
  A: No, all components are pre-assembled before shipment, and the installation steps are simple, requiring no specialized tools or professional skills, and can be completed by a small team quickly.
• Q: Can the system adapt to different tile roof types?
  A: Yes, the hook design is customized according to the shape of different tile roofs, and the height can be adjusted, which can adapt to various tile roof types and thicknesses in global markets.
• Q: What is the service life of this system?
  A: Thanks to the high-quality SUS304 stainless steel and anodized aluminum components, the service life of the system can reach more than 20 years, reducing long-term maintenance costs.
• Q: Does SUS304 Tile Roof Hook Mounting System have color options?
  A: Yes, we provide a black color option that is popular in the European market, and we can also provide customized colors according to customer requirements.
• Q: Is Topfencesolar a direct manufacturer, and do you provide technical support?
  A: Yes, we are a direct manufacturer with independent R&D and production capabilities. Our professional engineering team provides full technical support, including customized design, installation guidance and after-sales maintenance.
