Solar Ballast Flat Roof Mounting System

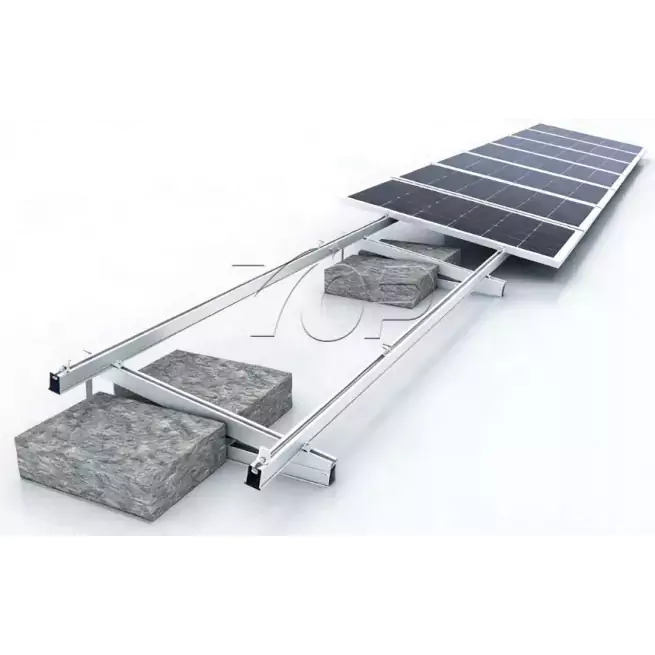

Looking for a robust and reliable way to install solar panels on your commercial or residential flat roof? A Solar Ballast Flat Roof Mounting System offers the ideal solution. Unlike traditional penetrating mounts, these systems are non-invasive. They utilize strategically placed ballast weights—concrete blocks or specially designed trays—to hold the entire array securely in place without the need for drilling through your valuable roofing membrane. This method preserves the roof's integrity, prevents leaks, and simplifies the installation and potential future removal process. For environments where waterproofing is paramount, consider our specialized Waterproof Ballast Flat Roof Mounting System. For a universal, non-penetrating solution, our Non-Penetrating Solar Ballast Mount for Flat Roof is engineered for superior performance. Whether your project is on a concrete surface or a standard flat roof, we have tailored systems: the Ballast Flat Roof Mounting System for Concrete Roof and the versatile Ballast Flat Roof Mounting System for Flat Roof, designed to meet diverse structural requirements and wind load specifications.
The Solar Ballast Flat Roof Mounting System is engineered for durability, ease of assembly, and maximum energy yield. Constructed from high-grade, corrosion-resistant aluminum alloy, the framework is lightweight yet incredibly strong, capable of withstanding decades of harsh weather conditions. The system's modular design allows for rapid, tool-free assembly on-site, significantly reducing labor time and costs. Key components are pre-assembled, and the adjustable tilt legs enable precise panel angling between 5 to 15 degrees to optimize solar exposure based on your geographic location. The ballast trays are designed for efficient weight distribution, minimizing the point load on the roof while providing the necessary resistance against uplift forces from high winds. Each Solar Ballast Flat Roof Mounting System kit arrives with comprehensive installation instructions and all necessary hardware, ensuring a smooth and secure deployment for your solar investment.
Detailed Product Specifications:
- Material: Premium 6005-T5 aluminum alloy with anodic oxidation finish.
- Corrosion Resistance: Excellent resistance to salt spray and UV degradation.
- Wind Load Rating: Certified to withstand winds up to 140 mph (subject to proper ballasting).
- Roof Compatibility: Suitable for built-up roofing (BUR), EPDM, TPO, PVC, and concrete surfaces.
- Installation: Non-penetrating, ballast-based. No roof drills or sealants required.
- Weight per System: Approximately 4.5 lbs/ft² (22 kg/m²) including ballast.
| System Model | Panel Compatibility | Tilt Angle Range | Ballast Type | Maximum Array Size |
|---|---|---|---|---|
| SB-FRM-01 | Up to 72-cell modules | 5° - 10° | Pre-cast Concrete Blocks | 20 panels in portrait |
| SB-FRM-02 | Up to 78-cell modules | 10° - 15° | Integrated Ballast Trays | 30 panels in landscape |
| SB-FRM-03 (Waterproof) | 60-cell & 72-cell modules | 5° - 12° Fixed | Sealed Ballast Containers | Custom configurations |
Typical Ballast Requirements (PSF):
| Wind Speed (mph) | 5° Tilt | 10° Tilt | 15° Tilt |
|---|---|---|---|
| 90 | 3.8 PSF | 4.5 PSF | 5.2 PSF |
| 110 | 5.1 PSF | 6.0 PSF | 7.1 PSF |
| 130 | 6.8 PSF | 8.0 PSF | 9.5 PSF |
Related Products
Hot Products
Ballast Flat Roof Solar Mounting System
As the professional manufacturer, The Ballast Flat Roof Solar Mounting System from Topfencesolar, designed by considering with the high wind speed and heavy snow while complying your building regulations.
Topfencesolar Engieneer team are working out the ideal ballast system based on your roof structure, with the precisely structure loading calculating. We offer strengthen ballast structure simulating with wind load, snow load calculations and dead load as well to offer a complete safety solution for your flat roof.
Brand Name:Topfencesolar
Product material:Aluminum
Product function:Ballast support system
Service life:≥25 years
Non-Penetrating Solar Ballast Mount for Flat Roof
Stop risking your roof's warranty with unnecessary drill holes.At Topfencesolar, we have designed a suitable Non-Penetrating Solar Ballast Mount for Flat Roof foundation fixation device. We offer comprehensive customization services. This is an ultimate solution entirely based on the "gravity principle".
Galvanized Steel Solar Cable Tray Systems

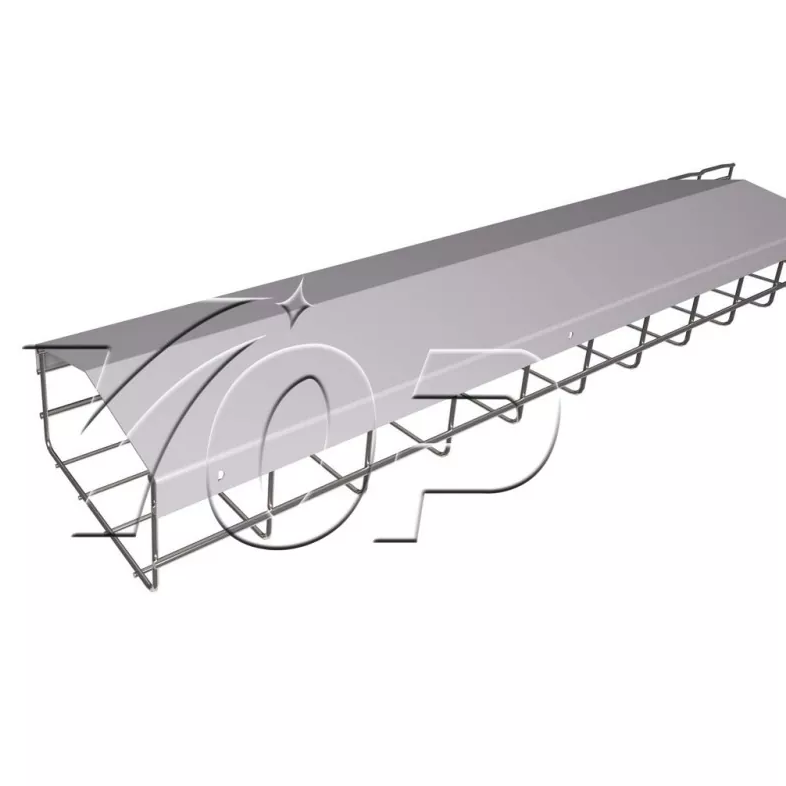

Galvanized Steel Solar Cable Tray Systems manufactured by Topfencesolar well solve the solar DC and AC cable management. Functioning of cable managing and walk way for solar mounting, operating and maintaining. The galvanized steel coating with Zinc by minimum 60 μm thickness meeting international and regional construction regulars all over the world. Brand:Topfencesolar Product Material:Galvanized Zinc Steel Product Foundation:AC, DC solar cable management Length:2 meters Length * 100mm Hight*1mm Thickness
Solar Panel Mounting Rail Splice
In China,Solar Panel Mounting Rail Splice from Topfencesolar Energy is an important component of PV mounting systems. It is used to connect two rail sections end to end，creating a single and strong support structure. This splice is usually made from AL6005-T5 with SUS304 bolts. Because it is strong, it can keeps the structure stable. It also can moves force along the rail and will keeps everything in line. It does this even when there is wind, snow, or other stress.
Brand：Topfencesolar
Product Material：Aluminum Alloy (AL6005-T5)
Installation Site：Rails connection
Service Life：Over 25 years
Bifacial Agri Panel Vertical Solar Bracket System

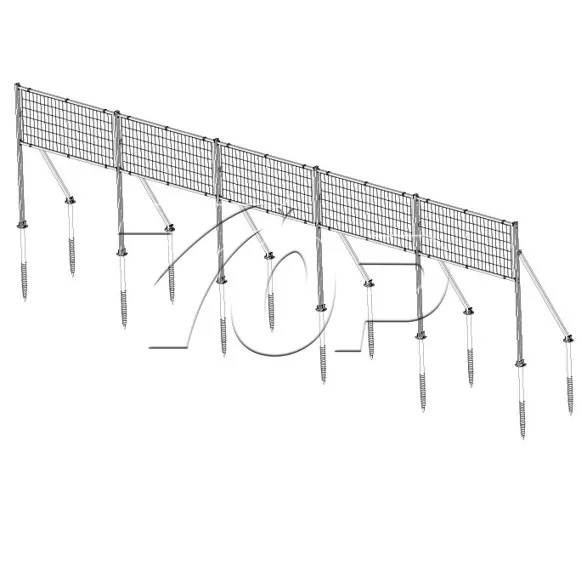

Topfencesolar's quality Bifacial Agri Panel Vertical Solar Bracket System enables dual use of land combining solar mounting systems with agriculture. The vertical mounting design optimizes space, allowing bifacial panels to capture sunlight on both sides while leaving plenty of space for crops or livestock below.Engineered for durability, the system features high-strength, corrosion-resistant materials to withstand harsh outdoor conditions.
Brand Name:Topfencesolar
Compliance:SGS Tested & Approved
Product Material:Aluminum/Carbon steel
Product Function:Farm ground mounting
Service Life:≥25 years
Solar Earth Clips
As the professional China manufacturer and supplier, The Solar Earth Clips designed and produced from Topfencesolar have series of sizes for options to meet different solar panel mounting sites using. Especially for solar power earthing connection applications. It is made in China with high-quality stainless steel materials, excellent weather resistance and corrosion resistance functions, could work stably under a variety of harsh environments. Our unique structural design supports easy and fast installation, effectively saving installation time and workers cost.
Brand Name:Topfencesolar
Product Material:SUS304
Product Function:Solar power mounting system
Service Life:≥25 years
