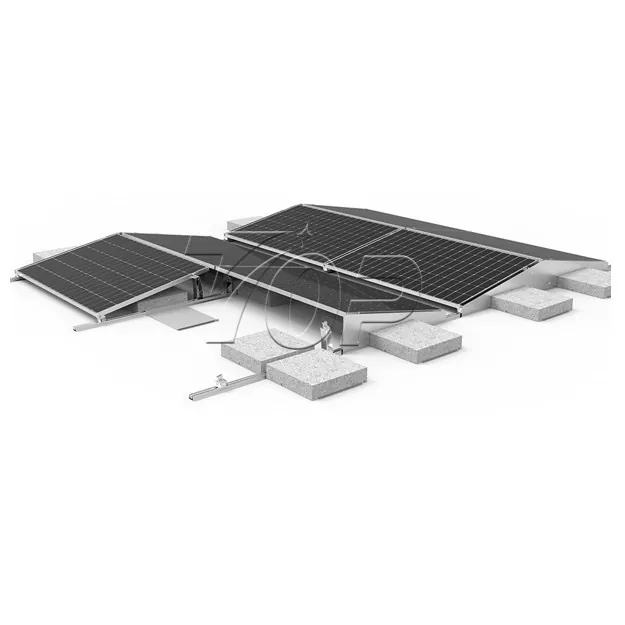

Flat Roof Solar Ballast Mounting System

Product Introduction

China Flat Roof Solar Ballast Mounting System is an integrated, roof-friendly solar mounting solution independently developed by Topfencesolar, specifically tailored for flat rooftop solar installations. This complete system relies on gravity ballast fixation instead of roof penetration, integrating high-strength structural components, scientific layout design and long-lasting durability to deliver a reliable, cost-effective solution for global commercial, industrial and residential solar projects.

System Design & Core Advantages

• Integrated system design covers all links from component matching to layout planning, ensuring overall stability and installation efficiency.
• Exclusively engineered for flat roofs, with a low-profile structure that optimizes space utilization and reduces wind resistance.
• Adopts non-penetrating ballast fixation, using concrete slabs or ballast trays to secure the system, avoiding any roof drilling or structural damage.
• Reasonable component layout ensures uniform force distribution, enhancing the system’s resistance to wind, snow and other extreme weather.
• Compatible with standard solar panel frames (30mm, 35mm, 40mm) and supports both vertical and landscape mounting, adapting to different roof space needs.
• Streamlined system configuration of the Flat Roof Solar Ballast Mounting System reduces on-site assembly complexity, shortening construction cycles and lowering labor costs.

Structural Materials & Durability Performance

• Main structural components are made of hot-dip galvanized Q235 steel, featuring excellent load-bearing capacity and mechanical toughness.
• Galvanized coating thickness reaches over 60μm, forming a dense protective layer to resist corrosion, rust and atmospheric erosion in complex environments.
• Aluminum clamps adopt ≥15μm anodized surface treatment, effectively improving weather resistance and anti-aging performance.
• All connecting parts use high-quality stainless steel fasteners, ensuring firm connection and avoiding loosening or rusting over long-term use.
• The entire system has passed strict performance tests, with wind load resistance up to 60m/s and snow load capacity up to 1.4kN/m².
• Complies with SGS, CE, TUV international certification standards, fully meeting the quality and safety requirements of global solar projects.

Project Application & Practical Value

• Widely applicable to flat roof solar installations of commercial buildings, factories, warehouses, residential communities and large-scale PV power stations.
• Ideal for solar retrofitting projects where roof penetration is prohibited or restricted by property management.
• Suitable for MW and GW-level solar farms across Asia, Europe, the Middle East, North America and South America.
• Provides a cost-effective solution for project owners, installers and brand operators, balancing performance, cost and installation efficiency.
• Effectively protects roof waterproof integrity, reducing the risk of water leakage and subsequent maintenance costs.
• Adapts to diverse climate zones, Flat Roof Solar Ballast Mounting System can ensure stable operation in high-temperature, high-humidity, high-wind and heavy-snow regions.

System Customization & Technical Support

• Topfencesolar’s professional engineering team conducts on-site investigation and analysis of flat roofs, providing customized system layout plans.
• Based on the project’s geographic location, we calculate the optimal installation angle to maximize solar energy absorption and power generation efficiency.
• Carry out detailed simulation and calculation of wind load, snow load and seismic resistance to ensure the system’s safety and reliability.
• Provide complete system design drawings, component lists and installation guidelines to ensure smooth project implementation.
• Support system customization according to roof size, panel type and project power requirements, meeting unique project needs.

Manufacturing Strength & Service Guarantee

• Founded in 2008, Topfencesolar has over 20 years of experience in solar mounting system R&D, production and project implementation.
• Equipped with a complete set of advanced production equipment, including cold roll forming machines, laser cutting machines, automatic galvanizing lines and precision welding equipment.
• Strict quality control system runs through the entire production process, from raw material selection to finished product delivery, ensuring system performance and consistency.
• Rich global project experience, including Japan’s 2.8MW ground mounting system, Tokyo flat roof solar installations and other large-scale projects.
• Provide one-stop service from system design, production, logistics to after-sales support, solving all problems for customers in the whole project cycle.

Key Technical Specifications

• Brand: Topfencesolar
• Product: Flat Roof Solar Ballast Mounting System
• Main Material: Hot-dip galvanized Q235 Steel
• Mounting Type: Non-penetrating, Ballast Weighted
• Surface Treatment: Hot-dip galvanizing ≥60μm
• Wind Load Resistance: Up to 60m/s
• Snow Load Capacity: Up to 1.4kN/m²
• Panel Compatibility: 30mm, 35mm, 40mm frame
• Certifications: SGS, CE, TUV

Customer FAQ

• Q: What is the core advantage of this mounting system?
  A: It is an integrated system specially designed for flat roofs, with non-penetrating ballast fixation, ensuring roof safety and installation efficiency.
• Q: Is this Flat Roof Solar Ballast Mounting System suitable for all flat roofs?
  A: Yes, our engineering team will customize the layout according to your roof size and conditions, ensuring perfect adaptation.
• Q: How to ensure the stability of the system?
  A: Through scientific ballast design, high-strength Q235 steel components and uniform force distribution, the system maintains high stability in extreme weather.
• Q: Can you provide technical support for the project?
  A: Yes, we offer full technical support including layout design, load calculation, installation guidance and after-sales maintenance.
• Q: What materials are used in the system?
  A: Hot-dip galvanized Q235 steel, anodized aluminum clamps and stainless steel fasteners, ensuring long-term durability.
• Q: Does the system support different panel orientations?
  A: Yes, it supports both vertical and landscape mounting, flexibly adapting to different roof space and power generation needs.
• Q: Is this Flat Roof Solar Ballast Mounting System easy to maintain?
  A: Yes, the system has high durability and low maintenance requirements, reducing long-term operating costs.
• Q: Are you a direct manufacturer?
  A: Yes, Topfencesolar is an integrated manufacturer with independent R&D, production and after-sales capabilities, providing factory-direct prices and services.
